OSH Park
Shared projects

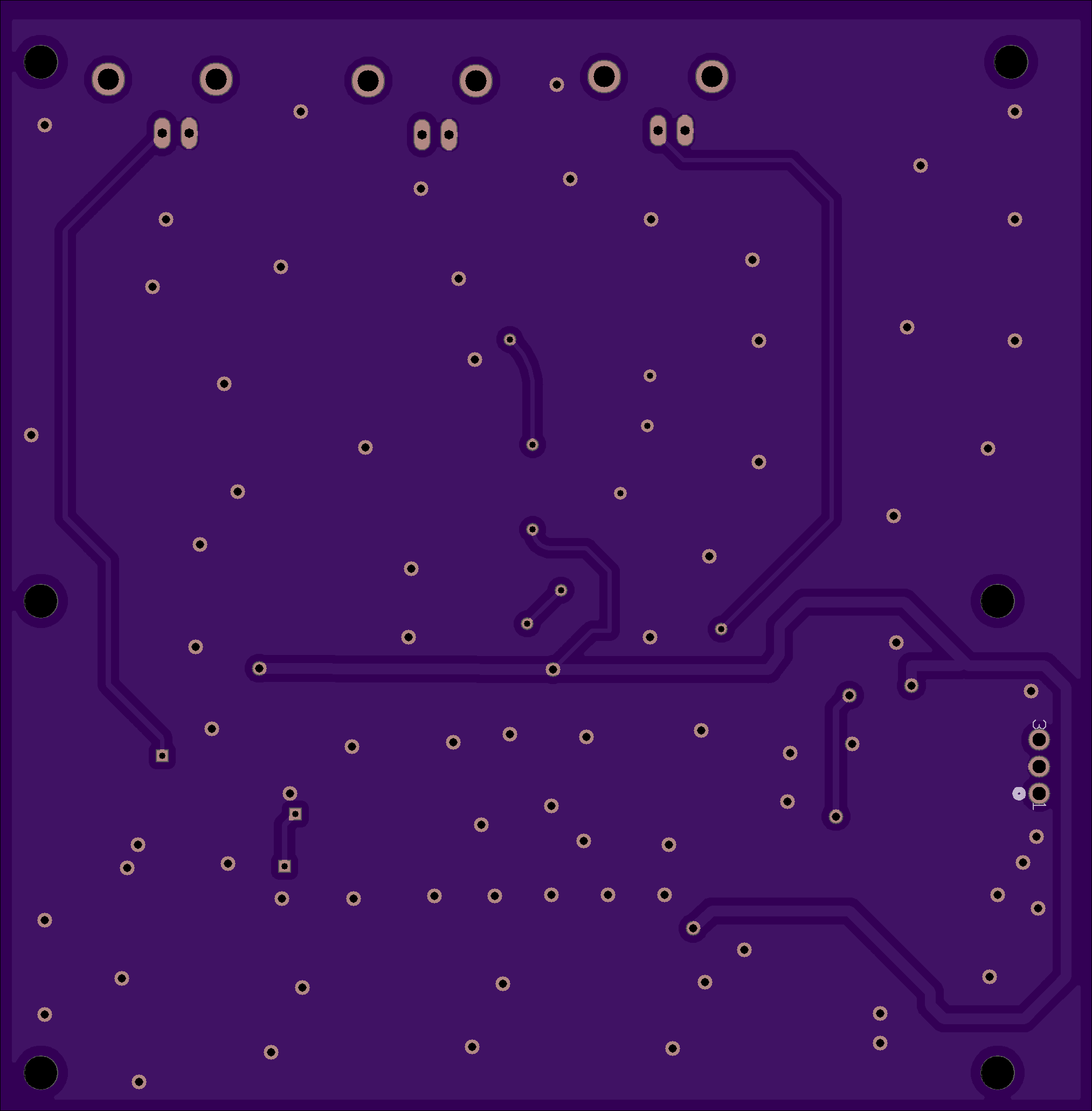

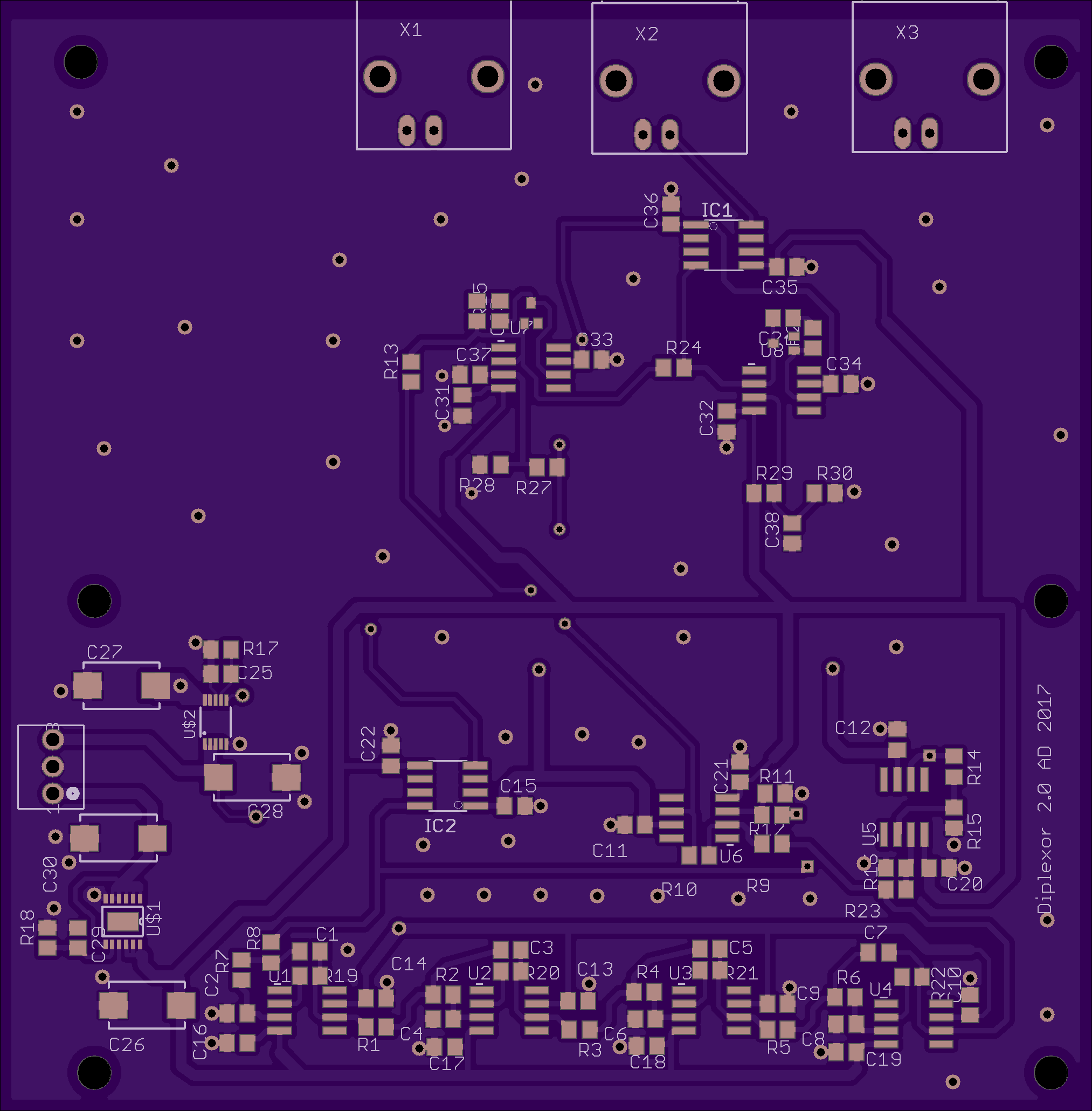

Diplexor 2.0
by
dewan.
2
layer board of
4.05x4.12
inches
(102.90x104.65
mm).
Shared on
April 21st, 2017 17:20.
Pockells Cell diplexor

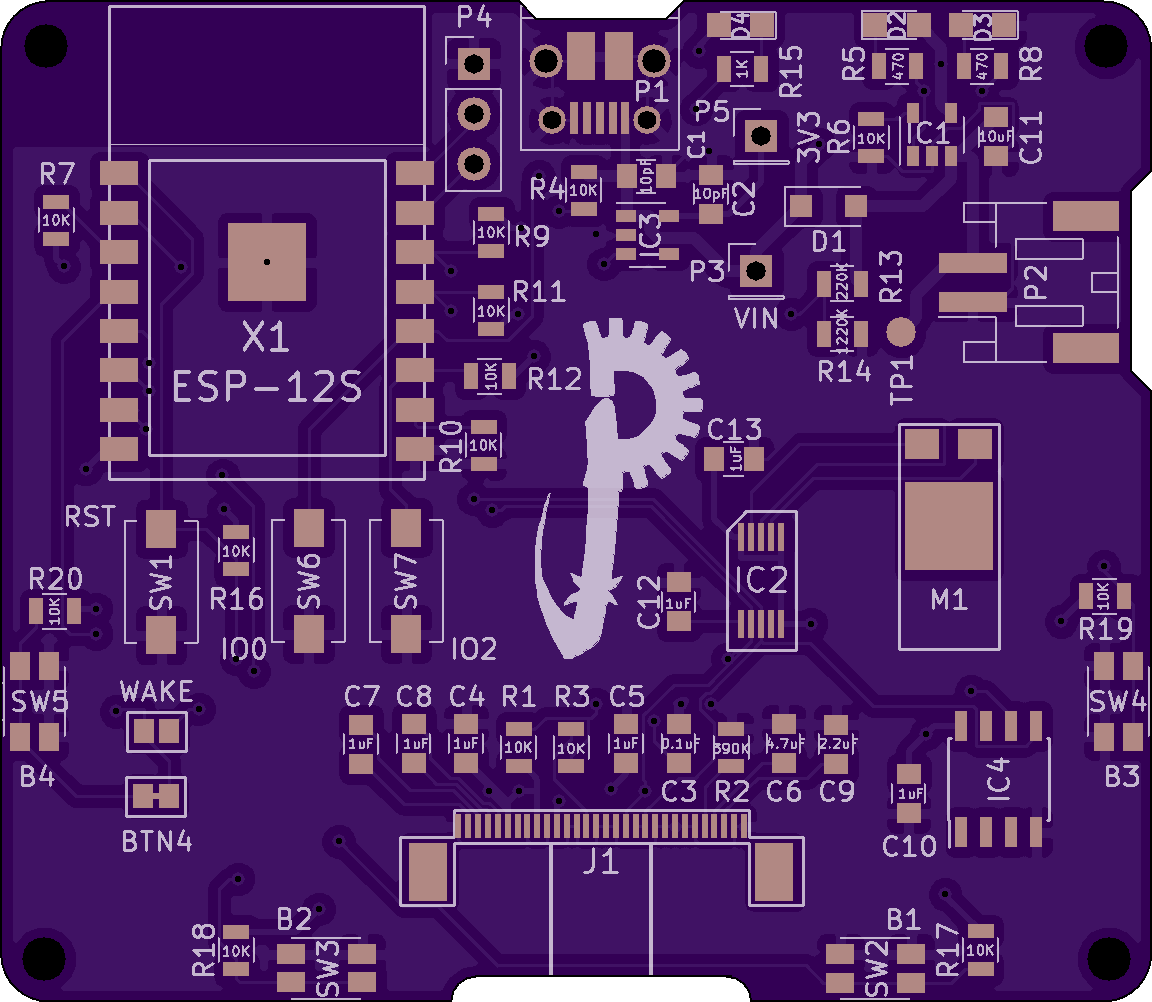

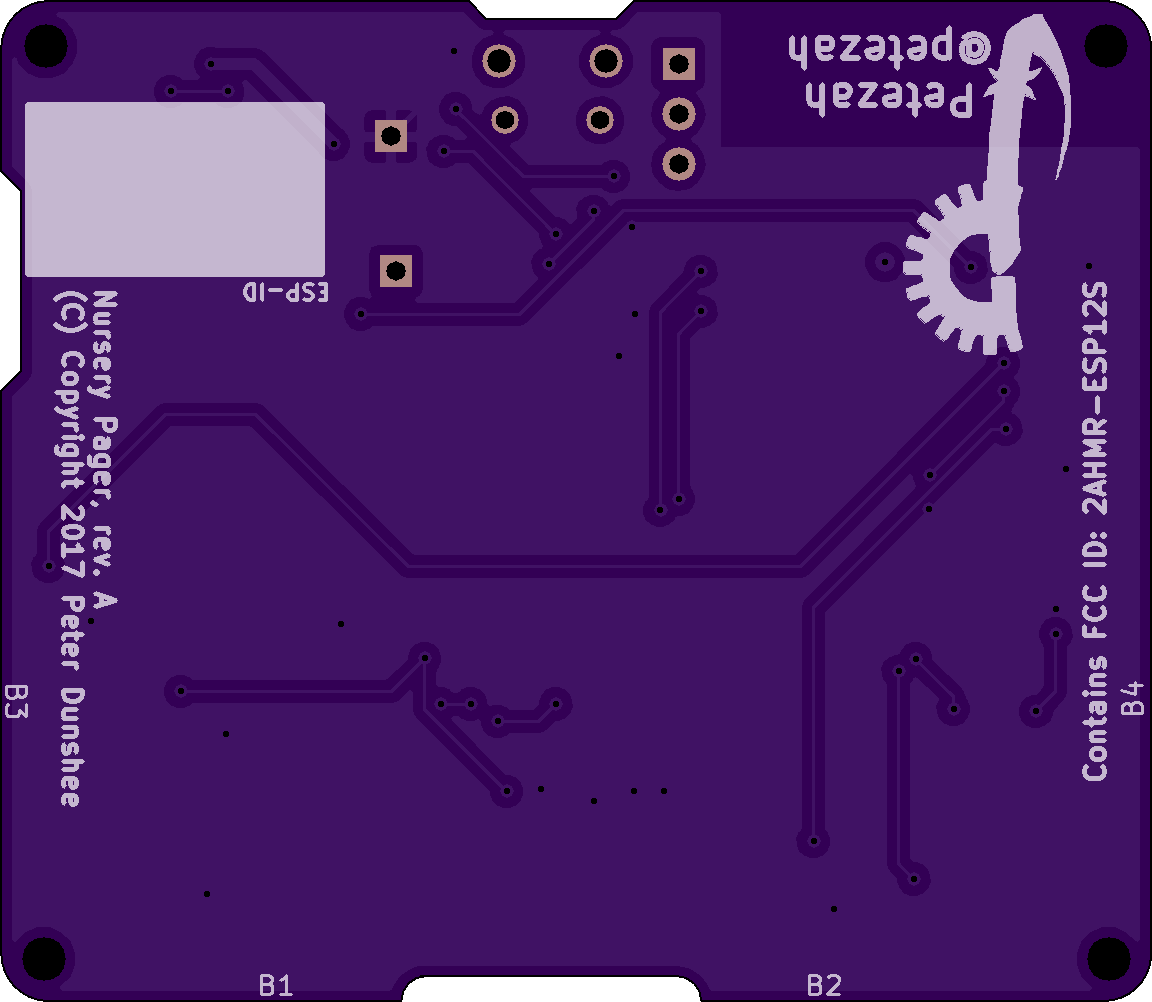

NurseryPager-Hardware, rev. A
by
Petezah.
2
layer board of
2.30x2.00
inches
(58.52x50.90
mm).
Shared on
April 21st, 2017 16:29.
Description
Prototype PCB layout for a pager unit designed to operate on an existing WiFi infrastructure. It has a number of features designed for possible future expansion, to meet whatever requirements may arise during testing.
- OLED screen (0.96" OLED display with FPC connector, from BuyDisplay.com)
- DRV2605L haptic motor driver (and SMT haptic motor)
- ATECC508A crypto-authentication device
- Four soft-touch buttons intented for user interface operation
- Two soft-touch buttons intended for development and testing purposes
- Reset button
- JST connector for a rechargeable LiPo battery
- Micro USB connector for battery charging
NB: The ZIF connector (J1) is reversed in rev. A and requires some kind of mitigation, or an OLED module whose pin 1 is on the left-hand side. My OLED module’s pin 30 is on the left; there may be others that are not like this.
Bill of Materials
| Ref | Qty | Value |
|---|---|---|
| C7 C8 C4 C5 C10 C12 C13 | 7 | 1uF |
| C9 | 1 | 2.2uF |
| C6 | 1 | 4.7uF |
| C3 | 1 | 0.1uF |
| C1 C2 | 2 | 10pF |
| C11 | 1 | 10uF |
| D1 | 1 | MBR120 |
| D2 | 1 | ORANGE |
| D4 | 1 | RED |
| D3 | 1 | GREEN |
| IC2 | 1 | DRV2605L |
| IC3 | 1 | AP2112K-3.3 |
| IC1 | 1 | MCP73831 |
| IC4 | 1 | ATECC508A |
| J1 | 1 | OLED-0.96W** |
| M1 | 1 | Z4FC1B1301781 |
| P1 | 1 | 10103594-0001LF |
| P2 | 1 | S2B-PH-SM4-TB |
| R1 R3 R4 R6 R9 R11 R10 R7 R12 R16 R20 R17 R18 R19 | 14 | 10K |
| R2 | 1 | 390K |
| R5 R8 | 2 | 470 |
| R15 | 1 | 1K |
| R13 | 1 | 1220K |
| R14 | 1 | 220K |
| SW1 SW6 SW7 | 3 | EVQ-PE104K |
| SW5 SW2 SW3 SW4 | 4 | EVQ-P7A01P |
| X1 | 1 | ESP-12S |
** OLED-0.96W is 30 pin 0.5mm pitch ZIF connector (bottom contact) from BuyDisplay.com
Smart Switch
by
KD0GLS.
2
layer board of
0.61x0.61
inches
(15.52x15.52
mm).
Shared on
April 21st, 2017 16:11.
Smart Switch

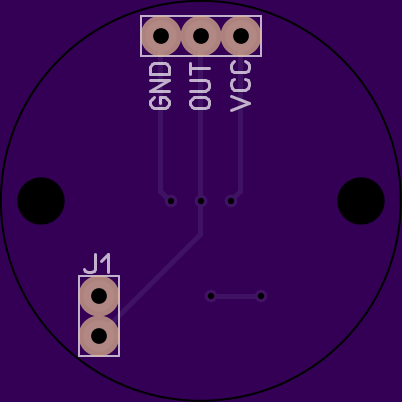

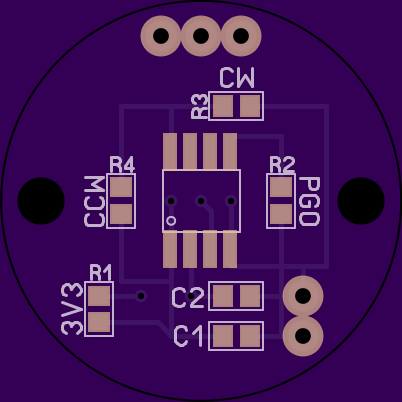

3 wire board for AMS AS5600
by
jerdavis.
2
layer board of
1.01x1.01
inches
(25.55x25.55
mm).
Shared on
April 21st, 2017 15:59.
Designed by SC-Maik for use as a replacement for potentiometers in the building of a Delta Throttle http://deltathrottle.com/forums/viewtopic.php?f=4&t=122&start=10

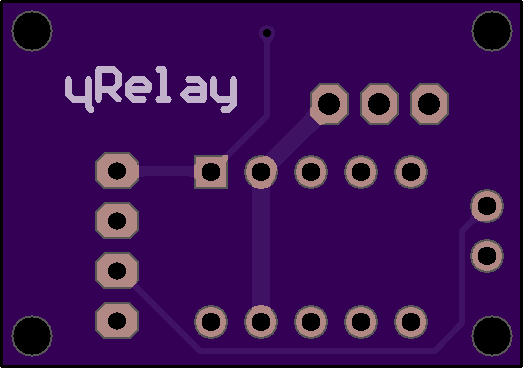

uRelay.zip
by
tubs.
2
layer board of
1.05x0.74
inches
(26.57x18.69
mm).
Shared on
April 21st, 2017 15:47.

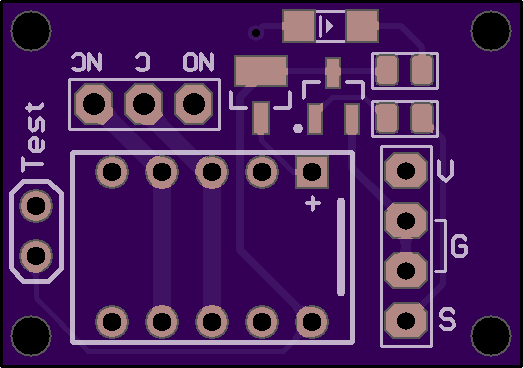

Mini Relay Breakout Board
