STM32F030-Ethernet
by
isthatme.
2
layer board of
2.47x2.11
inches
(62.66x53.67
mm).
Shared on
March 24th, 2017 03:33.
A simple board using an STM32F030R8 with a WIZNet W5500 for ethernet. Has an SD card and several GPIO expanded. Takes 12V in.
All KiCAD source files located on github.
BLF SRK FET v3.4
by
HQ.
2
layer board of
1.82x1.82
inches
(46.20x46.20
mm).
Shared on
March 23rd, 2017 23:31.
LFPAK56 / Triple Channel / ATTiny 13A/85
v3.4.03 HiPower
this board is provided as is and without any warranty, even without the implied warranty of fitness for a particular purpose
BLF SRK FET v3.3
by
HQ.
2
layer board of
1.82x1.82
inches
(46.20x46.20
mm).
Shared on
March 23rd, 2017 23:30.

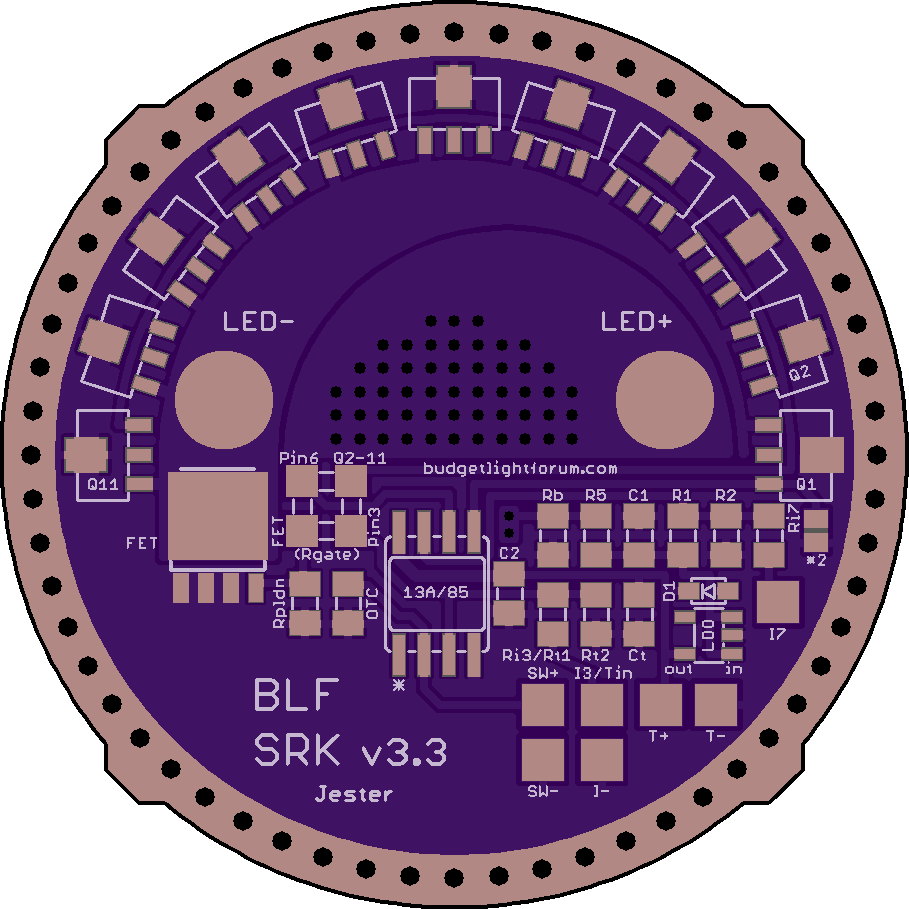

LFPAK56 / Triple Channel / ATTiny 13A/85
v3.3.77 Jester
this board is provided as is and without any warranty, even without the implied warranty of fitness for a particular purpose
Tiny2.brd
by
petay.
2
layer board of
1.19x2.56
inches
(30.15x64.95
mm).
Shared on
March 23rd, 2017 22:38.
if testing works, this may be the one!!!!!1
Tiny2.brd
by
petay.
2
layer board of
1.19x2.56
inches
(30.15x64.95
mm).
Shared on
March 23rd, 2017 21:16.
