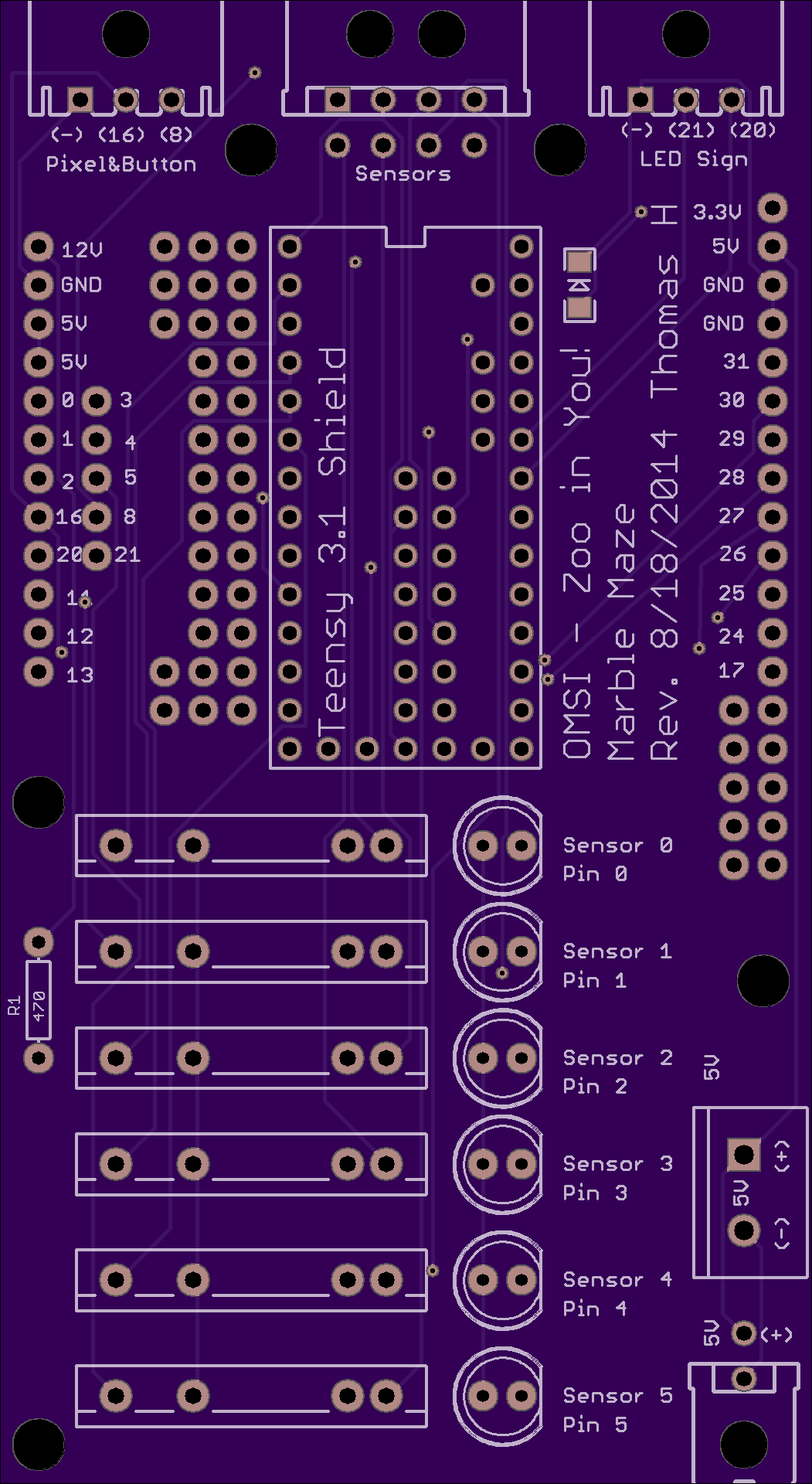

OMSI - zoo in you - marble maze
by
hydronics.
2
layer board of
2.10x3.84
inches
(53.34x97.49
mm).
Shared on
August 19th, 2014 22:00.
teensy shield - marble maze
DS2762
by
davidkurt.
2
layer board of
1.11x1.19
inches
(28.24x30.15
mm).
Shared on
August 19th, 2014 21:21.

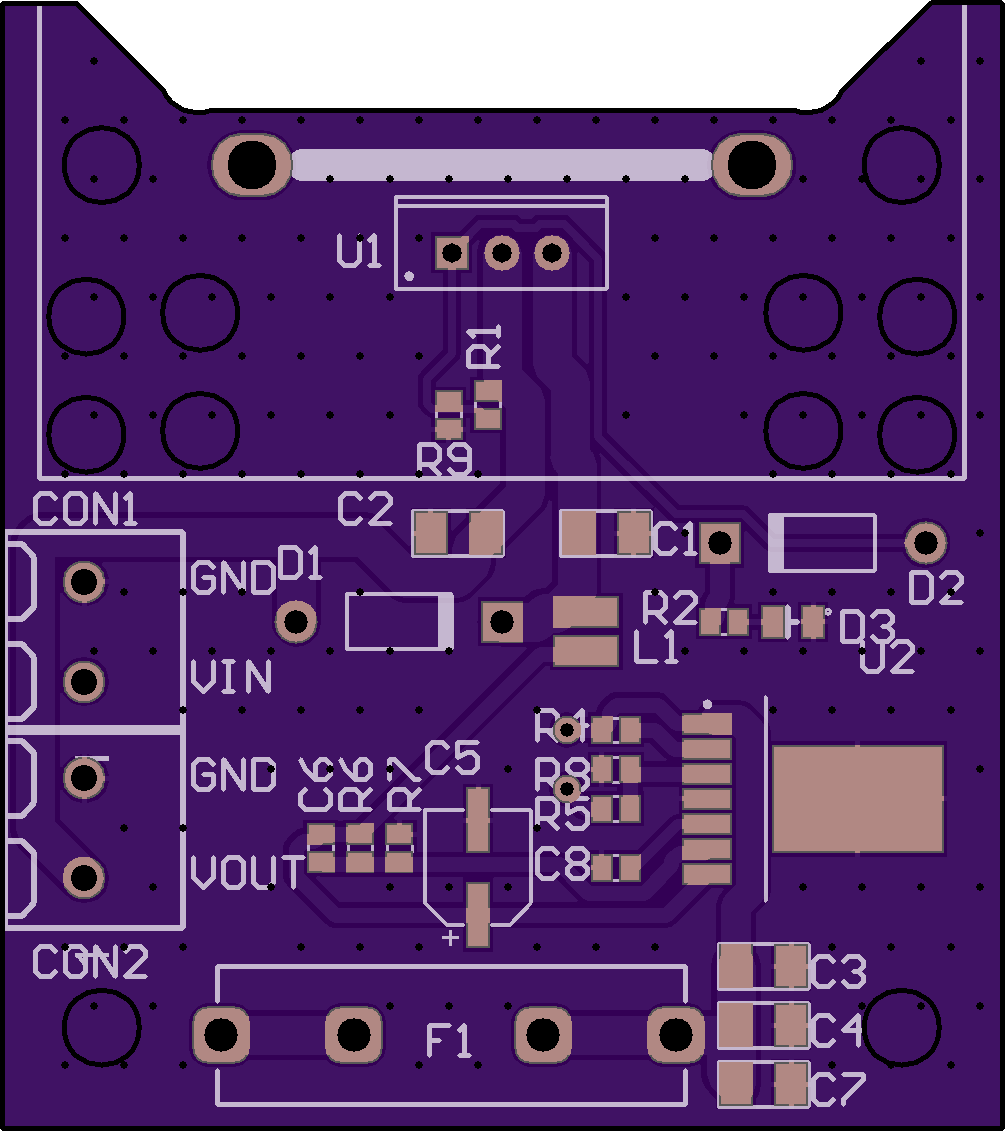

DS2762 Thermocouple Kit
36mm Power Distribution Board Rev1.1
by
TimJC.
2
layer board of
1.42x1.42
inches
(36.02x36.02
mm).
Shared on
August 19th, 2014 19:35.

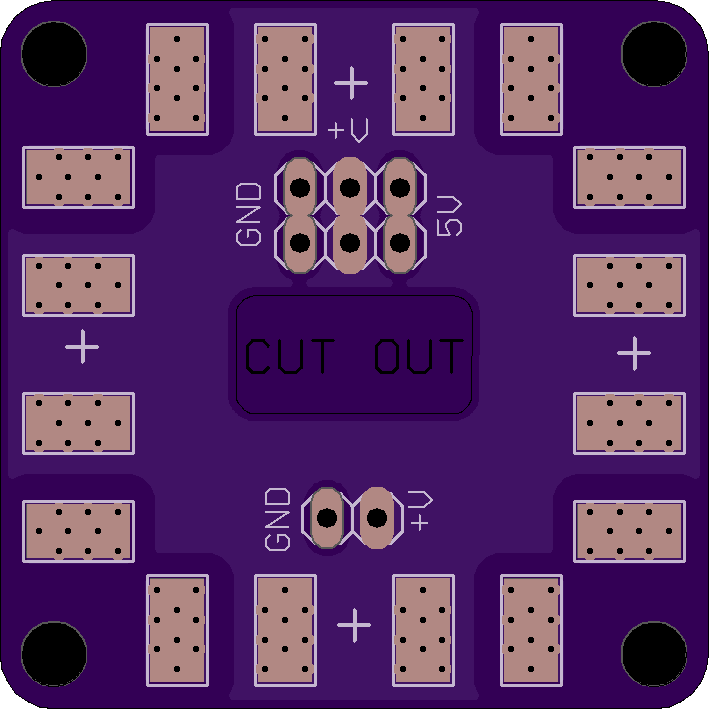

36mm Multirotor PDB
Ground terminals are located in the corners, and high current items (ESCs) should be soldered to the side with the minus symbol (-). The exposed ground pads on the opposite side of the board should only be used for low current draw applications (e.g. video equipment, 3.3/5/6V UBEC, LEDs).
Positive terminals are located on the sides of the board, and high current items (ESCs) should be soldered to the side with the plus symbol (+). The exposed positive pads on the opposite side of the board should only be used for low current draw applications (e.g. video equipment, 3.3/5/6V UBEC, LEDs).
The pin headers are added to allow the connection of a 5V UBEC to the pads above the cut out. The pads above that allow for ground, +V (~12v on 3S) and 5V out to power FPV cameras and/or video transmitter. The ground and +V pads at the bottom of the board are for supplying battery voltage to your flight controller for voltage monitoring (low battery alarm).
30.5mm M3 mounting holes for 36mm flight controllers like Naze32, Flip32, CC3d, etc.
Not compatible with 50mm FCs, like KK2.
For an option with less exposed solder pads, please see revision 2.1.
ispogo-landing
by
Kingswood.
2
layer board of
1.12x0.92
inches
(28.35x23.27
mm).
Shared on
August 19th, 2014 14:40.
Landing pattern for ISP single in line 6-pin pogo adapter.
Not very useful except to show the minimal size of the pogo landing pads (7.5x1.25 mm). Two vias make contact with the longer power pins and are used for alignment and orientation.
powersupply2
by
martinlk.
2
layer board of
2.01x2.26
inches
(51.05x57.45
mm).
Shared on
August 19th, 2014 14:27.
powersupply2 for rf amp
