Shared projects
ispogo
by
Kingswood.
2
layer board of
1.06x0.39
inches
(26.90x9.93
mm).
Shared on
August 19th, 2014 14:22.
ISP single in line 6-pin pogo adapter for AVRs.
This updated version fixes a drill size issue and puts pin numbers on the silkscreen. It also makes it clearer that pins 2 and 6 should be slightly longer so as to make contact first. These two pins (VCC and GND) hit the alignment vias on the target board.
MPU-6050 v1.1
by
rwinscot.
2
layer board of
0.97x0.97
inches
(24.51x24.51
mm).
Shared on
August 19th, 2014 12:40.
36mm Power Distribution Board Rev2.1
by
TimJC.
2
layer board of
1.42x1.42
inches
(36.02x36.02
mm).
Shared on
August 19th, 2014 12:32.

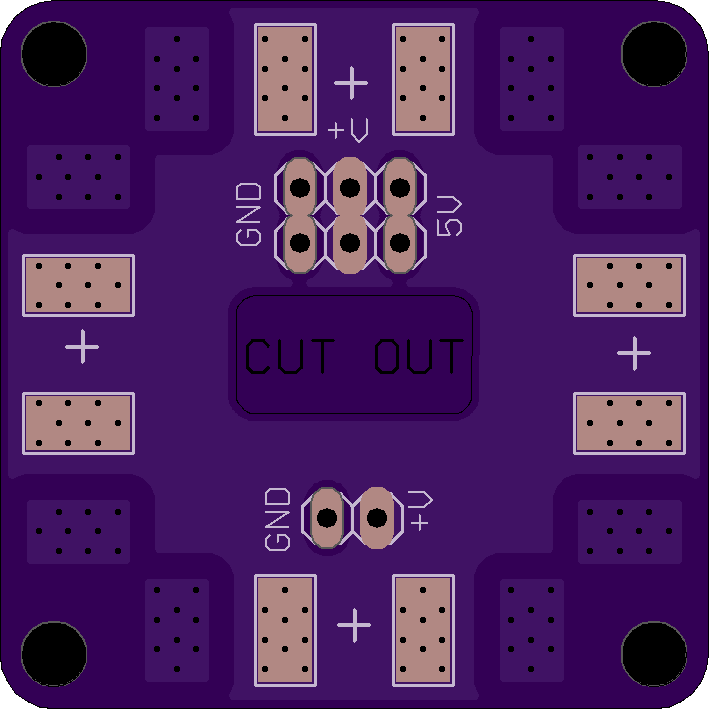

36mm Multirotor PDB
30.5mm M3 mounting holes for 36mm flight controllers like Naze32, Flip32, CC3d, etc.
Not compatible with 50mm FCs, like KK2.
The pin headers are added to allow the connection of a 5V UBEC to the pads above the cut out. The pads above that allow for ground, +V (~12v on 3S) and 5V out to power FPV cameras and/or video transmitter. The ground and +V pads at the bottom of the board are for supplying battery voltage to your flight controller for voltage monitoring (low battery alarm).
For an option with more exposed solder pads, please see revision 1.1.

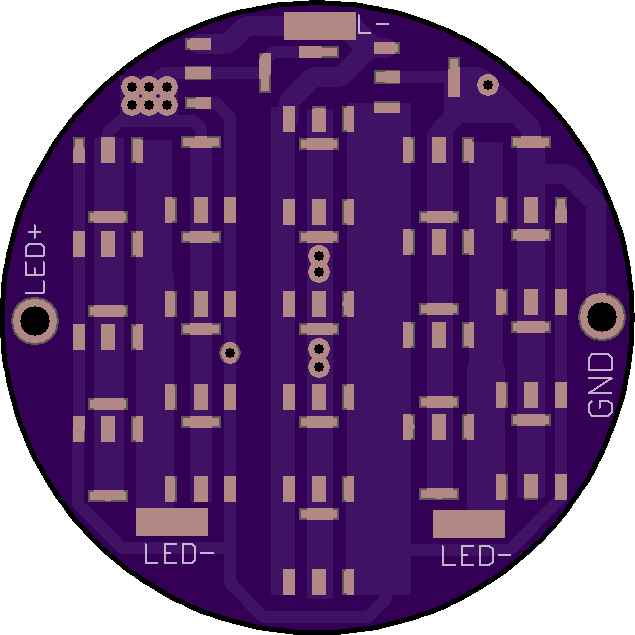

3x3A Zener Modified MT-G2 Driver
by
Mattaus.
2
layer board of
1.27x1.27
inches
(32.26x32.26
mm).
Shared on
August 19th, 2014 12:27.
32mm, 24xAMC Linear Regulator, Zener modified. Triple 3A LED- connection.
gyrocam gopro
by
Totopio.
2
layer board of
1.70x2.50
inches
(43.18x63.50
mm).
Shared on
August 19th, 2014 08:58.
A Horizon-Stabilized Video Camera For Motorcycles
