OSH Park
Shared projects
uUSB RA to Vert Adapter for D-DAQ
by
Digital-Corpus.
2
layer board of
0.54x0.41
inches
(13.61x10.52
mm).
Shared on
August 9th, 2014 09:09.
Used for Auto-Switch between ICSP & Analog Inputs
D-DAQ - MIPS 14-pin JTAG Adapter
by
Digital-Corpus.
2
layer board of
1.09x0.83
inches
(27.61x21.01
mm).
Shared on
August 9th, 2014 09:03.
http://hackaday.io/project/964/log/6053
D-DAQ - ARM 20-pin JTAG Adapter
by
Digital-Corpus.
2
layer board of
1.17x0.83
inches
(29.62x21.01
mm).
Shared on
August 9th, 2014 09:03.
http://hackaday.io/project/964/log/6053
.
by
Helios-.
2
layer board of
0.76x0.87
inches
(19.38x22.00
mm).
Shared on
August 9th, 2014 08:01.

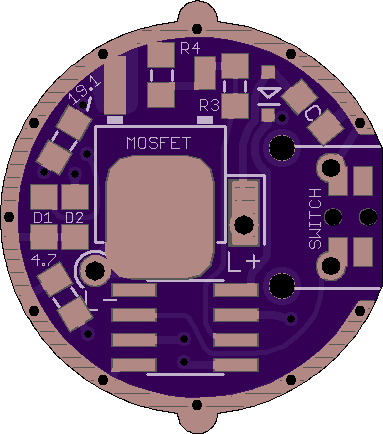

RocheF6 DD v1.1. Capacitor moved to between batt neg / batt pos.
Drills and vias aren’t rendering.
They are present in oshpark’s preview of the drill file as well as in my gerber viewer.
Toykeeper has created firmware for this driver.
For personal, non commercial use.
Improper use may cause batteries to “rapidly disassemble”.
This device is known in the state of california to cause addiction, insomnia, photosensitivity, delusions of grandeur, thirst for blood. Please do not opperate within the state of california.
Little Wire
by
2
layer board of
1.56x0.66
inches
(39.52x16.84
mm).
Shared on
August 9th, 2014 07:54.
open source.
