ADAU1442/5/6 Breakout v0.3

by sirkha.

2 layer board of 1.10x3.20 inches (28.04x81.38 mm).
Shared on August 9th, 2014 07:03.

This is a breakout of the ADAU1442/5/6.

The board breaks out:

  • Digital Audio IO
  • I2C/SPI
  • All 12 GPIO pins
  • CLKOUT
  • RESET

It implements these circuits on board:

  • Header for selecting CLKMODE, I2C ADD, PLL Mode
  • PLL Filter
  • 1.8V Regulator
  • Crystal Circuit

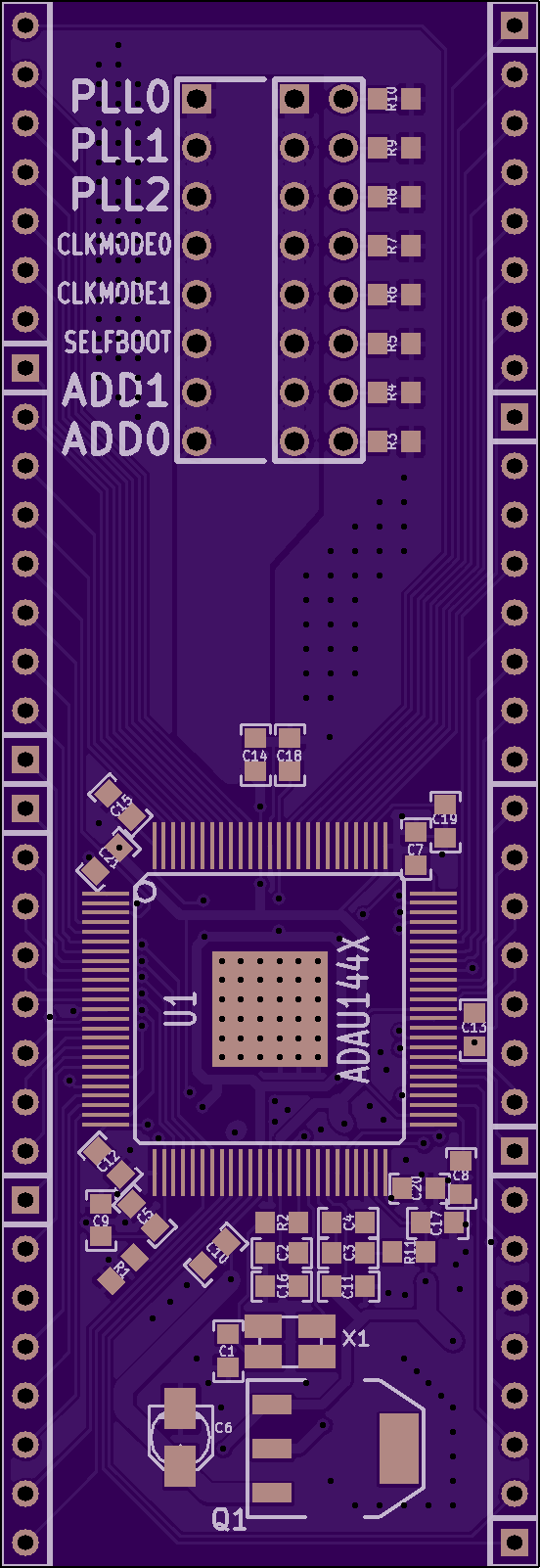

Top Bottom

v0.3 Changes

  • Complete Re-factor
  • Lengthened leads for easier hand soldering
  • Slimmer to actually fit on breadboard
  • Addressing can be done with jumpers or DIP switch
  • Implemented the thermal pad

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

T2313 Attiny Fusebit Hv Doctor V3

by JohnNoob.

2 layer board of 2.04x2.30 inches (51.77x58.42 mm).
Shared on August 9th, 2014 06:08.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

A Ttiny Remote

by

2 layer board of 1.95x1.07 inches (49.48x27.18 mm).
Shared on August 9th, 2014 06:08.

open source attiny remote, please google it…

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

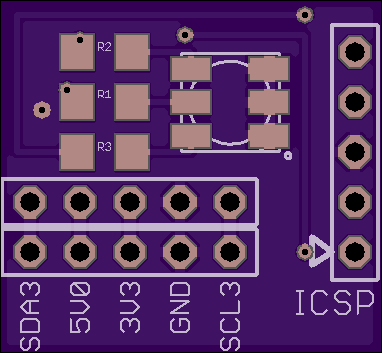

I2C RGB LED

by myq.

2 layer board of 0.76x0.71 inches (19.38x17.91 mm).
Shared on August 9th, 2014 05:10.

PWM control of an RGB LED over I2C using a PIC16LF1503

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

MCP9801 I2C Temperature Sensor

by myq.

2 layer board of 0.51x0.65 inches (13.03x16.51 mm).
Shared on August 9th, 2014 05:10.

Includes jumpers for addressing
