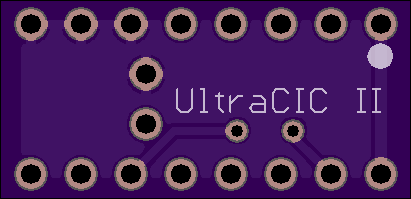

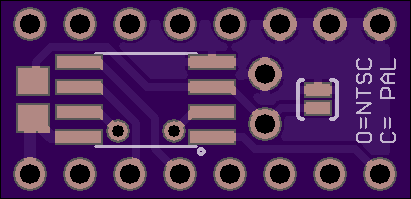

N64 UltraCIC II
by
blecky.
2
layer board of
0.82x0.40
inches
(20.83x10.11
mm).
Shared on
March 21st, 2017 11:17.
The resistor should be a 20K 0805 SMD, and the jumper (two middle pins) should be a right angled 2 pin connector if you want selectability, otherwise just bridge the small solder pads.
board_sensor.zip
by
night_ghost.
2
layer board of
0.55x0.46
inches
(13.87x11.63
mm).
Shared on
March 21st, 2017 06:16.
Current (up to 30A) and Voltage sensor on ACS712
This board designed for transplanting parts from a such board - https://ru.aliexpress.com/item/SMD-Inductor-Kit-CDRH104R-10uH-to-330uH-10x10x4mm-10values-10pcs-100pcs-SMD-Power-Inductor-Assorted-Sample/998611357.html?spm=2114.13010608.0.0.z0Cf6I, plus 2 voltage divider resistors. It is made all by a gas lighter and a soldering iron in 15 minutes.

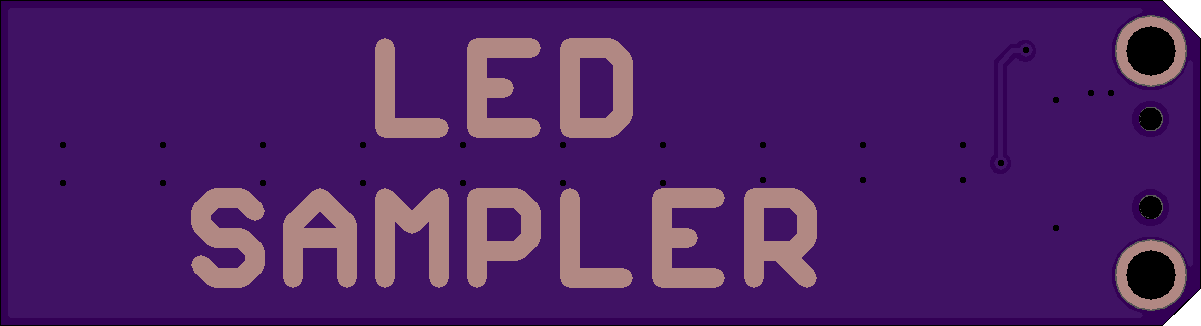

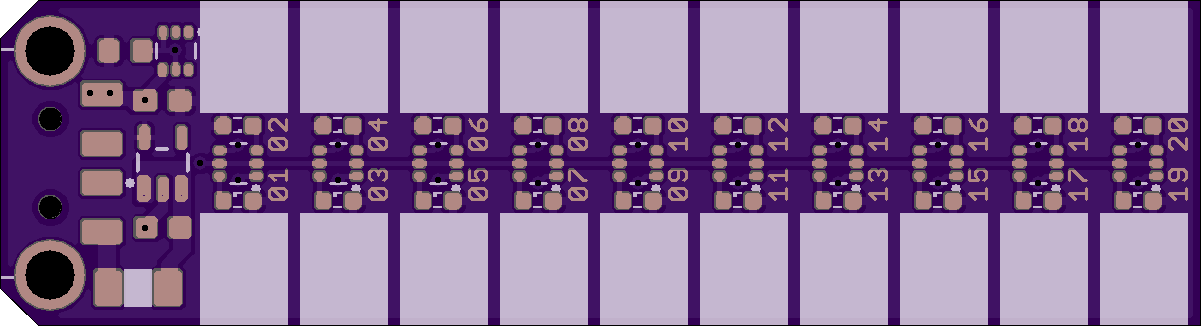

led-sampler-cc
by
dword1511.
2
layer board of
2.40x0.65
inches
(60.99x16.54
mm).
Shared on
March 21st, 2017 01:14.
LED sampler with constant-current drive. Current mirrors ensure each LED is driven by (roughly) the same current. Not for beginners (0603, SOT-363).
Uses Bel 0ZCJ0050AF2E PTC fuse, AP2112-3.3 LDO (for setting reference current precisely, but also supplies the LEDs), 330R resistor sets current to around 5mA per LED, Diodes DMN32D4SDW dual N-MOS (needs sorting) in SOT-363.

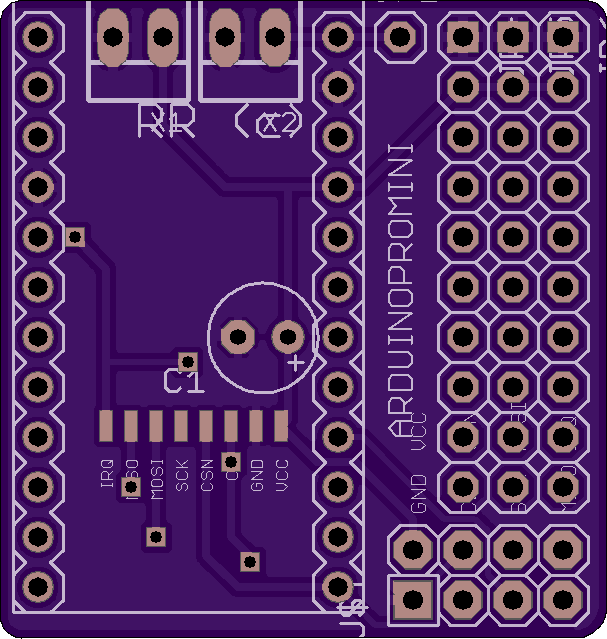

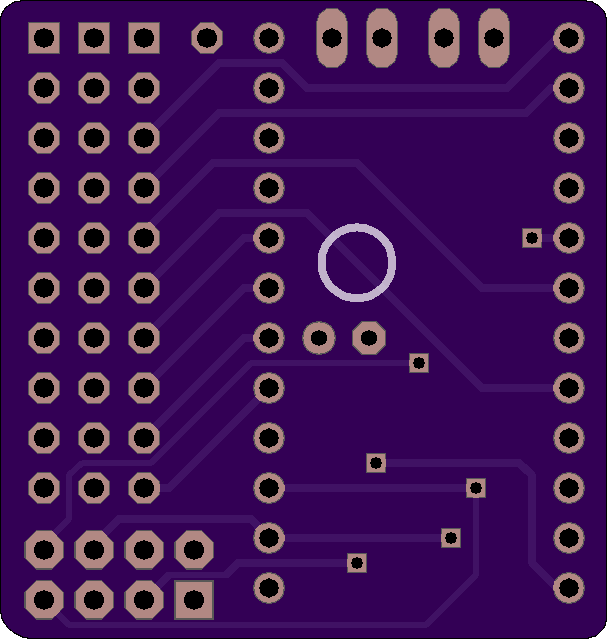

Arduino Pro Mini SMD or standard NRF24L01+, Prototype area for sensors v2
by
qqlapraline.
2
layer board of
1.21x1.27
inches
(30.81x32.39
mm).
Shared on
March 20th, 2017 21:13.
Adapter for Arduino Pro mini and SMD or standard version of NRF24L01+ including prototyping area. For battery based or standard systems.
Adaptateur SmartPWM V2
by
Suyatox.
2
layer board of
0.72x3.31
inches
(18.16x84.15
mm).
Shared on
March 20th, 2017 20:33.
