nhrc 7 0319 b.zip

2 layer board of 1.03x1.23 inches (26.19x31.27 mm).
Shared on March 19th, 2017 14:59.

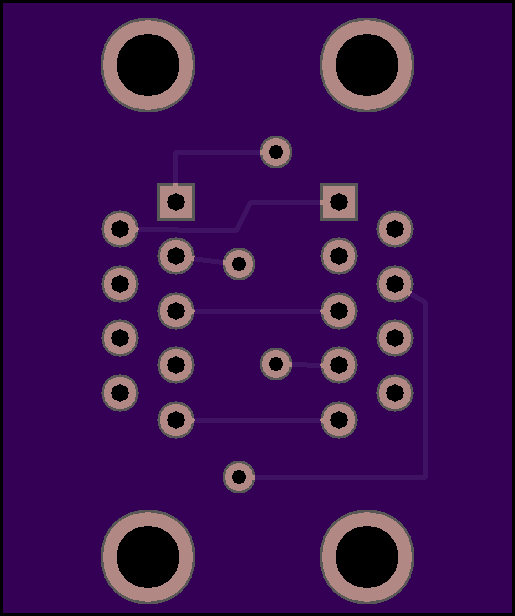

nhrc-7 to packet connector

Order board. Download. Permalink. Embed order link.

Drumlight_PCB_12032017

2 layer board of 0.70x1.70 inches (17.88x43.28 mm).
Shared on March 19th, 2017 13:28.

Piezo activated LED’s for Arduino Nano

Order board. Download. Permalink. Embed order link.

Sonde d'ambiance V1.0 4 circuits (ok)

2 layer board of 1.91x1.59 inches (48.39x40.26 mm).
Shared on March 19th, 2017 08:59.

Sonde d'ambiance pour Domoticz.

Forum: https://easydomoticz.com/forum/viewtopic.php?f=7&t=1956.

Le sketch : https://github.com/vil1driver/ATtiny85/ … master.zip

Matériel: - CMS 1206 Résistance 4,7 K ohms - CMS 1206 Condensateur 10uF - Microcontrôleur Attiny85-P - Socket pour Attiny85 - Émetteur RF 433 Mhz - Sonde DS18B20

Order board. Download. Permalink. Embed order link.

DCDCVarBuckConverter v0.4

2 layer board of 0.81x0.51 inches (20.47x12.85 mm).
Shared on March 19th, 2017 06:30.

BOM:

• U1: TPS560200DBVR
• L1: SRN6045-100M
• C3/C4: 10uF 16V X5R 1206
• C1: 10uF 16V X5R 0805
• C2: 0.1uF 25V X7R 0805
• Variable:
  • VR1: TC33X-2-104E
  • R3: 14K 0603 resistor
• Fixed 5V:
  • R1: 105K 0603 resistor
  • R2: 20K 0603 resistor

Order board. Download. Permalink. Embed order link.

ESP8285.TeensyAddOn.v01

4 layer board of 0.71x0.61 inches (17.96x15.42 mm).
Shared on March 19th, 2017 06:08.

ESP8285 add-on for wifi UART bridge on Serial2 for Teensy 3.2.

Order board. Download. Permalink. Embed order link.
