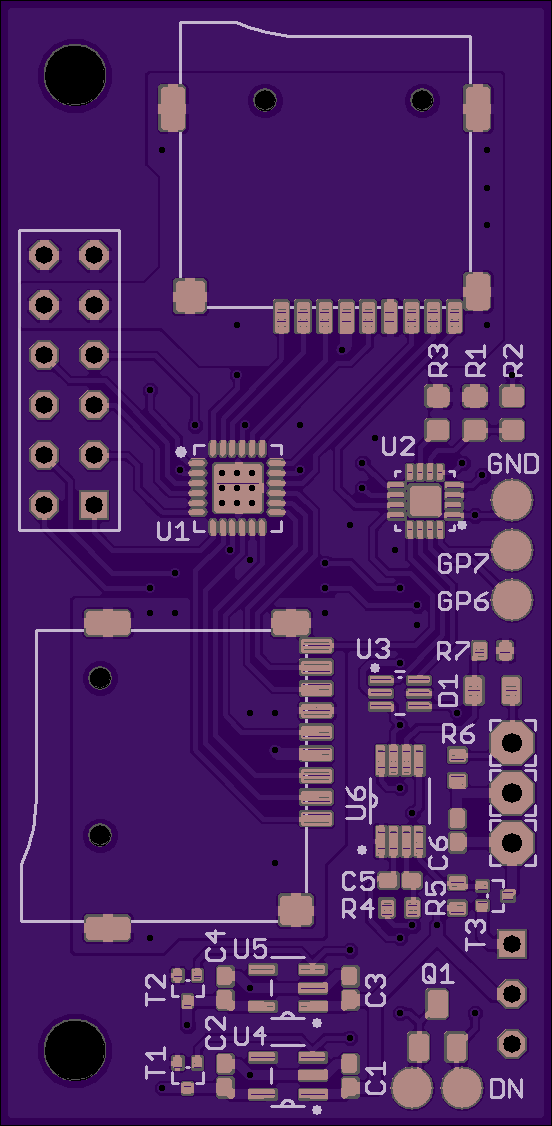

µZed PMOD DualSD/FAN Module v0.4
by
apertus.
4
layer board of
1.10x2.25
inches
(28.02x57.15
mm).
Shared on
August 4th, 2014 04:07.
atmega16 atmega64 ISP adapter
by
hky.
2
layer board of
0.90x0.60
inches
(22.89x15.27
mm).
Shared on
August 4th, 2014 02:59.
atmega16 atmega64 ISP adapter
Aquarium Control v2.5
by
2
layer board of
1.72x1.25
inches
(43.59x31.88
mm).
Shared on
August 3rd, 2014 21:40.
Originally intended to control the lights of an aquarium, this board takes two 3.3V inverted logic inputs and drives two relays for powering up to 1.5A loads (give or take). The board requires 10VDC to 40VDC power to power the relay logic. For more details, read my blog post about the hardware setup.
RasPi PCM3060 Shield
by
jronen.
2
layer board of
1.76x1.76
inches
(44.60x44.60
mm).
Shared on
August 3rd, 2014 20:14.
A raspberry pi shield that provides high quality, 24-bit DAC and ADC at 48KHz.
Schematics can be found at https://github.com/jonronen/geda-stuff/tree/master/audio_shield/pcm3060_rpi
Kernel sources can be found at https://github.com/jonronen/raspi-linux
Based on work by Florian Meier: http://blog.koalo.de/2013/05/i2s-support-for-raspberry-pi.html
5v regulated power supply
by
Leonelf.
2
layer board of
0.63x0.83
inches
(16.05x21.11
mm).
Shared on
August 3rd, 2014 16:58.
…
