OSH Park
Shared projects

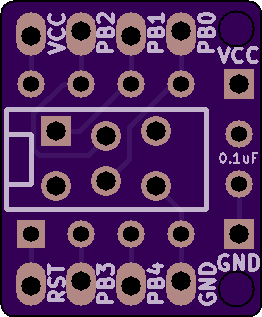

ATTinyX5_Breakout
by
ManiacalLabs.
2
layer board of
0.52x0.63
inches
(13.31x16.10
mm).
Shared on
August 3rd, 2014 04:19.
6 Channel LED Driver
by
AtticusG3.
4
layer board of
2.40x1.55
inches
(60.99x39.37
mm).
Shared on
August 3rd, 2014 03:09.
Alpha prototype stage.
This board uses an onboard Atmega328p to drive 6 N-Channel Mosfets with it’s PWM pins.
D2, D4, A0 and A1 are broken out along with GND 5v and Vin to a 2x5 header designed to run an external switch panel.
ISCP pins are also broken out to allow in-situ programming.
Heatsinking will be required for the Voltage regulator as it’s using an adjustable regulator to regulate from 12v down to 5v.
An LM1117MPX-5.0 fixed regulator can be used instead, leave R9 unpopulated and bridge R10 with a 0R link. C5 and C7 can be replaced with suitable Ceramics, though the datasheet suggests tantalum’s.
Heatsinking maybe required for the MOSFET’s depending on current draw, I suggest soldering them to the underside of the board and heatsinking them to your case, insulate them of course.
BOM
msop-dip
by
voltergeist.
2
layer board of
0.41x0.57
inches
(10.31x14.60
mm).
Shared on
August 2nd, 2014 23:24.
msop10
50pin IDC to Breadboard adapter
by
stefanberndtsson.
2
layer board of
4.85x0.78
inches
(123.14x19.76
mm).
Shared on
August 2nd, 2014 21:02.
Adapter for connecting a 50pin IDC connector to a breadboard with offset so that the breadboard isn’t covered by the ribbon cable

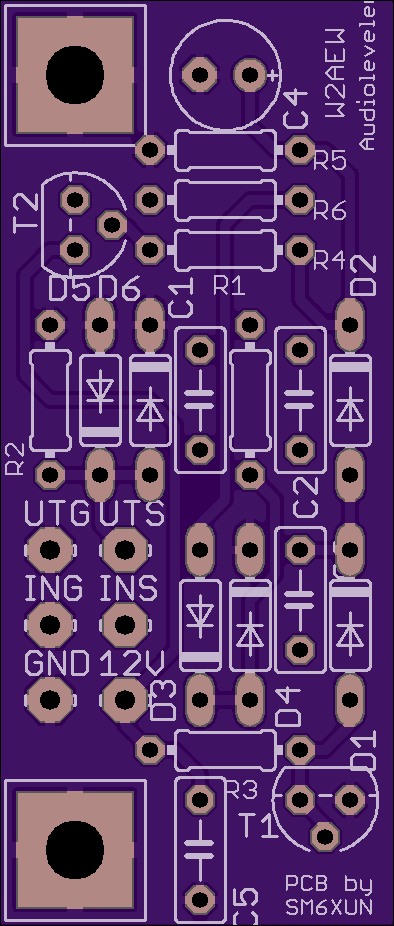

Audioleveler by W2AEW (C4, new value)
by
LRY.
2
layer board of
0.79x1.85
inches
(19.99x46.99
mm).
Shared on
August 2nd, 2014 20:54.
Audio limiter/leveler by W2AEW, checkout his YouTubechannel for more: https://www.youtube.com/channel/UCiqd3GLTluk2s_IBt7p_LjA
