Slot Extender

by brimars.

2 layer board of 1.02x4.02 inches (25.81x102.03 mm).
Shared on April 26th, 2014 12:20.

Slot Extender for CoCo from Jim’s Site (John’s Design)

Visit Jim’s Website for more information.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

16mm 12x7135 Slave

by Mattaus.

2 layer board of 0.64x0.64 inches (16.26x16.26 mm).
Shared on April 26th, 2014 01:12.

12x7135 board designed to be attached on top of 17mm stock drivers. This removes the need to ‘stack’ AMC chips.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Box Proto1

by laen.

2 layer board of 4.30x2.20 inches (109.25x55.88 mm).
Shared on April 25th, 2014 21:36.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

LFSA Seven

by gdelazzari.

2 layer board of 3.54x0.56 inches (90.02x14.30 mm).
Shared on April 25th, 2014 21:34.

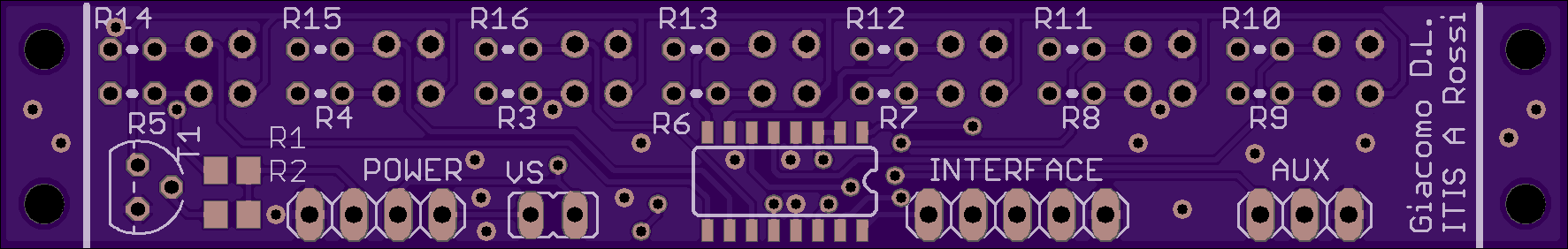

Line Following Sensor Array featuring 7 reflective sensors (RPR-220). For more information check http://gdelazzari.altervista.org/blog/

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

rfm69_adaptor2

by PaulStoffregen.

2 layer board of 1.20x0.70 inches (30.53x17.86 mm).
Shared on April 25th, 2014 21:09.

Connections:

    Teensy 3.x       RFM69
    ------------     ------
    pin 15 (CS)      NSS (Chip Select)
    pin 16           DIO0 (interrupt)
    pin 11 (DOUT)    MOSI
    pin 12 (DIN)     MISO
    pin 13 (SCK)     SCK
    3.3V             3.3V
    GND              GND

Detailed Tutorial: Adding A Low Cost Wireless Packet Radio To A Teensy 3 Microprocessor (PDF)

When using the RadioHead library, edit the Arduino sketch examples to specify pins 15 and 16. For example:

    // Singleton instance of the radio driver
    RH_RF69 rf69(15, 16);

Discussion and more documentation for this adaptor can be found here:

http://forum.pjrc.com/threads/25897-Adapter-board-RFM69W-radio-for-Teensy-3-Also-diagnostic-software

A newer version of this PCB was designed, with the ability to disable the SPI SCK signal (possibly causing RF interference on the RFM69 module), but so far it is untested.

https://www.oshpark.com/shared_projects/fArfKEaE
