Teensy 3.0 To Arduino R3 Shield
by
WarHawk-AVG.
2
layer board of
3.94x2.53
inches
(100.00x64.16
mm).
Shared on
March 11th, 2017 05:33.
Teensy 3.0 To Arduino R3 Shield
2 layer board of 3.94x2.53 inches (100.00x64.16mm). $49.70 for three.
Teensy 3.0 to Arduino R3 breakout
Teensy 3.0 to Arduino R3 breakout Features
Arduino R3 Shield compatible header
All Teensy 3.0 pins accessible
Battery holder for the RTC
micro SD card holder
Reset/Program Button
I2C pullup resistors
external power supply
battery charger circuit
two dc dc converter (CJ1117)
XBee (pro) compatible socket
common nRF24L01(1) module pin header
USB to Serial converter (FT232RL) attached to Teensy Serial3
series resistors for all arduino R3 pins
most parts are from Seeedstudios (new) OPLV1 (for more information: http://www.seeedstudio.com/wiki/Open_parts_library))

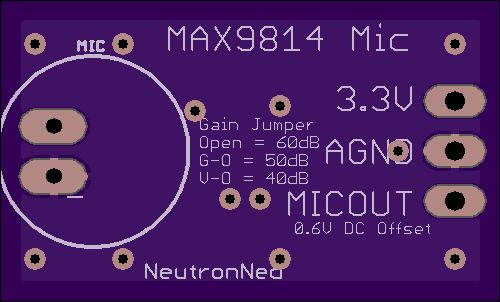

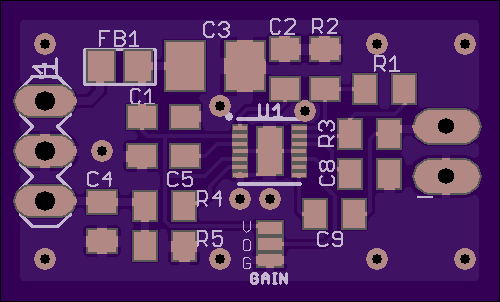

MAX9814 Mic Neutronned.brd
by
NeutronNed.
2
layer board of
1.00x0.60
inches
(25.40x15.29
mm).
Shared on
March 11th, 2017 03:28.
Version 2 - MAX9814 microphone Similar to other MAX9814 microphone designs but intended to interface directly to the Teensy’s 0.6V offset A/D inputs, along with heavier filtering on the power supply to help with noise.

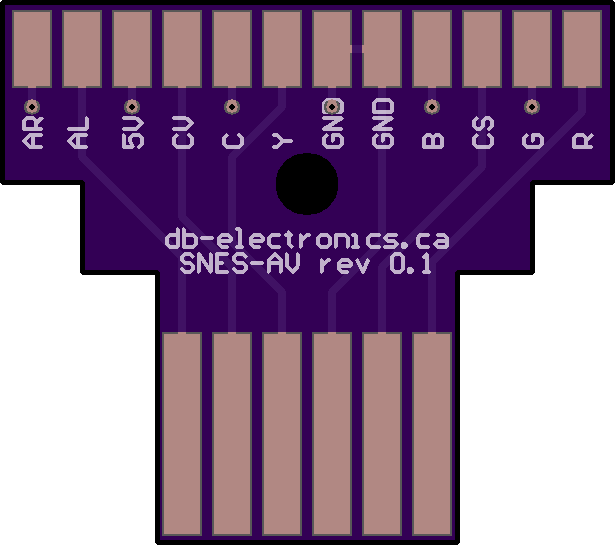

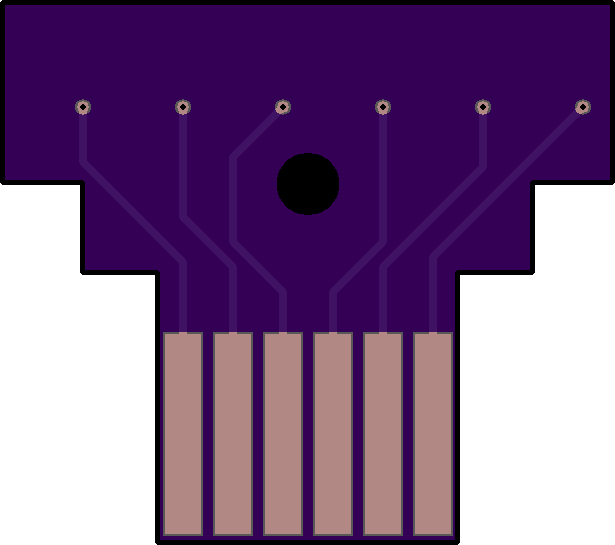

SNES Style AV Multi-out
by
MobiusStripTech.
2
layer board of
1.23x1.09
inches
(31.24x27.69
mm).
Shared on
March 11th, 2017 03:22.
Board for the AV Multi-out of a SNES, N64, or AV Famicom. This can also be used in cases where you want to add a AV Multi-out, such as NESRGB or composite mods for a NES2.

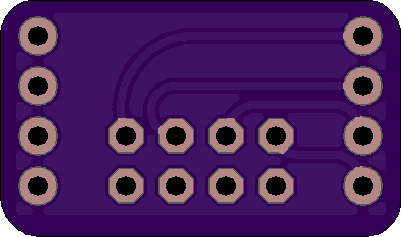

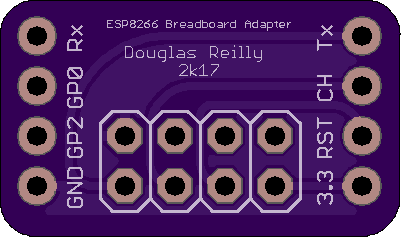

Esp8266 Breakout
by
douglas_reilly.
2
layer board of
0.80x0.47
inches
(20.32x12.01
mm).
Shared on
March 11th, 2017 02:13.

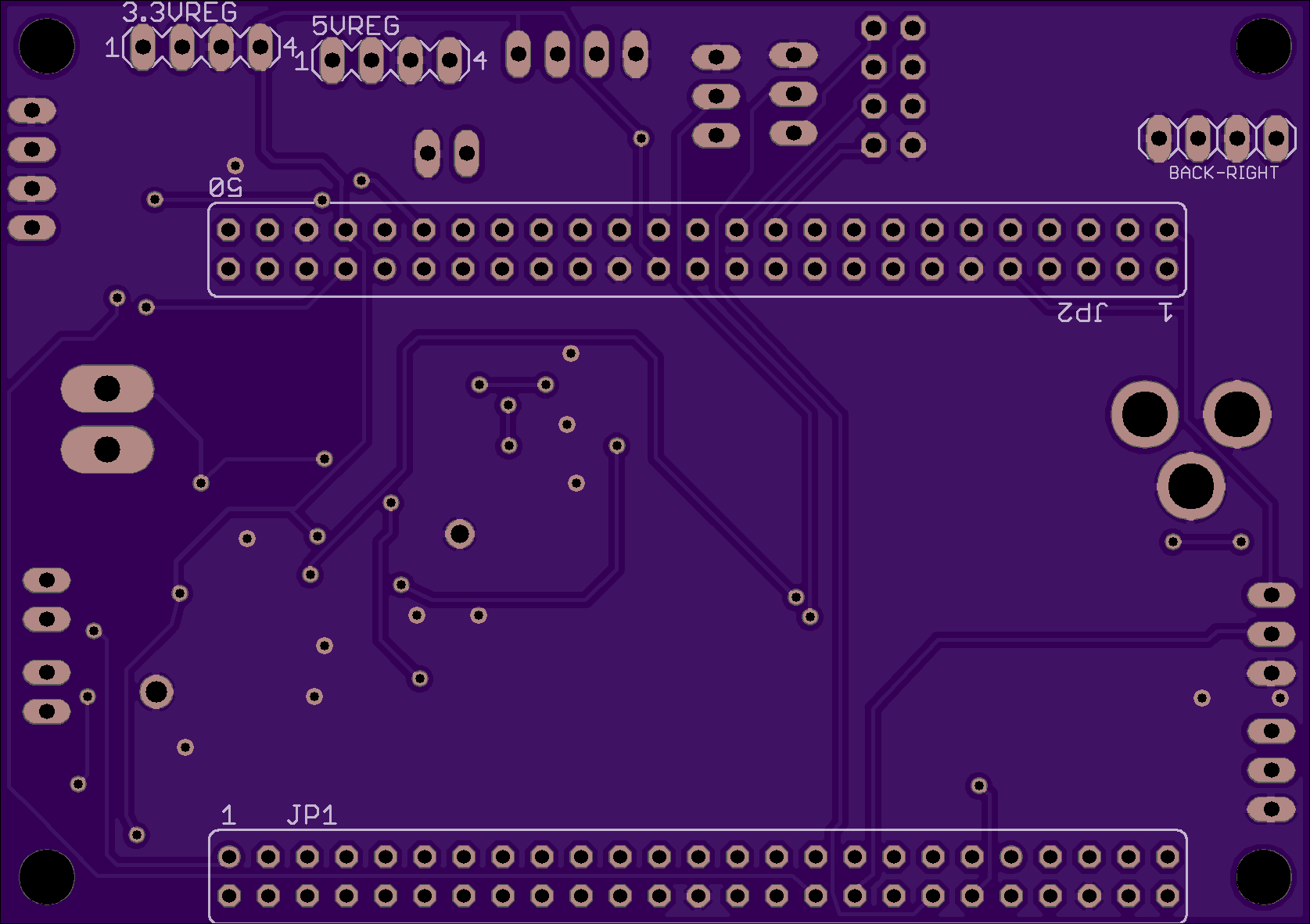

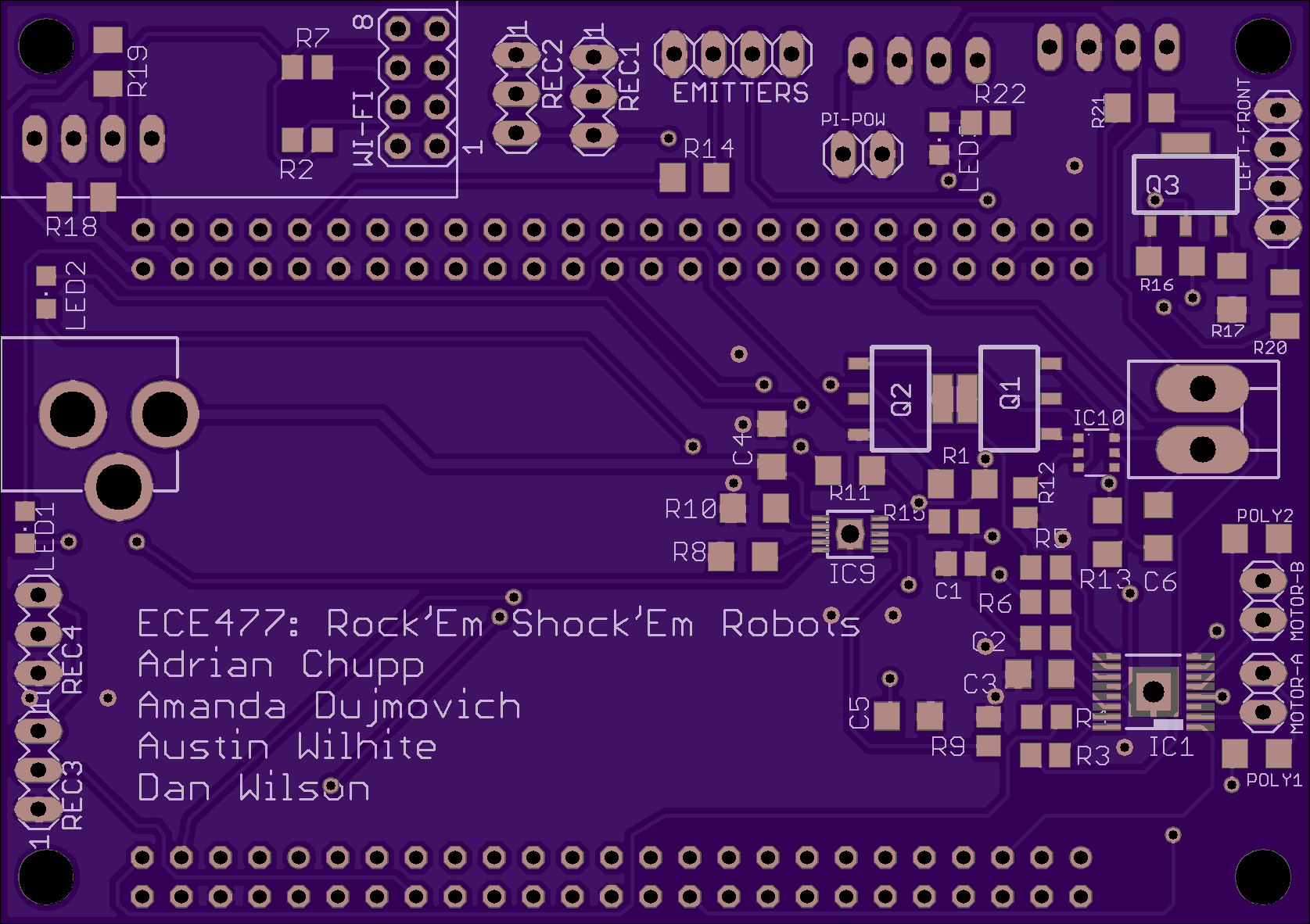

pcb2.brd
by
adujmovi.
2
layer board of
3.35x2.36
inches
(85.01x60.02
mm).
Shared on
March 11th, 2017 00:03.
Final 477 PCB
