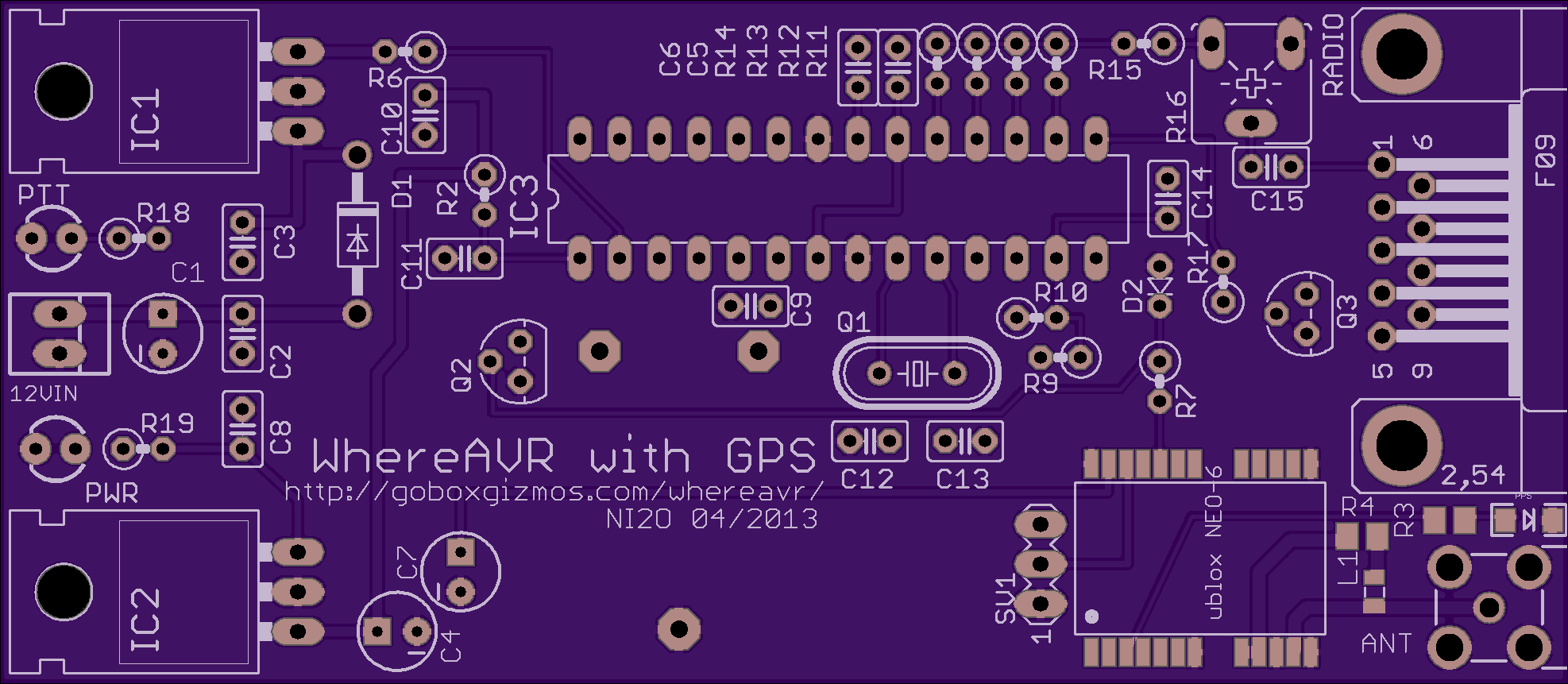

WhereAVR
by
goboxgizmos.
2
layer board of
3.95x1.72
inches
(100.25x43.69
mm).
Shared on
February 2nd, 2014 15:58.
AVR based APRS Tracker
blink
by
ozzloy.
2
layer board of
1.01x1.00
inches
(25.55x25.53
mm).
Shared on
February 2nd, 2014 03:37.
getting to blinky http://youtu.be/iTyi3RvNoB0
Moo 1.1 Programmer
by
siahman.
2
layer board of
0.90x0.90
inches
(22.91x22.86
mm).
Shared on
February 2nd, 2014 03:05.
Moo 1.1 Programmer
This board programs the Moo 1.1 from the SPQR group at the University of Michigan.
From the UMASS Moo site:
“The UMass Moo is a passive Computational RFID that harvests RFID reader energy from the UHF band, communicates with an RFID reader, and processes data from its onboard temperature sensor and accelerometer. Its function can be extended with its general-purpose I/Os, serial buses, and 12-bit ADC/DAC ports. The Moo provides a RFID-scale, fully programmable, batteryless sensing platform. The programs execute on an MSP430 microcontroller. The Moo 1.0 derives from the open source Intel DL WISP 4.1. Why is it called the Moo? It’s the beefiest embedded platform in its class with the most code space and RAM for the least energy. The device also resembles a longhorn steer.”
Bill Of Materials:
| Digi-Key Part Number | Description | Quantity |
|---|---|---|
| ED8650-ND | CONN HEADER RT ANG 50POS .050 | 1 |
Arduino Spectrum Analyzer Shield
by
siahman.
2
layer board of
2.12x2.37
inches
(53.77x60.10
mm).
Shared on
February 2nd, 2014 02:48.
Arduino Shield Graphic Equalizer Display Filter Breakout - MSGEQ7
This simple board breaks out the MSEQ7 according to the application notes, and fits nicely on top of an arduino Currently this is for through hole parts for ease of soldering, look for the SMD version soon.
Bill Of Materials:
- 33pF PTH Ceramic Capacitor x2
- 0.1uF PTH Ceramic Capacitor x4
- 1000pF PTH Ceramic Capacitor x2
- 200kOhm PTH Resistor x2
- 5mm LED x1
- 330 Ohm PTH Resistor x1
- Push button x1
- Arduino shield headers x1
- Stereo Audio Jack 3.5mm x1
- MSEQ7 IC x2
Spectrum Analyzer
by
siahman.
2
layer board of
1.92x0.97
inches
(48.69x24.56
mm).
Shared on
February 2nd, 2014 02:48.
Graphic Equalizer Display Filter Breakout - MSGEQ7
Audio equalizer for use with graphic displays. This simple board breaks out the MSEQ7 according to the application notes, but is not Arduino specific. Currently this is for through hole parts for ease of soldering, look for the SMD version soon.
Pinout:
- LT - Left analog input, use STR and RST to get each band (0-6) of the audio spectrum
- RT - Right analog input, use STR and RST to get each band (0-6) of the audio spectrum
- STR - Strobe digital output, controls the strobe of the equalizer IC
- RST - Reset digital output, controls the reset of the equalizer IC
Bill Of Materials:
- 33pF PTH Ceramic Capacitor x2
- 0.1uF PTH Ceramic Capacitor x4
- 1000pF PTH Ceramic Capacitor x2
- 200kOhm PTH Resistor x2
- Stereo Audio Jack 3.5mm x1
- MSEQ7 IC x2
