OSH Park
Shared projects
7 Seg Board
by
nathanjshaffer.
2
layer board of
2.37x0.42
inches
(60.22x10.67
mm).
Shared on
January 29th, 2014 21:31.
OpenROV CTrl 2.6 tester Rev A
by
scubasonar.
2
layer board of
1.01x1.24
inches
(25.60x31.45
mm).
Shared on
January 29th, 2014 19:47.
Add a i2c ADC to your OpenRov Control Board V 2.6 or 2.5 and test the boards power supplies and i2c.

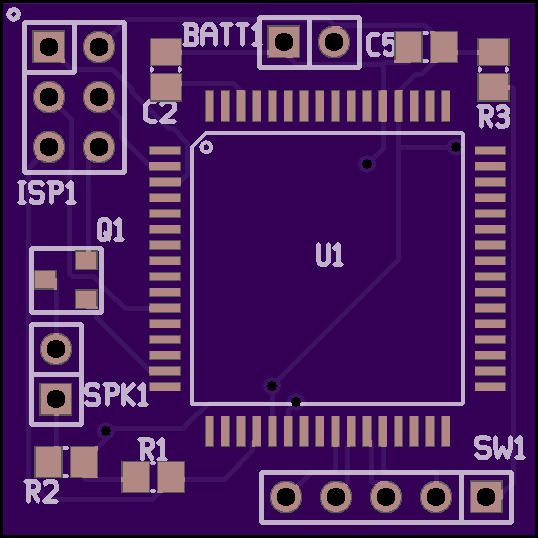

Sounds with ATmega128
by
jronen.
2
layer board of
1.08x1.08
inches
(27.36x27.36
mm).
Shared on
January 29th, 2014 19:17.
Create up to four sounds and trigger them by pressing buttons
HRM_2L
by
Jamieson.
2
layer board of
1.00x1.00
inches
(25.43x25.43
mm).
Shared on
January 29th, 2014 16:58.
This board receives the signal from a wireless heart rate transmitter chest strap. It outputs a 10ms TTL level pulse with each heart beat. Tested with Polar T31 (uncoded) and H1 (coded) 5.5kHz transmitter straps.
Scramjet_V1.1
by
Rockit-Frog.
2
layer board of
1.95x1.79
inches
(49.40x45.34
mm).
Shared on
January 29th, 2014 14:09.
Distortion with Mosfet based clipping section. Documentation is available here.
