PowerBarB2
by
AndiceLabs.
2
layer board of
0.83x2.15
inches
(21.06x54.71
mm).
Shared on
December 23rd, 2013 03:49.
A BeagleBone power supply for battery use. For more information see this page.
RectDoubleLongSimple-2013-12-22-15-
by
dr2chase.
2
layer board of
2.84x0.87
inches
(72.01x21.97
mm).
Shared on
December 22nd, 2013 20:40.

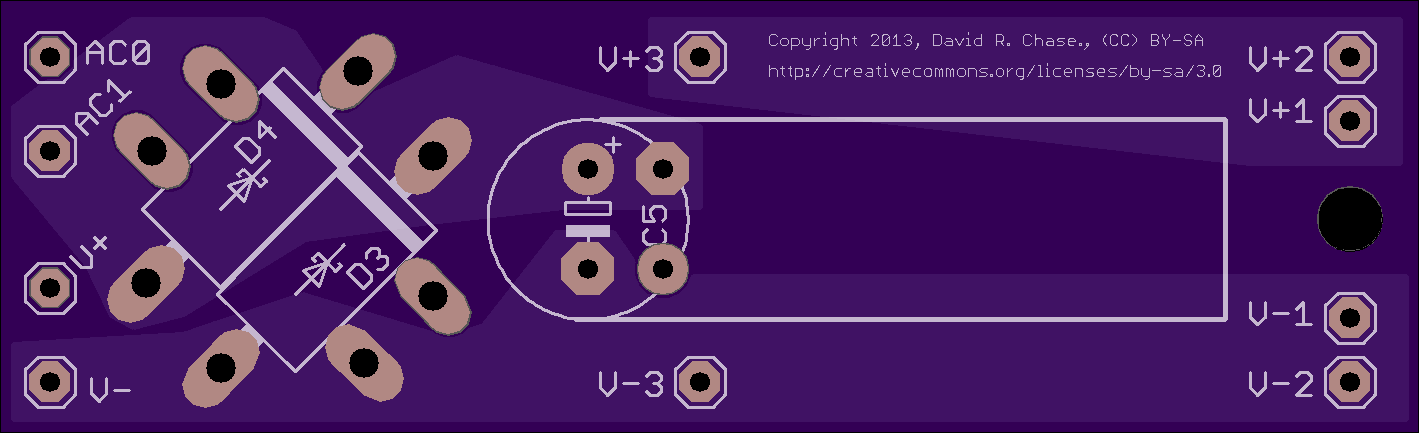

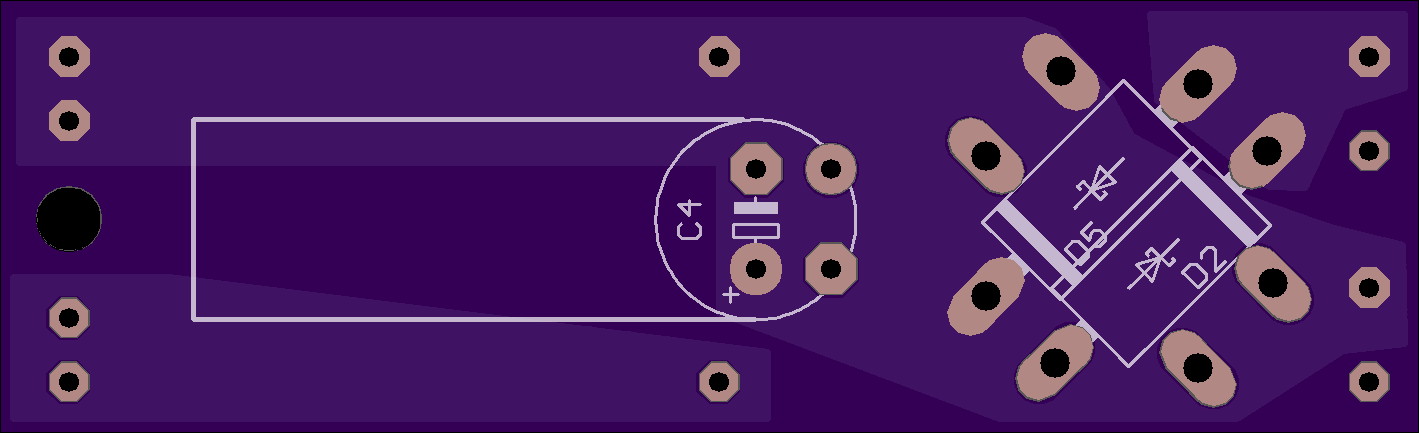

Modified Greinacher doubler, skinny. Intended to convert bicycle “generator” (sidewall or hub) to LED current. Recommend four SB540 diodes, two 1mF x 16V laid down on board, one 6.8mF x 35V at end. Be aware of dimensions to be sure it will fit in desired tube. Use painter’s tape to make mold for epoxy poured around top of end diode. Note that there are extra V+ and V- holes. Bicycle “generators” are naturally current-limited so V+ and V- can be connected directly to power LEDs in series. IMPORTANT - do not disconnect from load while connected to bicycle generator.
78
by
alfadex.
2
layer board of
2.23x1.38
inches
(56.74x35.15
mm).
Shared on
December 22nd, 2013 18:28.

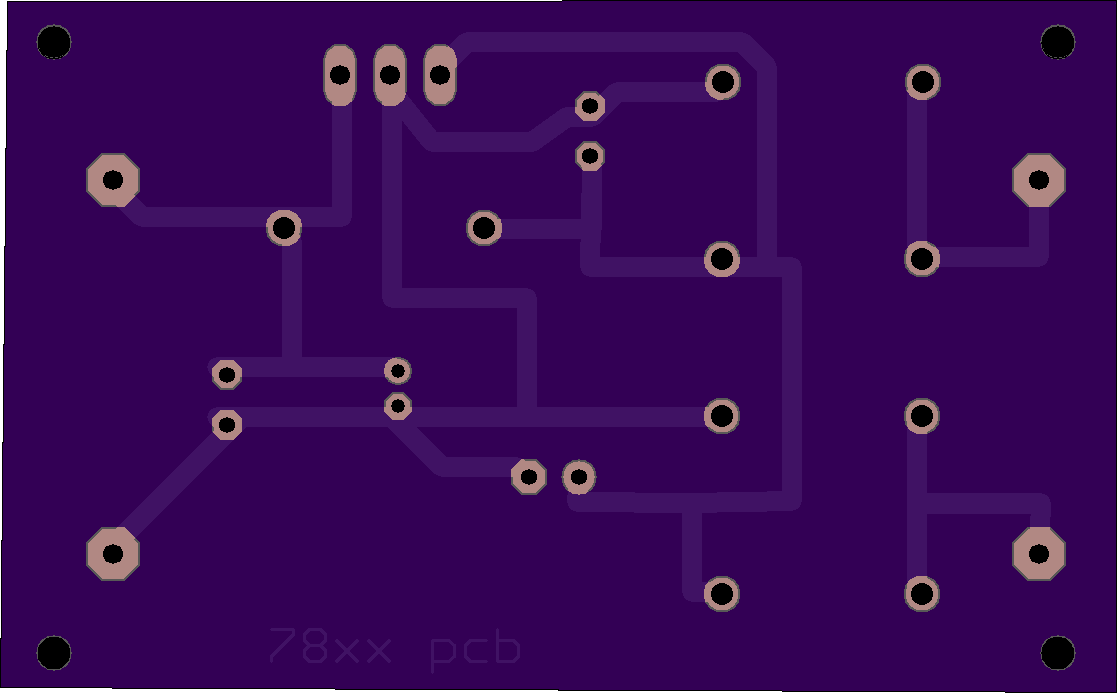

voltage regulator
CycloneGRBLControl
by
secures.
2
layer board of
3.22x2.71
inches
(81.79x68.76
mm).
Shared on
December 22nd, 2013 15:55.

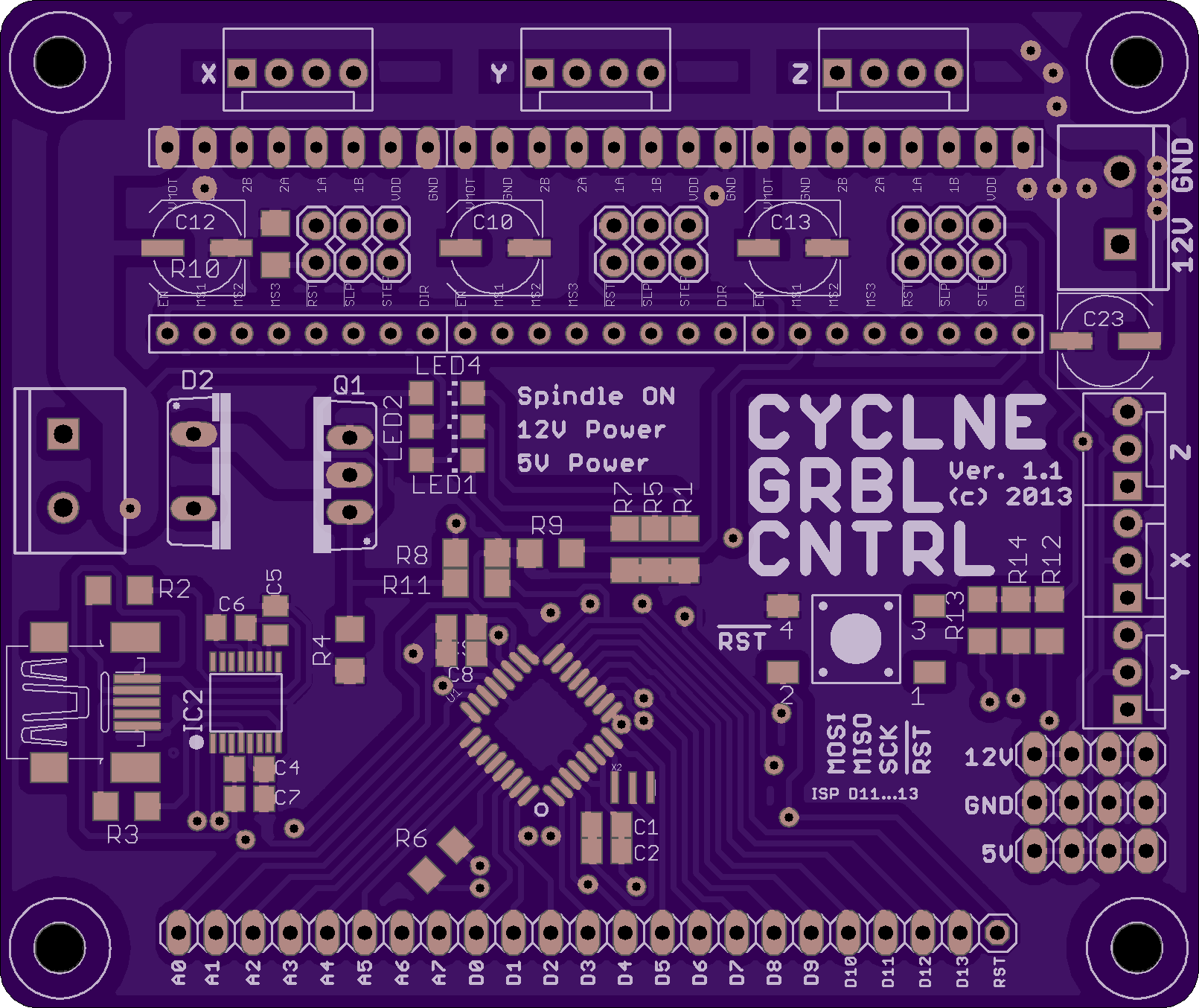

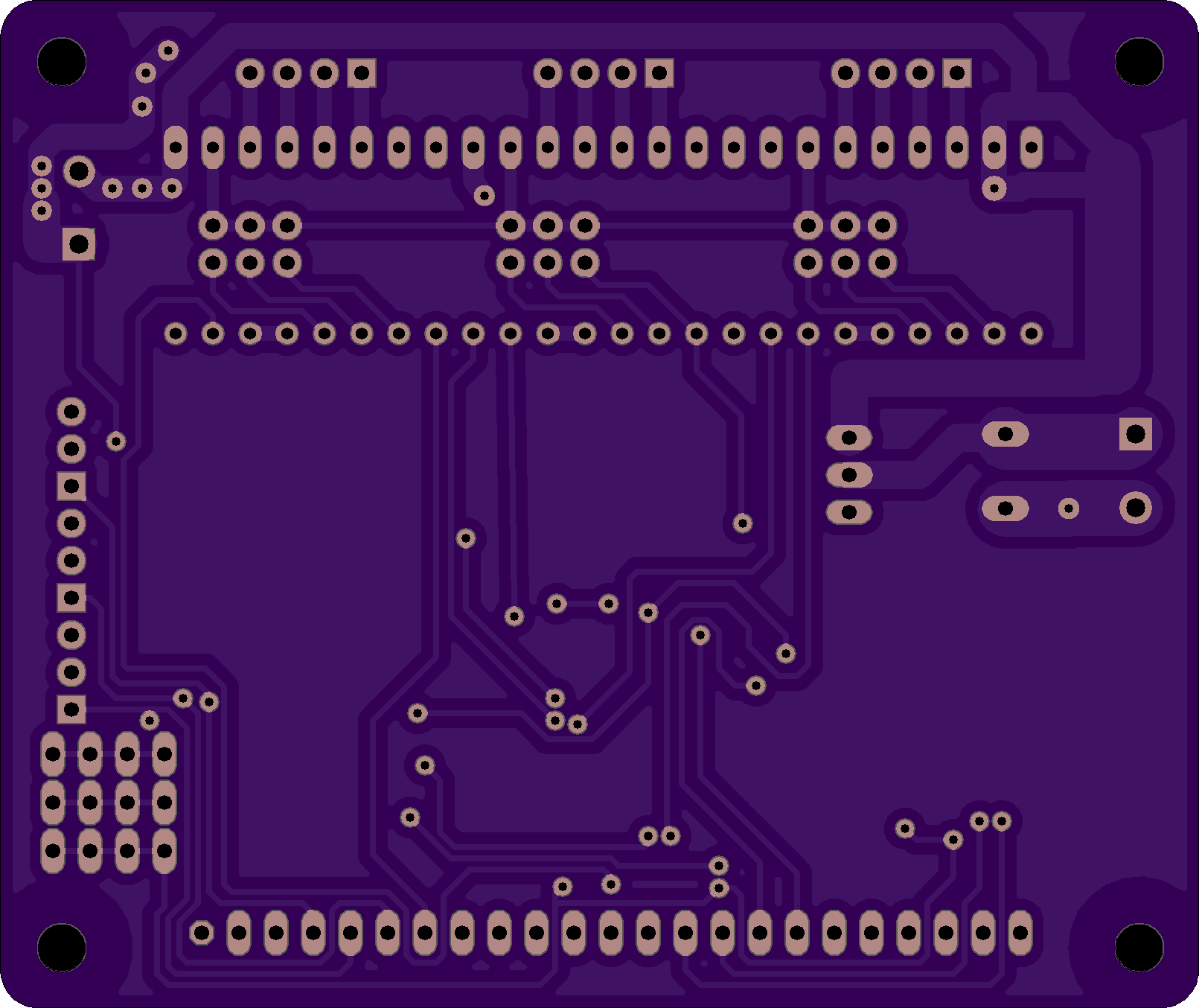

CNC ControlBoard for Cyclone-PCB-Factory (GRBL compatilble)
SOIC-8-DIL
by
Bertl.
2
layer board of
0.90x0.40
inches
(22.89x10.16
mm).
Shared on
December 22nd, 2013 05:25.

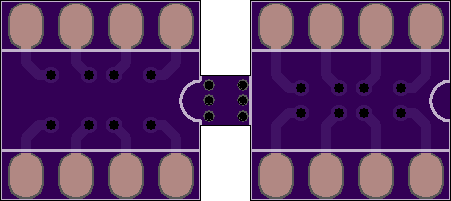

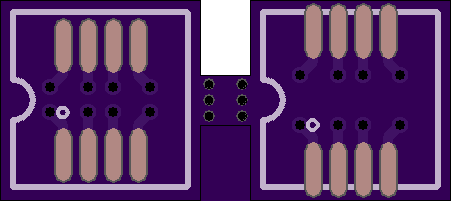

BGA Style SOIC-8 Adapter
