MIDI connector - BREAK OUT
by
Arno.
2
layer board of
0.35x0.71
inches
(8.92x18.11
mm).
Shared on
December 27th, 2013 22:52.
Solder these to your DIN5 connector to easily solder some wires to it or solder some (fe)male pin headers to these boards for your MIDI prototype.
Also see MIDI connector - MOUNT.
PS: I’ve used these boards with connectors similar to Sparkfun PRT-09536 (MIDI Connector - Female Right Angle).
NavLights Shield v1.0
by
BennitoJuarez.
2
layer board of
1.80x1.80
inches
(45.72x45.72
mm).
Shared on
December 27th, 2013 20:21.
RC RGB LED Strip Controller - Arduino Micro. Used to control LED RGB Strips by using one pin (serial data). Used mainly for multi-rotors and aircraft for night flying. Also breaks out the I/O pins for sensors and such.
Ear
by
jordantallent.
2
layer board of
1.67x0.82
inches
(42.34x20.73
mm).
Shared on
December 27th, 2013 20:14.
Ear
Arduino Duemilanove Peripherals
by
jordantallent.
2
layer board of
2.16x1.81
inches
(54.89x45.97
mm).
Shared on
December 27th, 2013 20:14.

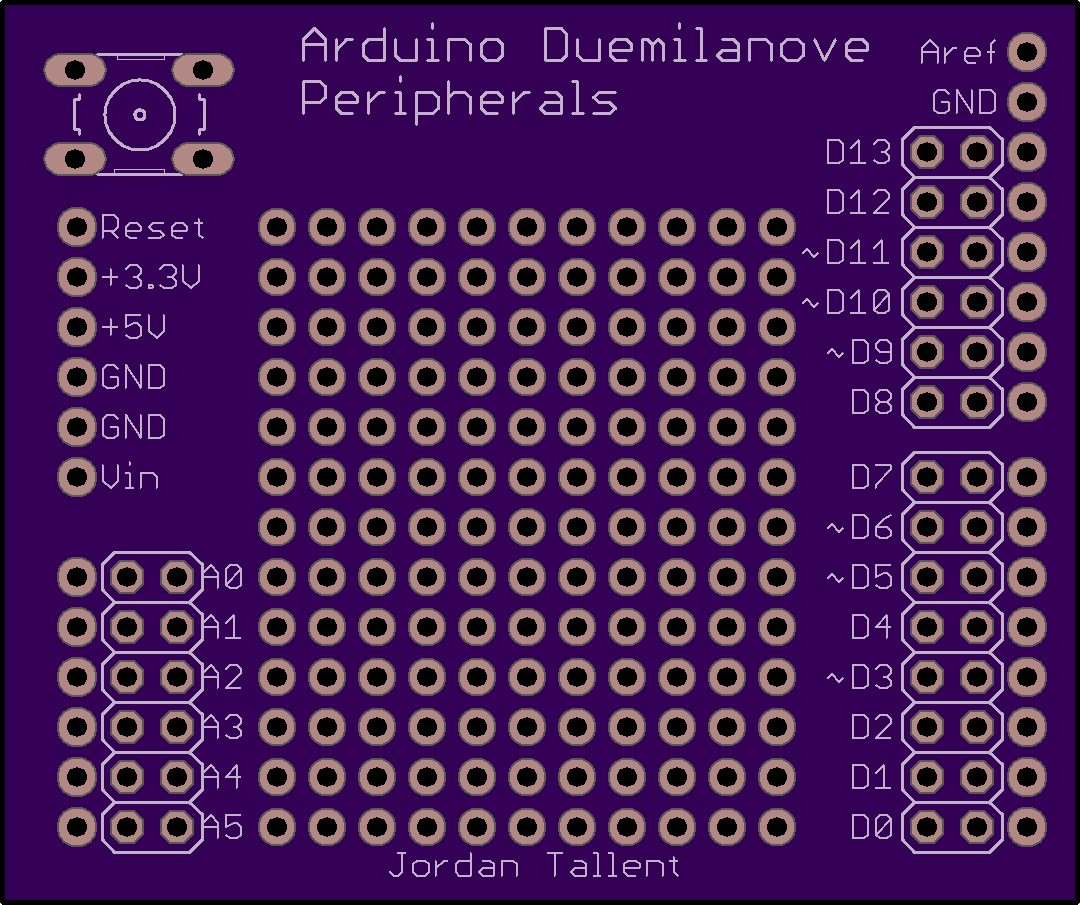

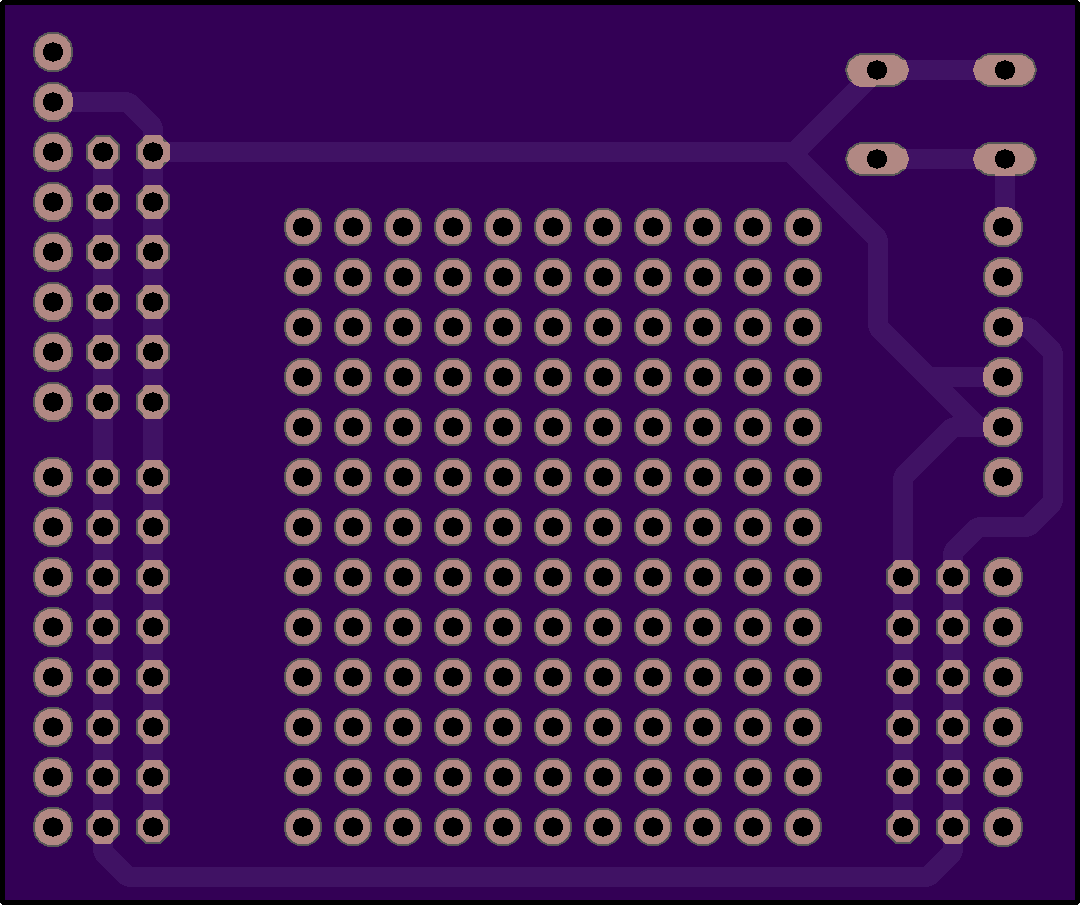

Arduino Duemilanove Peripherals w/ proto area
Logic 2B
by
JoyMonkey.
2
layer board of
2.34x1.52
inches
(59.46x38.63
mm).
Shared on
December 27th, 2013 13:51.
Modular Logic Board with 4-pin LEDs
