BLE Link
by
digitalmisery.
2
layer board of
0.75x1.00
inches
(19.05x25.43
mm).
Shared on
November 22nd, 2013 14:21.
Bluetooth Low Energy Serial Interface using the BLE112 by Bluegiga. Firmware is based on their serial cable replacement example BG Script and the work done by Dr. Michael Kroll. Board is designed to interface like FTDI-based boards/cables. Solder jumpers on the back allow you to choose to use hardware flow control or support low-power host/BLE wakeup such as that used by Jeff Rowberg’s BGLib. BLE112 programming is accomplished with a TC2030-IDC-NL cable from Tag Connect. I have also made an adapter board for this cable so it can be easily used with a CC-Debugger.
C1, C2, C3 = 1uF
C4, C6 = 2.2uF
C5 = 0.47uF
R1 = 1kohm
R2 = 10kohm
U1 = MCP1700T-3302E/TT
Connection LED = Blue, 0805
Bluetooth Module = BLE112-A-V1
All passive components are 0805 size.
Design files are on GitHub

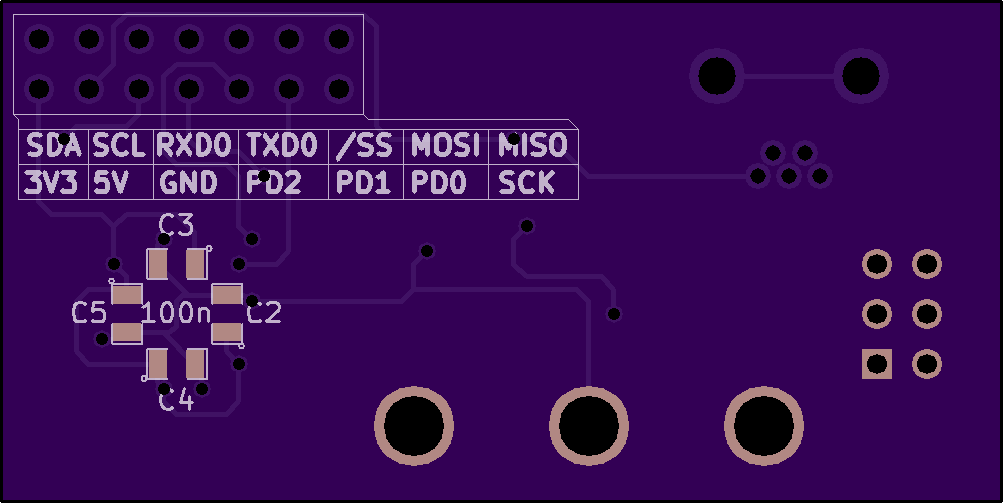

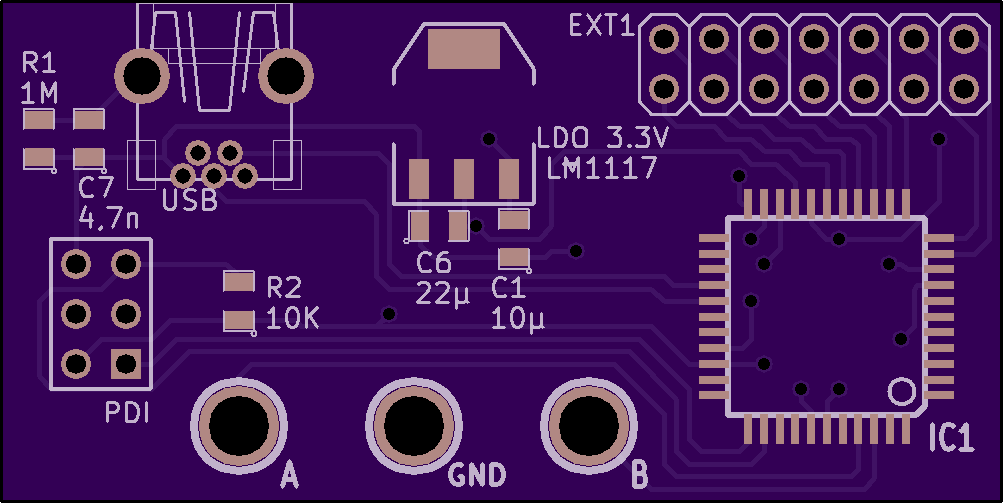

non-destructable Keyboard
by
LittleFox.
2
layer board of
2.01x1.01
inches
(50.95x25.55
mm).
Shared on
November 21st, 2013 22:45.
2-key capacitive touch USB-HID keyboard and some extension pins. (designed for an osu!-player)

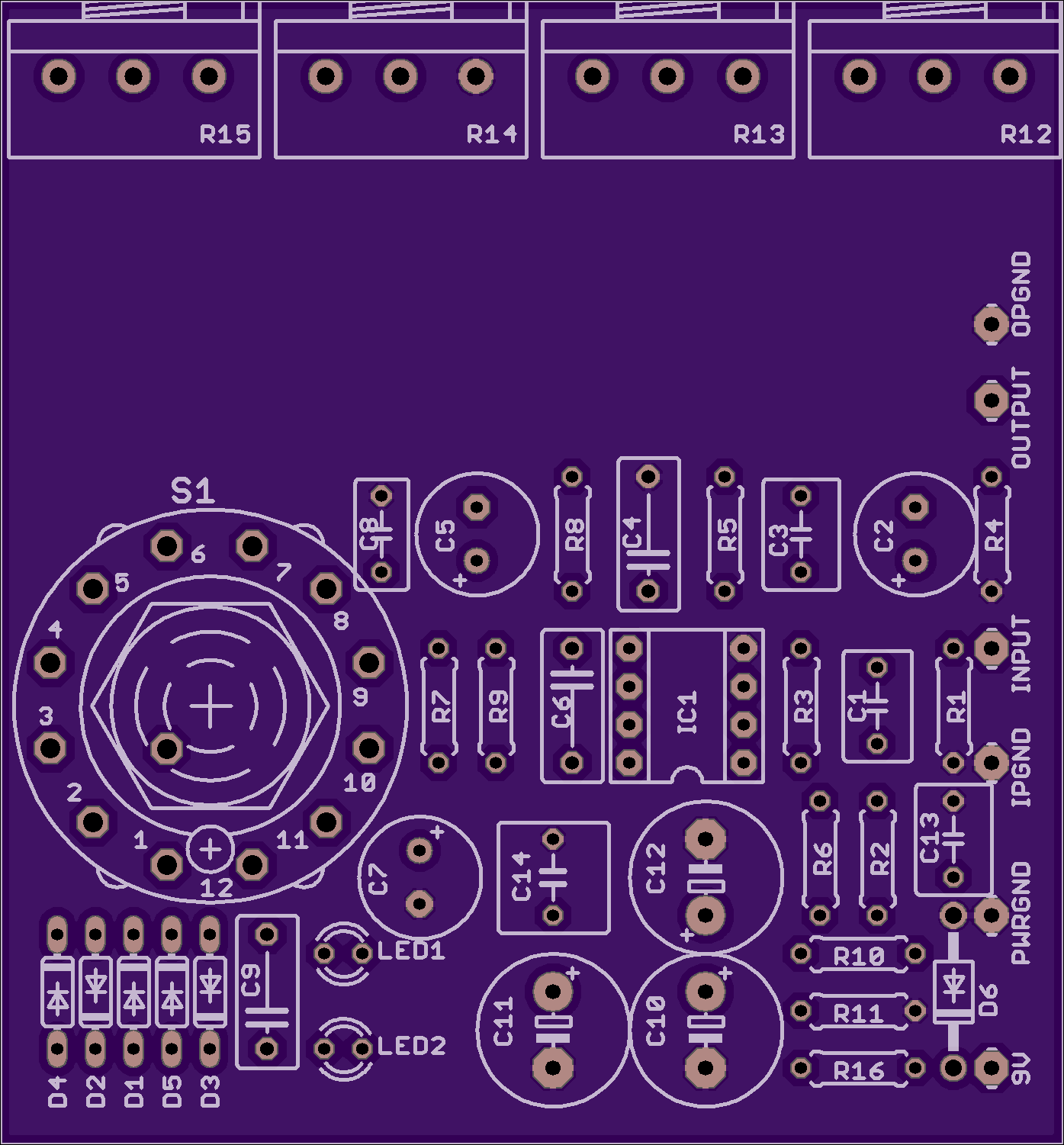

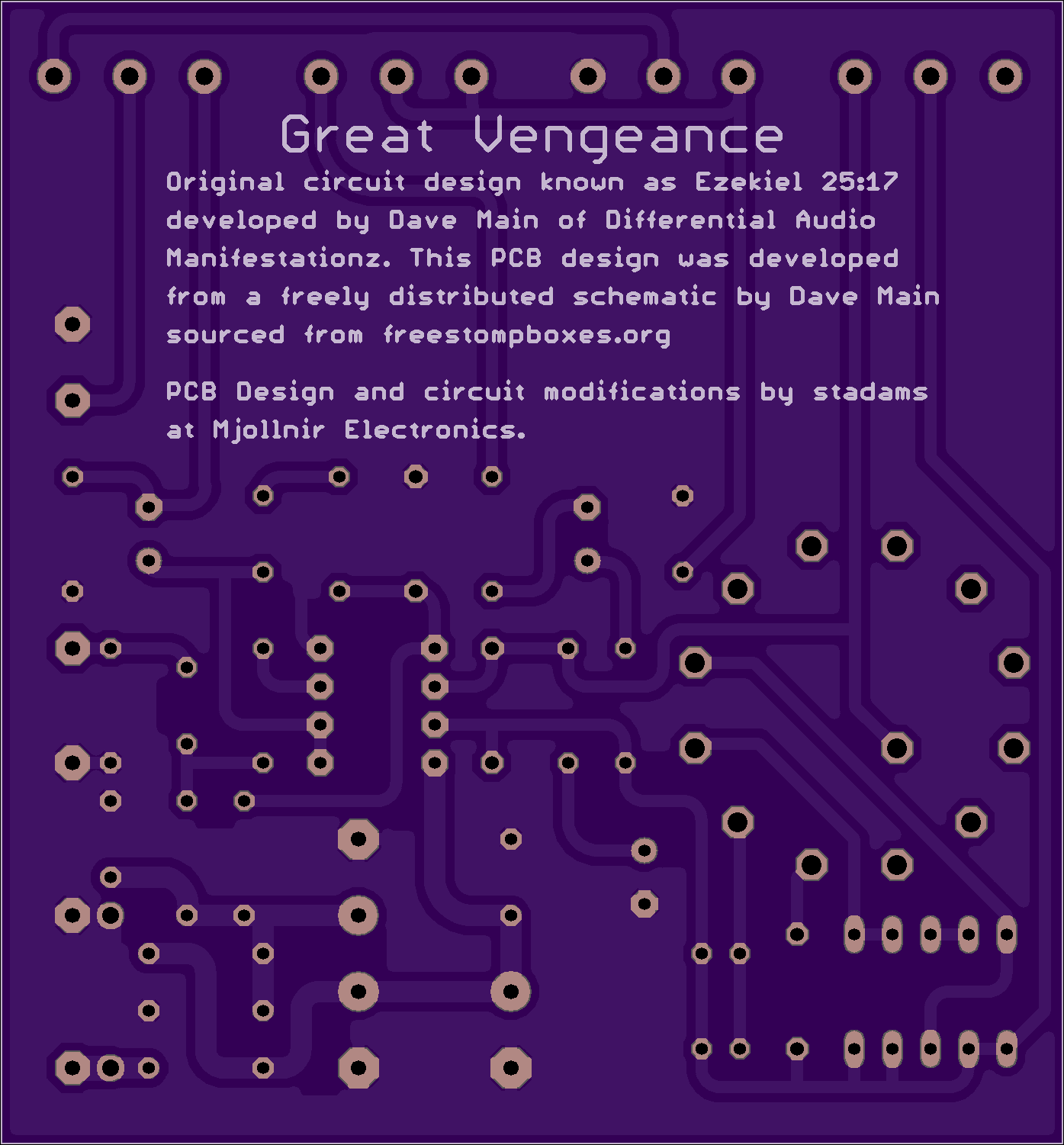

Great Vengeance
by
stadams.
2
layer board of
2.79x3.00
inches
(70.82x76.20
mm).
Shared on
November 21st, 2013 20:33.
Bass and electric guitar distortion/overdrive pedal

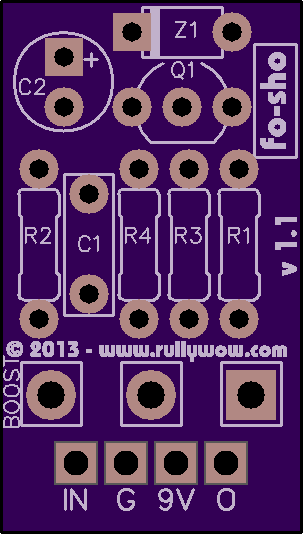

fo-SHO guitar booster pedal v1.1
by
rullywowr.
2
layer board of
0.61x1.07
inches
(15.39x27.15
mm).
Shared on
November 21st, 2013 17:29.
its a SHO, fo-sho! This version fixes reversed pot in version 1.0. Easy build.
Build Doc:

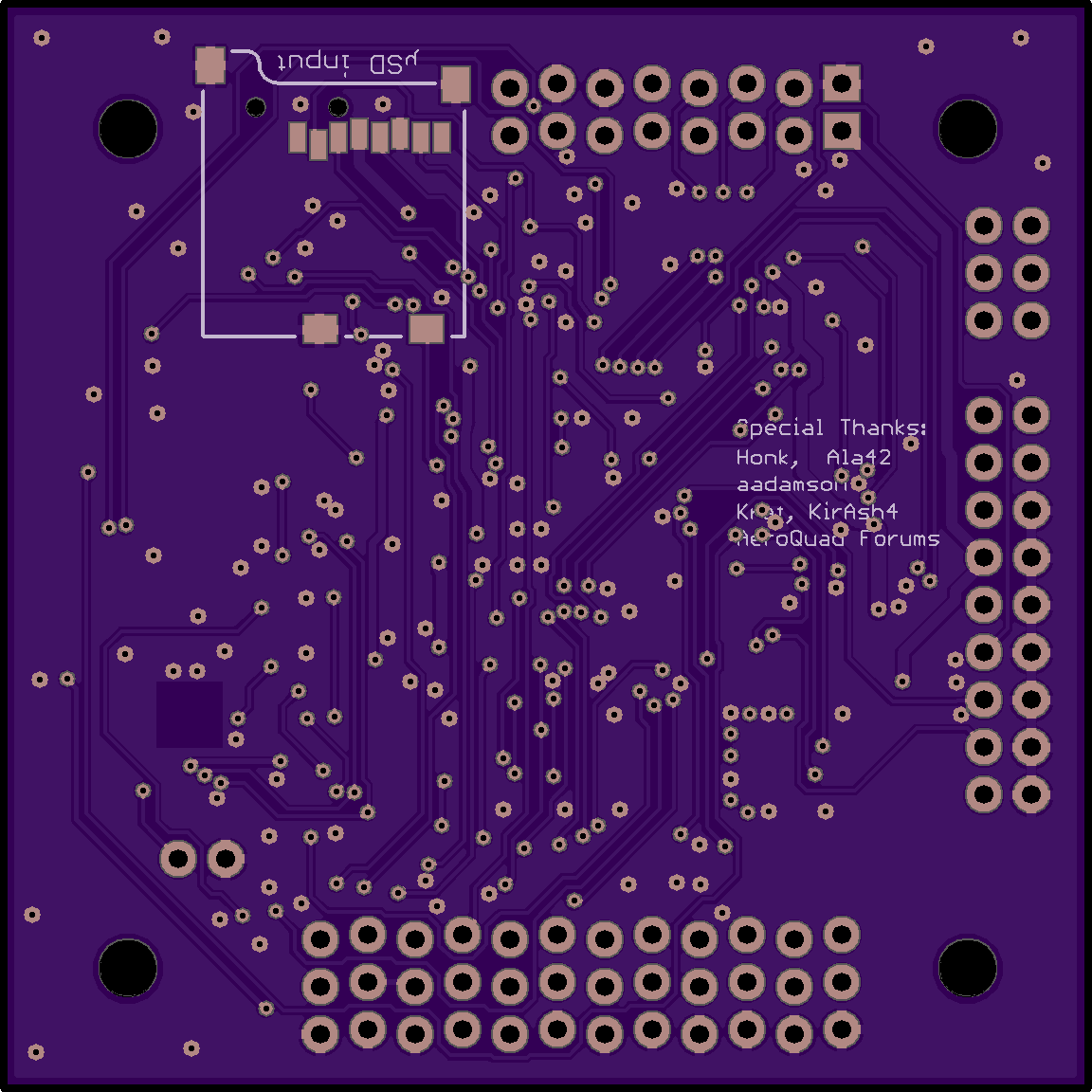

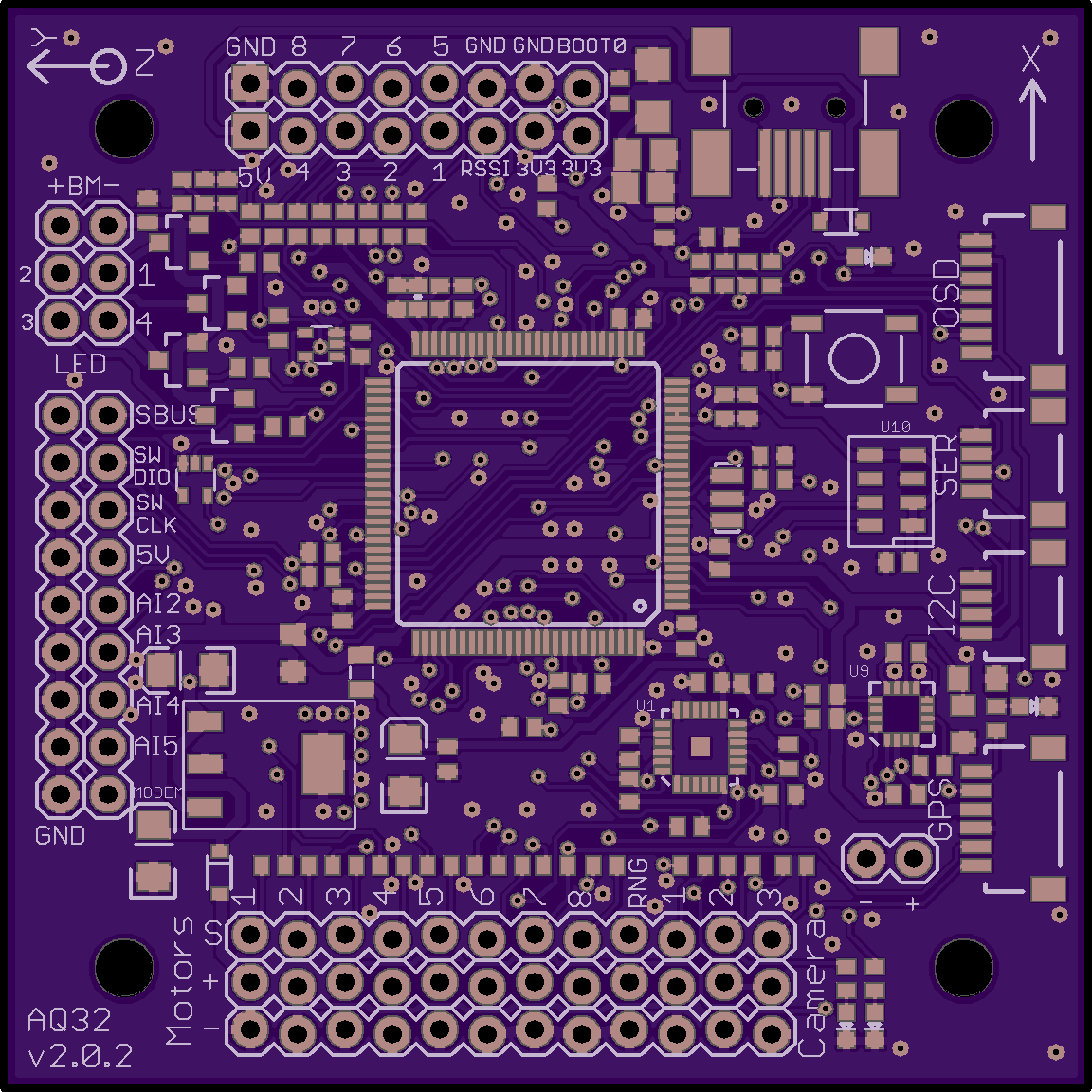

AeroQuad32 v2
by
Le0veN.
2
layer board of
2.31x2.31
inches
(58.57x58.57
mm).
Shared on
November 21st, 2013 13:57.
Not my design!! http://aeroquad.com/showwiki.php?title=AeroQuad32+Flight+Control+Board+v2
