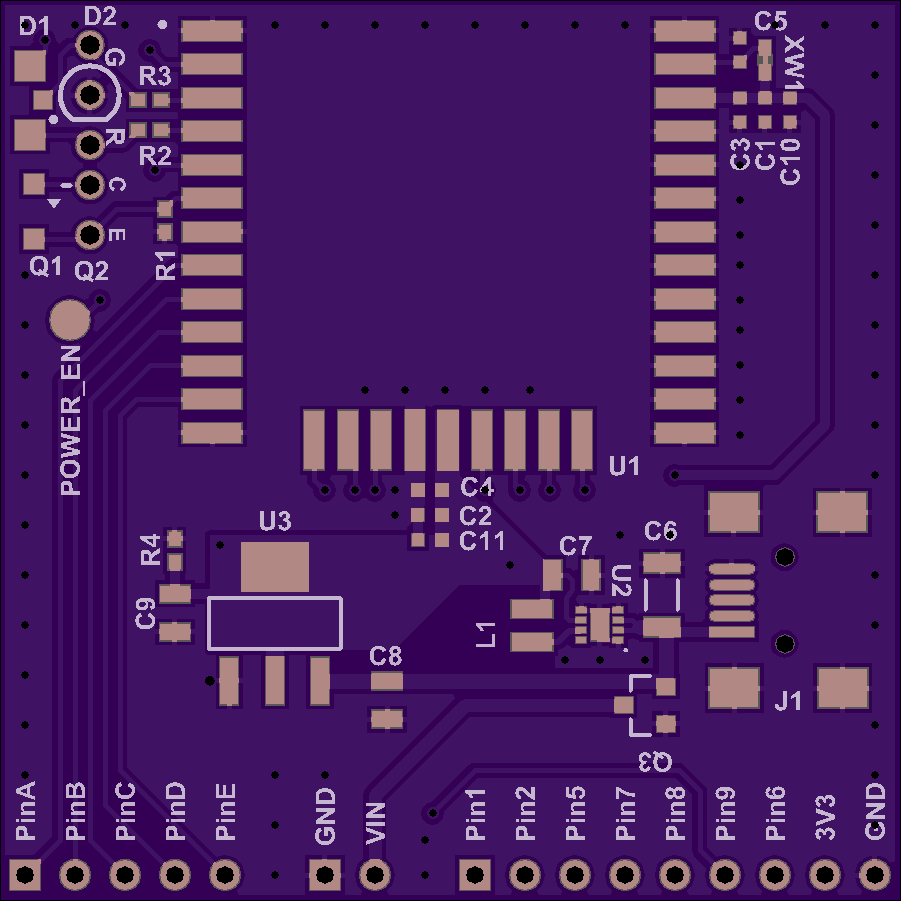

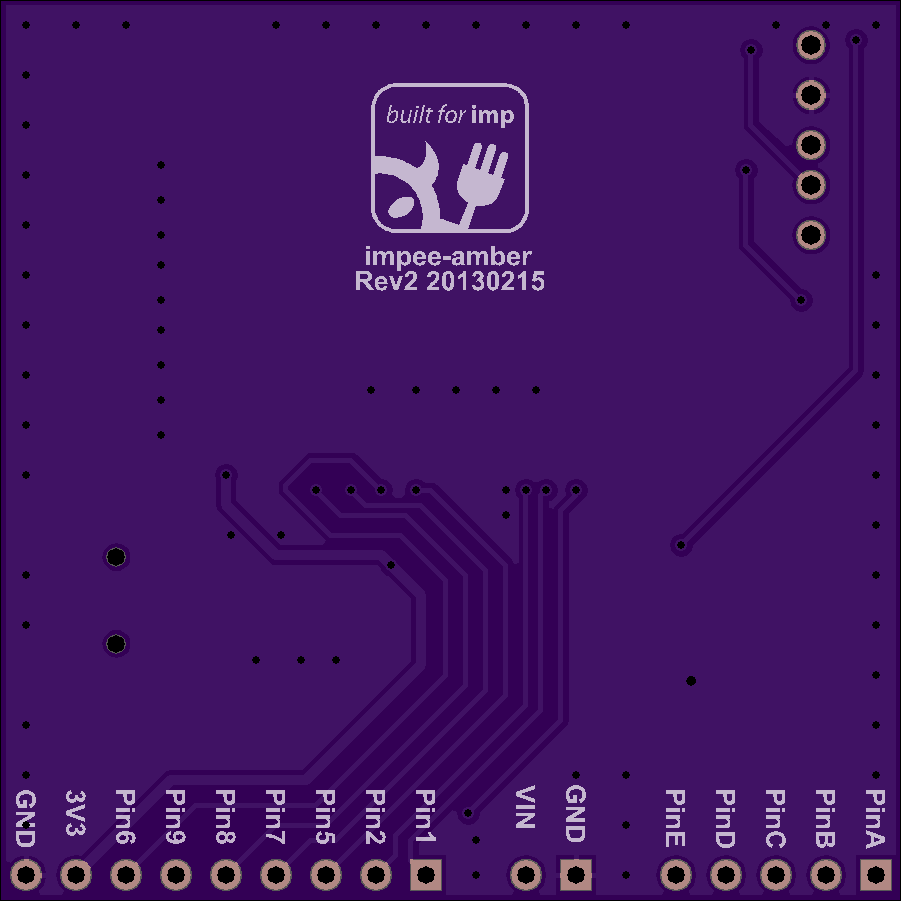

Electric Imp Impee Amber Development Board
by
Shamus.
2
layer board of
1.80x1.80
inches
(45.77x45.77
mm).
Shared on
September 4th, 2013 18:44.
This is the Amber development board designed my Electric Imp (I just uploaded it). It is a very simple board with the minimum required components for a working IMP002 design. http://devwiki.electricimp.com/doku.php?id=amber

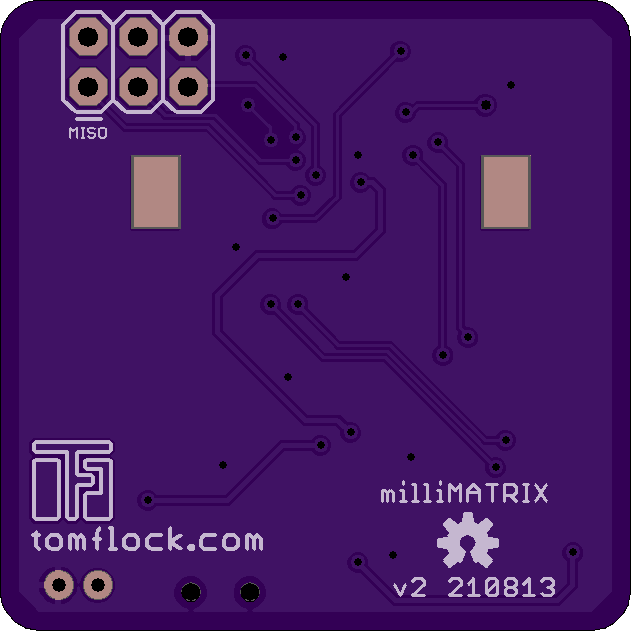

milliMATRIX v2 210813
by
Tomdf.
2
layer board of
1.26x1.26
inches
(32.00x32.00
mm).
Shared on
September 4th, 2013 04:42.
PCB for a 1.25" LED Matrix you can wear. Pin it to your shirt, glue it to your eyepatch, or tie a pair to your pasties. Fun for the whole family!
Arduino code, Eagle Files, and BOM available on github https://github.com/Tomdf/Milli_Matrix_v2

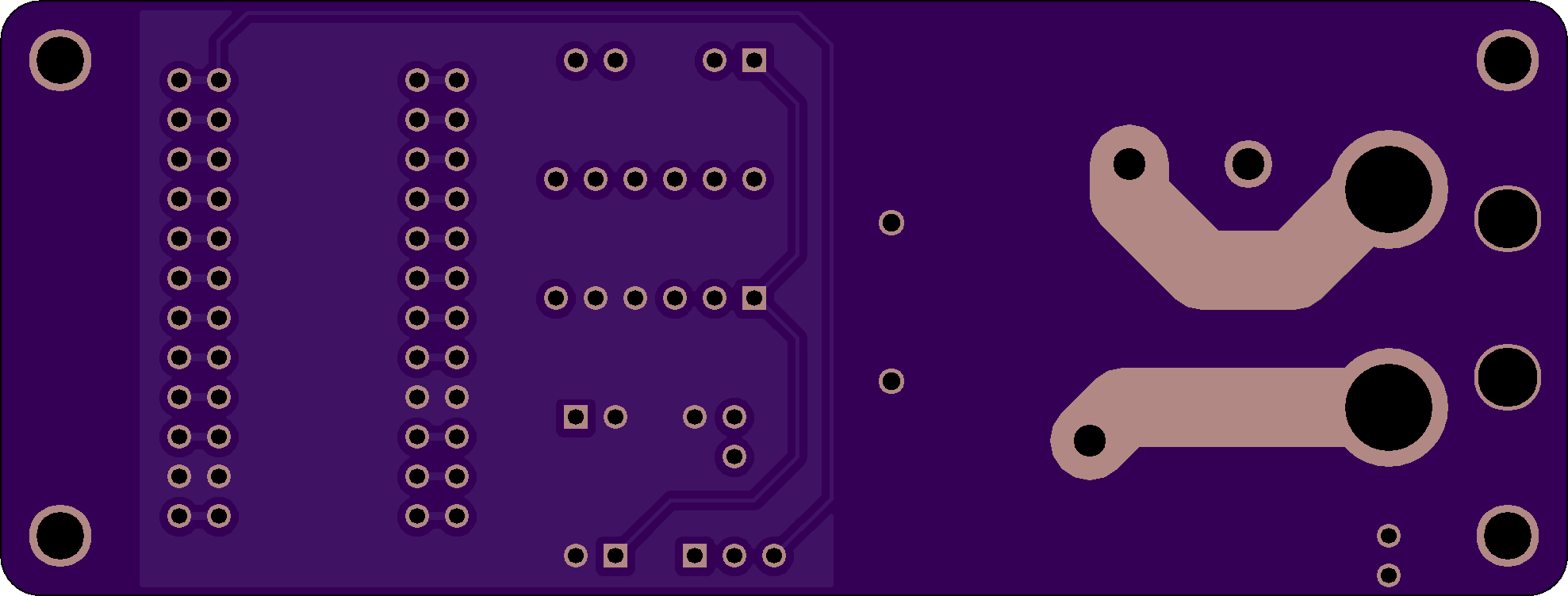

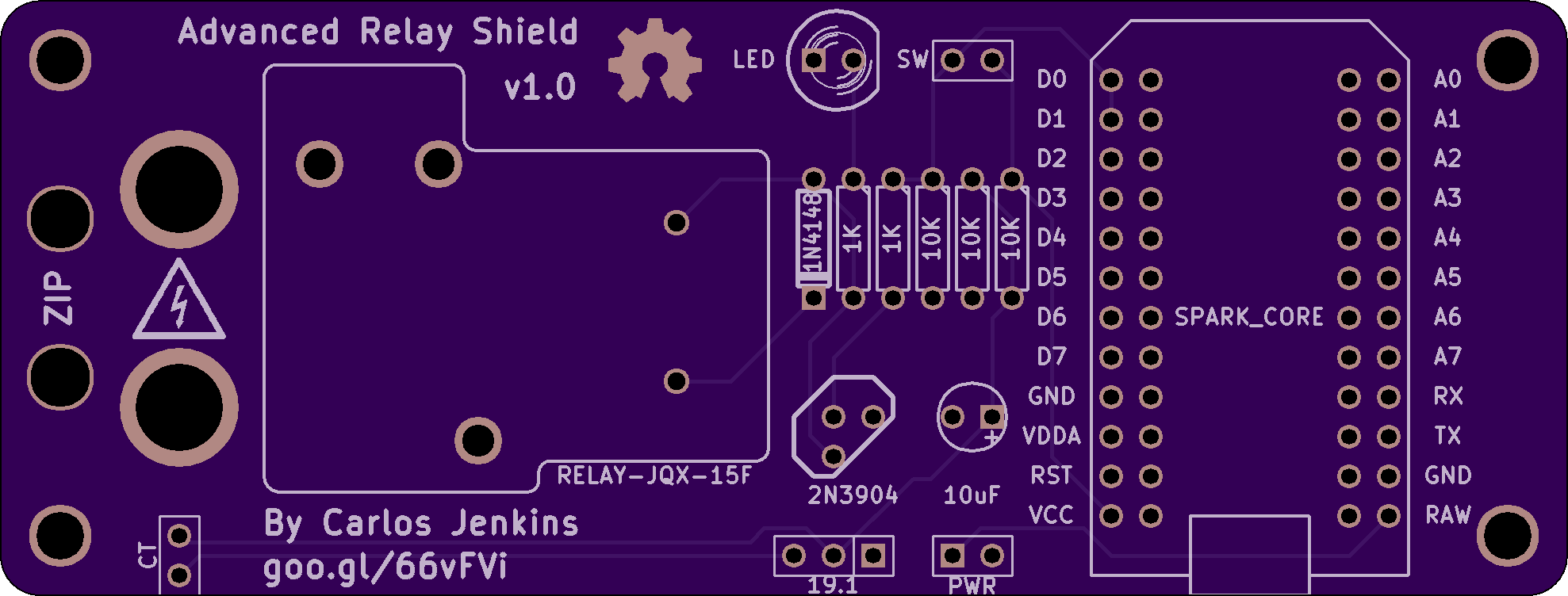

Advanced Relay Shield for Spark Core
by
cjenkins.
2
layer board of
3.95x1.50
inches
(100.43x38.20
mm).
Shared on
September 4th, 2013 01:14.
Spark Core is a open source hardware Arduino compatible tiny Wi-Fi development board that makes it easy to create internet-connected hardware. This shield allows the Spark Core to control a high-power AC device and sense the current flow.
More information: https://github.com/carlos-jenkins/relay-shield
BlueGiga WT41-A Breakout
by
bentwire.
2
layer board of
2.00x0.85
inches
(50.80x21.62
mm).
Shared on
September 3rd, 2013 05:47.
BlueGiga WT41-A Breakout
- Uses the WT41 module from BlueGiga
- Can be USB or serial.
- Mouser stocks the module here
This board has been tested and works in both USB and serial mode. Pinouts forthcoming.

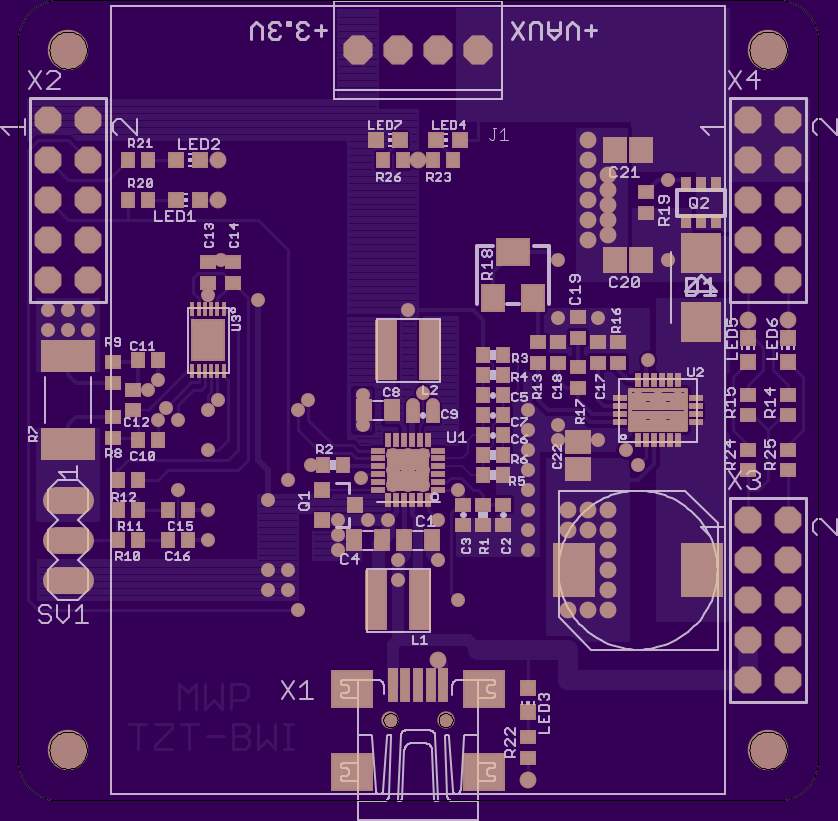

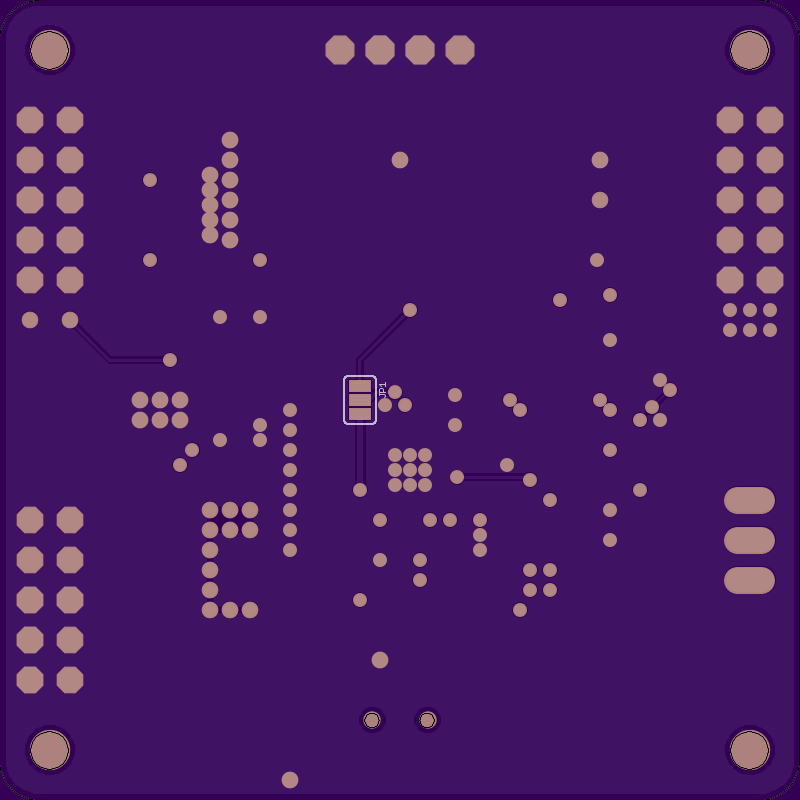

LiPo PSU V1.0
by
bentwire.
4
layer board of
2.00x2.00
inches
(50.80x50.80
mm).
Shared on
September 3rd, 2013 05:38.
3.3V,5V Out 5V In LiPo PSU And Charger
