ESP32 breakout v0.1

silbo.

2 layer board of 1.39x0.79 inches (35.26x20.17 mm).
Shared on November 7th, 2016 17:47.

ESP32 wifi & dual mode bluetooth breakout for www.brain-duino.com

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

esp12-Relay.zip

jwashell.

2 layer board of 1.06x1.49 inches (26.92x37.72 mm).
Shared on November 7th, 2016 17:09.

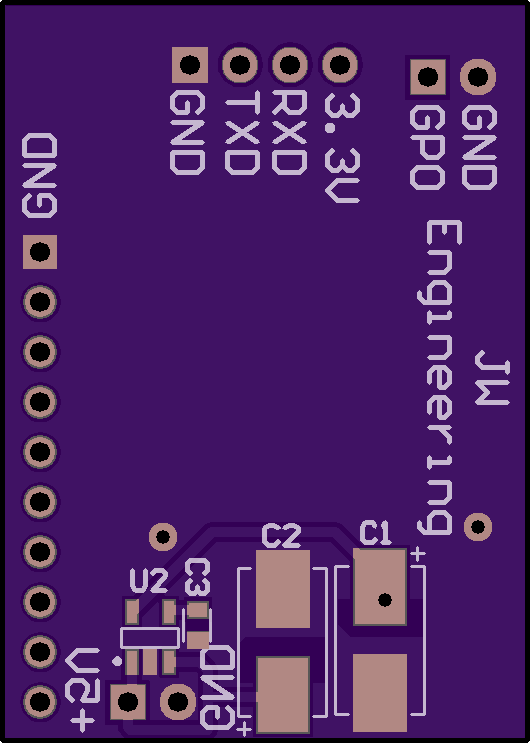

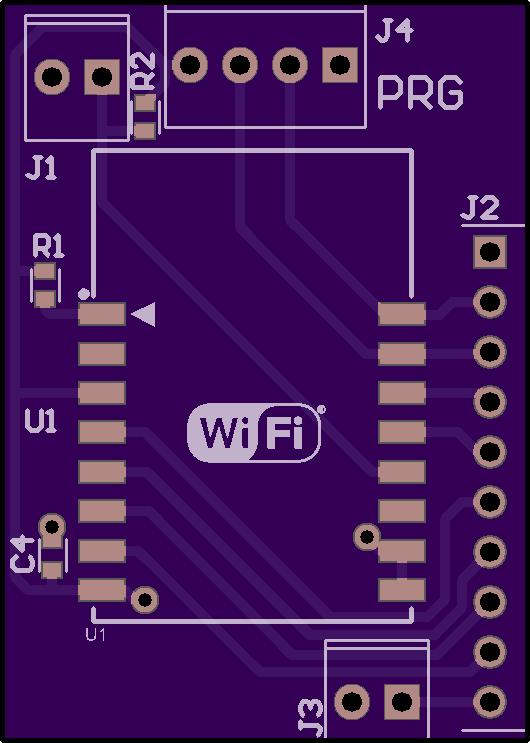

Esp-12 to 8-Relay interface board. This board allows you to control 8 relays using a ESP-12 through Wi-Fi, from anywhere in the world. I use it with Blynk app on Android, but works with Iphone too. Very easy, no coding, just use the basic example and add your wifi info, and token from Blynk. Connect Sparkfun Usb to Serial to J4 for programming. When programming, short J1 before booting to get the ESP-12 into programming mode. The board is powered with 5V on J3, polarity is on the silk screen. The relay board can be obtained from ebay, here is a link: http://www.ebay.com/itm/5v-Eight-8-Channel-DC-5V-Relay-Switch-Module-Board-for-Arduino-PIC-ARM-AVR-/272386728358?hash=item3f6b83a1a6:g:5YMAAOSwNRdX5EAz

Designator Comment Description Footprint Quantity

“C1, C2” “10uF 16V” “CAPACITOR POLORIZED” “CAPMP7343X31N” “2” “C3, C4” “0.1uF” “CAPACITOR” “CAPC0603” “2” “J1, J3” “22-23-2021” “Connector, Header, 2 pin” “HEADER-2PIN-ST” “2” “J2” “20-PIN HEADER” “Connector, Header, 10 pin, Single row” “1” “J4” “22-23-2041” “Connector, Header, 4 pin” “HEADER-4PIN-ST” “1” “R1, R2” “2.21k” “RESISTOR” “RESC0603” “2” “U1” “ESP8266 ESP_12” “ESP8266 ESP-12” “ESP8266 ESP_12” “1” “U2” “MIC5219-3.3YM5” “IC SMD REGULATOR LDO 500mA” “SOT-23-5” “1”
