MST Lumin
by
RocketJack.
2
layer board of
2.51x1.17
inches
(63.73x29.64
mm).
Shared on
November 8th, 2016 02:39.
MST Rocket Team
DIYHTA_rev1.1.brd
by
Francis-FormationDesign.
2
layer board of
3.50x2.70
inches
(88.90x68.58
mm).
Shared on
November 7th, 2016 23:40.
11.07.16
16mm LED Button.zip
by
BananaGuns.
2
layer board of
0.66x0.74
inches
(16.79x18.80
mm).
Shared on
November 7th, 2016 21:40.

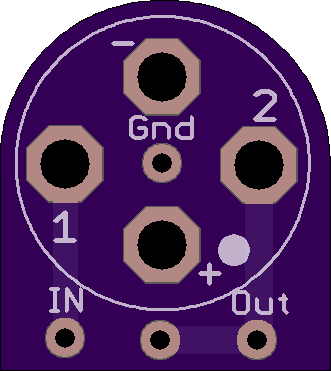

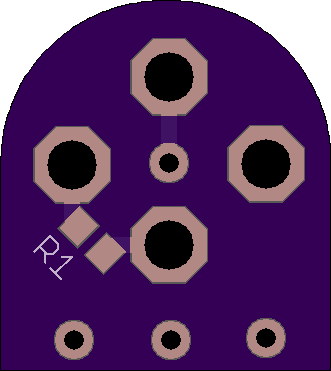

Very simple breakout board for 16mm 4 terminal(solder lugs not screws) LED momentary buttons.
Have you grown tired of soldering through hole resistors to the terminals of your buttons, then soldering wires on top, which makes it impossible to heat shrink so they always come out looking sloppy -_- Well fret not! Simply solder the required 220 Ohm(adjust if necessary) 0805 resistor to the PCB, then simply connect the ground, in, and out wires(you can also connect the voltmeter positive to the extra pad if you’d like it to turn on when you press the button), then lay the PCB on the button with the resistor side facing the button, and solder in place. That’s all there is to it!
Tiny LED
by
Ugi.
2
layer board of
0.92x1.47
inches
(23.27x37.26
mm).
Shared on
November 7th, 2016 21:22.
LED charlieplexing control board See This lnstructable
Smith-Turner-MPPT
by
seanturner.
2
layer board of
3.66x3.20
inches
(92.89x81.28
mm).
Shared on
November 7th, 2016 18:09.
Maximum Power Point Tracker & Charge Controller
