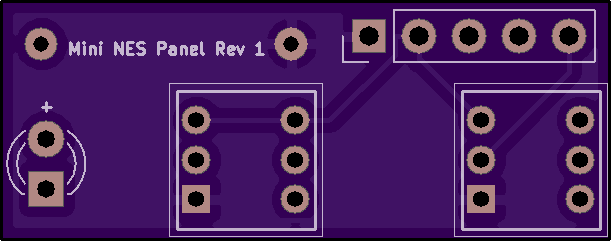

Mini-NES_Panel_V1 @coderkevin
by
mafe72.
2
layer board of
1.22x0.48
inches
(30.99x12.22
mm).
Shared on
May 20th, 2017 22:03.

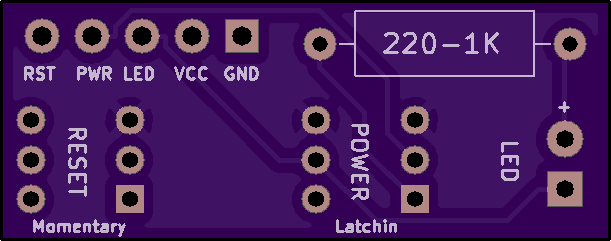

This front panel match @coderkevin schematic
BOM
150ohm Power LED Resistor, Quantity: 1 digikey: http://bit.ly/2qCImqK
Front Panel Power LED, Quantity: 1 digikey: http://bit.ly/2qCURmf
Latching Push Button Switche (Power Switch) Quantity: 1 amazon: http://amzn.to/2rpfMua
Momentary Push Button Switch (Reset Switch) Quantity: 1 amazon: http://amzn.to/2rpqrF1

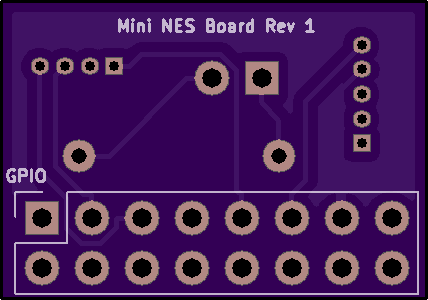

Mini-NES_Board Rev 1 @coderkevin
by
mafe72.
2
layer board of
0.86x0.60
inches
(21.72x15.27
mm).
Shared on
May 20th, 2017 22:02.

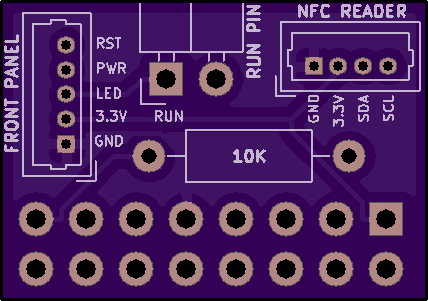

This board match @coderkevin schematic.
Software: https://github.com/coderkevin/mini-nes BOM
Micro JST Picoblade 1.25mm Pitch 4 Pin(NFC Reader) Quantity: 1 ebay: http://ebay.to/2qCuWeq
Micro JST Picoblade 1.25mm Pitch 5 Pin(Front Control Panel) Quantity: 1 ebay: http://ebay.to/2qCNTNT
Resistor 10kohm, Quantity: 1 digikey: http://bit.ly/2rpp1KH
16 Pin Pi Header Connector, Quantity: 1 digikey: http://bit.ly/2rp8Ehp
isaterm-active-lt1118.brd
by
smbaker.
2
layer board of
3.40x2.03
inches
(86.39x51.56
mm).
Shared on
May 20th, 2017 21:39.

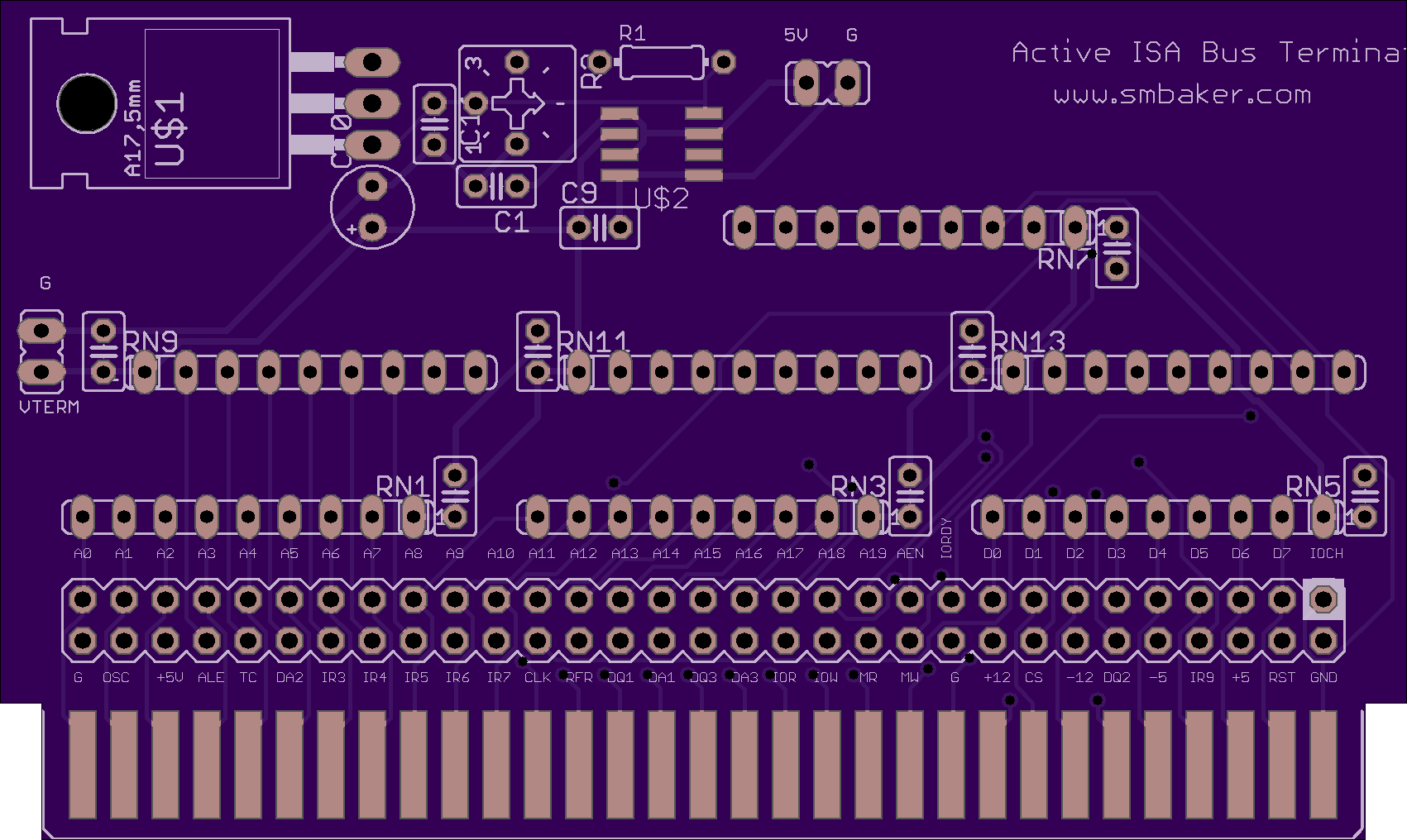

ISA Bus Terminator, Active w/ LT1118 or LT1086
USB Type-C JTAG Adapter
by
meklort.
2
layer board of
0.95x1.69
inches
(24.21x42.95
mm).
Shared on
May 20th, 2017 17:09.

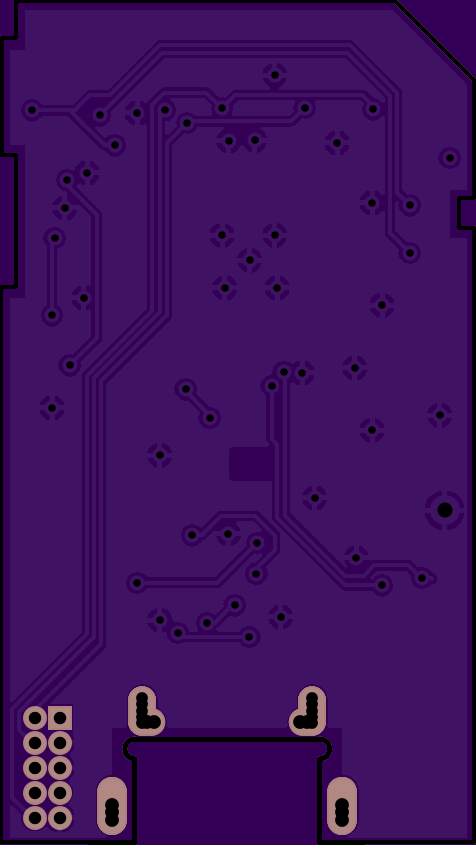

This board is a JTAG adapter based on an FTDI chip in a SD-card form factor.
Design has been tested with openocd and an Atmel SAMD5 board successfully. ***Note: This board does not properly specify the CC resistor for the USB Port, resulting in it not being detected properly with a usb-c to usb-c cable. A usb-c to USB-A cable works fine, however.
shaiRDKv3.brd
by
adamimos.
2
layer board of
4.05x2.55
inches
(102.90x64.77
mm).
Shared on
May 20th, 2017 16:33.
RDK board version 3
