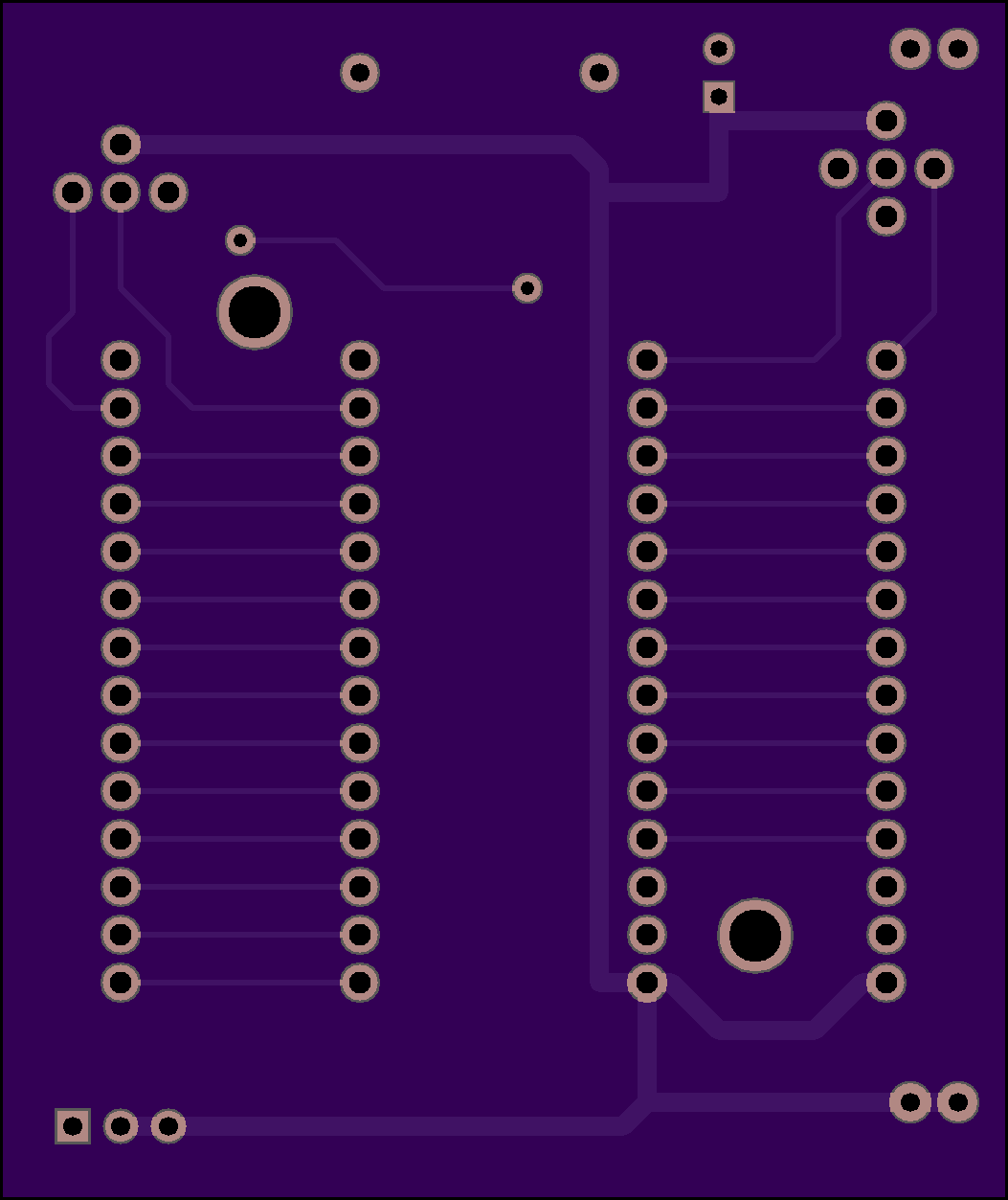

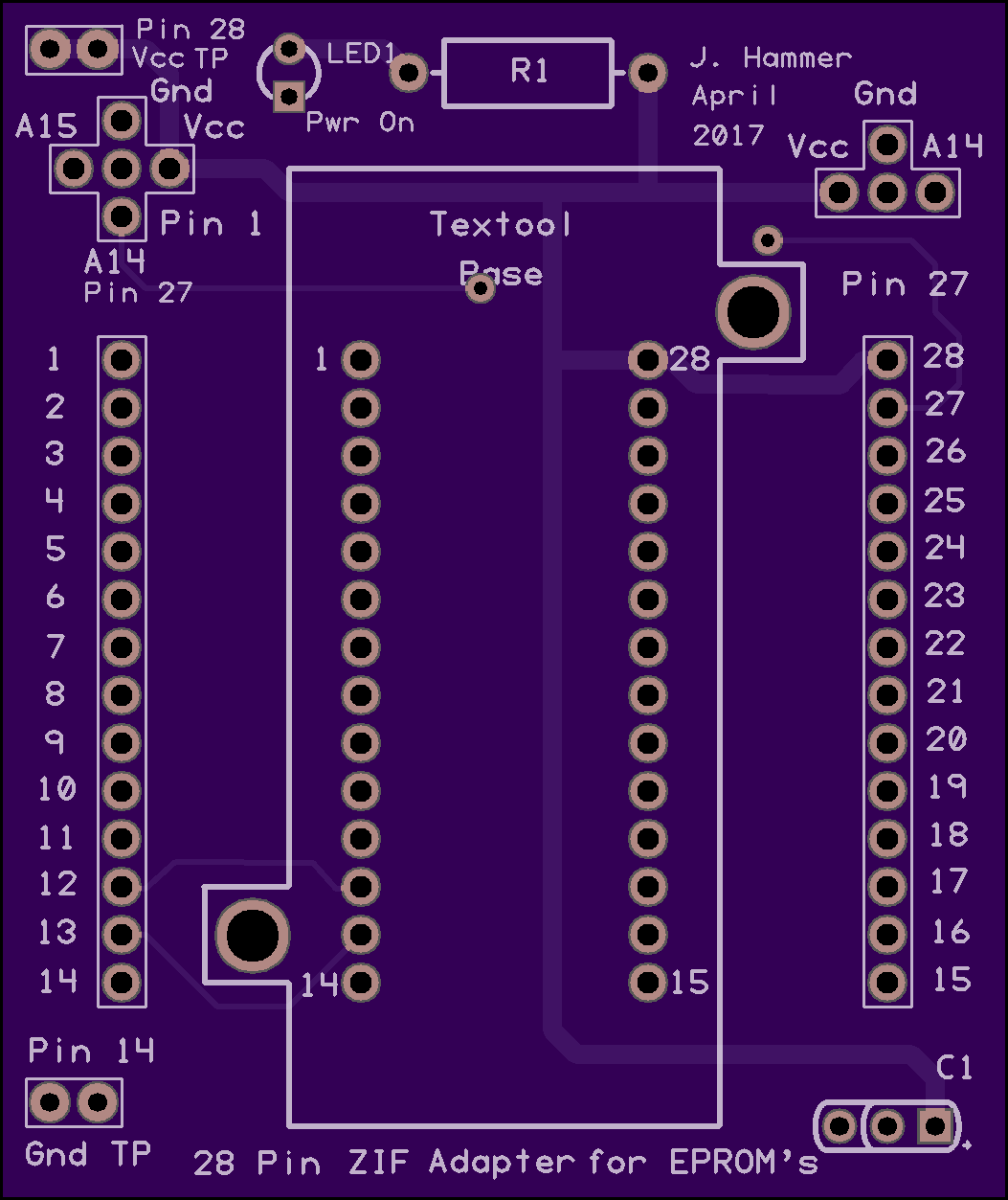

TexTool_28_pin_adapter_001.zip
by
joehammer.
2
layer board of
2.11x2.51
inches
(53.52x63.65
mm).
Shared on
May 1st, 2017 23:16.
A two piece assembly to attach a 28 pin TexTool ZIF adapter. The idea is to place a ZIF adapter onto on pcb. Then using Samtec connectors, attact the top pcb assy onto a second pcb with a 28 pin WW socket soldered into the bottom pcb to be able to inset this assembly into a 28 pin PROM socket and utilize different sized PROMS or better yet, Electrically Erasable ROMs.
CAT4101 (1A LED Driver) Breakout
by
Penguineer.
2
layer board of
0.60x1.08
inches
(15.34x27.41
mm).
Shared on
May 1st, 2017 20:56.
Simple breakout board for a CAT4101, filter capacitor and sense resistor with cut-out for a heat sink. Tested.
Datasheet: http://www.onsemi.com/pub/Collateral/CAT4101-D.PDF
USB Serial.brd
by
FPGA-Computer.
2
layer board of
0.70x0.51
inches
(17.78x12.98
mm).
Shared on
May 1st, 2017 20:34.
https://hackaday.io/project/20532-usb-packet-snooping
OpenAg_Signals_V6.brd
by
Kanr.
2
layer board of
5.58x5.34
inches
(141.83x135.51
mm).
Shared on
May 1st, 2017 19:39.

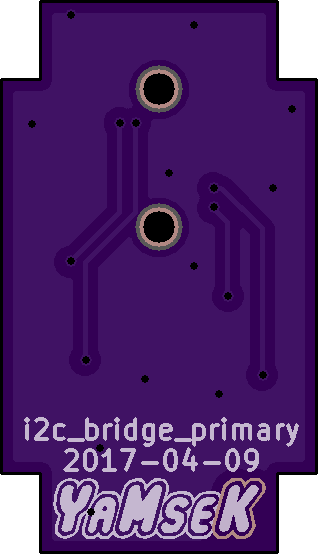

i2c_bridge_primary
by
jeega3Woon.
2
layer board of
0.64x1.11
inches
(16.15x28.17
mm).
Shared on
May 1st, 2017 17:17.
