Led Matrix Watch - Matrix

by

2 layer board of 1.34x1.50 inches (34.11x38.13 mm).
Shared on April 30th, 2017 21:12.

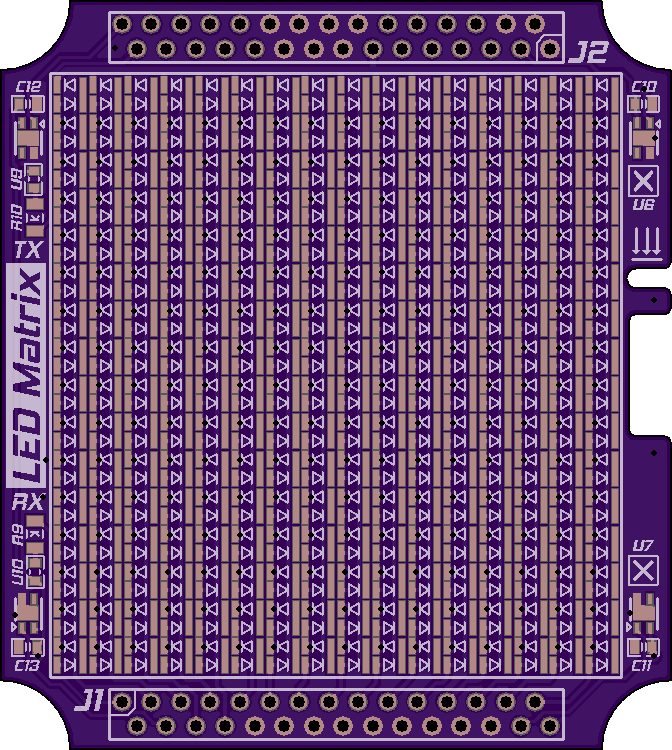

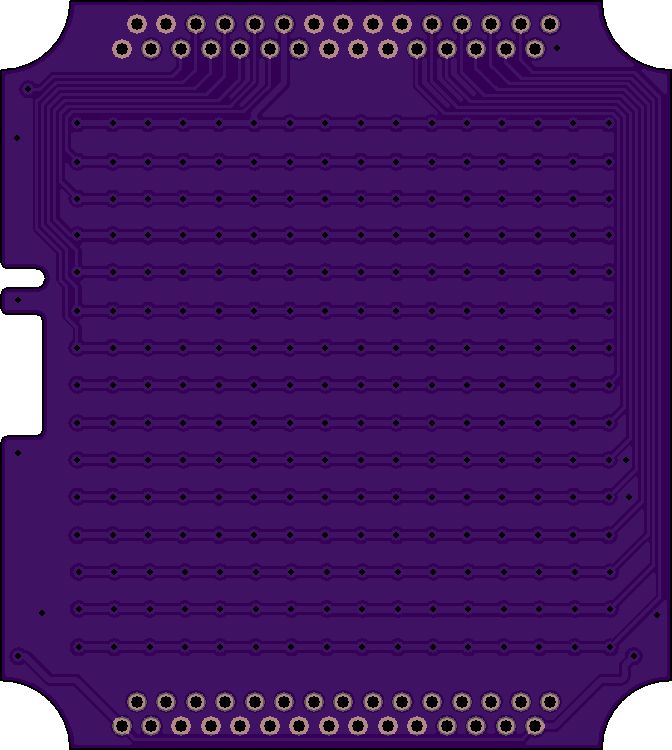

Wrist watch with monochromatic 16X16 LED Matrix. Device is made out of 2 PCBs - Matrix and Motherboard.

https://hackaday.io/project/20840-led-matrix-watch

Copy this HTML into your page to embed a link to order this shared project

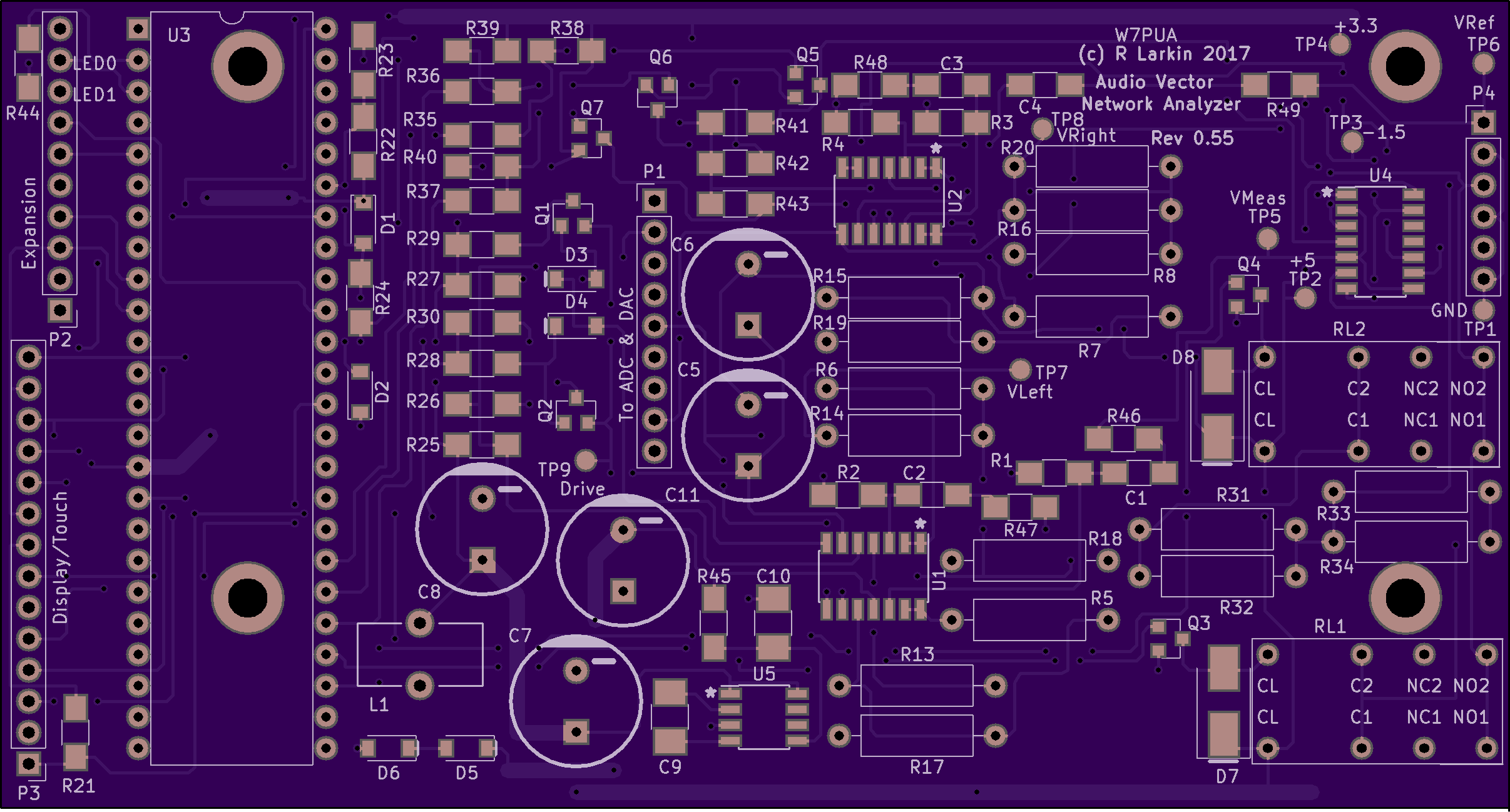

AVNA1 Audio Vector Network Analyzer 10 Hz to 40 kHz

by

2 layer board of 4.83x2.60 inches (122.58x65.94 mm).
Shared on April 30th, 2017 19:12.

Audio Vector Network Analyzer using the Teensy 3.6. Info is at the project Web site.

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.11x2.01 inches (28.19x51.05 mm).
Shared on April 30th, 2017 09:55.

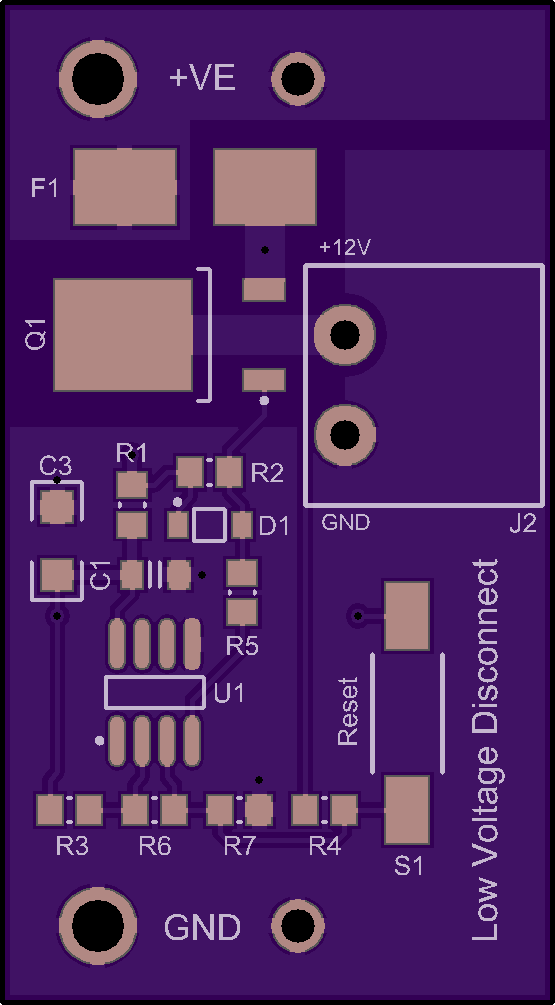

Low Voltage Disconnect PCB for 12V 7Ah Sealed Lead Acid Batteries

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 0.66x0.30 inches (16.81x7.62 mm).
Shared on April 30th, 2017 04:09.

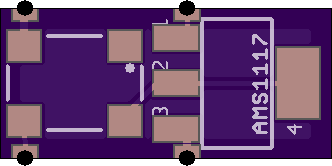

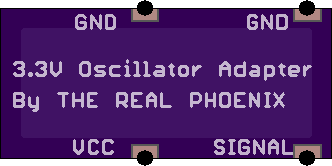

Adapter for 3.3V SMD Oscillator. Replace the HCU04 on Super FX games.

Order the PCB in 0.8mm thickness.

•7.00mm x 5.08mm SMD 4pin oscillator

•REG LDO 3.3V SOT223

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.60x0.91 inches (40.64x23.19 mm).
Shared on April 30th, 2017 04:09.

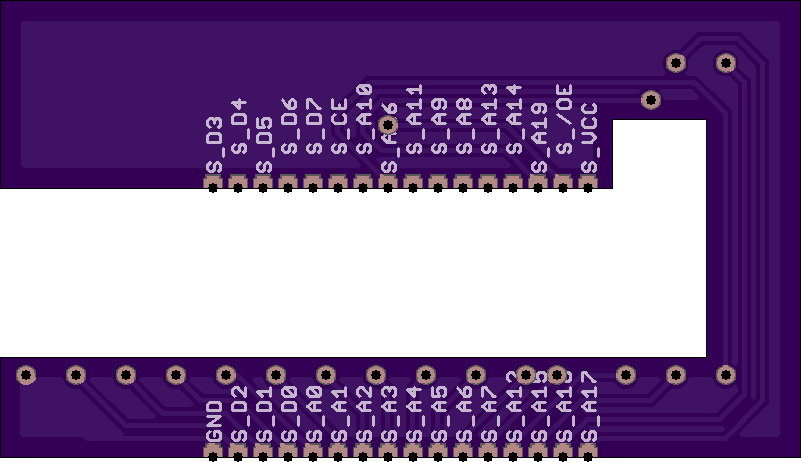

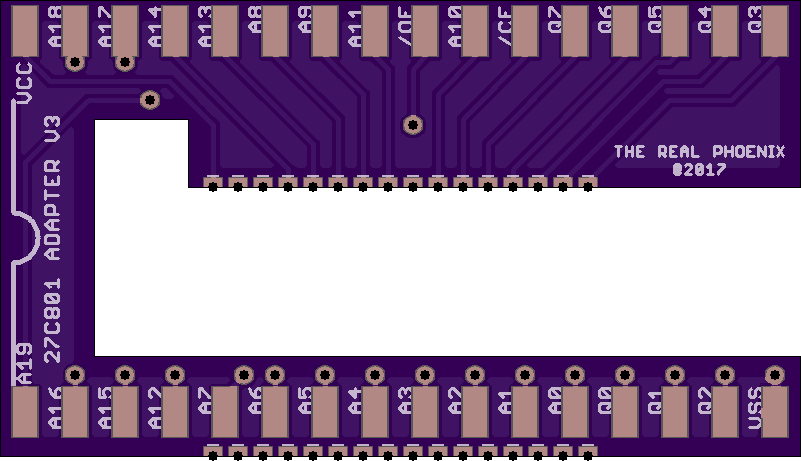

Starfox 2 Adapter for 27C801 on SHVC-1CA6B Please use 0.8mm thick board.
