New Mighty 1284P WiFi, A 40-pin DIP module

by Firebirduino.

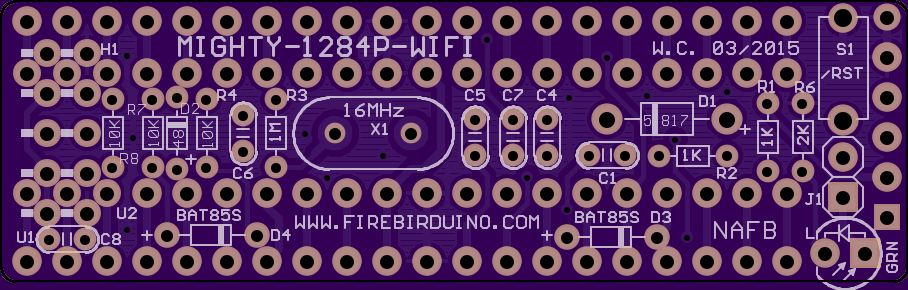

Top

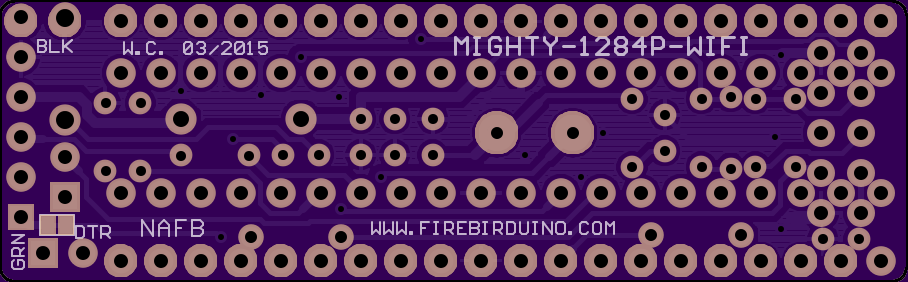

Bottom

2 layer board of 2.27x0.71 inches (57.71x17.96 mm).
Shared on June 3rd, 2015 15:40.

The low cost and easy to make Mighty1284P WiFi DIP Module for breadboard prototyping. Made with all through hole components. Use the new core and exact same pinout of the original maniacbug Mighty 1284P 16MHz prototype board. Other features include the ESP8266 connector, reverse polarity protection diode, reset button, and D13 LED indicator. See details at: http://www.firebirduino.com/mighty_stick/
