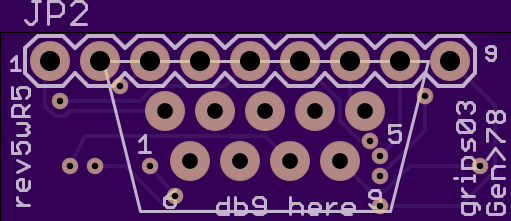

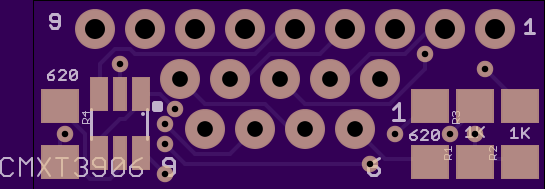

genesis-to-7800-adapter-rev5-widebody-round5.brd

2 layer board of 1.02x0.38 inches (25.98x9.60 mm).
Shared on February 16th, 2017 16:07.

Sega Genesis to Atari 7800 controller adapter, aka Revenge adapter.

Please don’t make to sell on eBay, etc. This is for non-commercial use only.

Digikey.com :

(1) db9 shell p/n 970-009-010R011

(1) db9 male p/n A-DS 09 PP/Z

(1) transistor p/n CMXT3906 TR

(2) 620 ohm 1206 resistor p/n ERJ-8ENF6200V

(2) 1k ohm 1206 resistor p/n ERJ-8ENF1001V

Console5.com :

Sega Genesis controller extension cable
