UU - MIND+ with STM32 F103CBU6

by Firebirduino.
Top

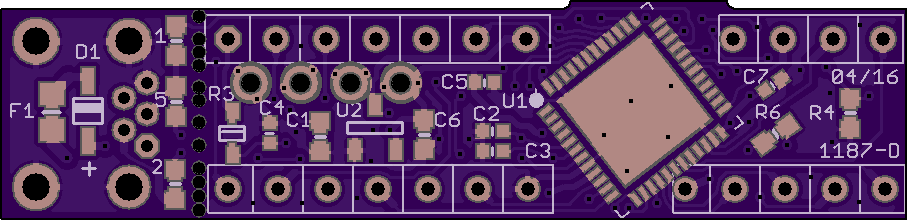

Bottom

2 layer board of 1.82x0.44 inches (46.10x11.15 mm).
Shared on May 1st, 2016 23:38.

DIY UNO Upgrade with the STM32F103CBU6, 72 MHz STM32, Cortex M3, fastest ARM controller in the UNO form factor.

ATMEGA328P DIP drop-in replacement.

Schematic and BOM available at www.firebirduino.com
