Mini Stick - Atmega 328P Ardweeny style

by Firebirduino.

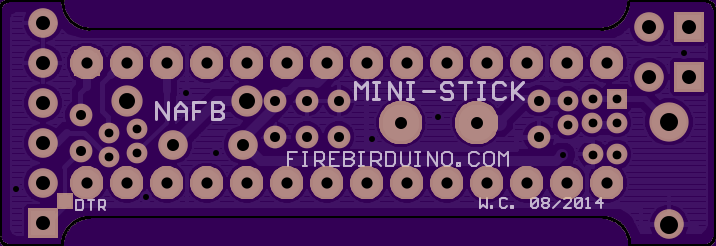

Top

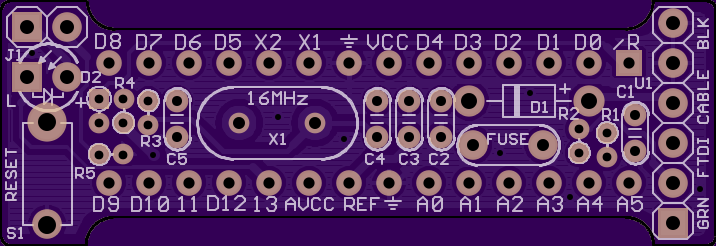

Bottom

2 layer board of 1.79x0.62 inches (45.52x15.65 mm).
Shared on September 9th, 2014 14:01.

Atmega328P DIP module in Ardweeny style for prototyping, Arduino UNO compatible, made with all through hole parts, including a 16 MHz crystal. No soldering is required on Atmega328P’s pins.

See details at: http://www.firebirduino.com/mini_stick/
