Micro License GoDoc Travis CI Roadmap Go Report Card

Micro is a microservices toolkit. It simplifies writing and running distributed applications.

Checkout go-micro if you want to start writing services now.

Examples of how to write a service in ruby or python can be found in here

Overview

The goal of Micro is to provide a toolkit for microservice development and management. At the core, micro is simple and accessible enough that anyone can easily get started writing microservices. As you scale to hundreds of services, micro will provide the fundamental tools required to manage a microservice environment.

Micro

Getting Started

Writing a service

Learn how to write and run a microservice using go-micro

Install Micro

$ go get github.com/micro/micro

Or via Docker

$ docker pull microhq/micro

Quick start

We need service discovery, so let's spin up Consul (default discovery mechanism; checkout go-plugins to switch it out).

$ go get github.com/hashicorp/consul
$ consul agent -dev -advertise=127.0.0.1

Run the greeter example app

$ go get github.com/micro/micro/examples/greeter/server
$ server

List services

$ micro list services
consul
go.micro.srv.greeter

Get Service

$ micro get service go.micro.srv.greeter
go.micro.srv.greeter

Id  Address Port    Metadata
go.micro.srv.greeter-154a6487-7d7e-11e5-882a-34363b77bace   [::]    57067

Endpoint: Say.Hello
Metadata: stream=false
Request:
{
    name string
}
Response:
{
    msg string
}

Endpoint: Debug.Health
Metadata: stream=false
Request: {}
Response:
{
    status string
}

Query service

$ micro query go.micro.srv.greeter Say.Hello '{"name": "John"}'
{
    "msg": "go.micro.srv.greeter-154a6487-7d7e-11e5-882a-34363b77bace: Hello John"
}

Read more on how to use the Micro CLI

Usage

NAME:
   micro - A microservices toolkit

USAGE:
   micro [global options] command [command options] [arguments...]

VERSION:
   latest

COMMANDS:
   api      Run the micro API
   registry Query registry
   query    Query a service method using rpc
   stream   Query a service method using streaming rpc
   health   Query the health of a service
   list     List items in registry
   register Register an item in the registry
   deregister   Deregister an item in the registry
   get      Get item from registry
   sidecar  Run the micro sidecar
   web      Run the micro web app
   help, h  Shows a list of commands or help for one command

GLOBAL OPTIONS:
   --server_name                                Name of the server. go.micro.srv.example [$MICRO_SERVER_NAME]
   --server_version                                 Version of the server. 1.1.0 [$MICRO_SERVER_VERSION]
   --server_id                                  Id of the server. Auto-generated if not specified [$MICRO_SERVER_ID]
   --server_address                                 Bind address for the server. 127.0.0.1:8080 [$MICRO_SERVER_ADDRESS]
   --server_advertise                               Used instead of the server_address when registering with discovery. 127.0.0.1:8080 [$MICRO_SERVER_ADVERTISE]
   --server_metadata [--server_metadata option --server_metadata option]    A list of key-value pairs defining metadata. version=1.0.0 [$MICRO_SERVER_METADATA]
   --broker                                     Broker for pub/sub. http, nats, rabbitmq [$MICRO_BROKER]
   --broker_address                                 Comma-separated list of broker addresses [$MICRO_BROKER_ADDRESS]
   --registry                                   Registry for discovery. memory, consul, etcd, kubernetes [$MICRO_REGISTRY]
   --registry_address                               Comma-separated list of registry addresses [$MICRO_REGISTRY_ADDRESS]
   --selector                                   Selector used to pick nodes for querying. random, roundrobin, blacklist [$MICRO_SELECTOR]
   --transport                                  Transport mechanism used; http, rabbitmq, nats [$MICRO_TRANSPORT]
   --transport_address                              Comma-separated list of transport addresses [$MICRO_TRANSPORT_ADDRESS]
   --enable_tls                                 Enable TLS [$MICRO_ENABLE_TLS]
   --tls_cert_file                              TLS Certificate file [$MICRO_TLS_CERT_File]
   --tls_key_file                               TLS Key file [$MICRO_TLS_KEY_File]
   --api_address                                Set the api address e.g 0.0.0.0:8080 [$MICRO_API_ADDRESS]
   --proxy_address                              Proxy requests via the HTTP address specified [$MICRO_PROXY_ADDRESS]
   --sidecar_address                                Set the sidecar address e.g 0.0.0.0:8081 [$MICRO_SIDECAR_ADDRESS]
   --web_address                                Set the web UI address e.g 0.0.0.0:8082 [$MICRO_WEB_ADDRESS]
   --register_ttl "0"                               Register TTL in seconds [$MICRO_REGISTER_TTL]
   --register_interval "0"                          Register interval in seconds [$MICRO_REGISTER_INTERVAL]
   --api_handler                                Specify the request handler to be used for mapping HTTP requests to services. e.g api, proxy [$MICRO_API_HANDLER]
   --api_namespace                              Set the namespace used by the API e.g. com.example.api [$MICRO_API_NAMESPACE]
   --web_namespace                              Set the namespace used by the Web proxy e.g. com.example.web [$MICRO_WEB_NAMESPACE]
   --api_cors                                   Comma separated whitelist of allowed origins for CORS [$MICRO_API_CORS]
   --web_cors                                   Comma separated whitelist of allowed origins for CORS [$MICRO_WEB_CORS]
   --sidecar_cors                               Comma separated whitelist of allowed origins for CORS [$MICRO_SIDECAR_CORS]
   --enable_stats                               Enable stats [$MICRO_ENABLE_STATS]
   --help, -h                                   show help

The Ecosystem

The overarching project github.com/micro is a microservice ecosystem which consists of a number of tools and libraries. Each of which can either be used totally independently, plugged into your architecture or combined as a whole to provide a completely distributed systems platform.

It currently consists of the following.

Go Micro

Go-micro is a pluggable Go client framework for writing microservices. Go-micro can be used standalone and should be the starting point for writing applications.

Feature Description
Registry Service discovery
Client RPC Client
Codec Request/Response Encoding
Selector Load balancing
Server RPC Server
Broker Asynchronous Messaging
Transport Synchronous Messaging

Micro

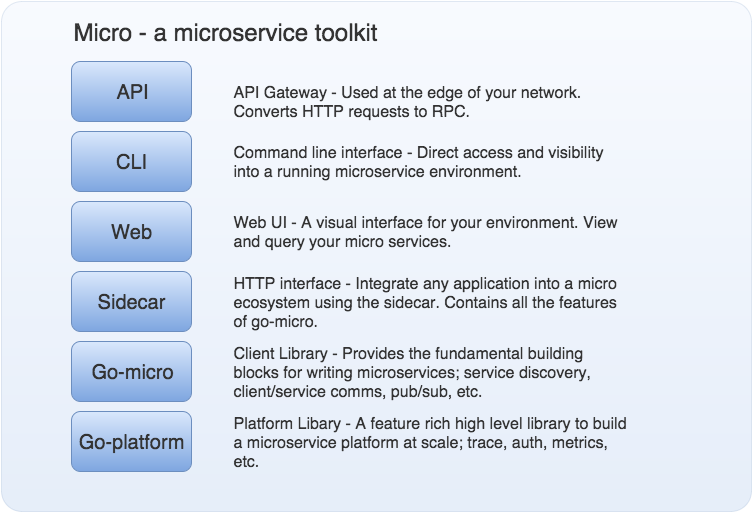

Micro provides entry points into a running system with an API Gateway, Web UI, HTTP Sidecar and CLI. Micro can be used to manage the public facing aspect of your services and will normally run at the edge of your infrastructure.

Feature Description
API Gateway Lightweight gateway/proxy. Convert http requests to rpc
CLI Command line interface
Sidecar HTTP proxy for non Go-micro apps
Web UI/Proxy A visual way to view and query services

Go Platform

Go-platform provides pluggable libraries for integrating with higher level requirements for microservices. It mainly integrates functionality for distributed systems.

Feature Description
auth authentication and authorisation for users and services
config dynamic configuration which is namespaced and versioned
db distributed database abstraction
discovery extends the go-micro registry to add heartbeating, etc
event platform event publication, subscription and aggregation
kv simply key value layered on memcached, etcd, consul
log structured logging to stdout, logstash, fluentd, pubsub
monitor add custom healthchecks measured with distributed systems in mind
metrics instrumentation and collation of counters
router global circuit breaking, load balancing, A/B testing
sync distributed locking, leadership election, etc
trace distributed tracing of request/response

Platform

Platform is a complete runtime for managing microservices at scale. Where Micro provides the core essentials, the platform goes a step further and addresses every requirement for large scale distributed system deployments.

Feature Description
Auth Authentication and authorization (Oauth2)
Config Dynamic configuration
DB Proxy RPC based database proxy
Discovery Service discovery read layer cache
Events Platform event aggregation
Monitoring Monitoring for Status, Stats and Healthchecks
Routing Global service load balancing
Tracing Distributed tracing

Go Plugins

Go Plugins provides plugins for go-micro and go-platform contributed by the community. Examples could include; circuit breakers, rate limiting. Registries built on top of Kubernetes, Zookeeper, etc. Transport using HTTP2, Zeromq, etc. Broker using Kafka, AWS SQS, etc.

Example plugins

Plugin Description
NATS Synchronous transport with the NATS message bus
Etcd Service discovery using etcd
BSON-RPC Request/Response encoding using bson-rpc

Example Services

Project Description
greeter A greeter service (includes Go, Ruby, Python examples)
geo-srv Geolocation tracking service using hailocab/go-geoindex
geo-api A HTTP API handler for geo location tracking and search
discovery-srv A discovery in the micro platform
geocode-srv A geocoding service using the Google Geocoding API
hailo-srv A service for the hailo taxi service developer api
monitor-srv A monitoring service for Micro services
place-srv A microservice to store and retrieve places (includes Google Place Search API)
slack-srv The slack bot API as a go-micro RPC service
trace-srv A distributed tracing microservice in the realm of dapper, zipkin, etc
twitter-srv A microservice for the twitter API
user-srv A microservice for user management and authentication

Community Contributions

Project Description
Micro Dashboard Dashboard for microservices toolchain micro

Architecture

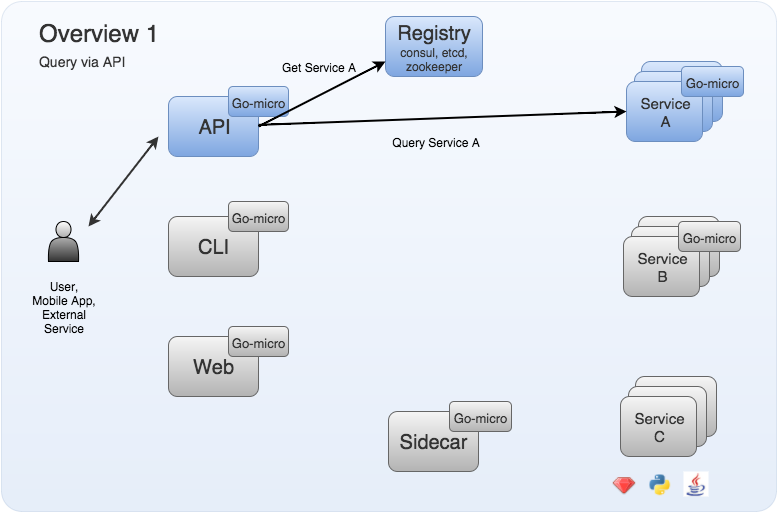

Overview1

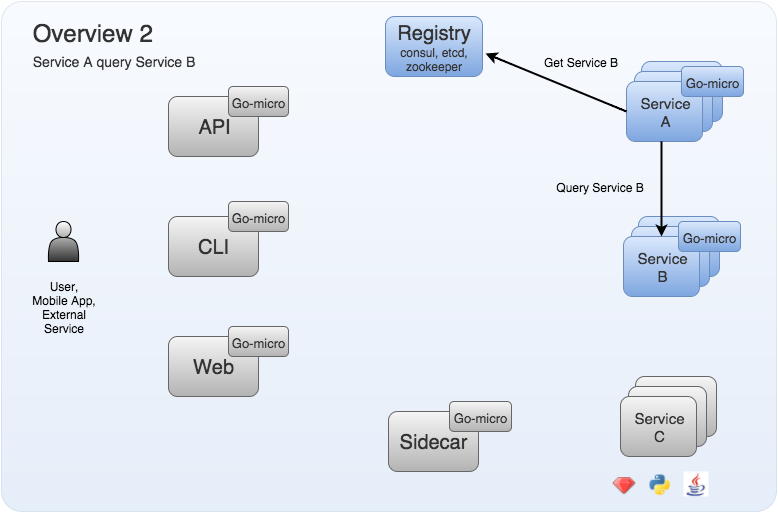

Overview2

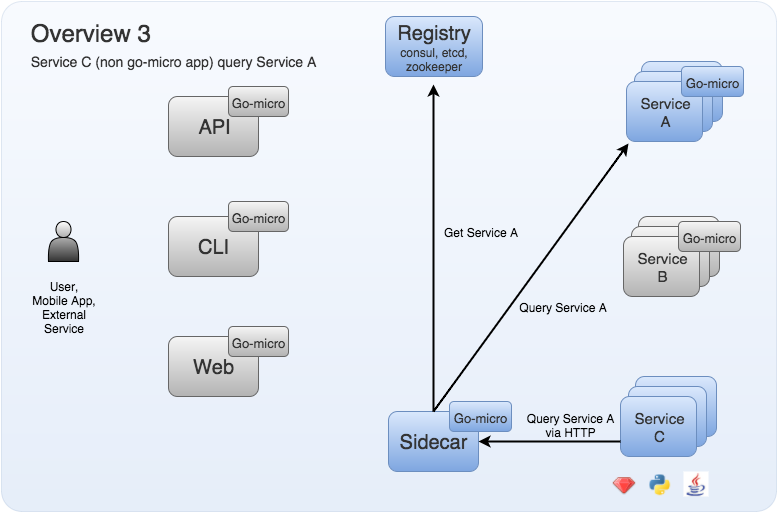

Overview3

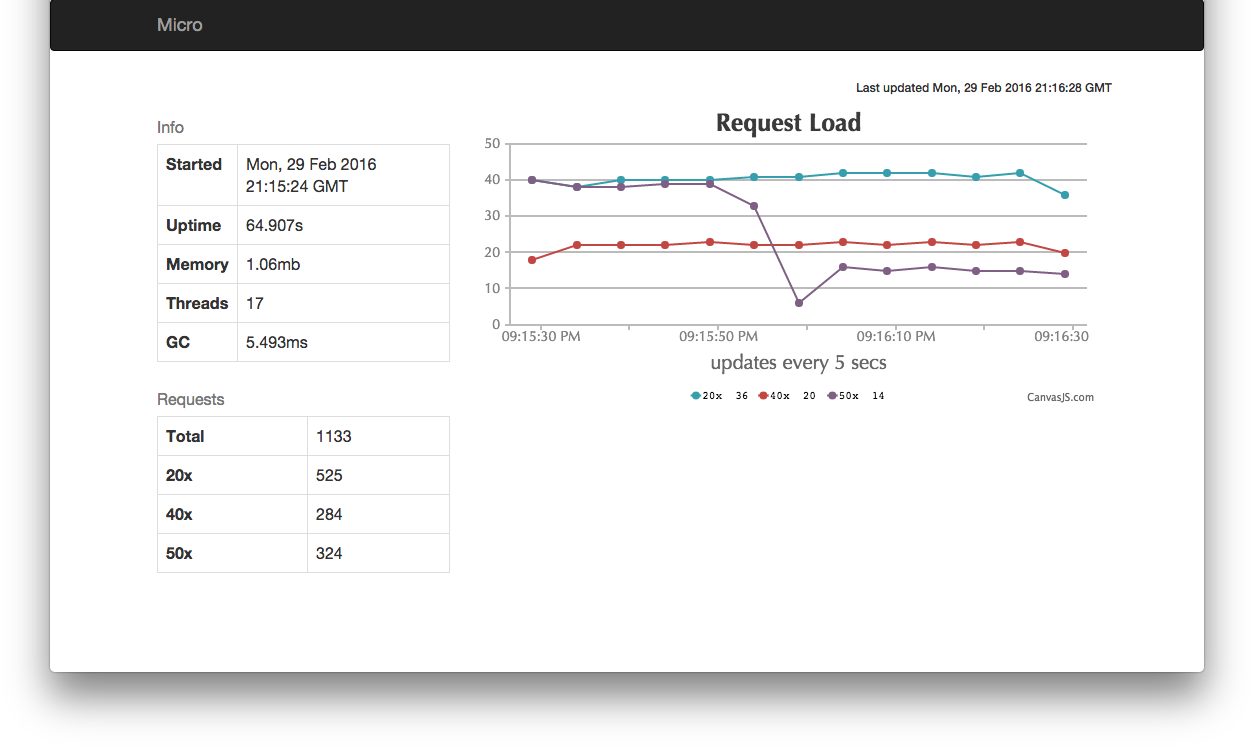

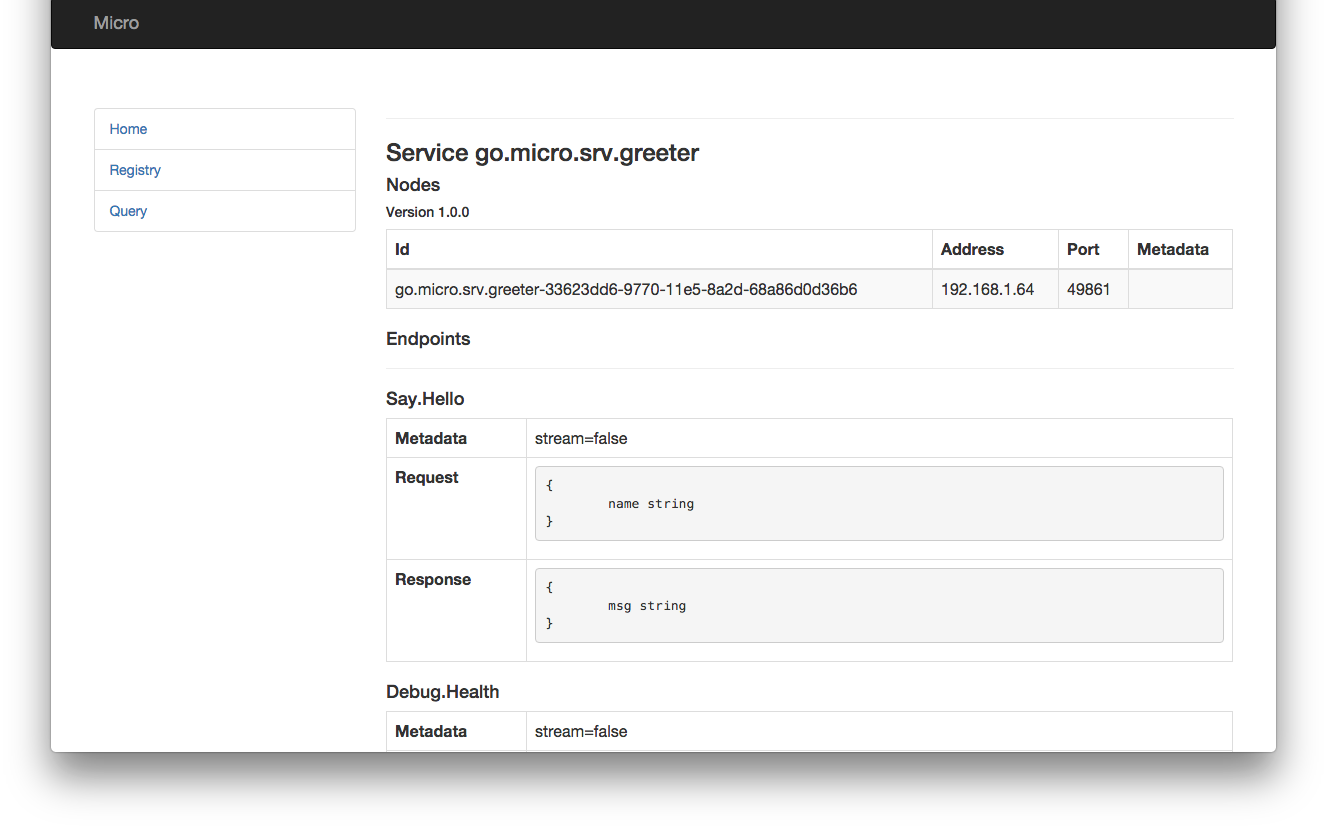

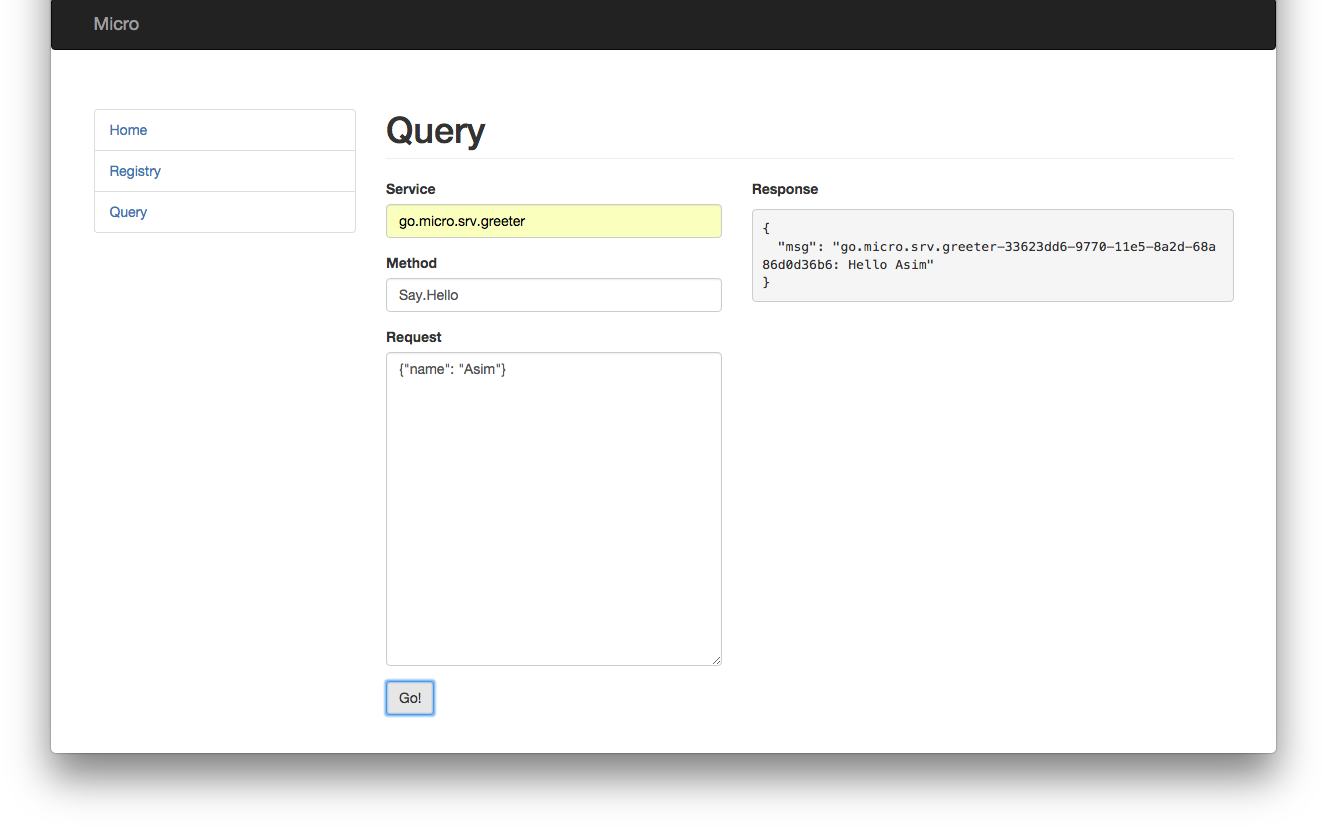

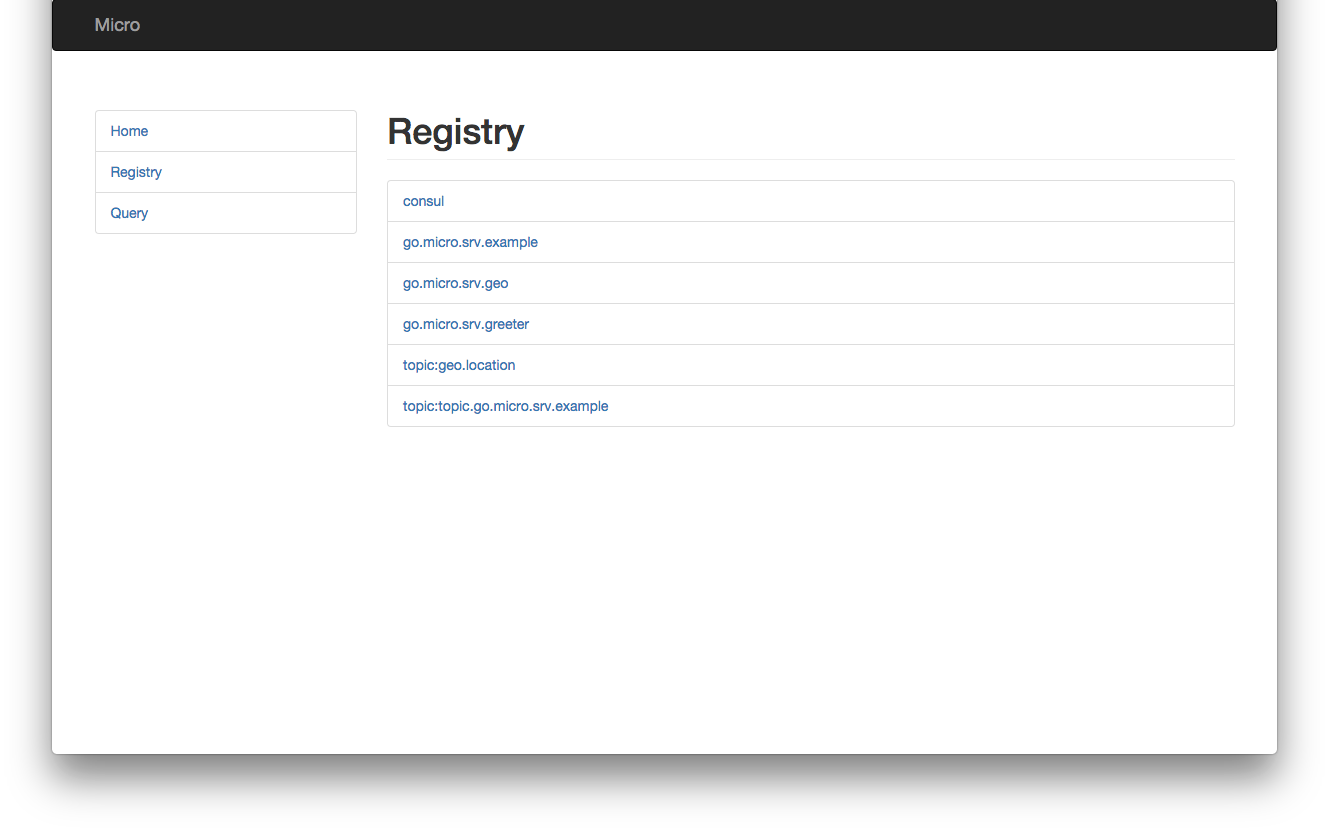

Built in Web UI

About Microservices

Microservices is an architecture pattern used to decompose a single large application in to a smaller suite of services. Generally the goal is to create light weight services of 1000 lines of code or less. Each service alone provides a particular focused solution or set of solutions. These small services can be used as the foundational building blocks in the creation of a larger system.

The concept of microservices is not new, this is the reimagination of service orientied architecture but with an approach more holistically aligned with unix processes and pipes. For those of us with extensive experience in this field we're somewhat biased and feel this is an incredibly beneficial approach to system design at large and developer productivity.

Learn more about Microservices by watching Martin Fowler's presentation here or his blog post here.

Microservice Requirements

The foundation of a library enabling microservices is based around the following requirements:

  • Server - an ability to define handlers and serve requests
  • Client - an ability to make requests to another service
  • Discovery - a mechanism by which to discover other services

These 3 components form the minimum requirements for microservices development. An ecosystem of libraries and tools can be created around them to provide a feature rich system however at the foundation only these 3 things are required to write services and communicate between them.

Server

The server is the core component which allows you to register request handlers and serve requests. Ideally it's transport agnostic so different transports such as http, rabbitmq, etc can be chosen. On start it should register itself with discovery system so other microservices know it exists and deregister when shutting down. The server should handle encoding/decoding incoming/outgoing requests, leaving the handlers to operate on the request/response types they expect.

Example interface:

server.New(name, options) - instantiate new server
server.Register(handler) - register a handler with the server
server.Start() - start
server.Stop() - stop

Client

Where the server allows you to serve requests, the client lets you make them to other servers. The client should support request/response and pub/sub. Part of the microservices world is event driven programming, taking action based on events, which is why pub/sub is a requirement of the client. It should also make use of the discovery system so requests can be made by service name.

Example interface:

client.Request(name, request) - Make a request to another server
client.Publish(topic, message) - Publish a message on a topic
client.Subscribe(topic, channel) - Subscribe to a topic

Discovery

The discovery system is really vital to microservices development. Any sort of communication between servers will first require locating it and then making the request. Discovery should support registration and retrieval of servers. It should optionally support a keepalive mechanism to remove stale servers.

Example interface:

discovery.Register(name, hostname, ...) - Register a server
discovery.Deregister(name, hostname, ...) - Deregister a server
discovery.Get(name) - Get the details for a server
discovery.List() - List all servers

Microservices? What are they even good for?

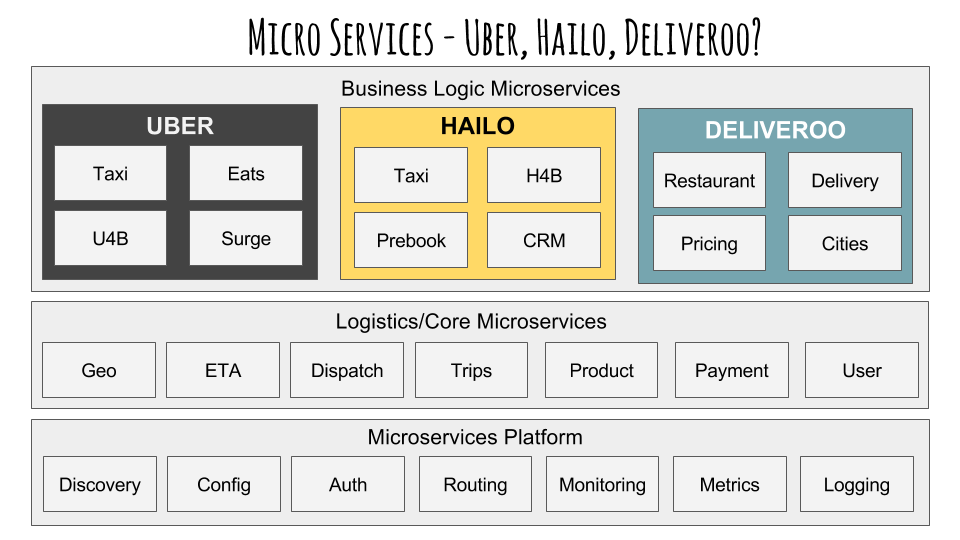

Micro On-Demand
