BottomBar

Don't send me pull requests just yet, not until the dust settles.

How to contribute

Common problems and solutions

What?

A custom view component that mimics the new Material Design Bottom Navigation pattern.

(currently under active development, expect to see new releases almost daily)

Does it work on my Grandpa Gary's HTC Dream?

Nope. The current minSDK version is API level 11 (Honeycomb).

Your uncle Bob's Galaxy S Mini will probably be supported in the future though.

Gimme that Gradle sweetness, pls?

compile 'com.roughike:bottom-bar:1.1.7'

Maven:

<dependency>
  <groupId>com.roughike</groupId>
  <artifactId>bottom-bar</artifactId>
  <version>1.1.7</version>
  <type>pom</type>
</dependency>

How?

BottomBar likes Fragments very much, but you can also handle your tab changes by yourself. You can add items by specifying an array of items or by xml menu resources.

Adding items from menu resource

res/menu/bottombar_menu.xml:

<menu xmlns:android="http://schemas.android.com/apk/res/android">
    <item
        android:id="@+id/bottomBarItemOne"
        android:icon="@drawable/ic_recents"
        android:title="Recents" />
        ...
</menu>

MainActivity.java

public class MainActivity extends AppCompatActivity {
    private BottomBar mBottomBar;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        mBottomBar = BottomBar.attach(this, savedInstanceState);
        mBottomBar.setItemsFromMenu(R.menu.bottombar_menu, new OnMenuTabSelectedListener() {
            @Override
            public void onMenuItemSelected(int resId) {
                if (resId == R.id.bottomBarItemOne) {
                    // the user selected item number one
                }
            }
        });

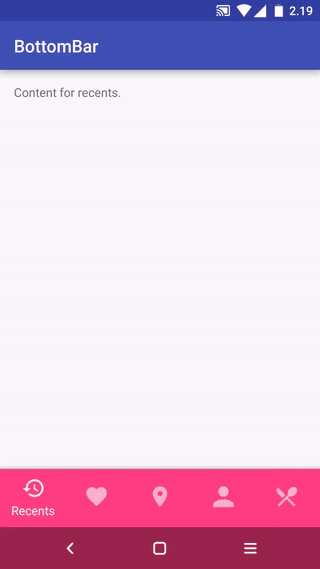

        // Setting colors for different tabs when there's more than three of them.
        // You can set colors for tabs in three different ways as shown below.
        mBottomBar.mapColorForTab(0, ContextCompat.getColor(this, R.color.colorAccent));
        mBottomBar.mapColorForTab(1, 0xFF5D4037);
        mBottomBar.mapColorForTab(2, "#7B1FA2");
        mBottomBar.mapColorForTab(3, "#FF5252");
        mBottomBar.mapColorForTab(4, "#FF9800");
    }

    @Override
    protected void onSaveInstanceState(Bundle outState) {
        super.onSaveInstanceState(outState);

        // Necessary to restore the BottomBar's state, otherwise we would
        // lose the current tab on orientation change.
        mBottomBar.onSaveInstanceState(outState);
    }
}

Customization

// Disable the left bar on tablets and behave exactly the same on mobile and tablets instead.
mBottomBar.noTabletGoodness();

// Use the dark theme. Ignored on mobile when there are more than three tabs.
mBottomBar.useDarkTheme(true);

// Set the color for the active tab. Ignored on mobile when there are more than three tabs.
mBottomBar.setActiveTabColor("#009688");

// Use custom text appearance in tab titles.
mBottomBar.setTextAppearance(R.style.MyTextAppearance);

// Use custom typeface that's located at the "/src/main/assets" directory. If using with
// custom text appearance, set the text appearance first.
mBottomBar.setTypeFace("MyFont.ttf");

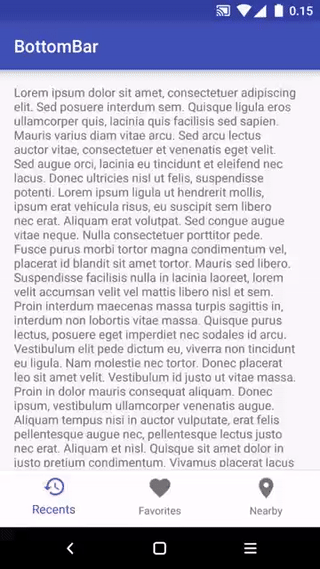

What about hiding it automatically on scroll?

Easy-peasy!

MainActivity.java:

// Instead of attach(), use attachShy:
mBottomBar = BottomBar.attachShy((CoordinatorLayout) findViewById(R.id.myCoordinator),
    findViewById(R.id.myScrollingContent), savedInstanceState);

activity_main.xml:

<android.support.design.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/myCoordinator"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:fitsSystemWindows="true">

    <android.support.v4.widget.NestedScrollView
        android:id="@+id/myScrollingContent"
        android:layout_width="match_parent"
        android:layout_height="match_parent">

        <!-- Your loooong scrolling content here -->

    </android.support.v4.widget.NestedScrollView>

</android.support.design.widget.CoordinatorLayout>

Can it handle my Fragments and replace them automagically when a different tab is selected?

Yep yep yep! Just call setFragmentItems() instead of setItemsFromMenu():

// If you use normal Fragments, just change the first argument to getFragmentManager(). It's pure magic!
mBottomBar.setFragmentItems(getSupportFragmentManager(), R.id.fragmentContainer,
    new BottomBarFragment(SampleFragment.newInstance("Content for recents."), R.drawable.ic_recents, "Recents"),
    new BottomBarFragment(SampleFragment.newInstance("Content for favorites."), R.drawable.ic_favorites, "Favorites"),
    new BottomBarFragment(SampleFragment.newInstance("Content for nearby stuff."), R.drawable.ic_nearby, "Nearby")
);

I hate Fragments and wanna do everything by myself!

That's alright, you can also do it the hard way if you're living on the edge.

mBottomBar.setItems(
        new BottomBarTab(R.drawable.ic_recents, "Recents"),
        new BottomBarTab(R.drawable.ic_favorites, "Favorites"),
        new BottomBarTab(R.drawable.ic_nearby, "Nearby")
);

// Listen for tab changes
mBottomBar.setOnItemSelectedListener(new OnTabSelectedListener() {
    @Override
    public void onItemSelected(int position) {
        // user selected a different tab
    }
});

For a working example, refer to the sample app.

Common problems and solutions

Can I use it by XML?

No, but you can still put it anywhere in the View hierarchy. Just attach it to any View you want like this:

mBottomBar.attach(findViewById(R.id.myContent), savedInstanceState);

Why does the top of my content have sooooo much empty space?!

Probably because you're doing some next-level advanced Android stuff (such as using CoordinatorLayout and fitsSystemWindows="true") and the normal paddings for the content are too much. Add this right after calling attach():

mBottomBar.noTopOffset();

I don't like the awesome transparent Navigation Bar!

You can disable it.

mBottomBar.noNavBarGoodness();

Why is it overlapping my Navigation Drawer?

All you need to do is instead of attaching the BottomBar to your Activity, attach it to the view that has your content. For example, if your fragments are in a ViewGroup that has the id fragmentContainer, you would do something like this:

mBottomBar.attach(findViewById(R.id.fragmentContainer), savedInstanceState);

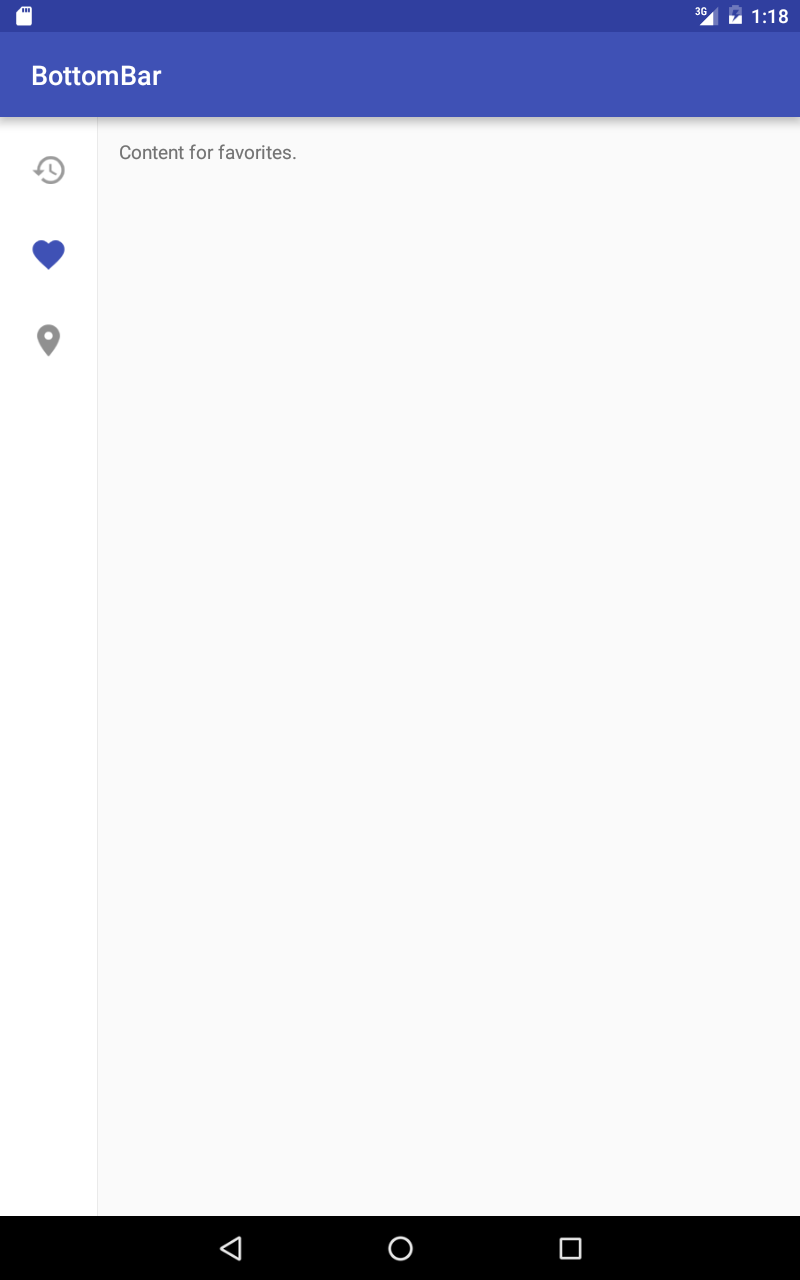

What about Tablets?

It works nicely with tablets straight out of the box. When the library detects that the user has a tablet, the BottomBar will become a "LeftBar", just like in the Material Design Guidelines.

What about the (insert thing that looks different than the specs here)?

Just give me some time and all your dreams will come true.

Apps using BottomBar

Send me a pull request with modified README.md to get a shoutout!

Contributions

Feel free to create issues.

Don't send me pull requests just yet, not until the dust settles.

I'm fixing issues and busting my ass to make this library better, several hours every day. Your hard work could be for nothing, as I'm probably fixing / implementing the same problems that you are.
