Mark, are you going to be offering the Z-Axis threaded rod and nut block in the store?

Hey Kram, I attached a DXF that is in inches. If you are interested in putting that in the files...

hello i am new at this but is there any way to get the blue print and dimensions for the plates in adobe or something that i can access. i can not seem to get the dimension off the file on the site, please help, thank you

Download dwg true view from autodesk. And open the dxf in the files. Or download sketch up and open the sketch up model in the files tab

Hmm I'll look into it.. Try opening it in a different viewer. Maybe it's just e viewer

In trying to tune up my steppers, I find the X+ (left arrow) and X-(right arrow) and Z+(PGUP) and Z-(PGDW) directions are backwards. Up key moves Z down and down key moves Z up. Is this typical with CNC routers? If not, what do I have wrong. The Y axis is just fine.

Also, I have one motor (y) that is a lot louder than the others. I have used the trim on all motors. The Y stepper just won't quiet down. The X, Z and A steppers are very quiet. Any advice out there?

Motor quietness had to do with motor tuning or possibly a chopper drivers for your control board.

Your direction keys are reversed. in mach ports and pins toggle the active low for the effected axis on the direction pin

Mine are "plug & play" from cncrouterparts.com. Using Mach3 demo software.

Thank you. I'll give the active low a try. I don't understand what "a chopper drivers" are. I'm learning.

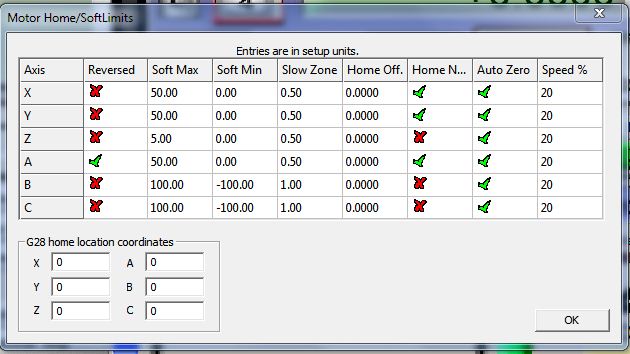

For your direction you can also reverse it by changing the setting in the "homing/limits" page



For the sound of your Y axis, did you try to play with the speed and acceleration value in the "motor tuning" page? You can use the up dans down arrow to move it in that page and hear if it sounds good.


I also want to know what combination of feeding speed, spindle speed and end mill are you using with the OX for different materials? (aluminium, plywood, mdf etc)

I haven't gotten that far yet. Still playing around with various settings. At this point in the CNC game, I don't know how to tell the machine to cut a certain pattern.

My motors won't turn while on the motor tuning page. I have to save the settings and hit ok. That takes me off the tuning page. Try the motors then return to the tuning page if I don't like it. X,Z and A motors are very quiet. Y motor has a deep hum to it. I have the trim turned down almost all the way. Turning it up any makes the motor louder. I removed the belt tension and tried moving the spindle to see if maybe something was binding. All moves smoothly.
