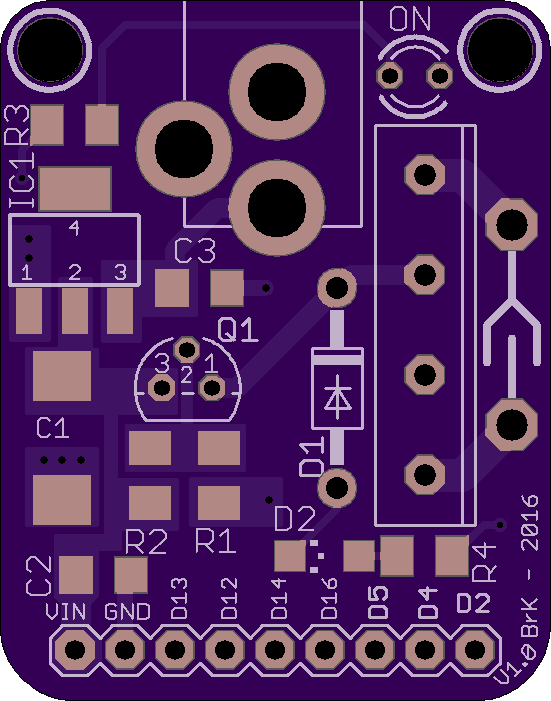

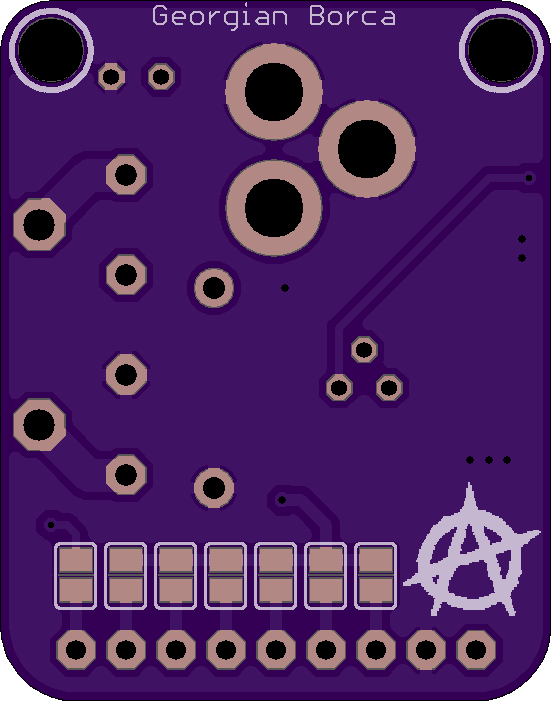

One relay and Power Supply
by
BrK.
2
layer board of
1.10x1.40
inches
(27.94x35.59
mm).
Shared on
May 6th, 2016 14:08.
Power supply and one relay for my esp-07 board.
With a PNP transistor, as it was designed, this board dose not work with the ESP-07 module. The 3.3V logic is to low for the transistor to cut OFF the relay. The relay is always ON. Another revision with a NPN transitor is on the way. If you have any questions, contact me on georgian.borca@yahoo.com
https://oshpark.com/shared_projects/TuTVsmvi

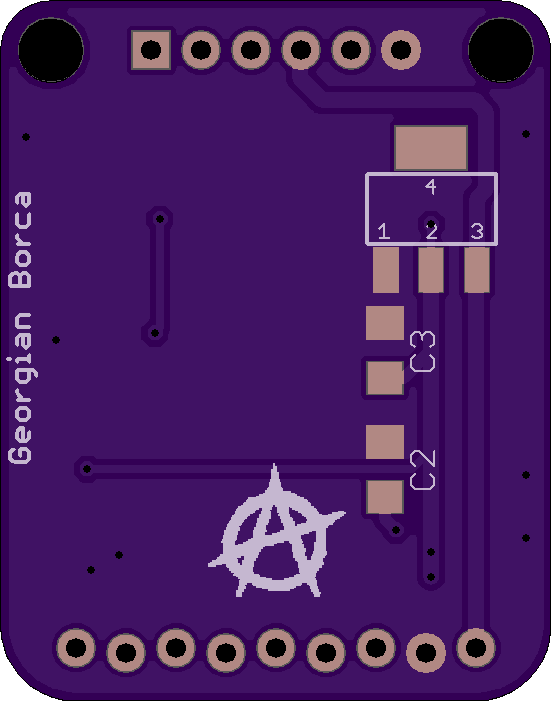

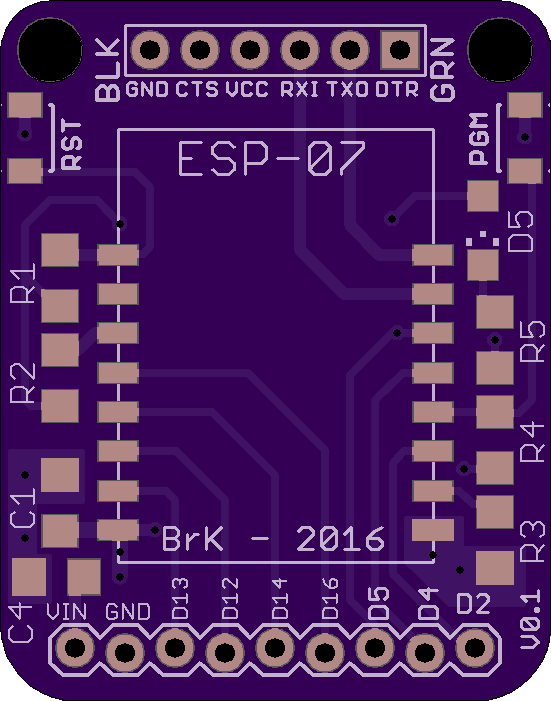

ESP-07 Breakout Board
by
BrK.
2
layer board of
1.10x1.40
inches
(27.94x35.59
mm).
Shared on
May 5th, 2016 23:52.
Simple main board for an ESP-07
It is working just fine. georgian.borca@yahoo.com for any questions.

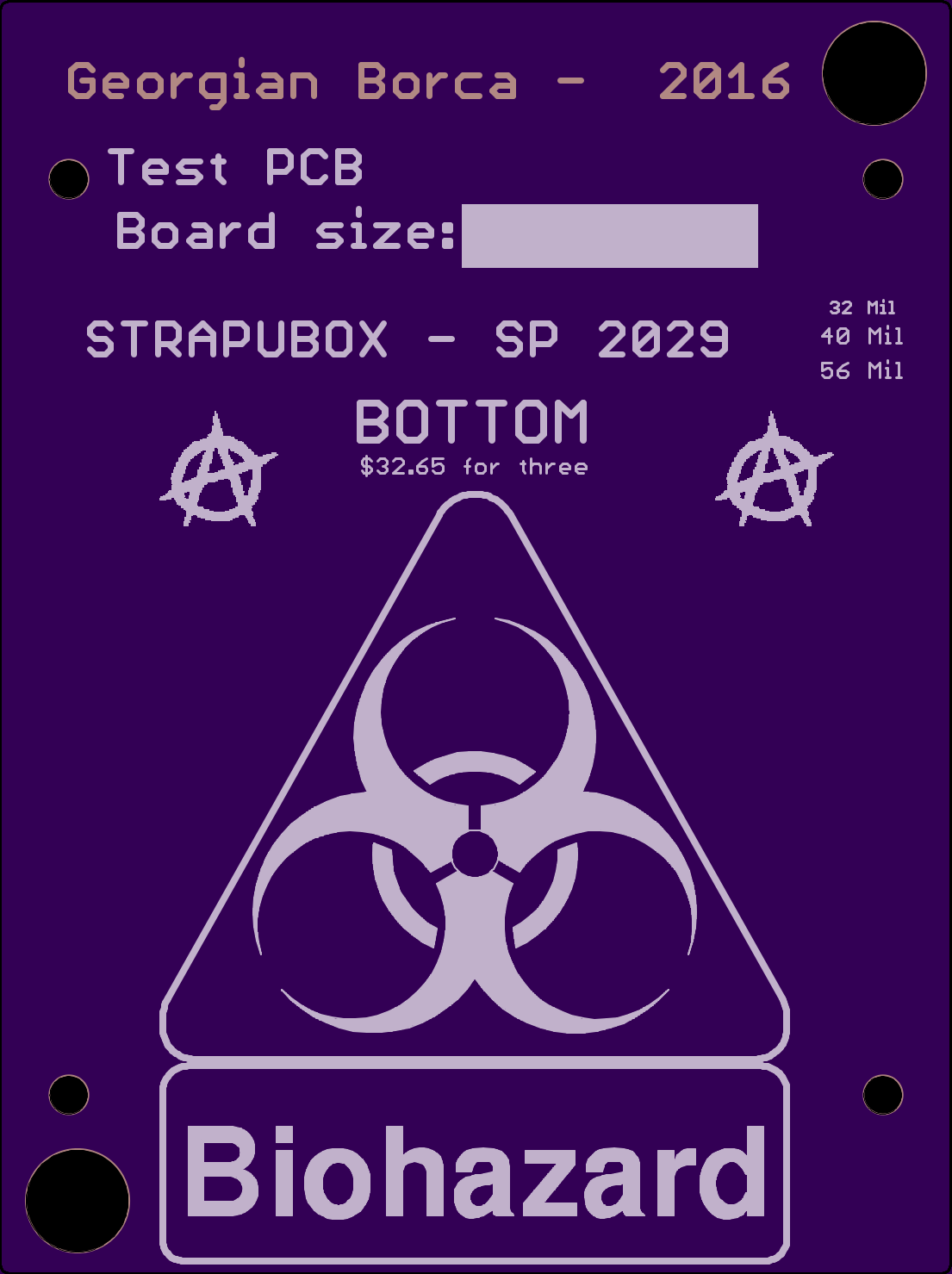

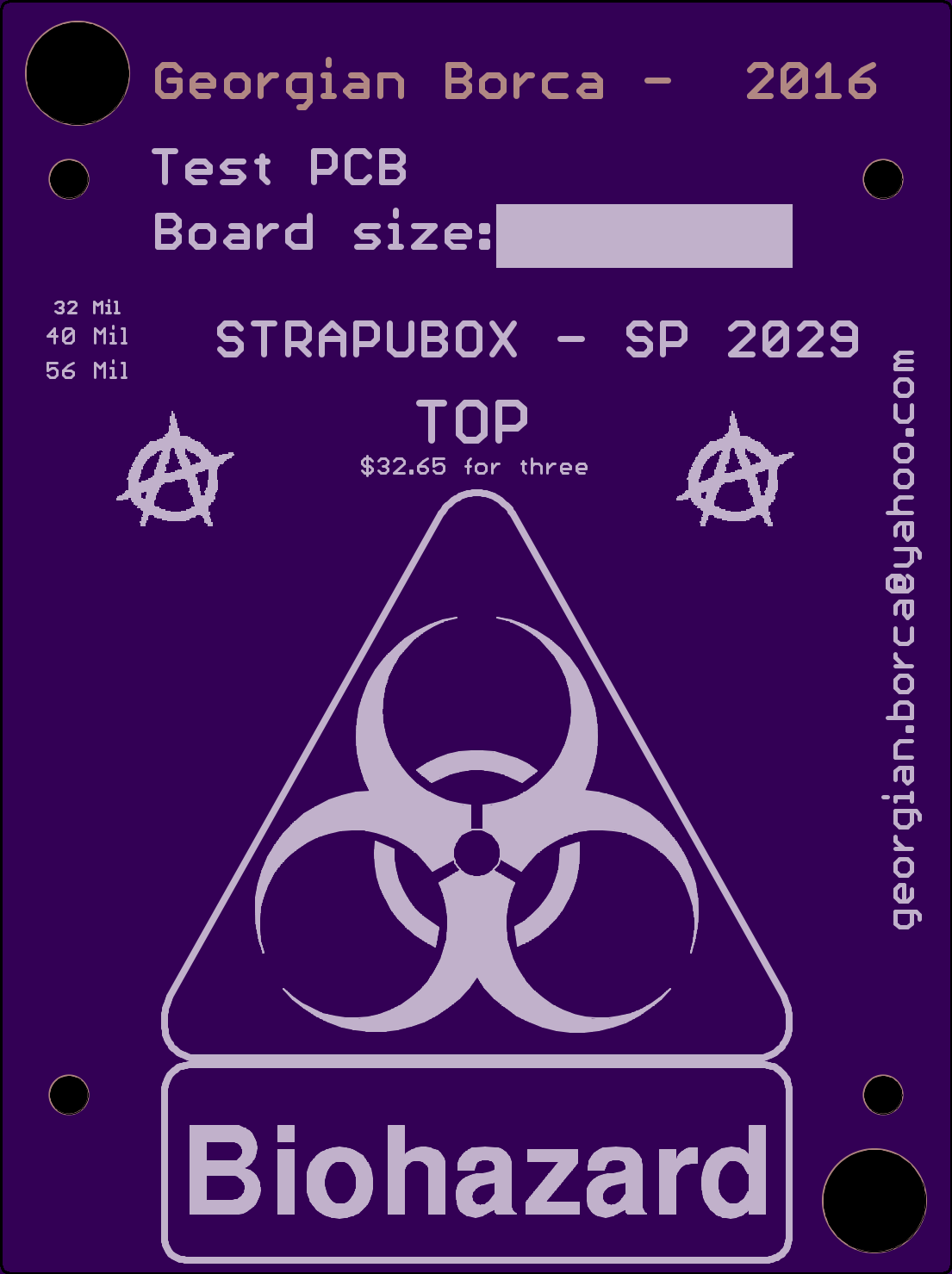

Test PCB
by
BrK.
2
layer board of
2.21x2.96
inches
(56.13x75.13
mm).
Shared on
March 28th, 2016 20:00.
Test PCB for StrapuBOX SP-2029

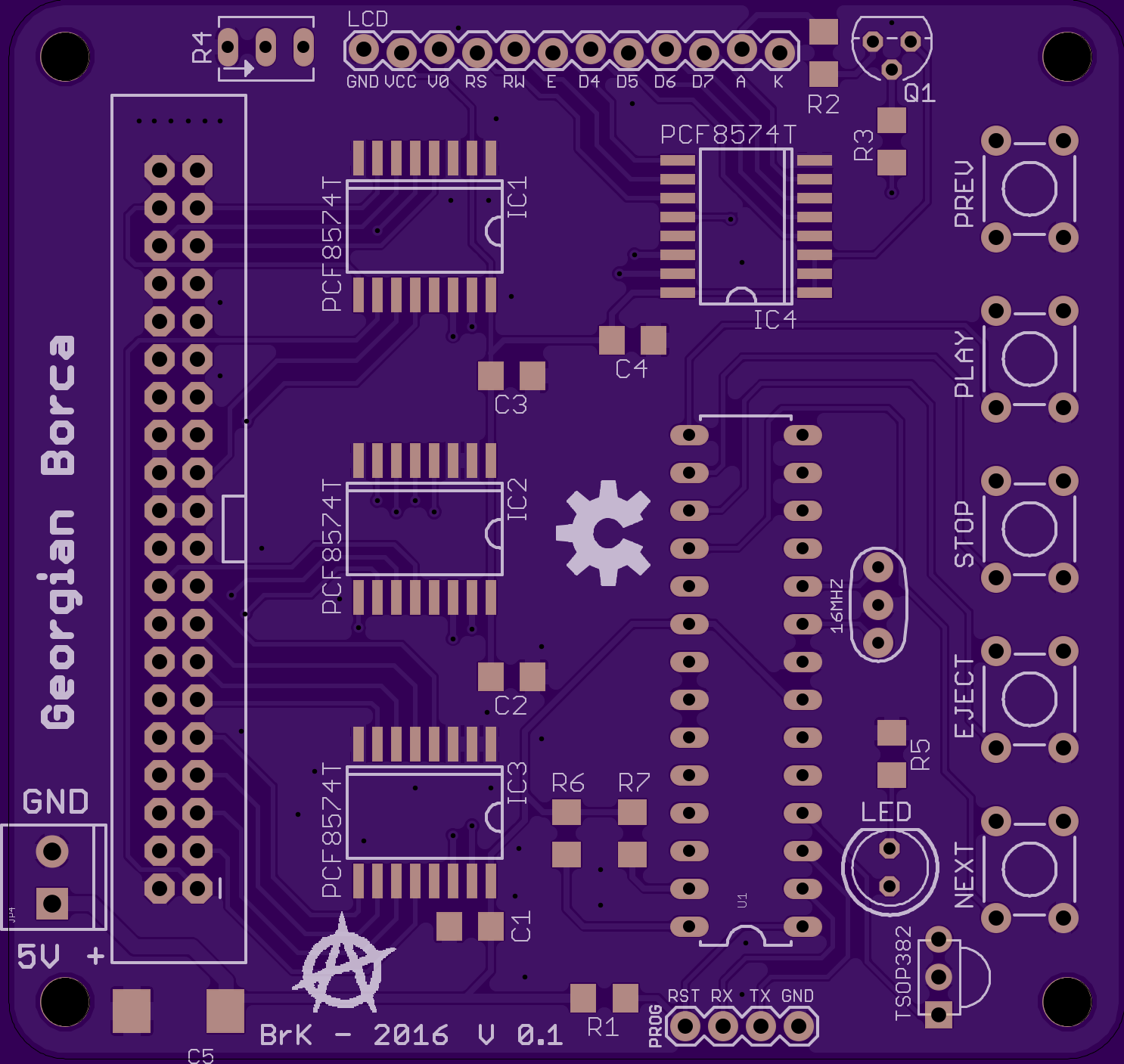

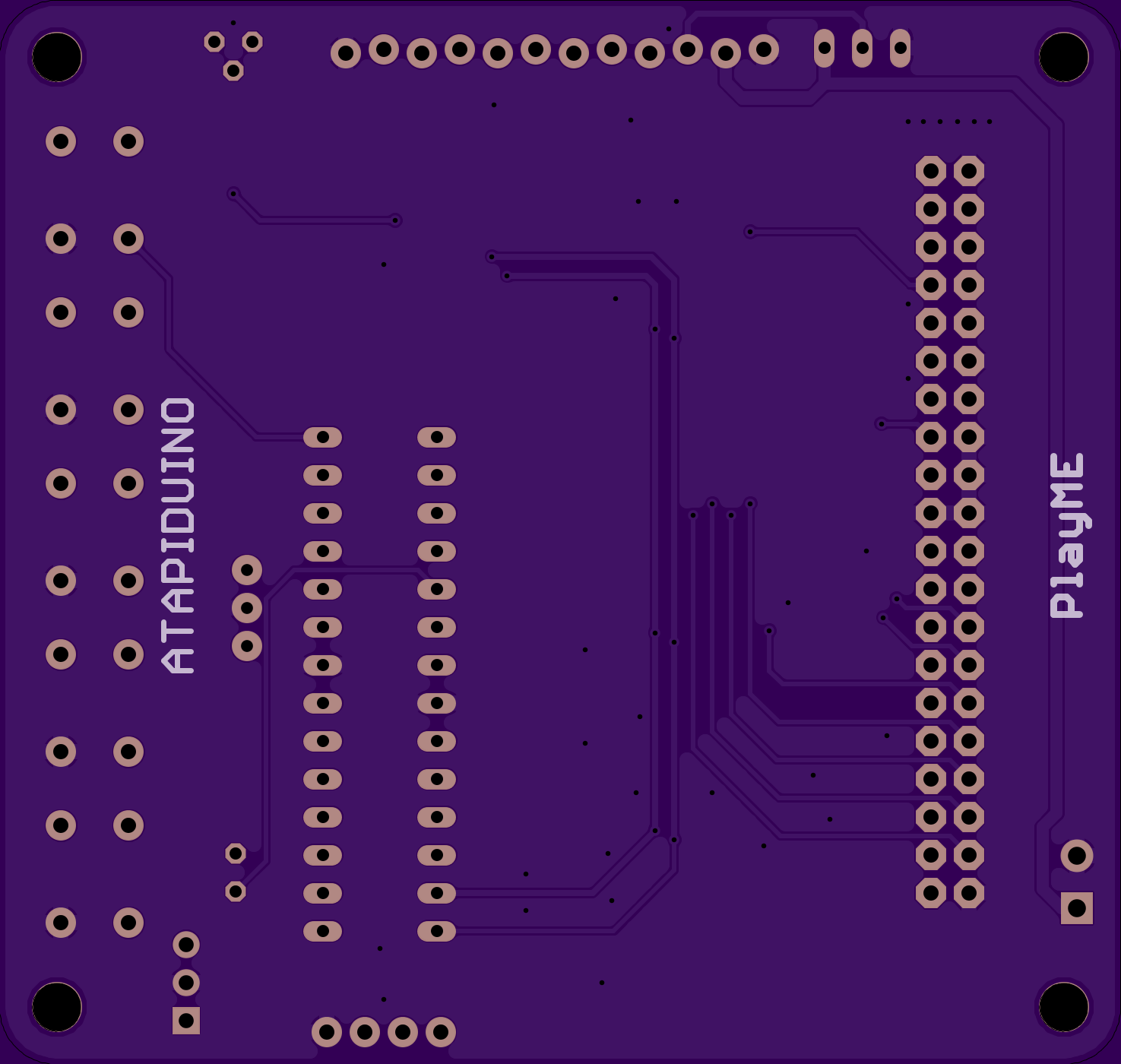

ATAPI Duino.brd
by
BrK.
2
layer board of
2.95x2.80
inches
(74.93x71.15
mm).
Shared on
February 6th, 2016 16:43.
Arduino cd-player controller. It is based on the “ATAPIDUINO” project which is not mine. I just made a pcb for it. Everything works just fine on breadboard and perfoboard, this PCB is not tested yet, order on your own risk! for any details contact me on georgian.borca@yahoo.com
Atapiduino project: http://singlevalve.web.fc2.com/Atapiduino/atapiduino.htm

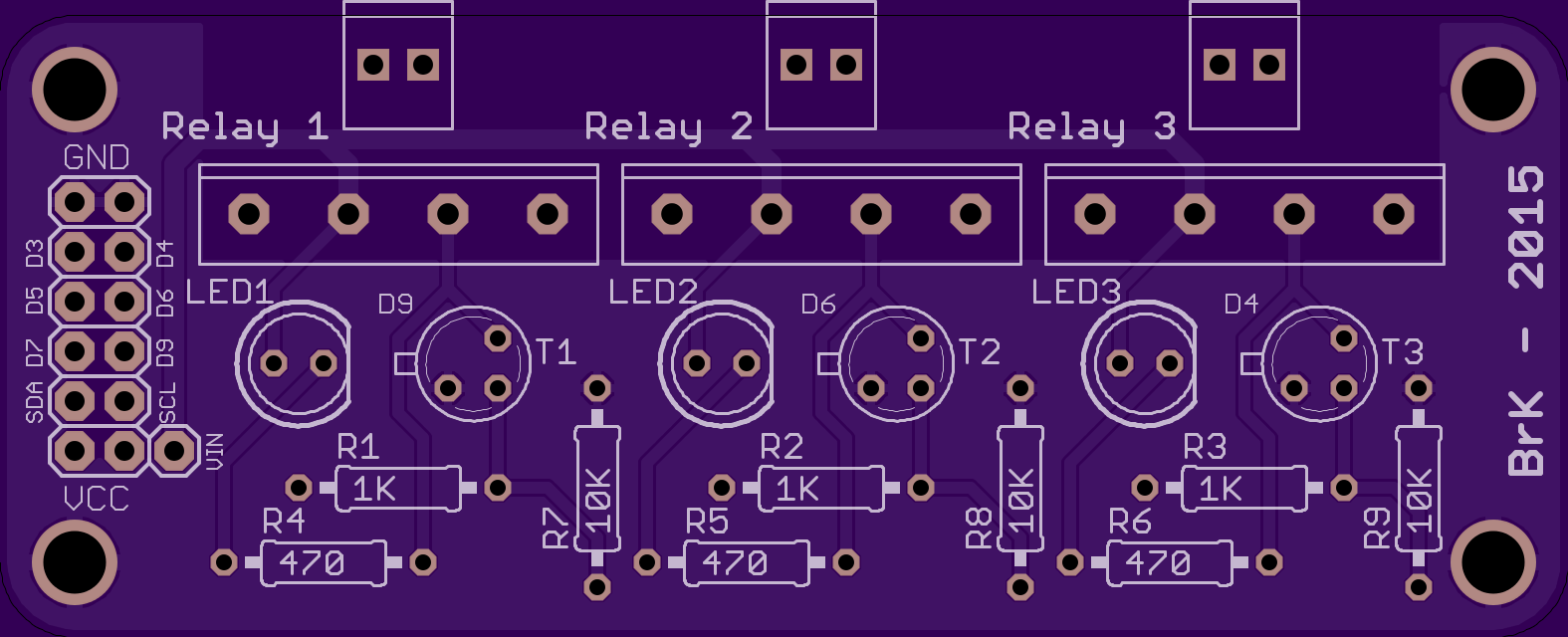

Relay Board_002.brd
by
BrK.
2
layer board of
3.15x1.25
inches
(80.04x31.78
mm).
Shared on
January 27th, 2016 20:15.
T1, T2, T3 : 2N2222 Relay : MASSUSE MES1A0 5
