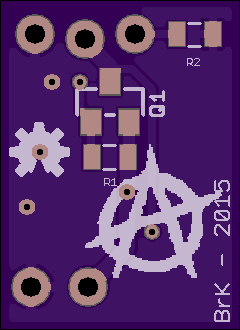

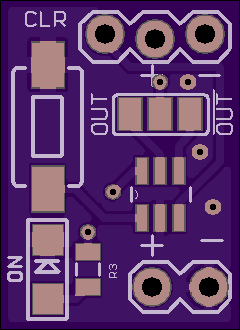

Max16054 On Off 002
by
BrK.
2
layer board of
0.48x0.66
inches
(12.14x16.76
mm).
Shared on
September 16th, 2015 22:55.
microSIM push - push socket $4.25 for three
by
BrK.
2
layer board of
0.79x1.09
inches
(19.99x27.69
mm).
Shared on
September 16th, 2015 20:54.

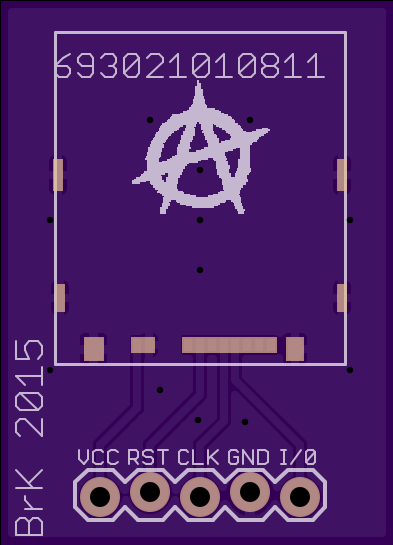

Solder test for micro simcard socket from würth elektronik part number: 693021010811 http://katalog.we-online.de/en/em/693_021_010_811
Do not try to use this simcard socket in your project. It is very hard to solder without stencils and reflow oven. I managed to solder it with a hot air station and some solder paste. It is very hard. Use something else.

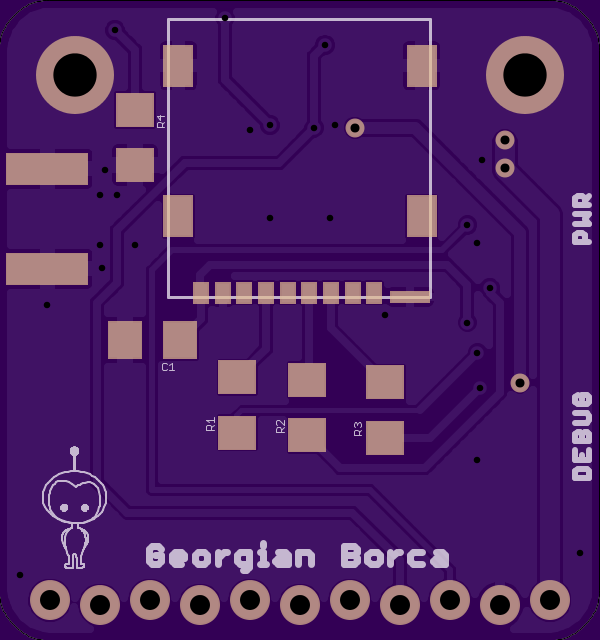

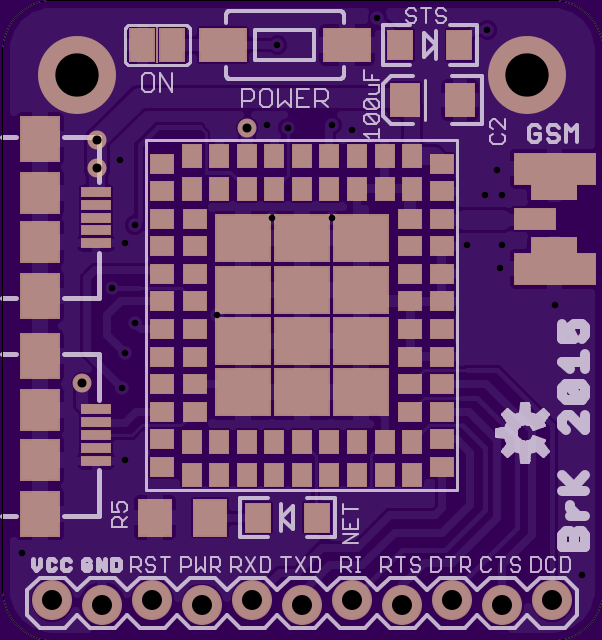

SIM800H/L breakout board.
by
BrK.
2
layer board of
1.20x1.28
inches
(30.48x32.54
mm).
Shared on
September 16th, 2015 20:54.
There are two USB port, one if for module debug (DEBUG) and the other one is used to power the module (PWR). DO NOT ATTEMPT TO CONNECT 5V TO THE PWR!! It should be between 3.4V and 4.4V (I used a USB socket because it suits my needs)

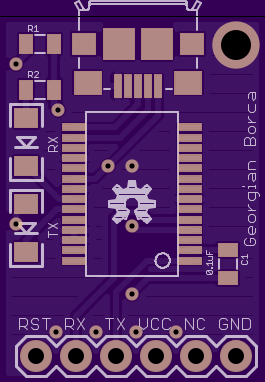

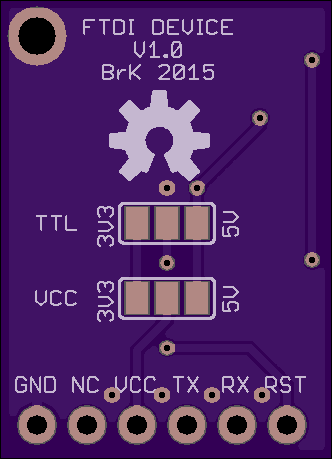

Ftdi 002
by
BrK.
2
layer board of
0.66x0.92
inches
(16.81x23.24
mm).
Shared on
July 24th, 2015 10:43.
It works.

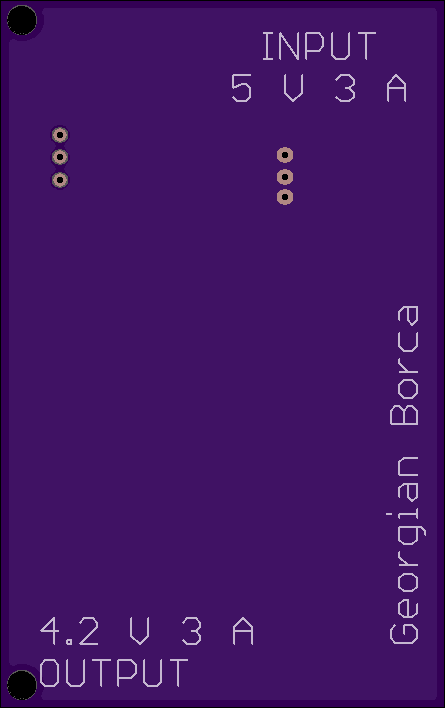

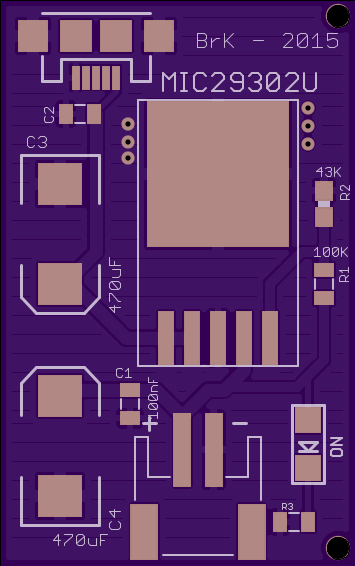

Voltage regulator
by
BrK.
2
layer board of
0.89x1.42
inches
(22.56x35.94
mm).
Shared on
July 24th, 2015 10:42.
To be used with a SimCOM gsm module. input 5V 2A output 4.2V 2A Tested, works with power form an USB hub.
