OSH Park
Profile for BrK
Shared projects

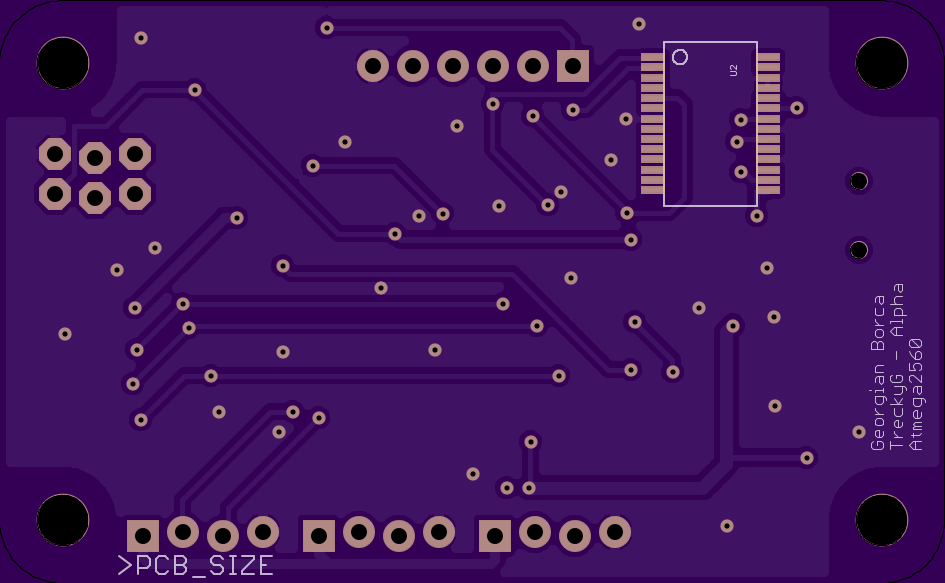

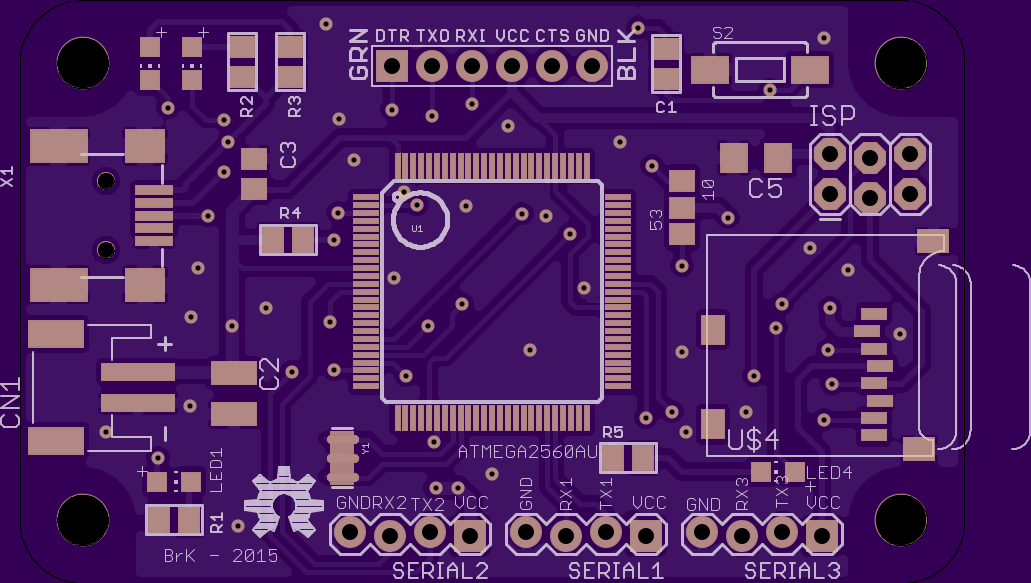

Atmega2560 Break Out Board
by
BrK.
2
layer board of
2.36x1.46
inches
(60.02x37.01
mm).
Shared on
April 10th, 2015 21:51.
Atmega2560 with 3 serial ports and an microSD. This is the first version, it should work. Designed to work with a lipo and 3.3v arduino bootloader. For any questions you can find me at Georgian.borca@yahoo.com. Order on your own risk!

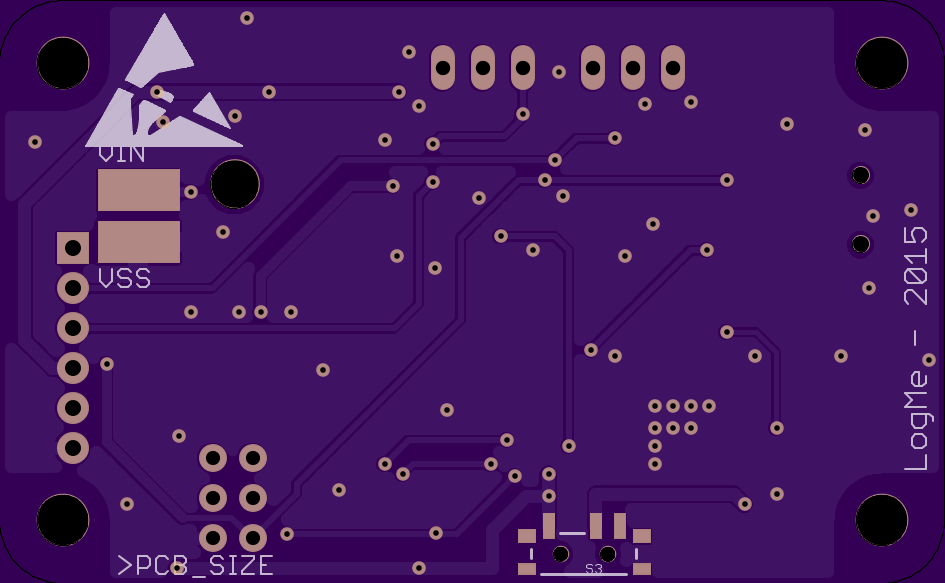

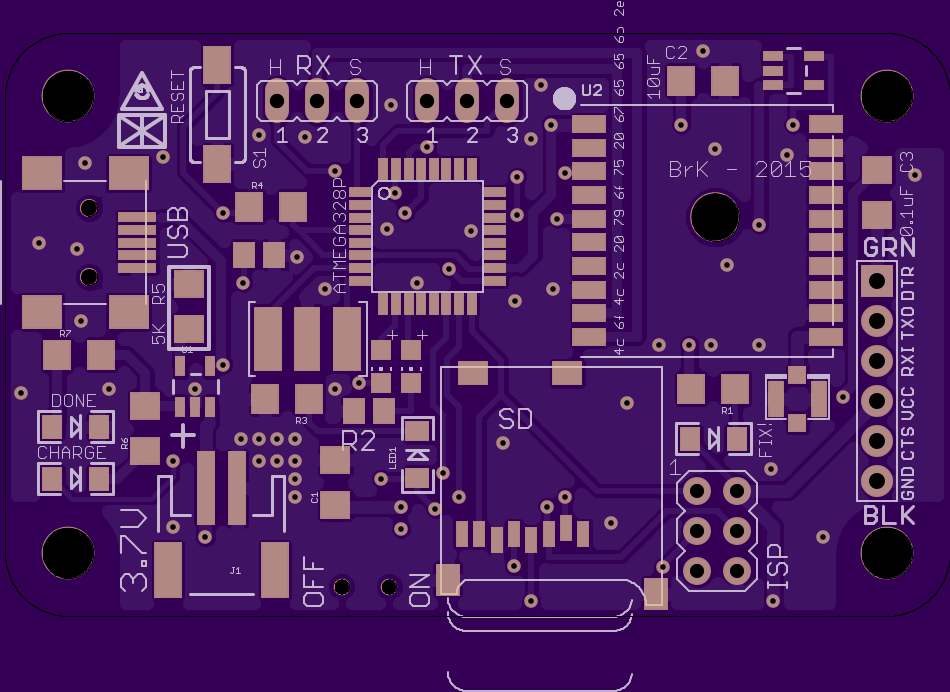

Just another GPS Logger
by
BrK.
2
layer board of
2.36x1.46
inches
(60.02x37.01
mm).
Shared on
March 13th, 2015 18:42.
Two pads on the bottom used to connect with a QI wireless receiver. Otherwise use a LiPo battery.

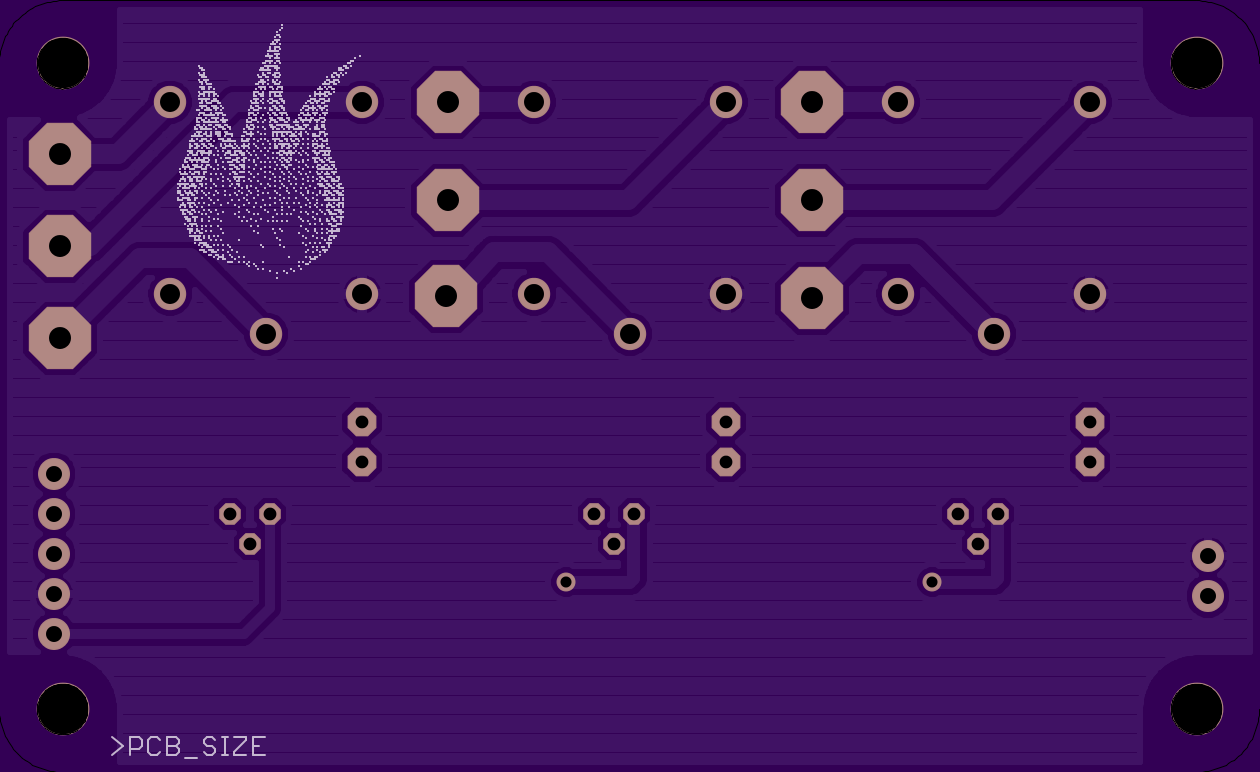

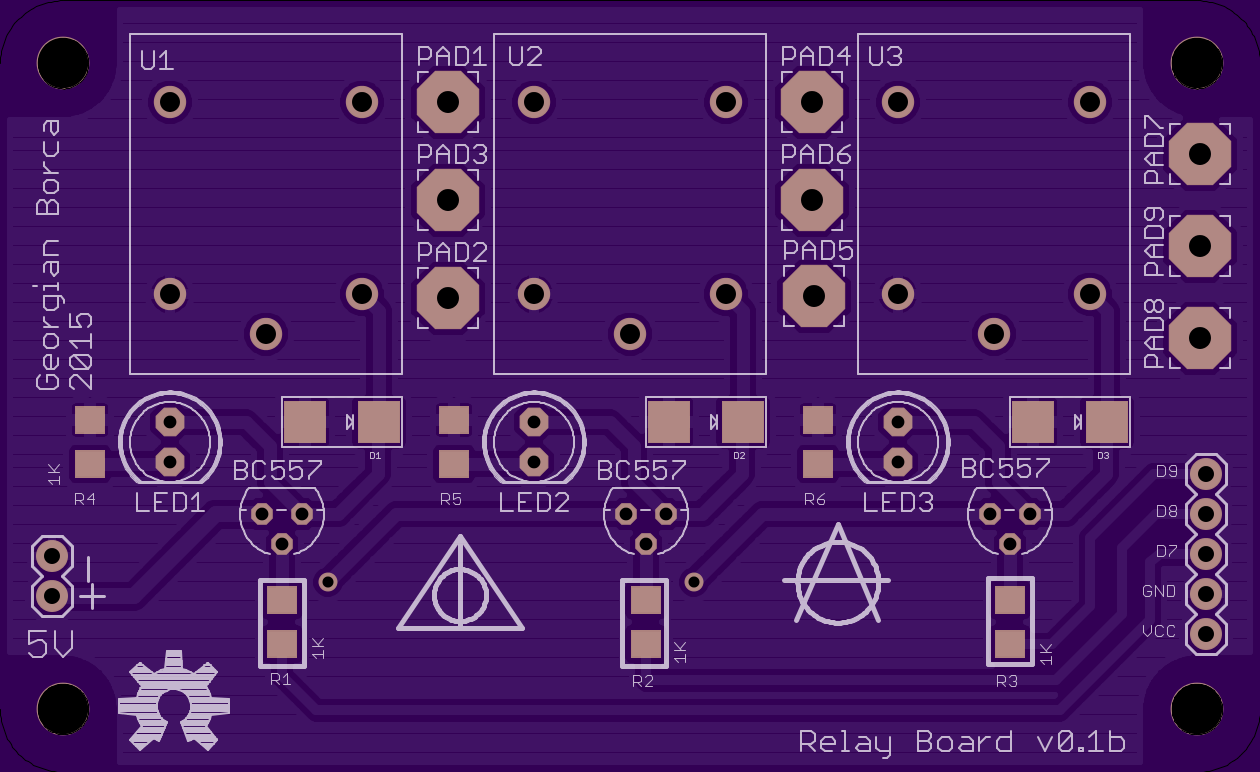

Relay board
by
BrK.
2
layer board of
3.15x1.93
inches
(80.01x49.02
mm).
Shared on
March 13th, 2015 18:41.
Simple 3 relay board to use with a microcontroller.

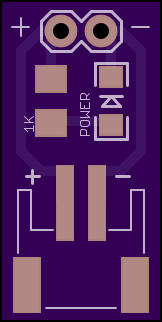

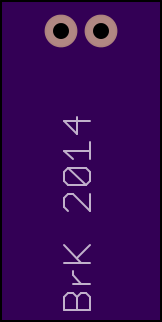

Jst breakout board
by
BrK.
2
layer board of
0.41x0.81
inches
(10.29x20.45
mm).
Shared on
December 12th, 2014 19:16.
Used with LiPo JST connector and breadboard. 1.60$

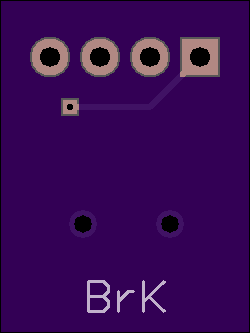

Usb
by
BrK.
2
layer board of
0.50x0.67
inches
(12.62x16.89
mm).
Shared on
November 20th, 2014 19:31.
