Profile for BrK
Shared projects

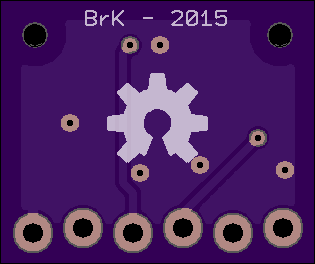

Max16054 breakout board
by
BrK.
2
layer board of
0.63x0.53
inches
(16.00x13.34
mm).
Shared on
July 20th, 2015 21:12.

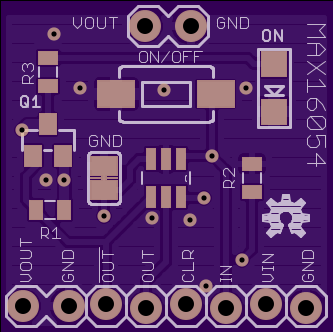

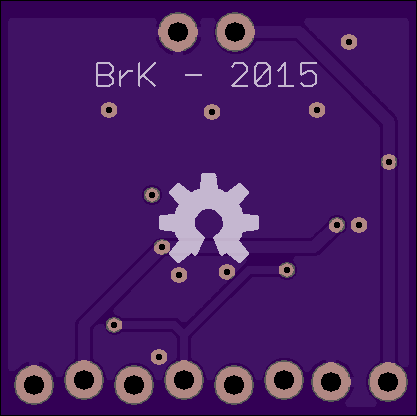

Max16054 soft latch switch
by
BrK.
2
layer board of
0.83x0.83
inches
(21.16x21.08
mm).
Shared on
July 20th, 2015 21:12.
Untested yet, but should work just fine. Based on the datasheet of MAX16054. Made to fit on breadboard for details contact me on georgian.borca[at]yahoo.com http://datasheets.maximintegrated.com/en/ds/MAX16054.pdf Works just fine.

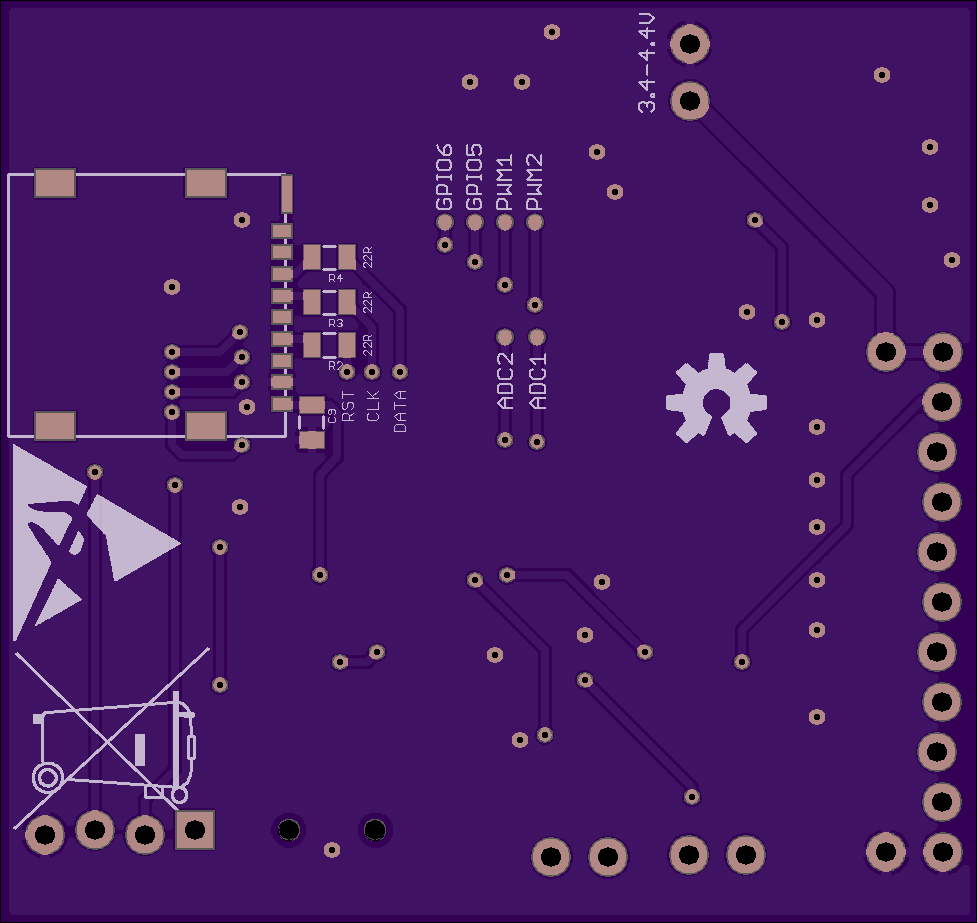

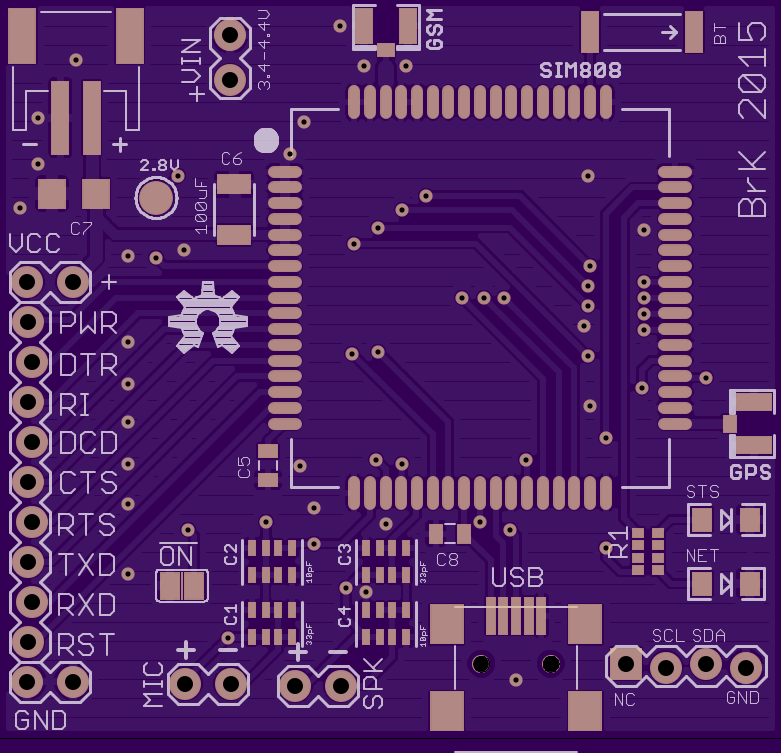

SIM808 Breakout board.
by
BrK.
2
layer board of
1.95x1.85
inches
(49.58x46.86
mm).
Shared on
July 17th, 2015 19:34.
Untested yet, but should work just fine. for details please write me to georgian.borca[at]yahoo.com

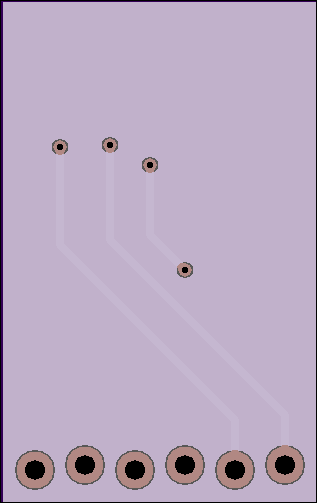

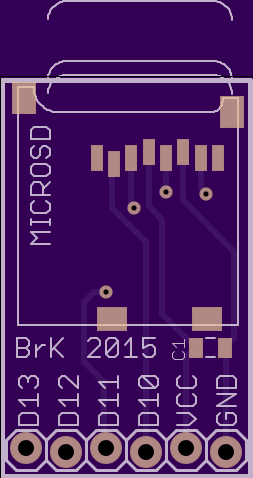

MicroSD Breakout board
by
BrK.
2
layer board of
0.63x1.00
inches
(16.08x25.53
mm).
Shared on
July 16th, 2015 20:32.
Made for Arduino PRO Mini. Works just fine.

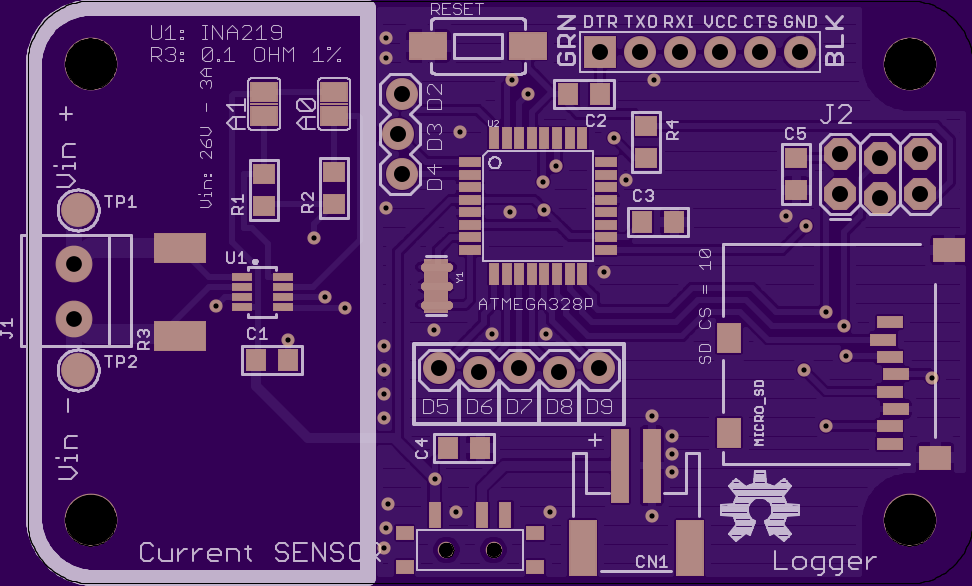

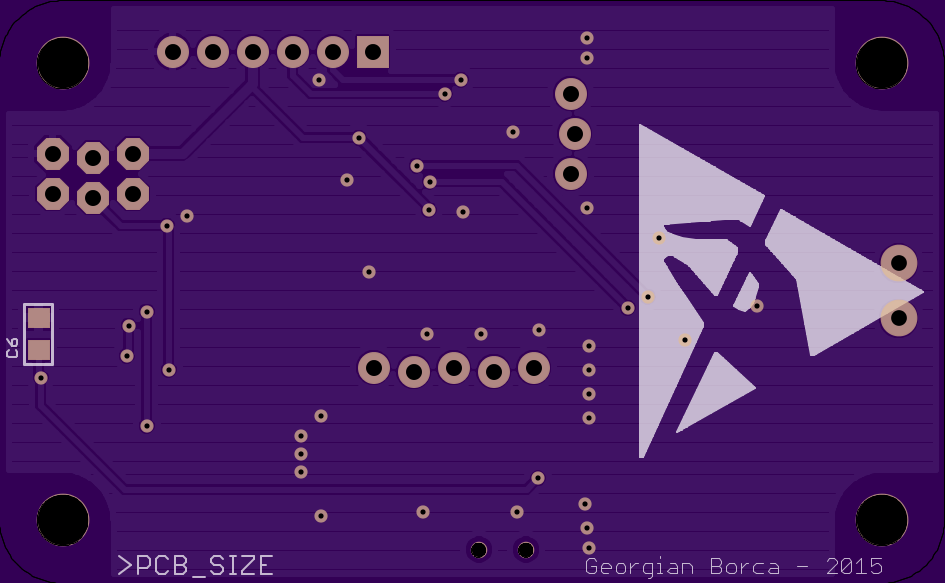

DC Current Logger Board
by
BrK.
2
layer board of
2.36x1.46
inches
(60.02x37.01
mm).
Shared on
May 31st, 2015 18:35.
Based on adafruit INA219 current sensor breakout board, this board is used to log on SD card the power consumption of other devices. UNTESTED! order on your own risk.
