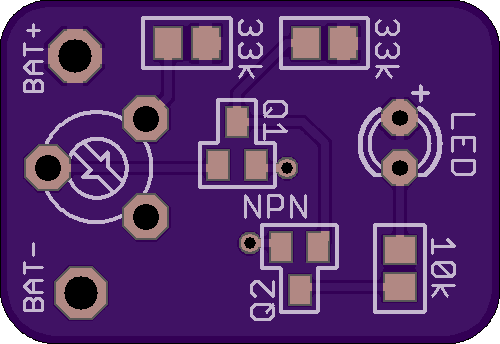

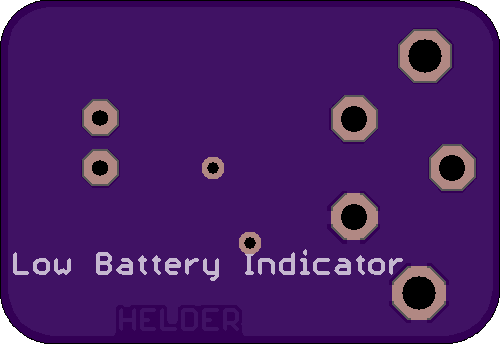

Low Battery LED Indicator

by Helder.
Top
Bottom

2 layer board of 1.00x0.69 inches (25.40x17.48 mm).
Shared on July 29th, 2016 01:59.

Led turns ON when the voltage is low, adjusted by the Pot.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

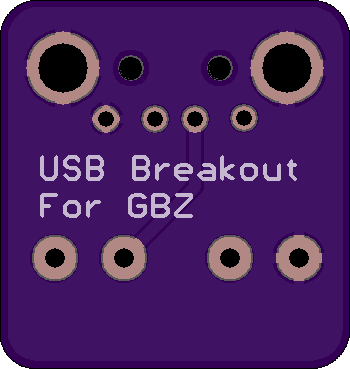

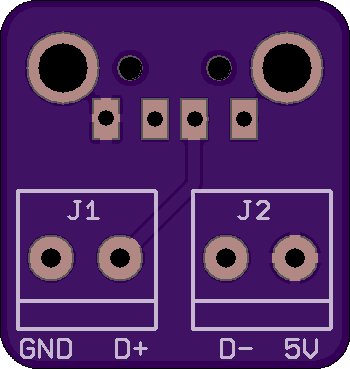

USB Breakout for GBZ

by Helder.
Top
Bottom

2 layer board of 0.70x0.74 inches (17.78x18.75 mm).
Shared on July 7th, 2016 00:46.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

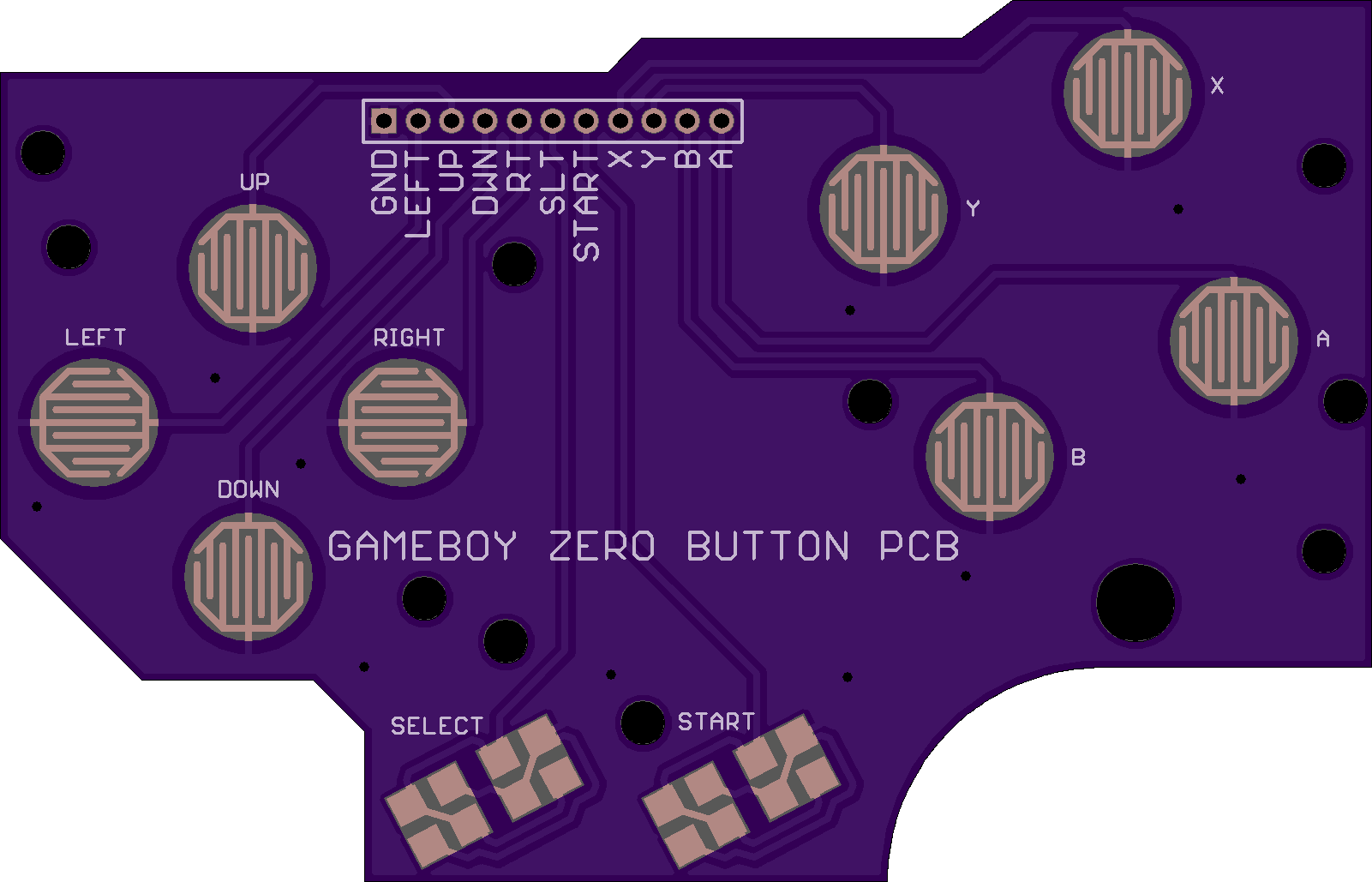

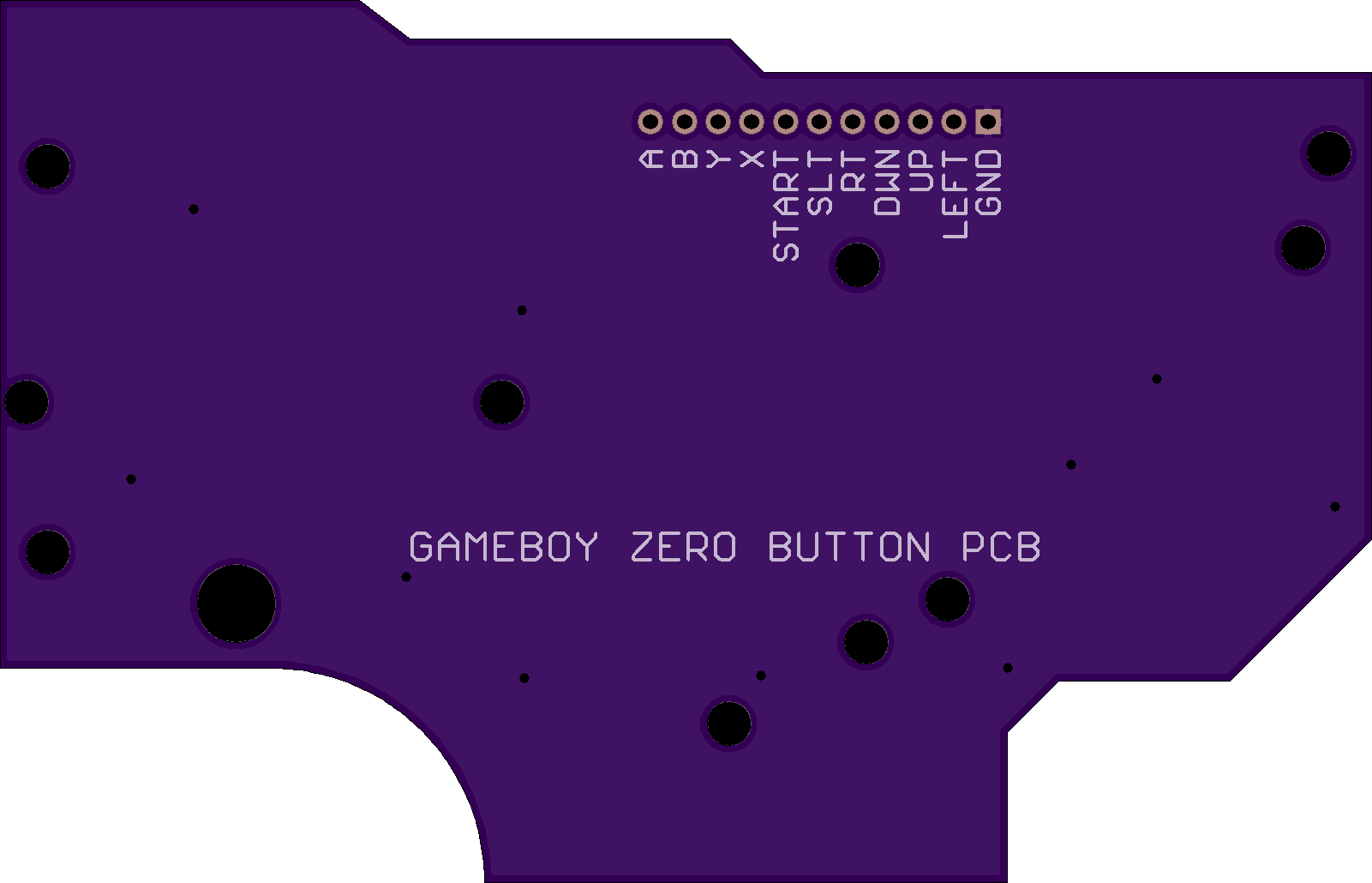

Gameboy-Zero-PCB

by Helder.
Top
Bottom

2 layer board of 3.20x2.06 inches (81.28x52.27 mm).
Shared on June 14th, 2016 01:19.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

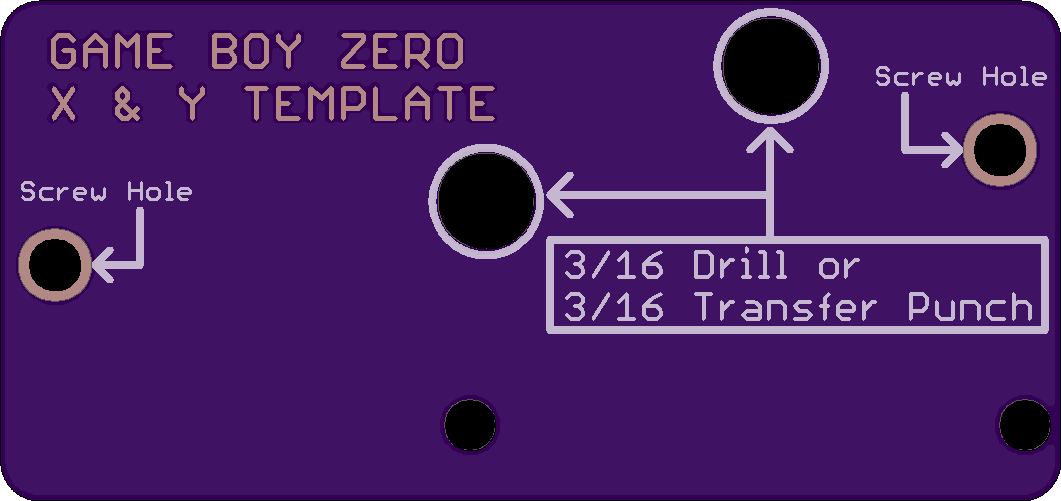

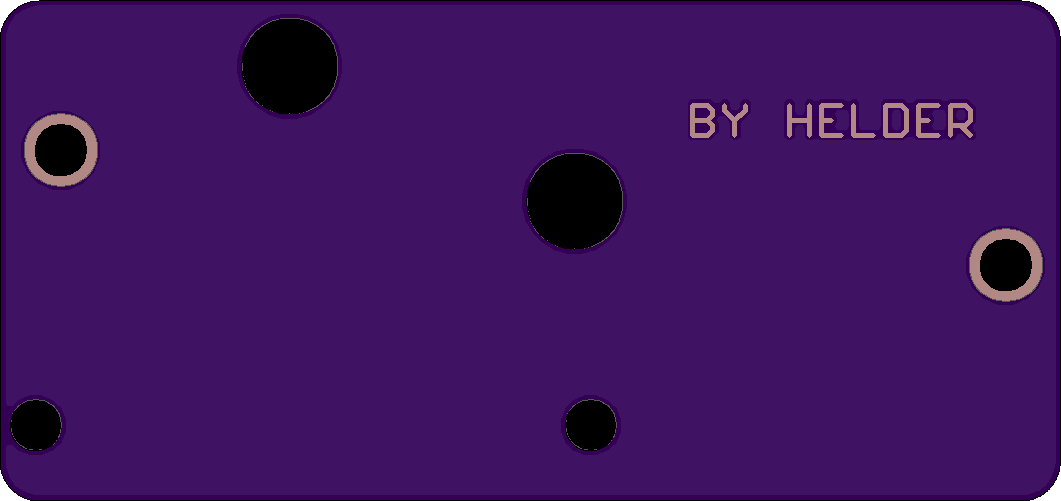

DMG Controller Template

by Helder.
Top
Bottom

2 layer board of 2.12x1.00 inches (53.87x25.43 mm).
Shared on June 14th, 2016 01:18.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

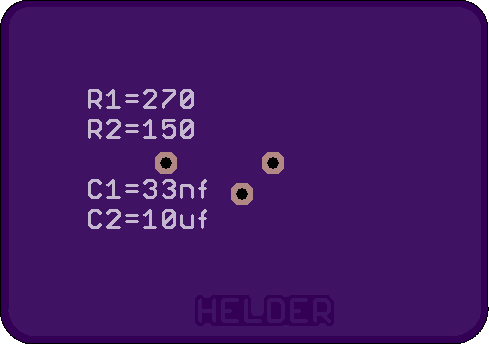

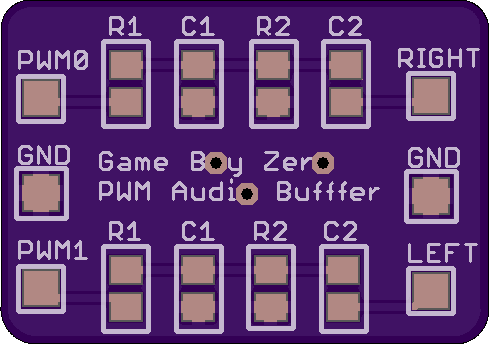

Gameboy Zero PWM Audio SMD

by Helder.
Top
Bottom

2 layer board of 0.98x0.69 inches (24.79x17.48 mm).
Shared on June 12th, 2016 20:38.

Use 0805 size capacitors and resistors.
