Shared projects

Genesis Model1 Stereo Mod V2.0

by Helder.
Top
Bottom

2 layer board of 1.00x1.15 inches (25.40x29.16 mm).
Shared on March 25th, 2017 01:32.

A nice little circuit so you can add a stereo out to Genesis/Mega Drive 1 and bypass the volume slider control.Schematic by : MEGADRIVEJeroi from Sega16 Forums. Has been tested and works great.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

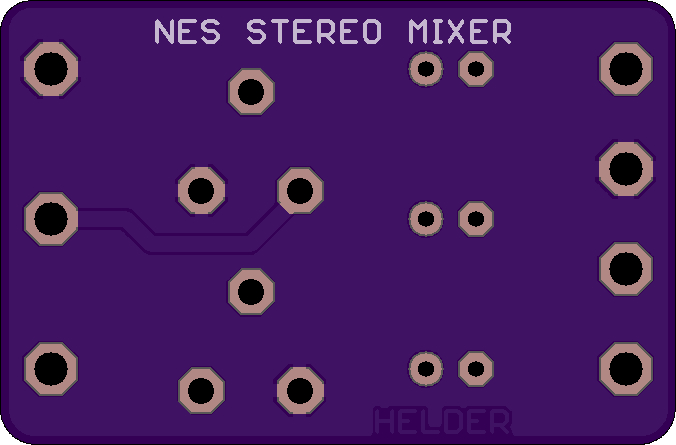

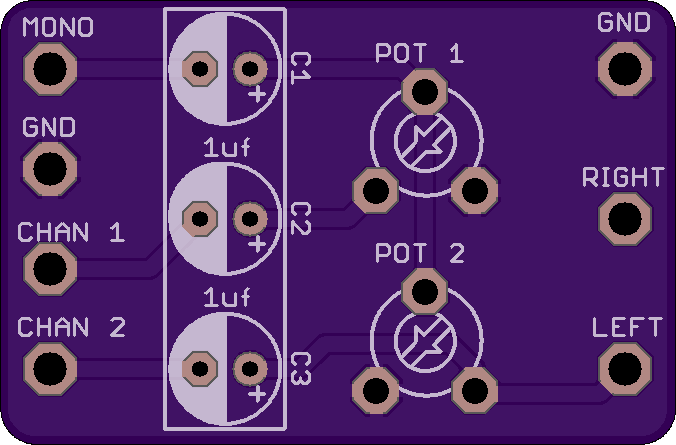

NES Stereo Audio Mix Board

by Helder.
Top
Bottom

2 layer board of 1.35x0.89 inches (34.29x22.56 mm).
Shared on February 8th, 2017 01:46.

Uses 10k Pots:

https://www.taydaelectronics.com/potentiometer-variable-resistors/trimmers/6mm-top-adjustment/10k-ohm-trimpot-variable-resistor-6mm.html

1uf 6mm Radial Capacitors or smaller diameter.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

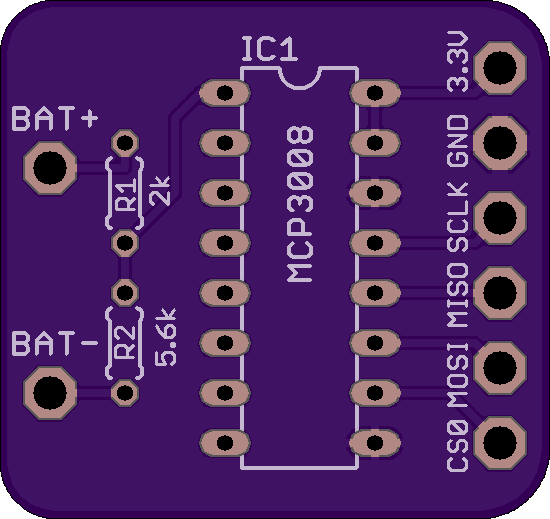

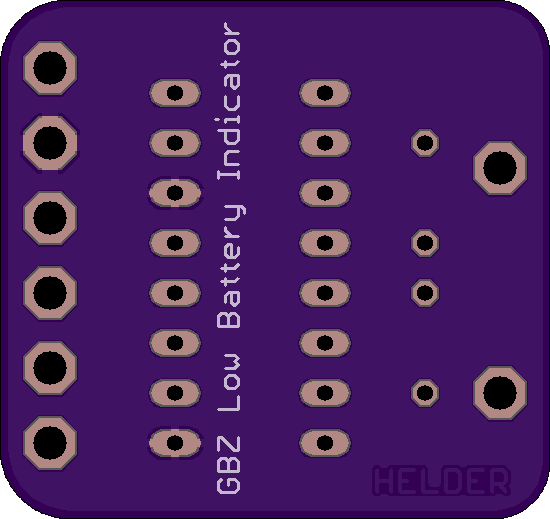

Low Battery Indicator with MCP3008

by Helder.
Top
Bottom

2 layer board of 1.10x1.04 inches (27.94x26.37 mm).
Shared on December 18th, 2016 15:45.

MCP3008 is used in this to make a low battery indicator for the GBZ.

https://github.com/joachimvenaas/gbzbatterymonitor

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

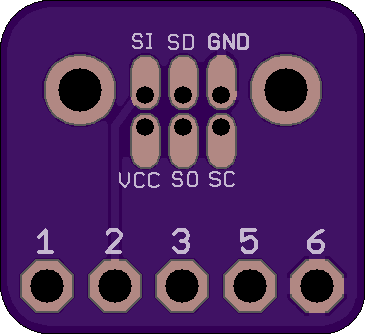

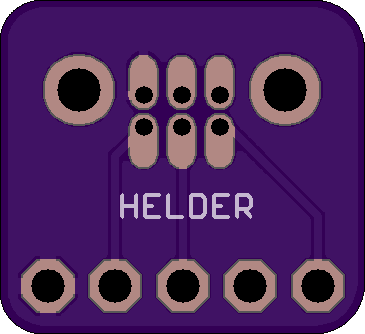

Link Port for SGB

by Helder.
Top
Bottom

2 layer board of 0.73x0.67 inches (18.54x16.97 mm).
Shared on December 15th, 2016 23:52.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

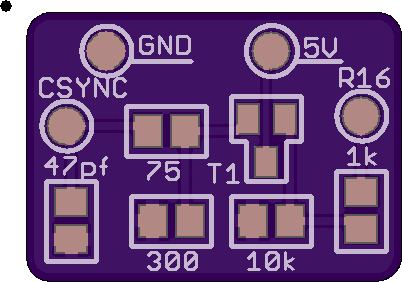

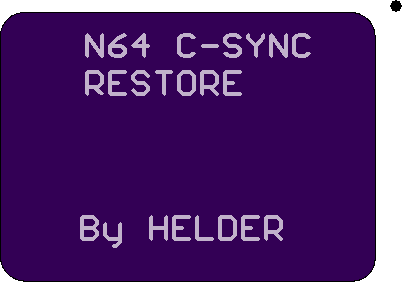

N64 CSync Restorer

by Helder.
Top
Bottom

2 layer board of 0.75x0.54 inches (19.05x13.67 mm).
Shared on December 11th, 2016 23:21.

Uses 0805 Resistors and Capacitor and any NPN SMD Transistor.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
