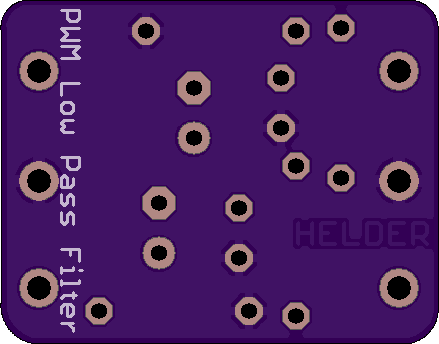

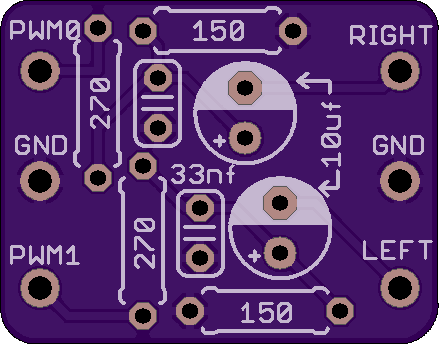

Gameboy Zero PWM Audio Through Hole

by

2 layer board of 0.88x0.69 inches (22.23x17.48 mm).
Shared on June 12th, 2016 20:38.

Copy this HTML into your page to embed a link to order this shared project

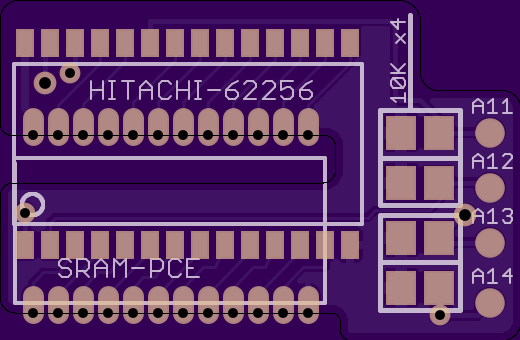

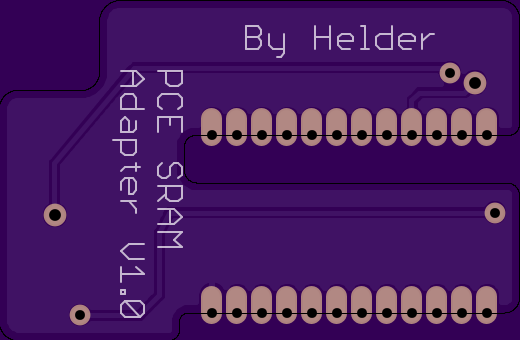

PCE SRAM SOIC Adapter Board

by

2 layer board of 1.04x0.68 inches (26.44x17.27 mm).
Shared on January 17th, 2016 16:07.

For the Hitachi 62256 SRAM and Cypress FM18W08 FRAM IC’s.

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 0.61x0.94 inches (15.49x23.83 mm).
Shared on October 24th, 2015 12:47.

Edited to be used with the MIKROE-602 Adapter Board.

http://www.mouser.com/ProductDetail/MikroElektronika/MIKROE-602/?qs=sGAEpiMZZMuNcqZxhMNT30oLwu%2fRyXF6

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 3.20x1.45 inches (81.28x36.83 mm).
Shared on October 21st, 2015 01:28.

Untested

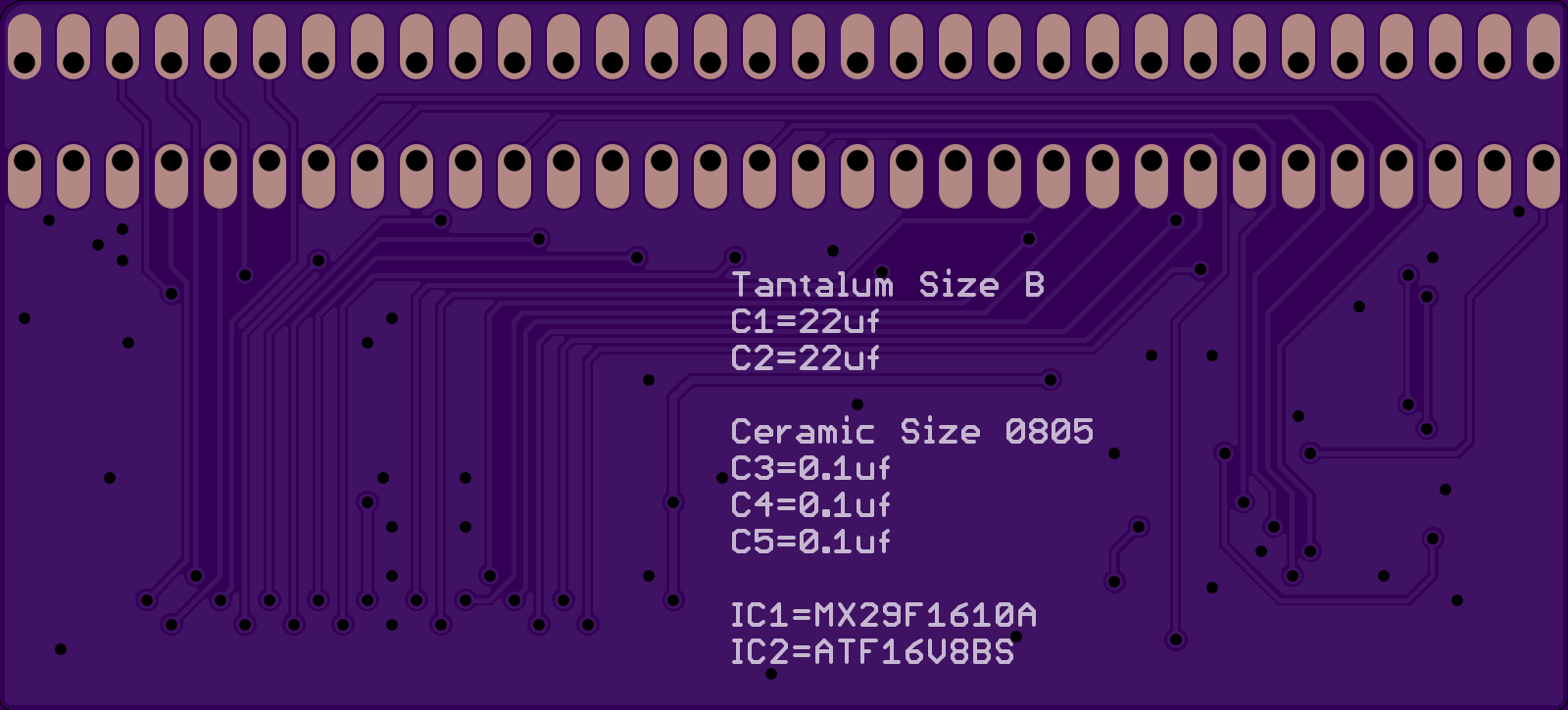

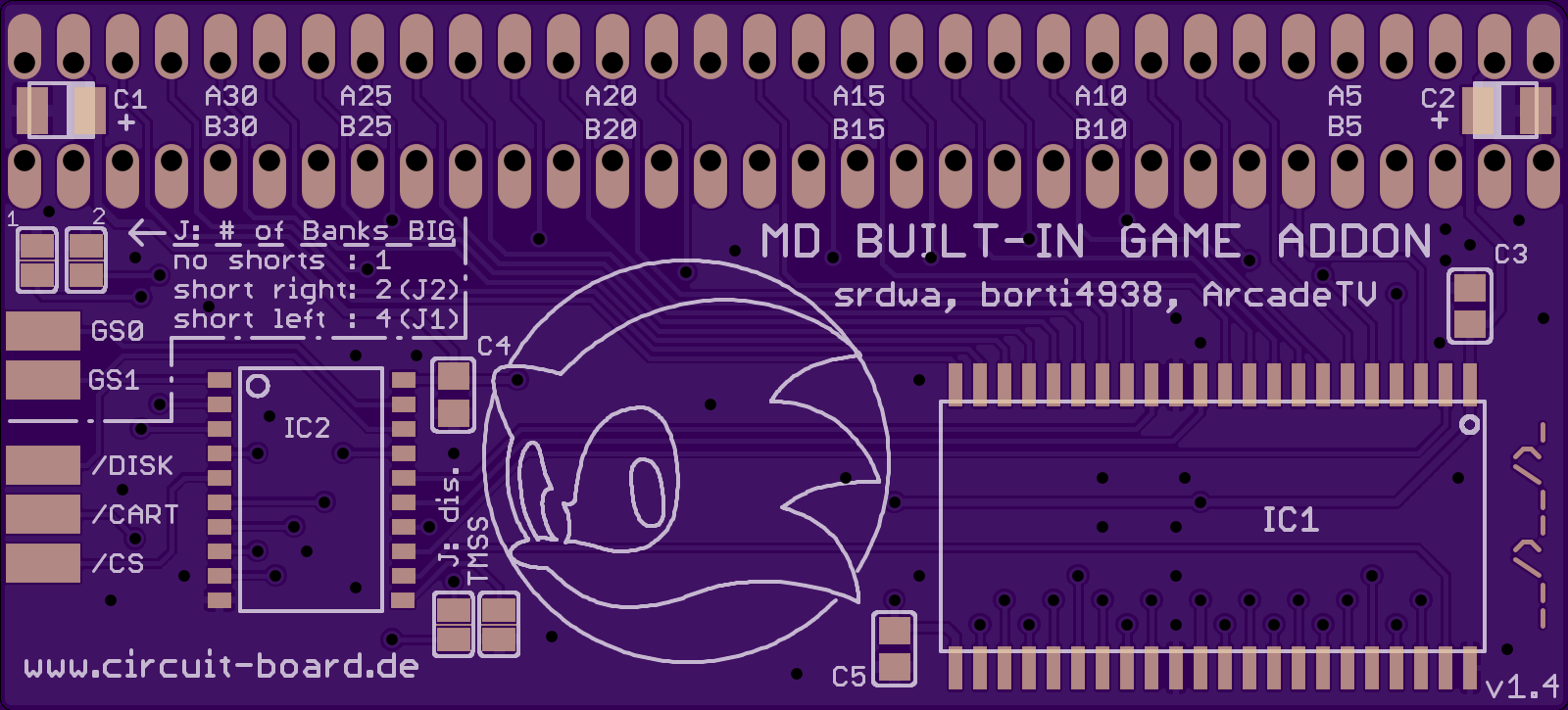

Genesis PCB that allows you to have a built in game that will load if no cart is inserted, by Borti4938 from www.circuit-board.de forums.

Github: https://github.com/borti4938/MD-Build-In-Game

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 0.70x0.94 inches (17.78x23.83 mm).
Shared on October 16th, 2015 02:24.

For use with SD Addon v1.4 with 8pin 1mm pitch flex ribbon.
