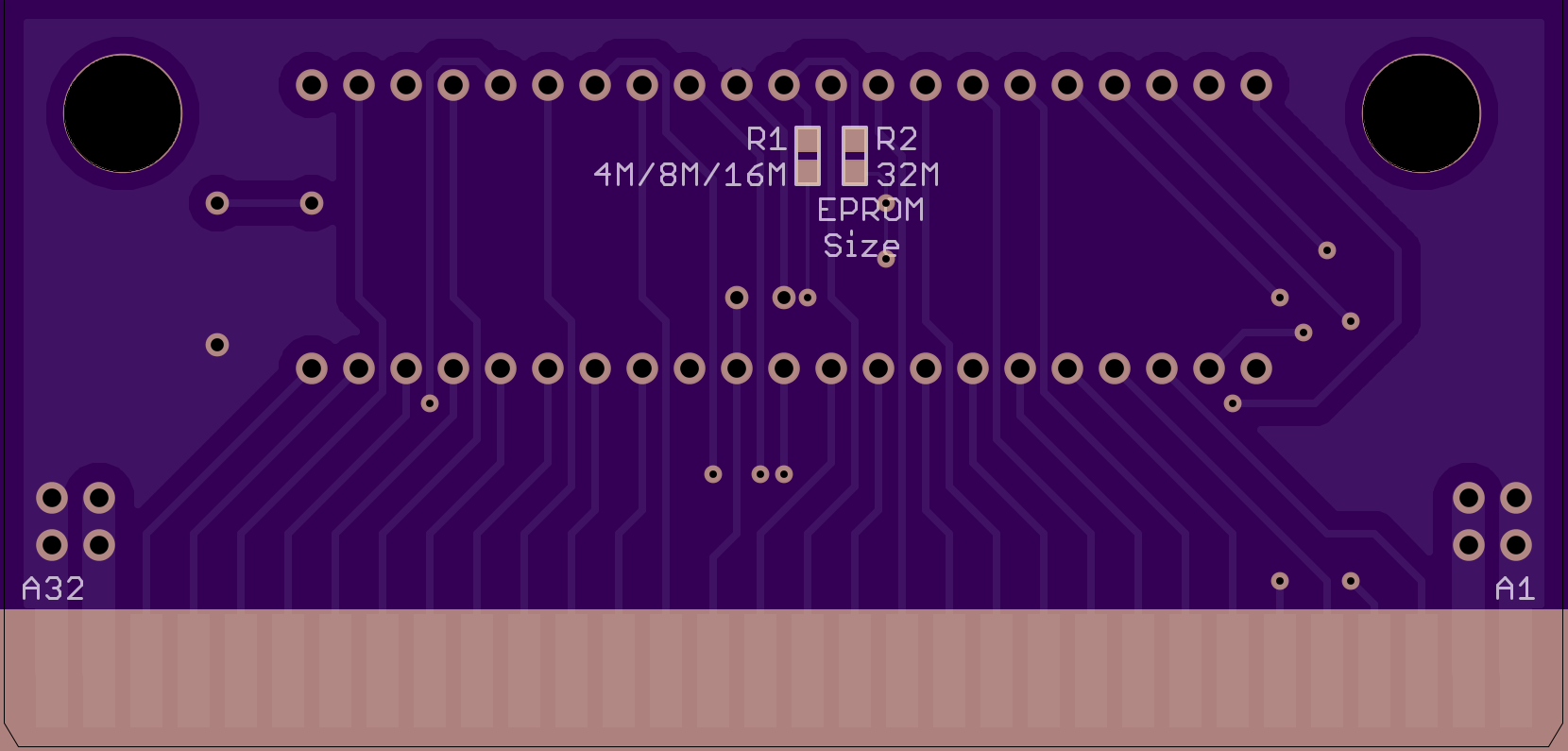

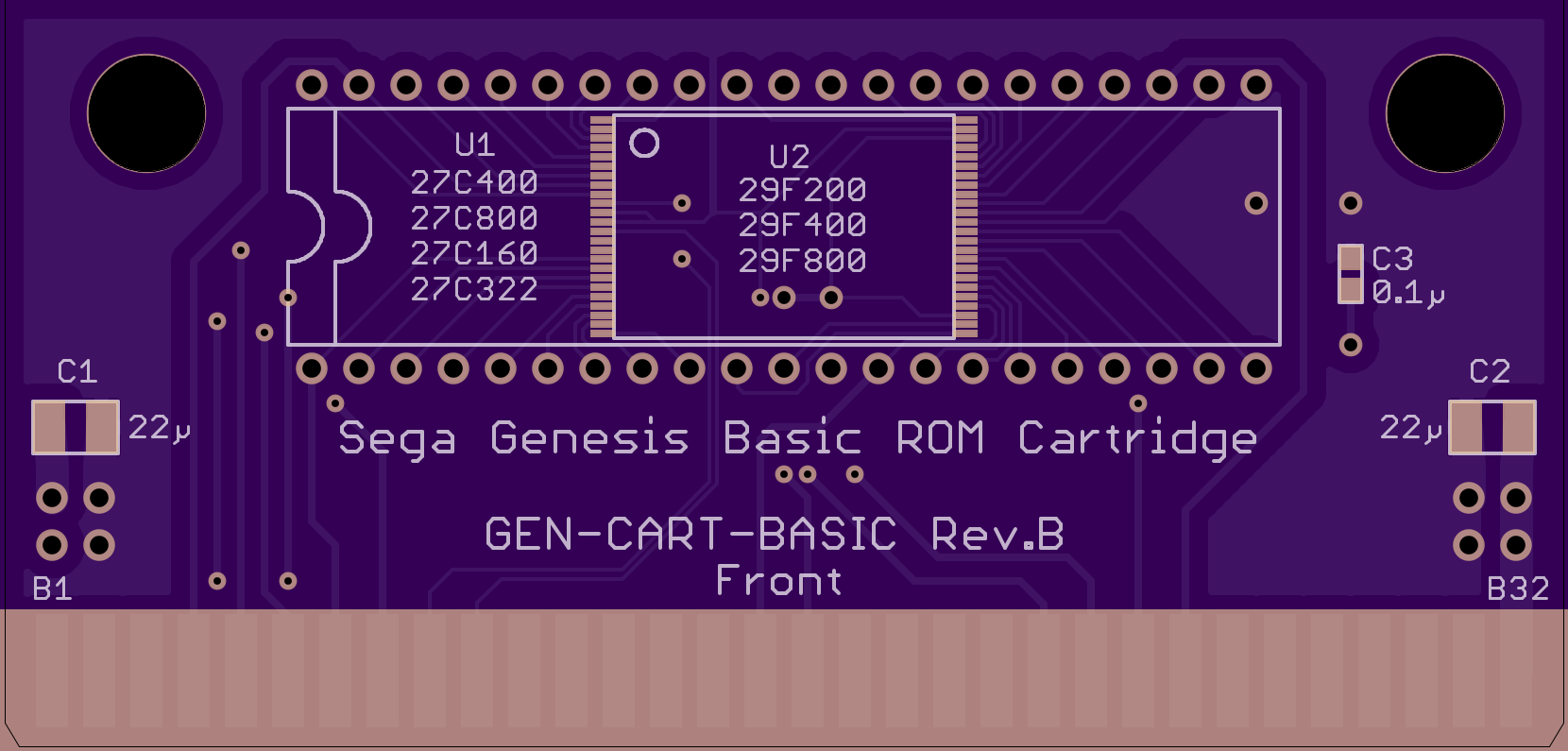

Sega Genesis Reproduction Basic PCB
by
Helder.
2
layer board of
3.30x1.58
inches
(83.82x40.13
mm).
Shared on
September 2nd, 2015 20:09.
From HD Retrovision website. Bridge the appropriate solder pads for the correct rom size, this is for the 27C400,27C800,27C160,27C322, or original rom transplants only and does not apply to the SMD Flash memory.

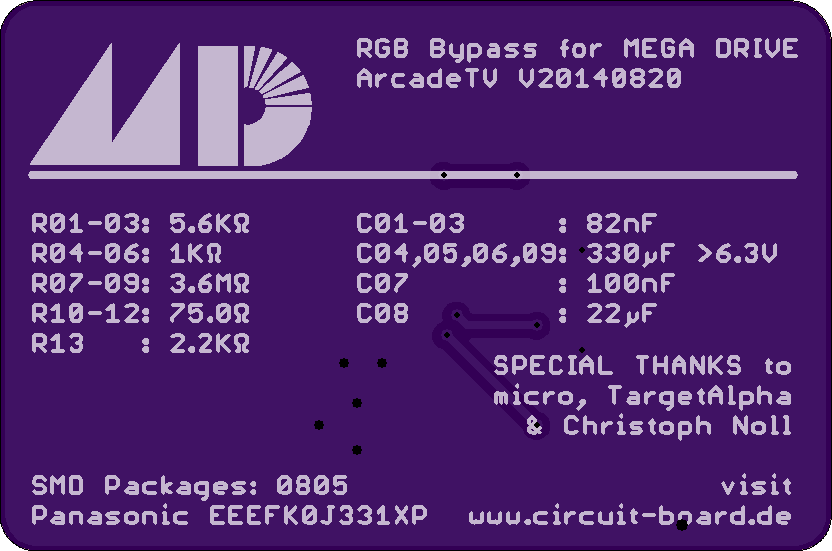

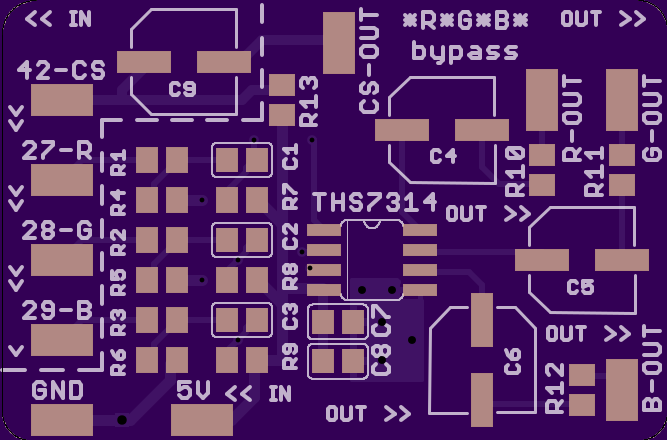

ArcadeTV's RGB Bypass Board for the Megadrive/Genesis 2 & 3
by
Helder.
2
layer board of
1.66x1.10
inches
(42.24x27.94
mm).
Shared on
July 26th, 2015 00:18.
Bypass the onboard RGB and outputs clean and voltage perfect RGB

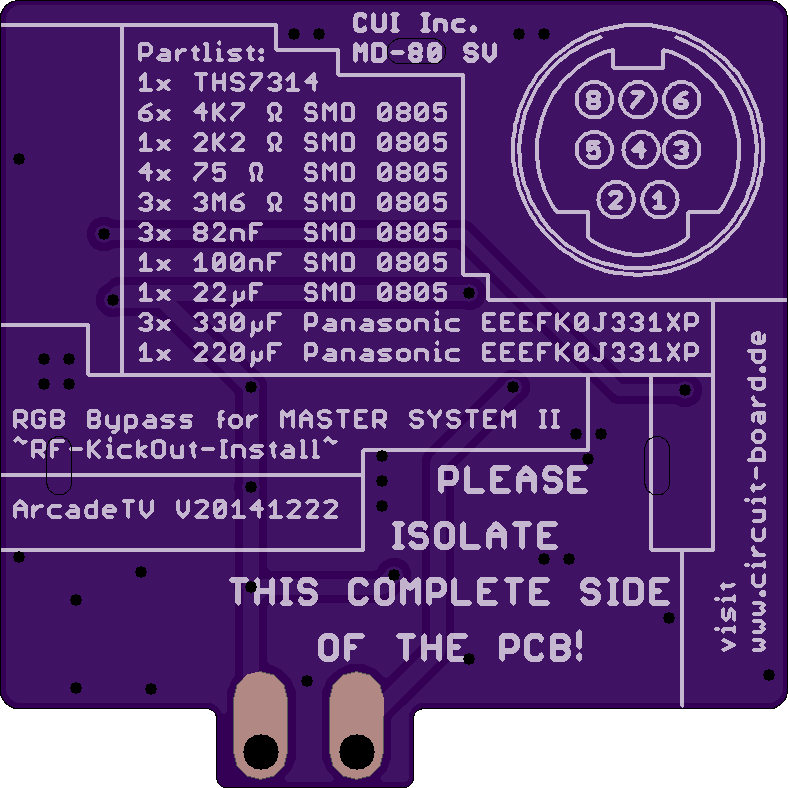

ArcadeTV's RGB Bypass Boards for the SMS2
by
Helder.
2
layer board of
1.58x1.58
inches
(40.00x40.00
mm).
Shared on
July 25th, 2015 22:32.
ArcadeTV’s RGB Bypass boards for the Sega Master System 2

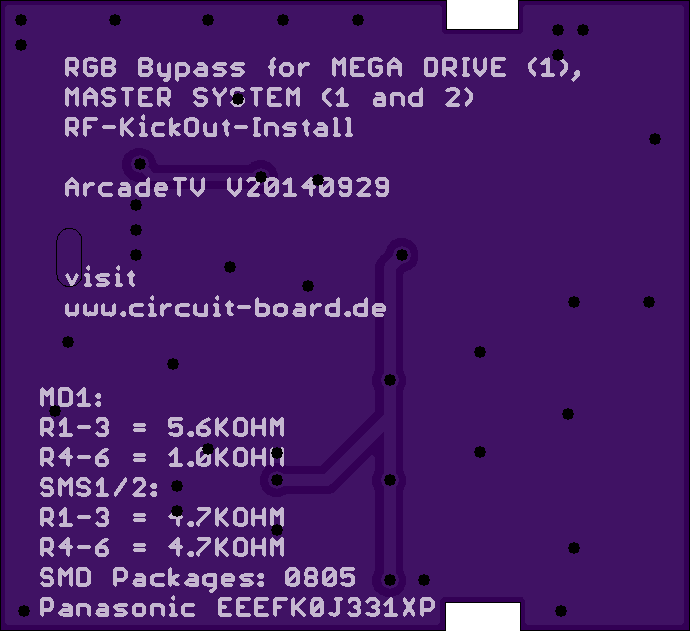

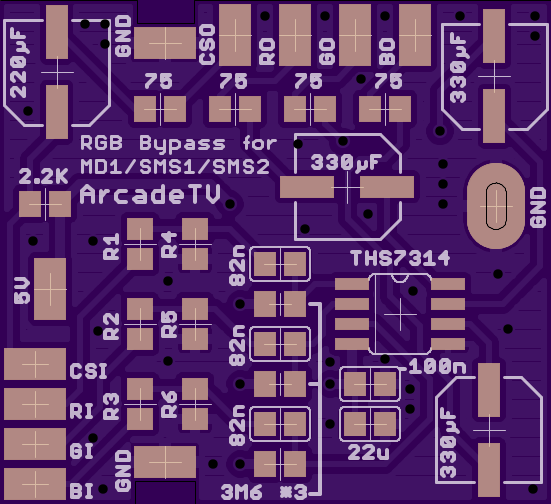

ARCADETV MD1 & SMS1 RGB BYPASS
by
Helder.
2
layer board of
1.38x1.26
inches
(35.00x32.00
mm).
Shared on
July 25th, 2015 22:32.
ArcadeTV’s RGB Bypass boards for the Megadrive 1 aka Genesis Model 1 and the Sega Master System 1

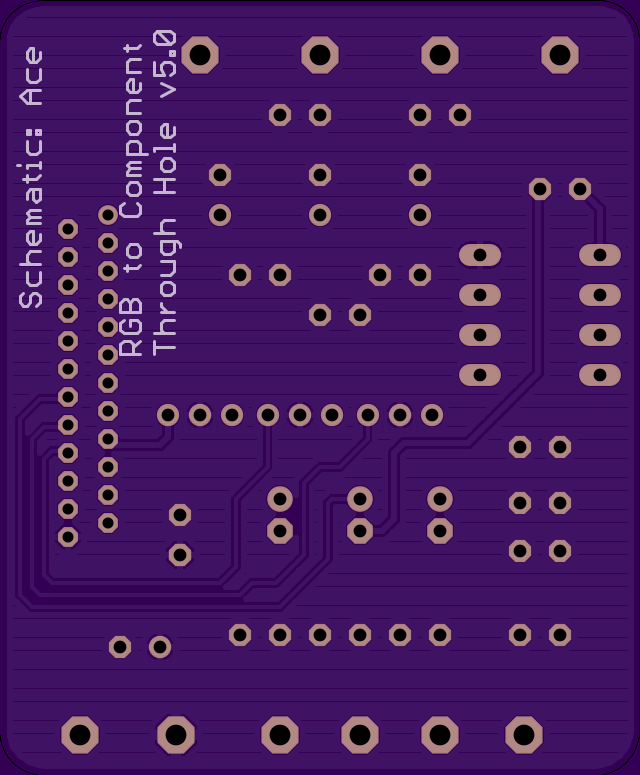

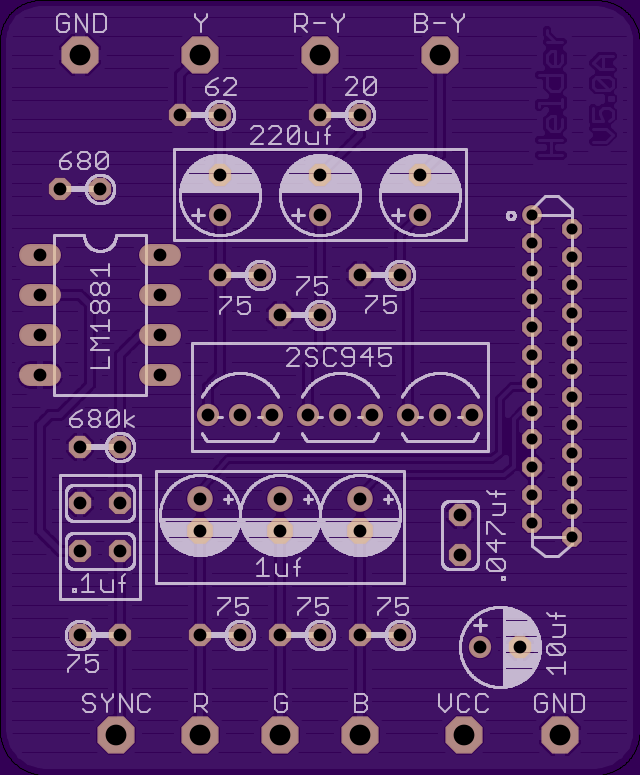

BA7230LS RGB to Component v5.0A
by
Helder.
2
layer board of
1.60x1.94
inches
(40.64x49.23
mm).
Shared on
May 28th, 2015 02:07.
Through hole board for Ace’s schematic v5.0, must use the 2SC945 NPN transistor because of the pinout. Untested but should work.
