Shared projects

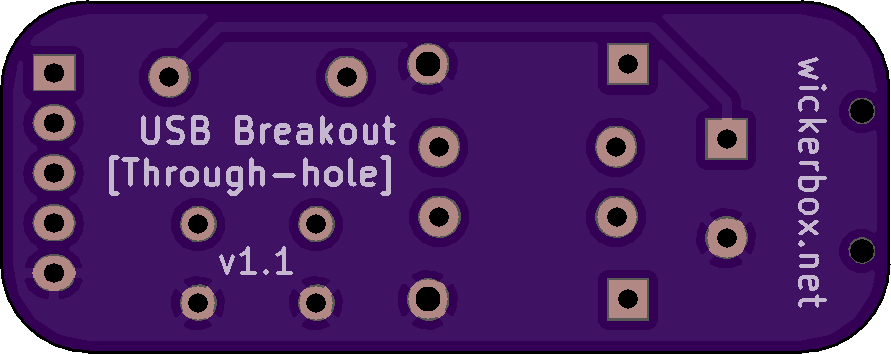

Basic USB Breakout v1.1
by
Jenner.
2
layer board of
1.78x0.71
inches
(45.26x17.93
mm).
Shared on
March 18th, 2017 22:33.

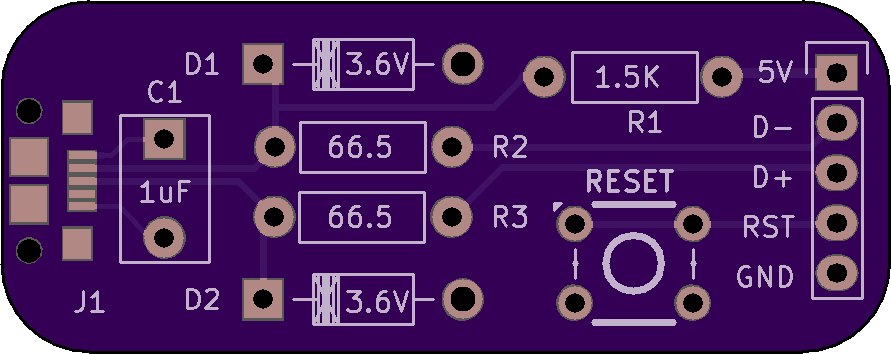

Breadboard-compatible USB breakout board. Not suitable for USB3.
The micro-USB connector has surface mount pads which may be easier to solder with paste or tinned pads and a hot plate, toaster oven, or hot air rework station.
The Basic Breakouts Github repo has the design files and parts list.
This project is released under the Open Hardware License v1.2.

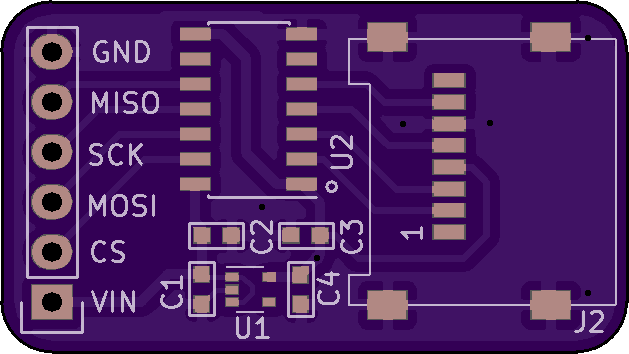

MicroSD Connector 5009010801 Breakout v1.1
by
Jenner.
2
layer board of
1.26x0.71
inches
(31.93x17.93
mm).
Shared on
March 18th, 2017 21:14.

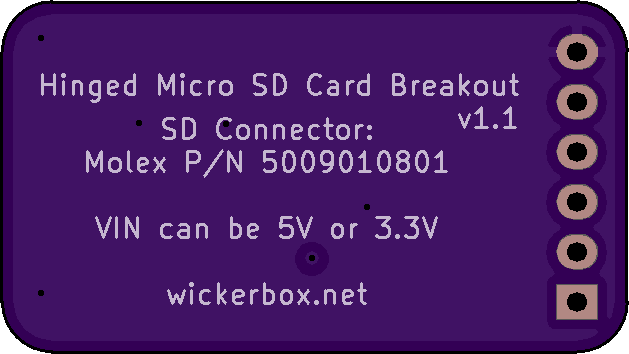

Breadboard-compatible breakout for a micro SD card.
The board has surface mount parts which may be easier to solder with paste or tinned pads and a hot plate, toaster oven, or hot air rework station.
The Basic Breakouts Github repo has the design files and parts list.
This project is released under the Open Hardware License v1.2.

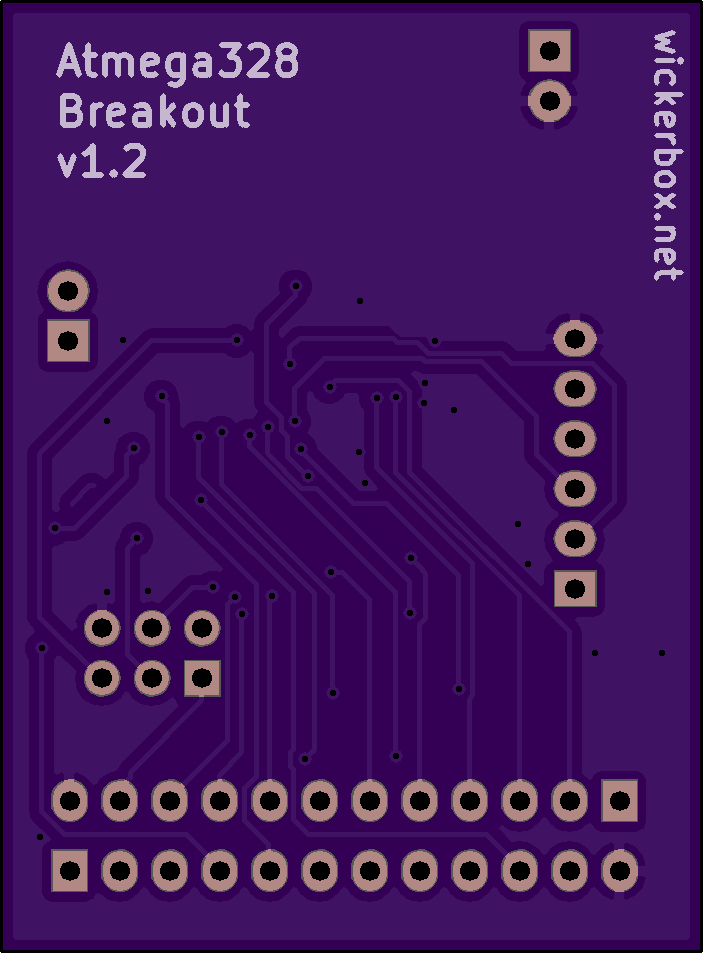

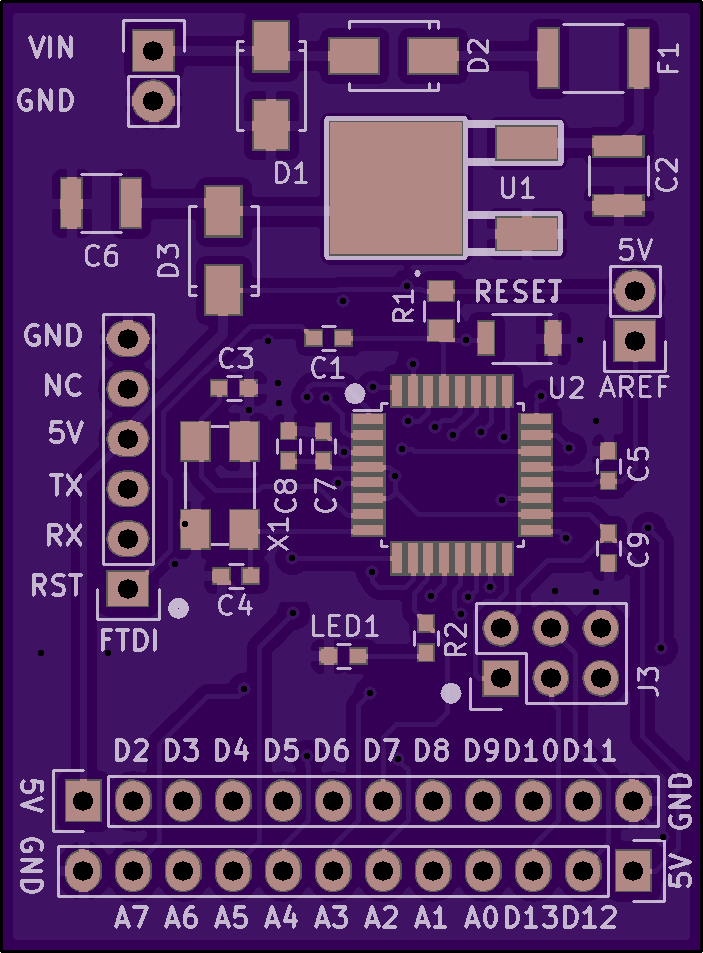

Atmega328 Breakout Board v1.2
by
Jenner.
2
layer board of
1.41x1.91
inches
(35.71x48.41
mm).
Shared on
March 18th, 2017 21:11.
Basic breakout board for the Atmega328 to prove out a KiCad template.
Just add a bootloader using another Arduino and Nick Gammon’s Bootloader, then use an FTDI cable to program this board directly.
The Github repo has the design and parts list.
This project is released under the Open Hardware License v1.2.

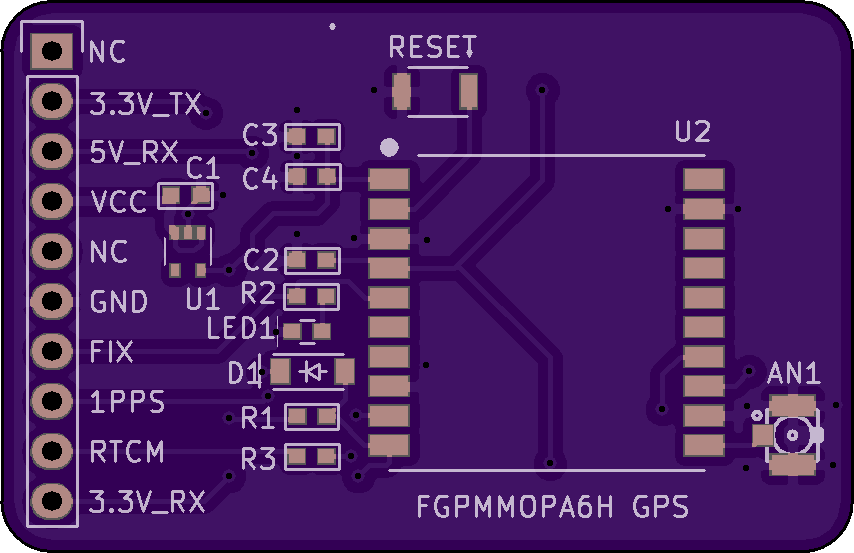

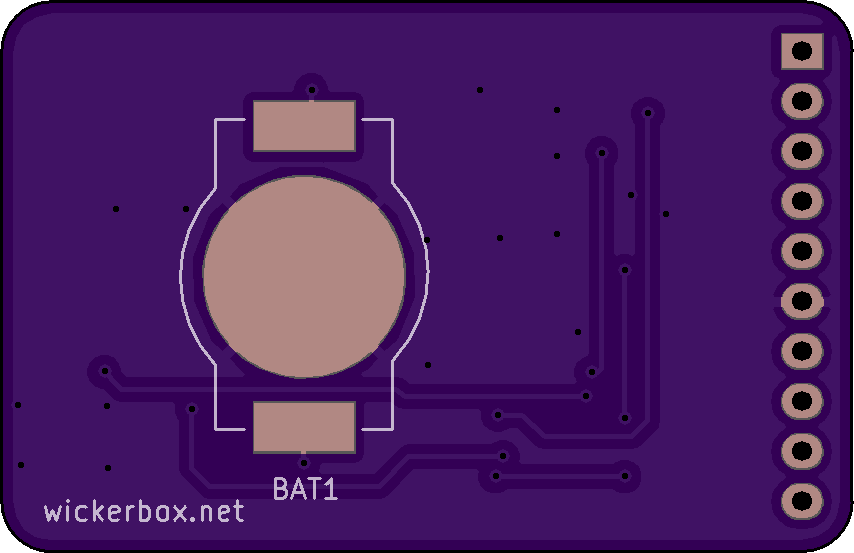

FGPMMOPA6H GPS Breakout v1.1
by
Jenner.
2
layer board of
1.71x1.11
inches
(43.38x28.12
mm).
Shared on
March 14th, 2017 19:21.
Basic breakout board for the FGPMMOPA6H GPS module.
To use with a 5V FTDI cable and your computer, orient cable with RESET (green) at pin 1 on J1.
To use with 5V controllers, connect VCC, 5V_RX, 5V_TX, and GND.
To use with 3.3V controllers, connect VCC, 5V_RX, 3.3V_TX, and GND.
The Github repo has the design and parts list.
This project is released under the Open Hardware License v1.2.

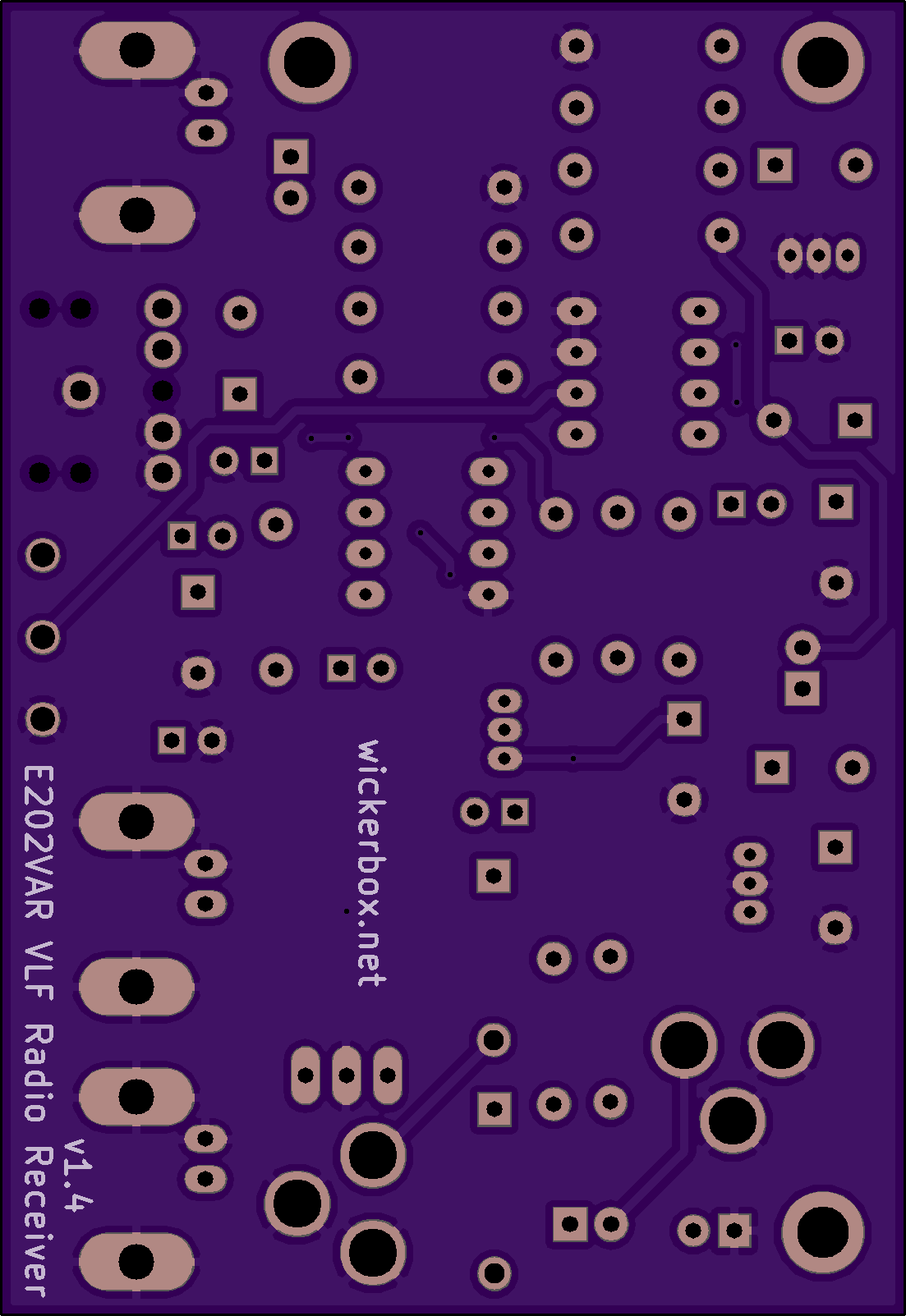

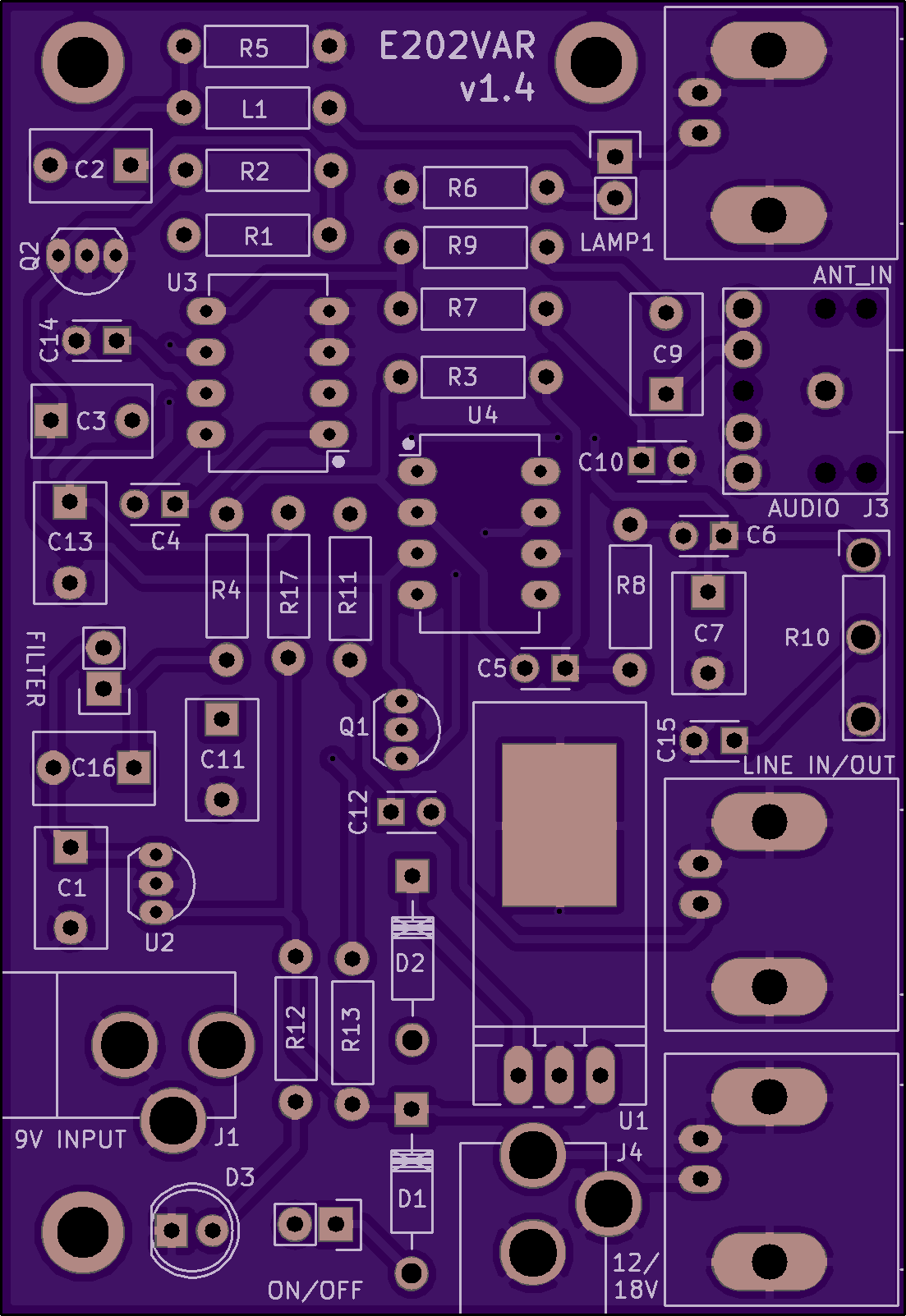

E202VAR VLF Radio Receiver v1.4
by
Jenner.
2
layer board of
2.21x3.21
inches
(56.06x81.46
mm).
Shared on
March 14th, 2017 18:55.
An open source version of Renato Romero’s portable E202 VLF radio receiver, made with permission.
This board was built and verified by listening through headphones. It needs a full test of functionality, but I leave that to someone in the VLF community with the appropriate test equipment.
The Github repo has the design and parts list.
This project is released under the Open Hardware License v1.2.
