Shared projects
MMA7660 3-Axis Accelerometer Breakout v1.1
by
Jenner.
2
layer board of
0.55x0.47
inches
(14.00x11.84
mm).
Shared on
March 8th, 2017 00:33.
MMA7660 3-axis Accelerometer breadboard-compatible breakout board.
The I2C lines already have 1K pullup resistors so there’s no need for any external parts.
The Github repo has the design and parts list.
This project is released under the Open Hardware License v1.2.

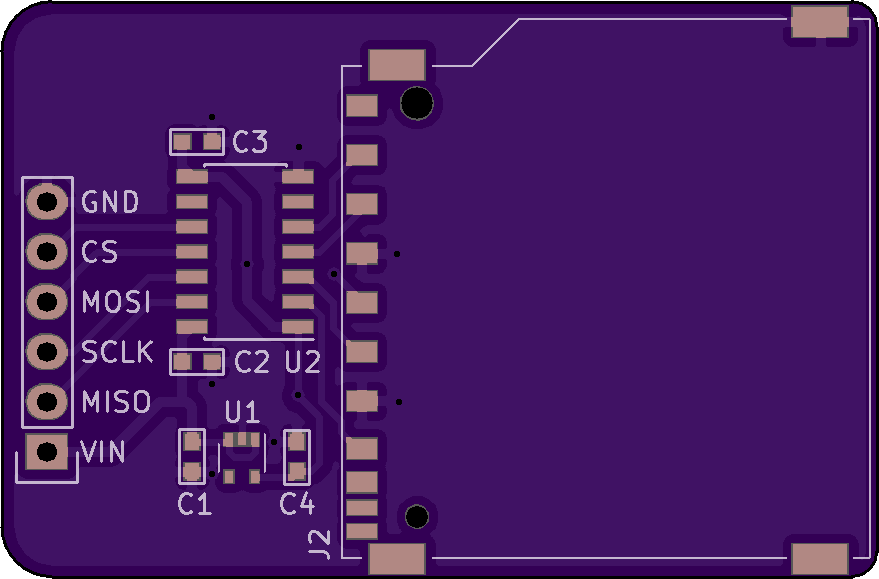

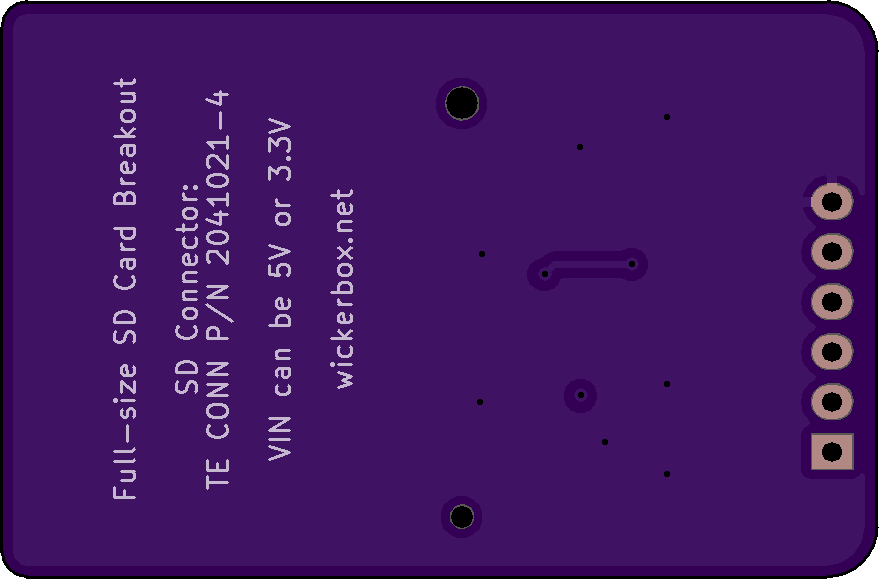

SD Connector 2041021-4 Breakout v1.0
by
Jenner.
2
layer board of
1.76x1.16
inches
(44.63x29.39
mm).
Shared on
March 7th, 2017 22:50.
Breadboard-compatible breakout for a full size SD card (or microSD card adapter).
The board has surface mount parts which may be easier to solder with paste or tinned pads and a hot plate, toaster oven, or hot air rework station.
The Basic Breakouts Github repo has the design files and parts list.
This project is released under the Open Hardware License v1.2.

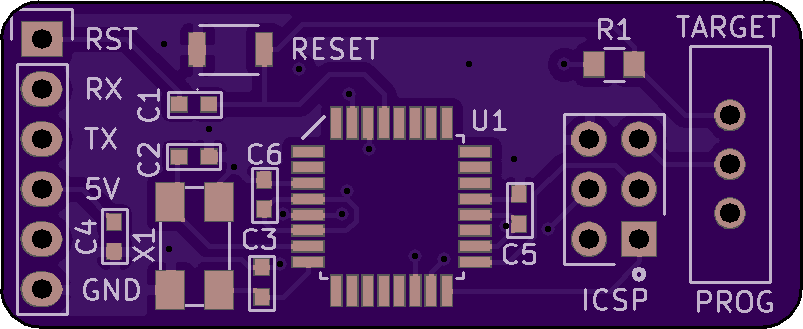

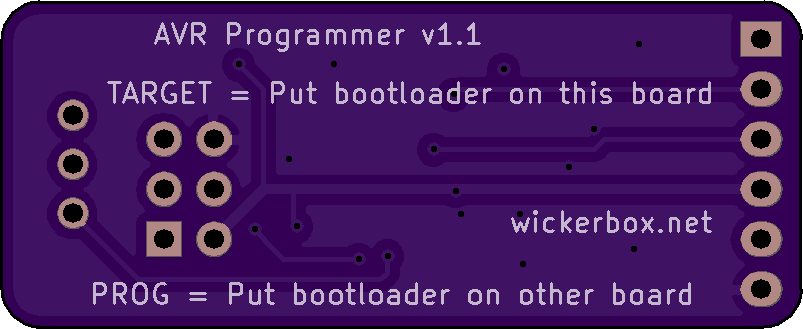

Simple AVR Programmer v1.1
by
Jenner.
2
layer board of
1.61x0.66
inches
(40.79x16.69
mm).
Shared on
March 7th, 2017 22:49.
Simple Atmega328-based AVR programmer with ISP and FTDI breakout. I use this with Nick Gammon’s Arduino Progarmmer sketch to put the bootloader on other AVR chips.
The board has surface mount parts which may be easier to solder with paste or tinned pads and a hot plate, toaster oven, or hot air rework station.
To put the bootloader on this board, set the switch to ‘Target’.
To use this board to put the bootloader on a target board, set the switch to ‘Prog’.
The Github repo has the design and parts list.
This project is released under the Open Hardware License v1.2.

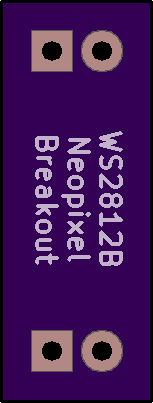

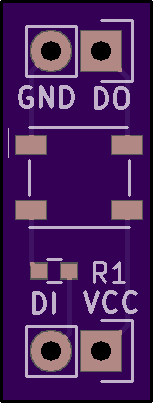

Neopixel WS2812B Breakout Board v1.1
by
Jenner.
2
layer board of
0.31x0.81
inches
(7.77x20.47
mm).
Shared on
February 7th, 2017 19:04.
Breadboard-compatible breakout board for a WS2812B or 5050-compatible RGB “Neopixel” LED.
The Github repo has the design and parts list.
This project is released under the Open Hardware License v1.2.

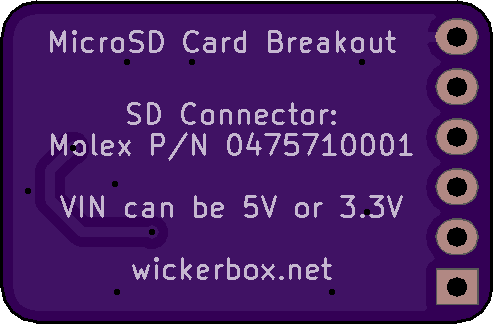

MicroSD Connector 0475710001 Breakout v1.0
by
Jenner.
2
layer board of
0.99x0.65
inches
(25.07x16.41
mm).
Shared on
February 6th, 2017 20:54.
Breadboard-compatible breakout for a micro SD card using a very small push-pull connector.
The board has surface mount parts which may be easier to solder with paste or tinned pads and a hot plate, toaster oven, or hot air rework station.
The Basic Breakouts Github repo has the design files and parts list.
This project is released under the Open Hardware License v1.2.
