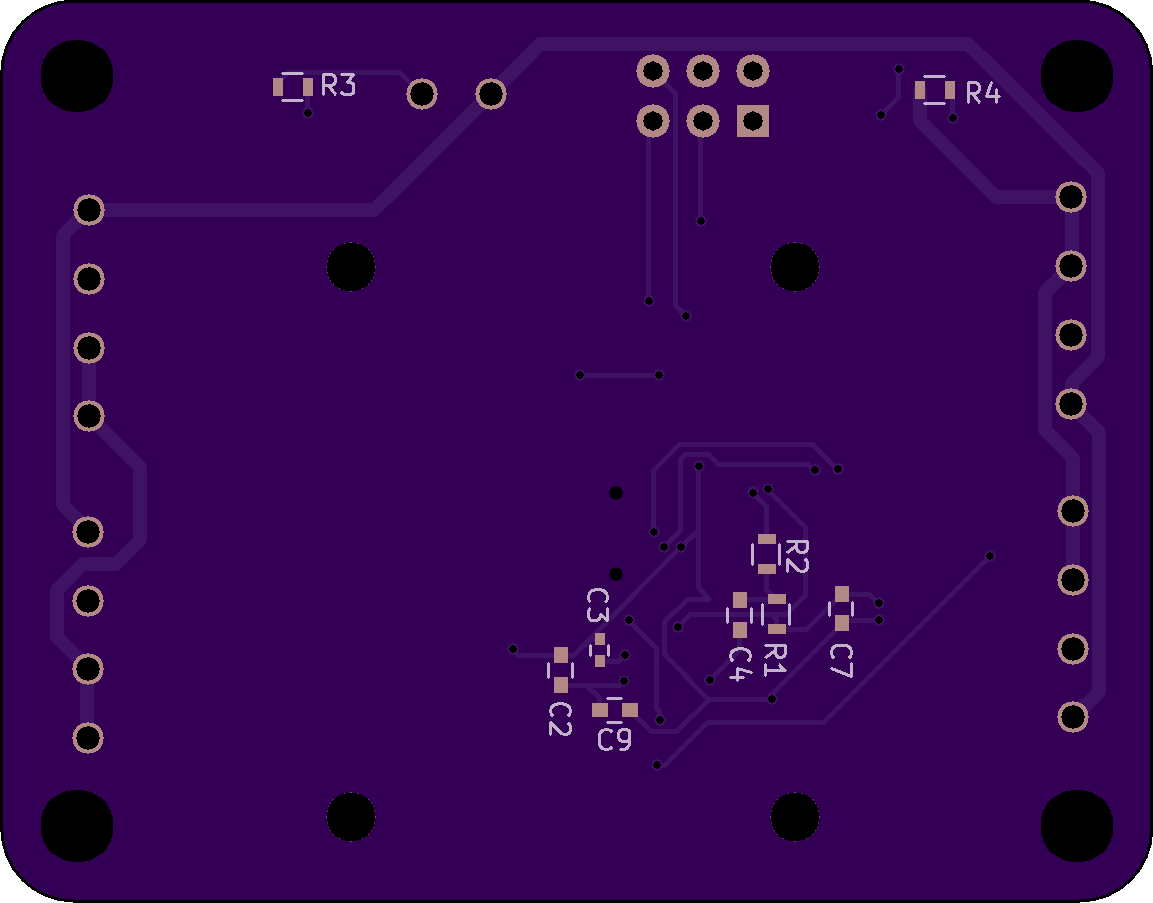

RS17 - Depth Sensor - RevB
by
Ryan-Summers.
2
layer board of
2.63x1.76
inches
(66.70x44.60
mm).
Shared on
March 9th, 2017 20:10.

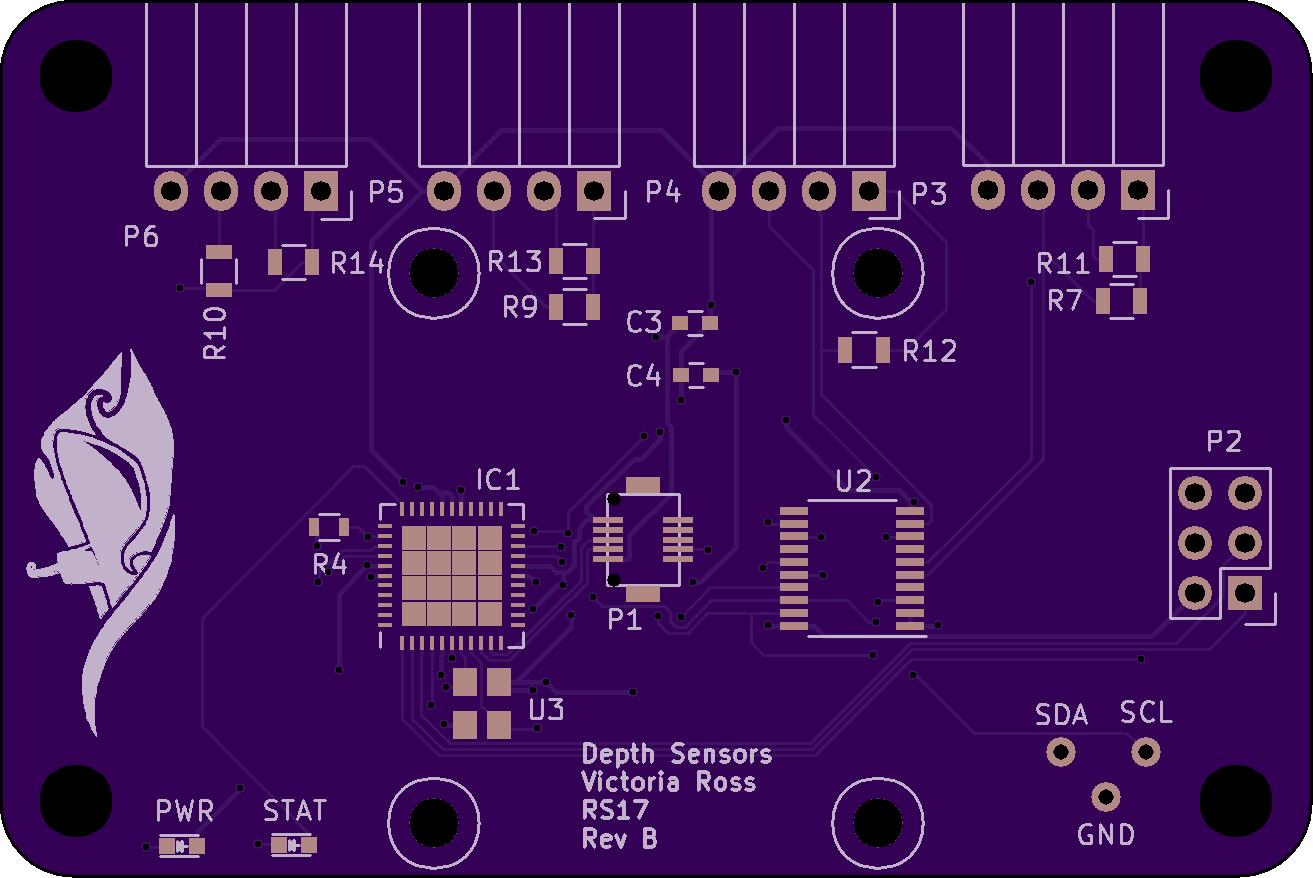

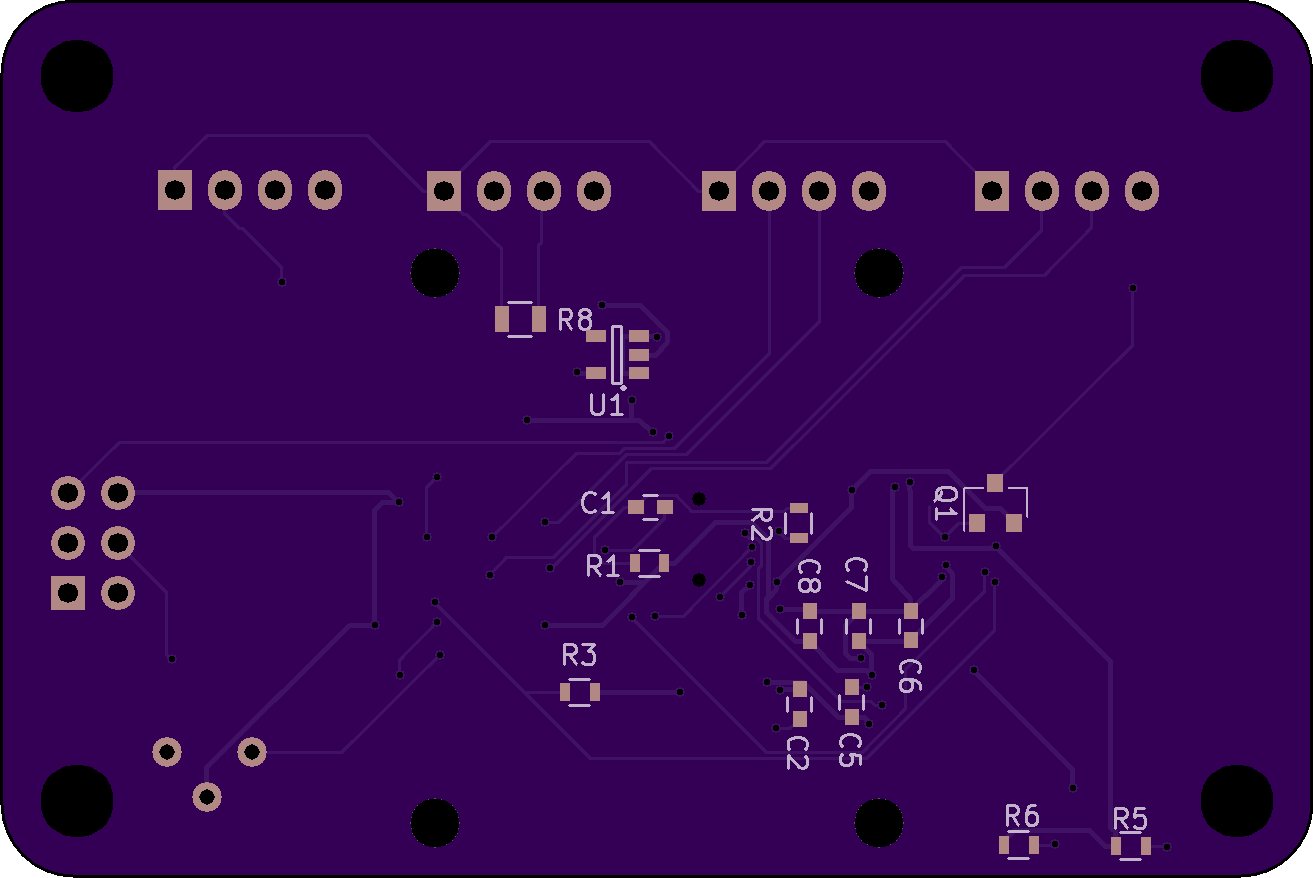

Revision B of the Palouse Robosub Depth Sensor Board. This board connects to 4 I2C depth sensors. It needs an interface converter mounted on top to be functional.

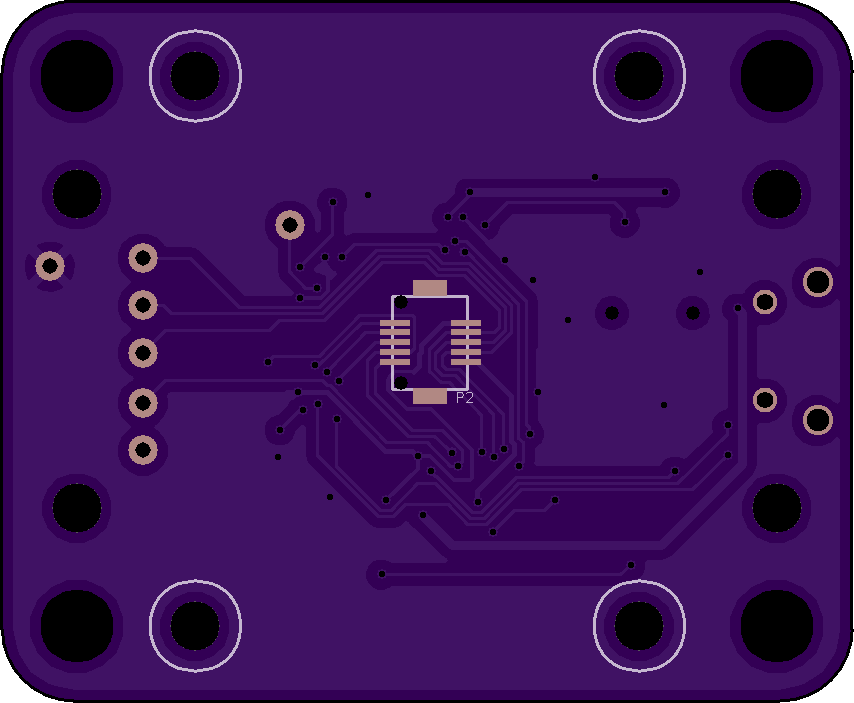

RS17 - Digital Isolator - RevC
by
Ryan-Summers.
2
layer board of
1.71x1.41
inches
(43.33x35.71
mm).
Shared on
March 9th, 2017 20:10.

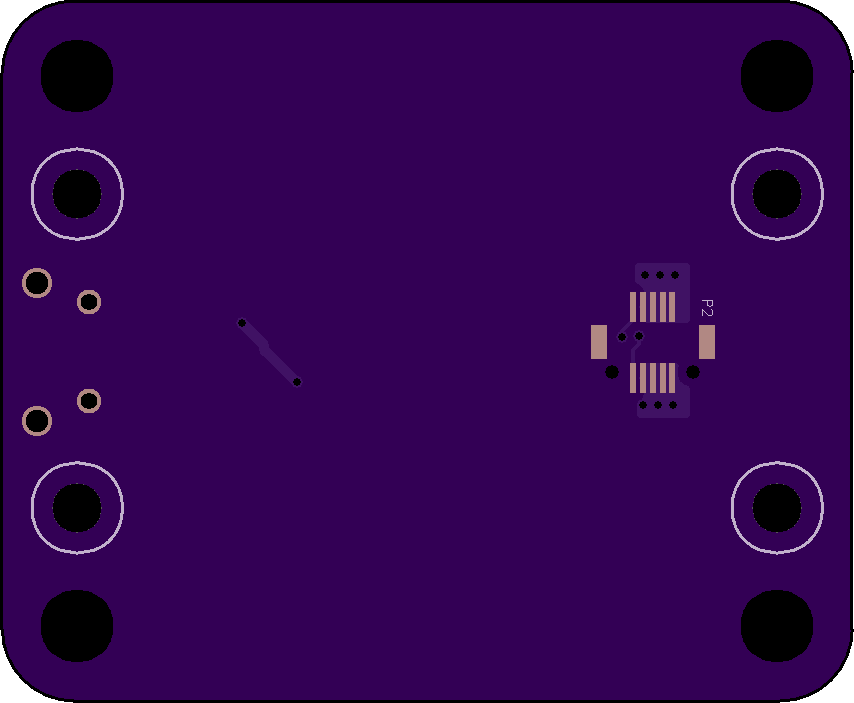

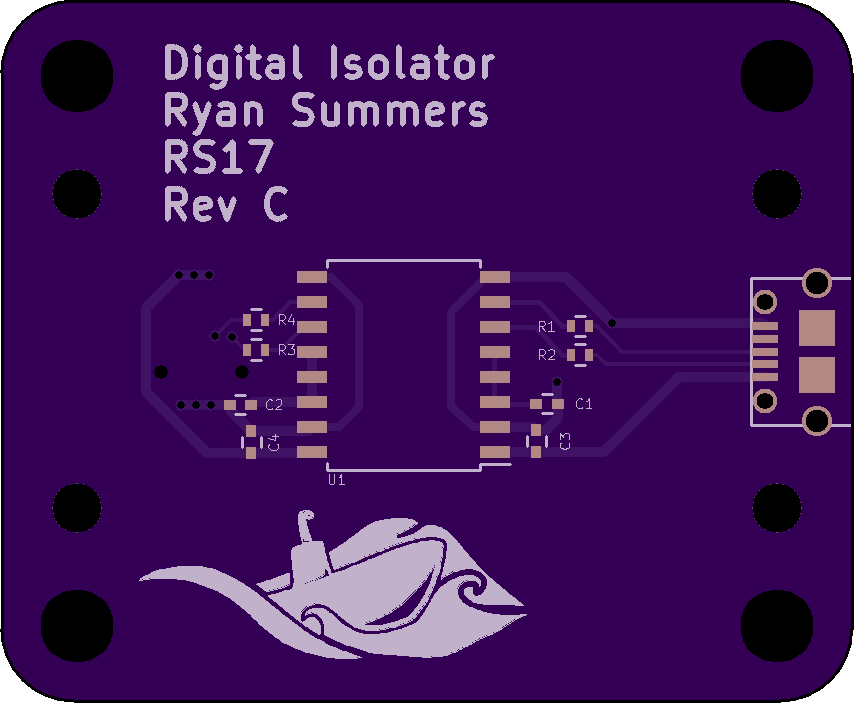

Revision C of Palouse Robosub USB interface board isolator. This board provides isolation for the interface converter when signals need to be sent through high-noise environments and are on separate power systems.
RS17 - Interface Converter - RevC
by
Ryan-Summers.
2
layer board of
1.71x1.41
inches
(43.33x35.71
mm).
Shared on
March 9th, 2017 20:10.

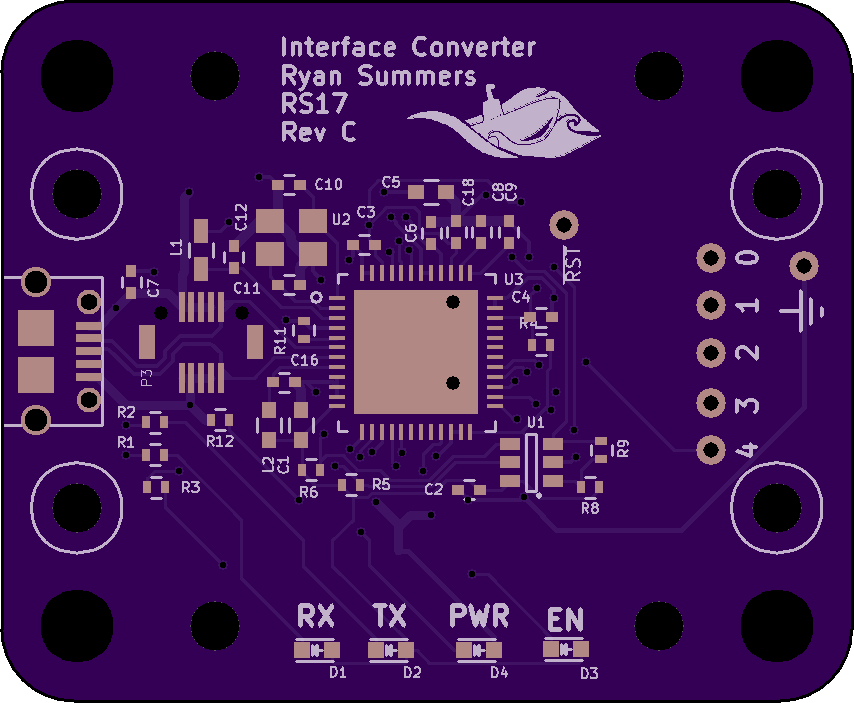

Revision C of the Palouse Robosub interface converter board. This board converts USB to a generic serial interface utilizing the FT232H chip. This board is designed to sit on top of other boards.
RS17 - LED Controller - RevB
by
Ryan-Summers.
2
layer board of
2.31x1.81
inches
(58.57x45.87
mm).
Shared on
March 9th, 2017 20:10.

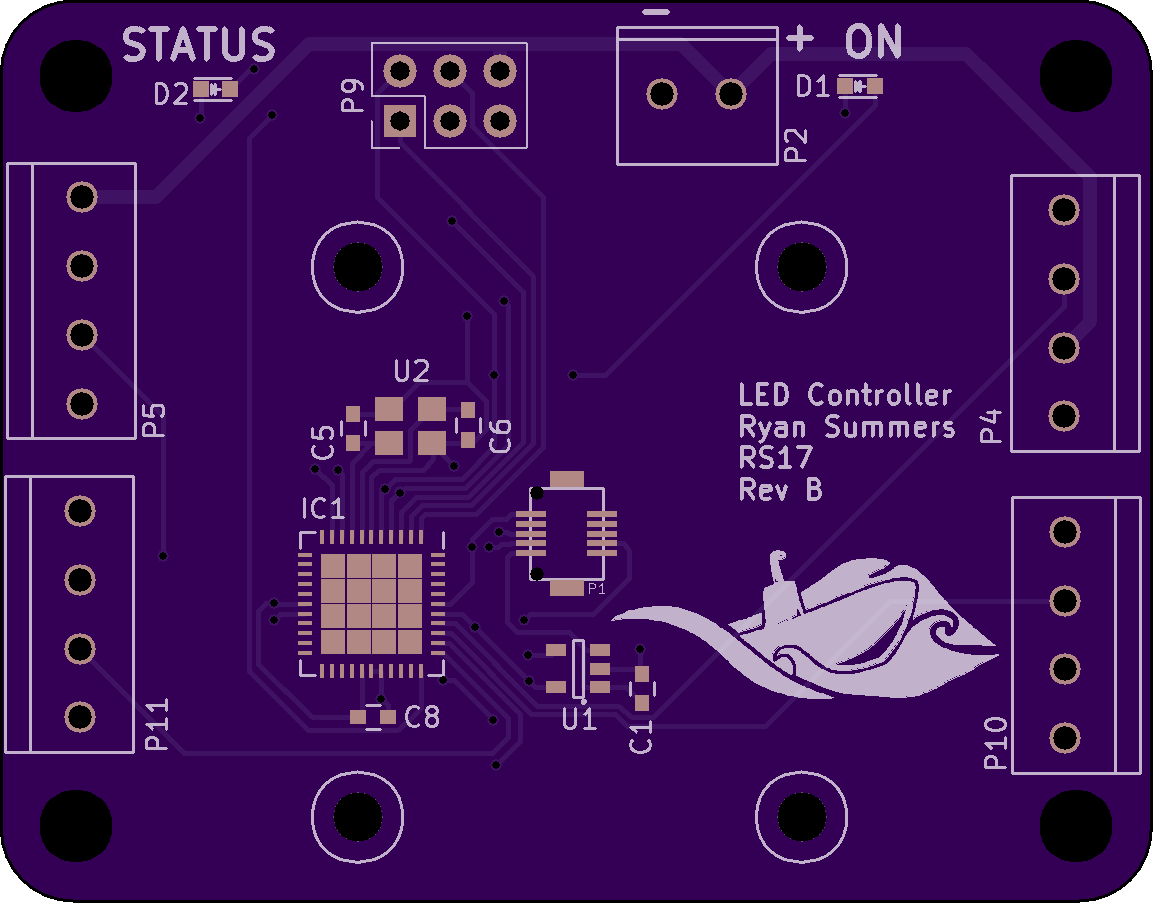

Revision B of the Palouse Robosub LED Controller board. This board is designed to control up to four NeoPixel LED strips.
RS17 - Maestro Adapter - RevB
by
Ryan-Summers.
2
layer board of
1.41x2.91
inches
(35.71x73.81
mm).
Shared on
March 9th, 2017 20:10.

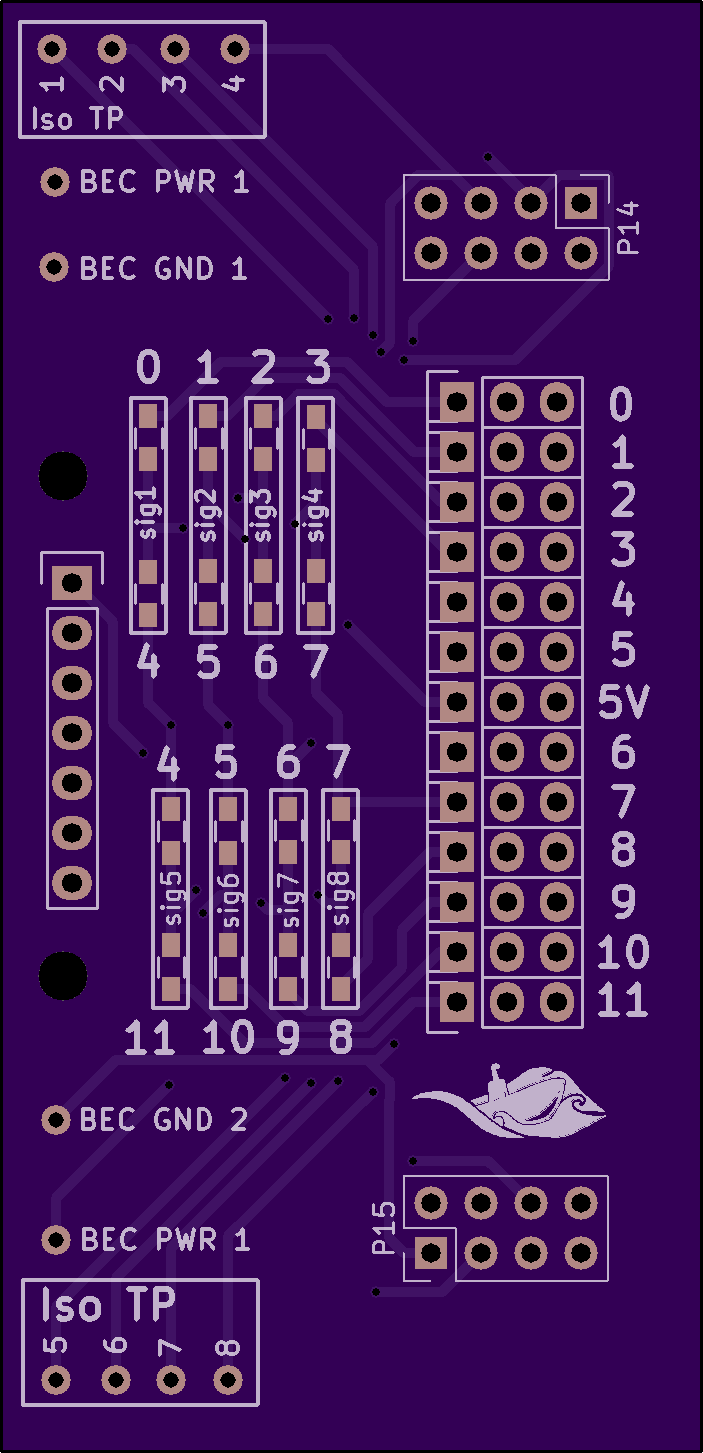

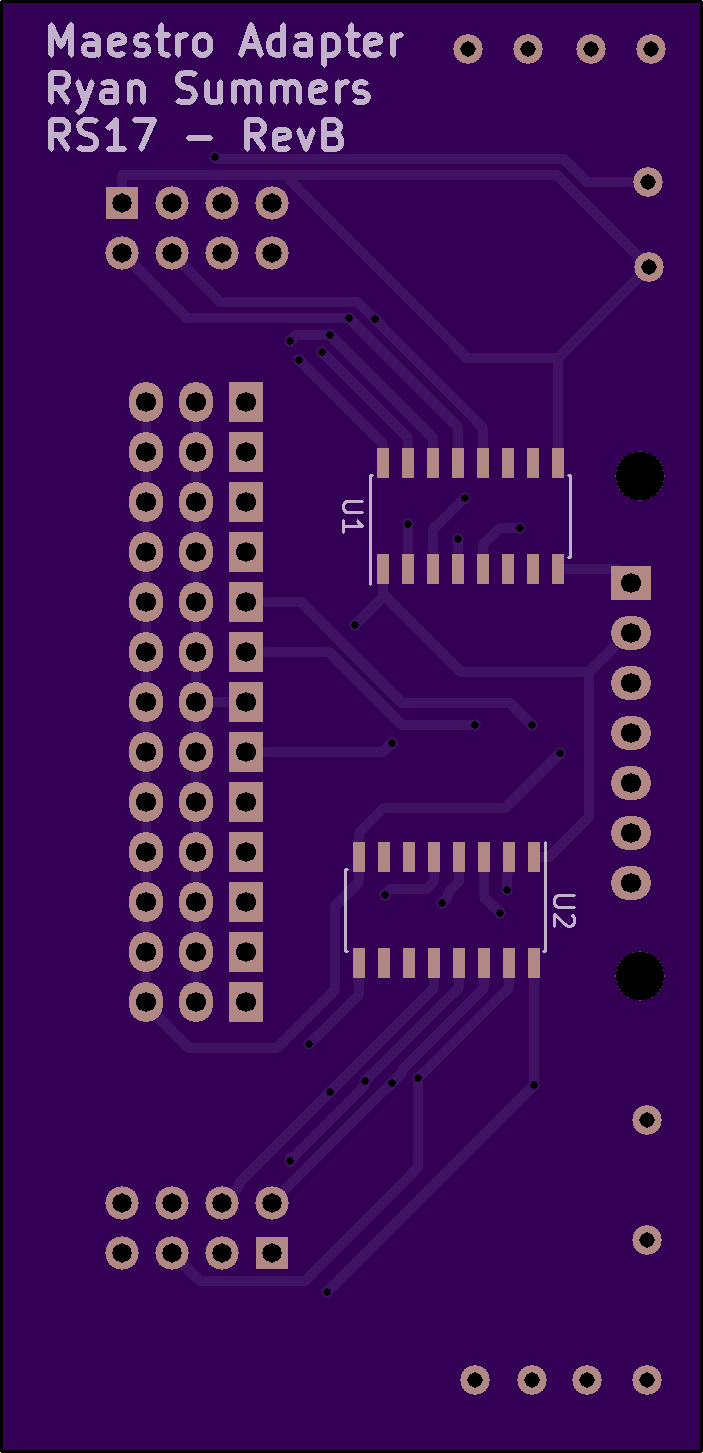

Revision B of the Palouse Robosub Maestro Adapter board. This board is a converter board for isolating the outputs of the Pololu Maestro controller.
