RS-15 Pneumatics Board

by Ryan-Summers.
Top
Bottom

2 layer board of 1.79x1.75 inches (45.52x44.48 mm).
Shared on February 16th, 2015 21:53.

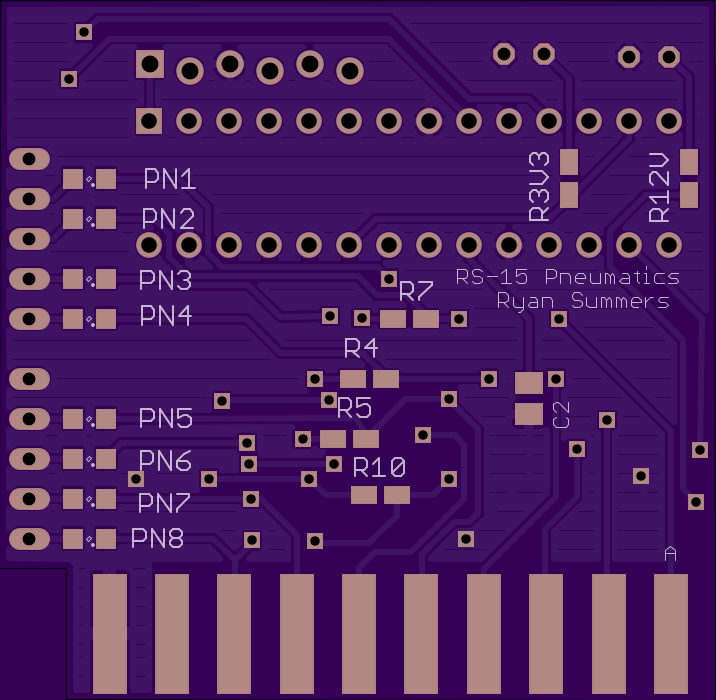

This board controls the pneumatic systems on the submarine.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

RS-15 Regulator

by Ryan-Summers.
Top
Bottom

2 layer board of 3.09x2.01 inches (78.44x51.03 mm).
Shared on February 16th, 2015 21:53.

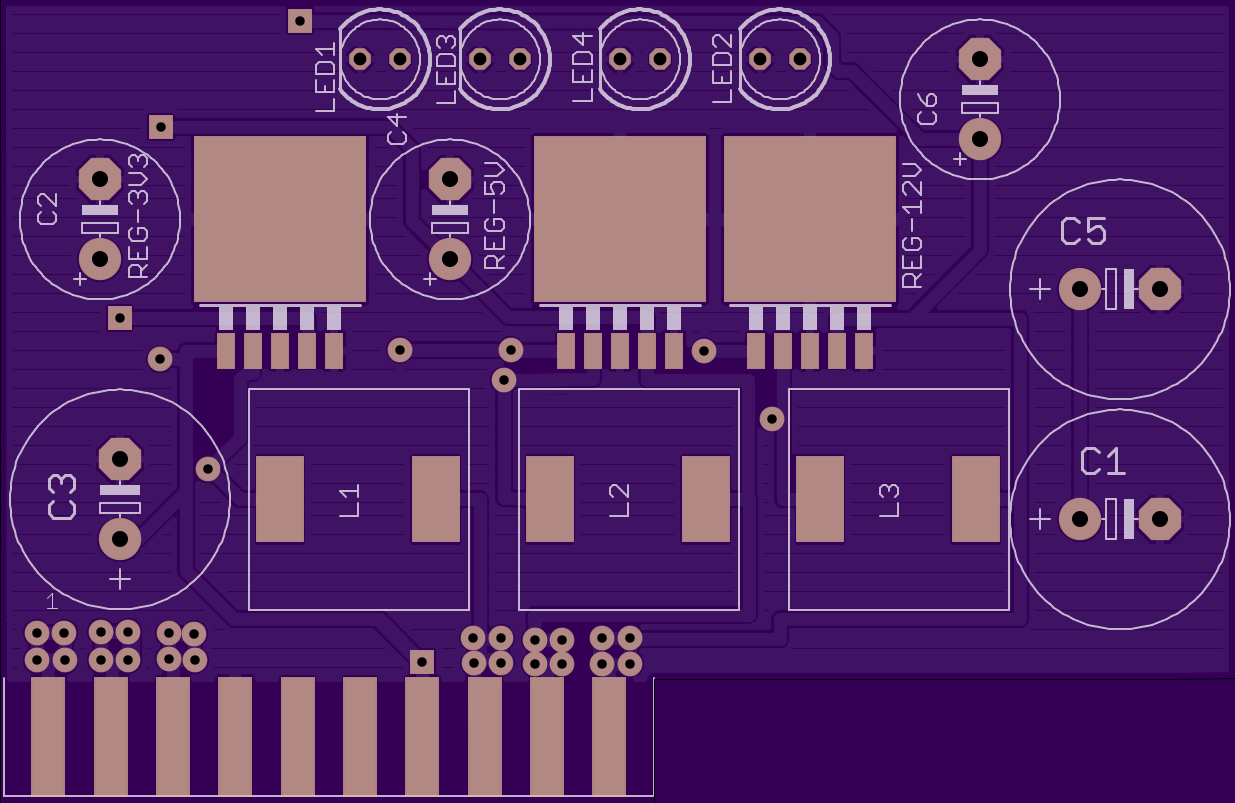

This board takes in unregulated voltage from the battery and converts it down to 12V, 5V, and 3V3 for use by the electrical subsystems.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

RS-15 36Pin Breakout

by Ryan-Summers.
Top
Bottom

2 layer board of 2.88x0.83 inches (73.02x21.11 mm).
Shared on February 16th, 2015 21:53.

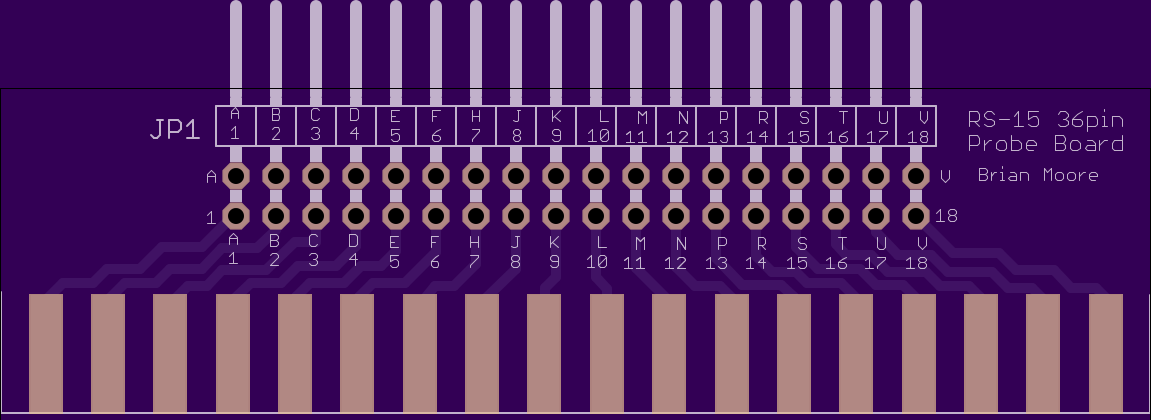

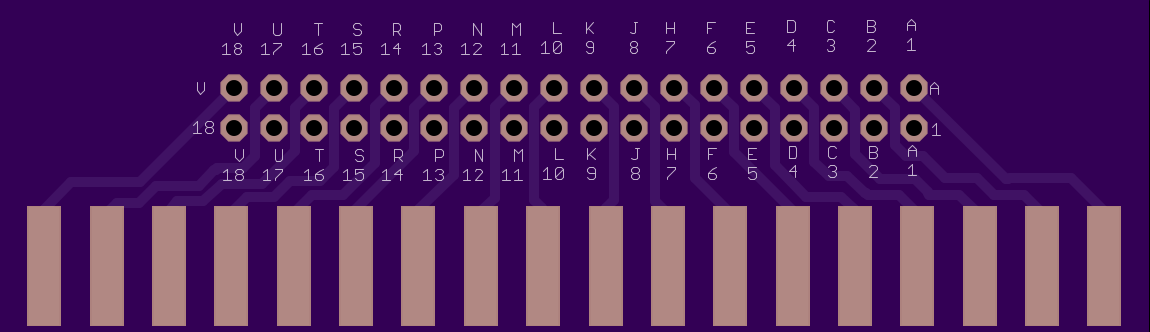

This board is designed for the 36 pin edge connector used on the sbumarine. The purpose of this board is to provide header pin breakouts for the edge connectors for debugging and testing.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

RS-15 20Pin Breakout

by Ryan-Summers.
Top
Bottom

2 layer board of 1.63x0.69 inches (41.40x17.50 mm).
Shared on February 16th, 2015 21:52.

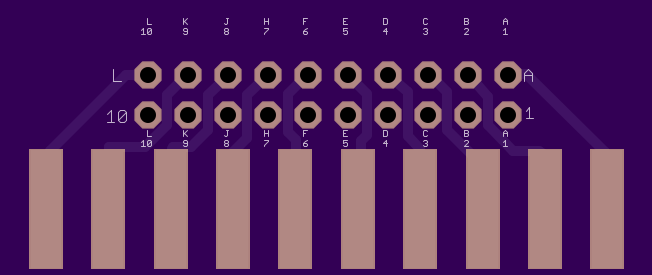

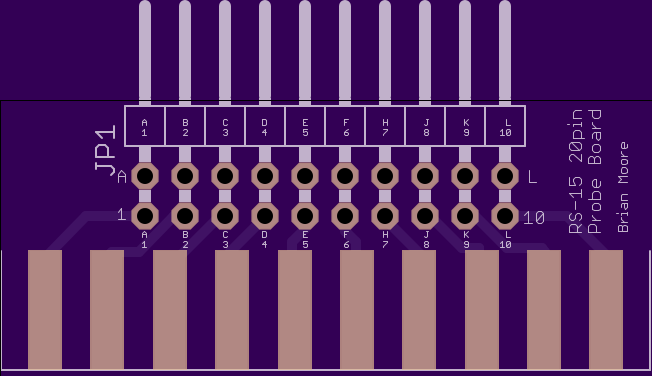

This board is designed for the 20 pin edge connector. The purpose of this board is to provide header breakouts for the edge connectors used on the submarine.
