RS16 LED Board

by

2 layer board of 1.52x0.80 inches (38.71x20.42 mm).
Shared on March 7th, 2016 08:54.

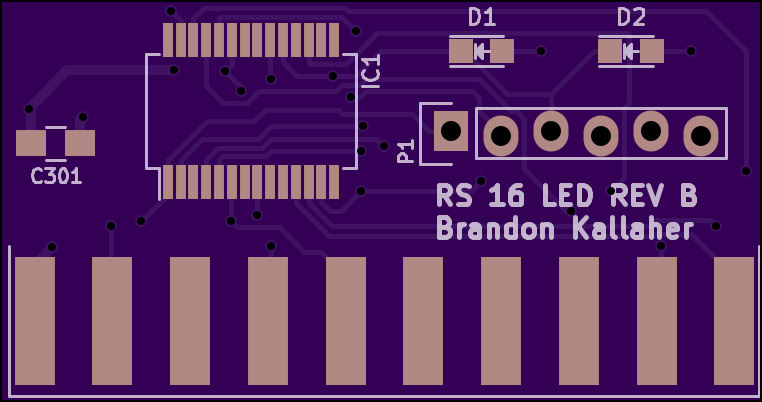

This board is the LED controller for the RS16 submarine.

Copy this HTML into your page to embed a link to order this shared project

RS16 Sensor Bus

by

2 layer board of 0.53x3.43 inches (13.36x87.02 mm).
Shared on March 7th, 2016 08:54.

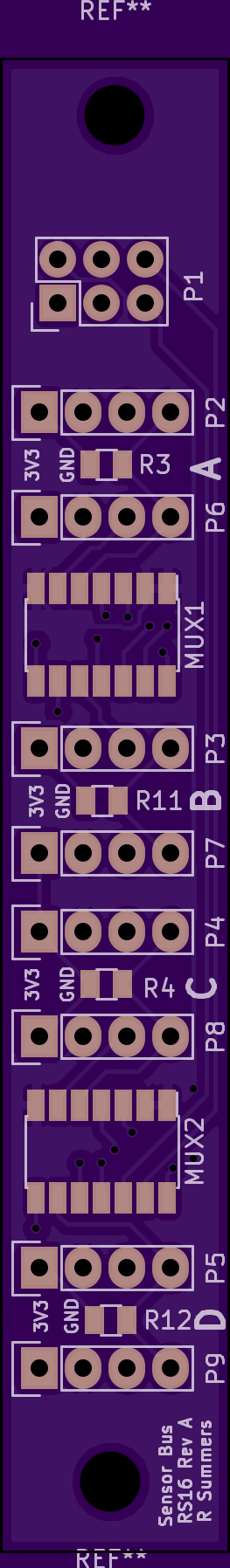

This is an I2C bus board that turns two I2C into four through the use of two I2C mux chips.

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.54x1.10 inches (39.01x27.84 mm).
Shared on March 7th, 2016 08:54.

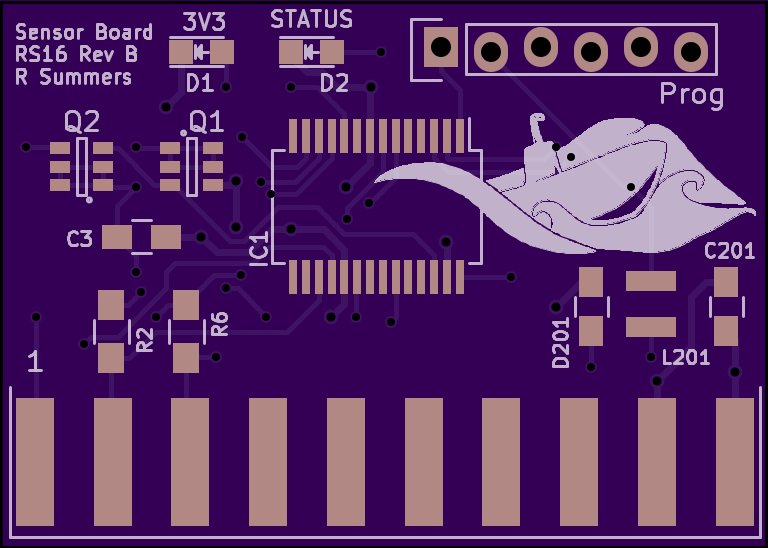

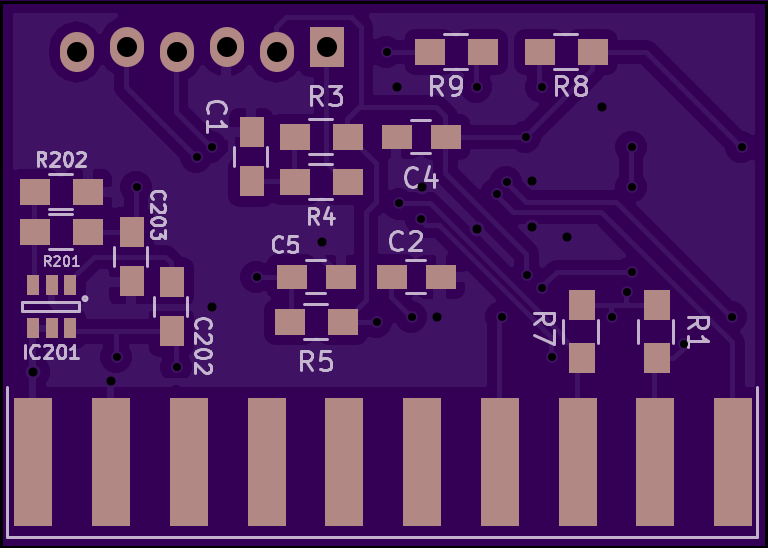

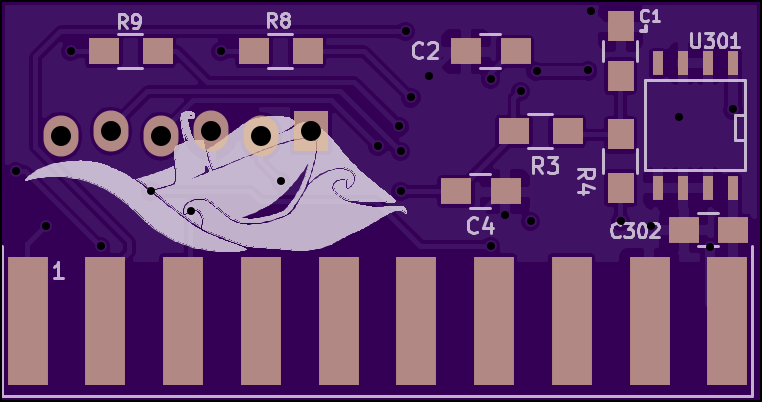

This board talks to all I2C sensors on the RS16 submarine.

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 2.95x0.55 inches (74.93x13.97 mm).
Shared on April 2nd, 2015 23:47.

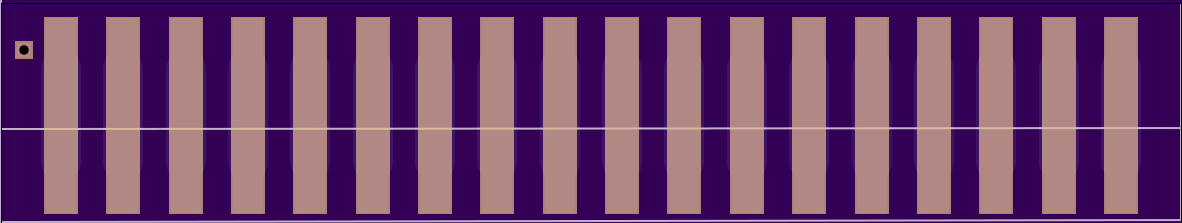

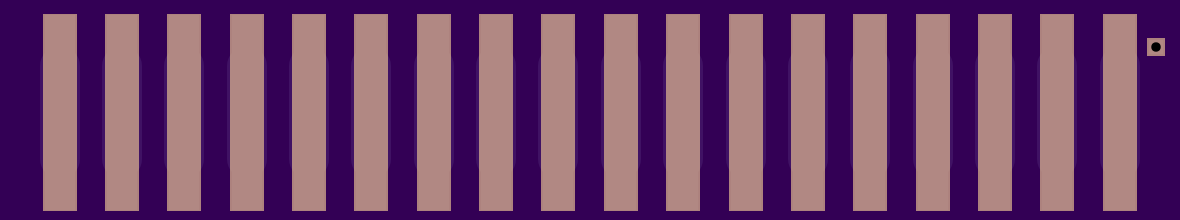

This is a signal bus board, acting like a slotting device for ease of connection between two edge connector slots.

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.69x1.16 inches (42.85x29.51 mm).
Shared on April 1st, 2015 01:48.

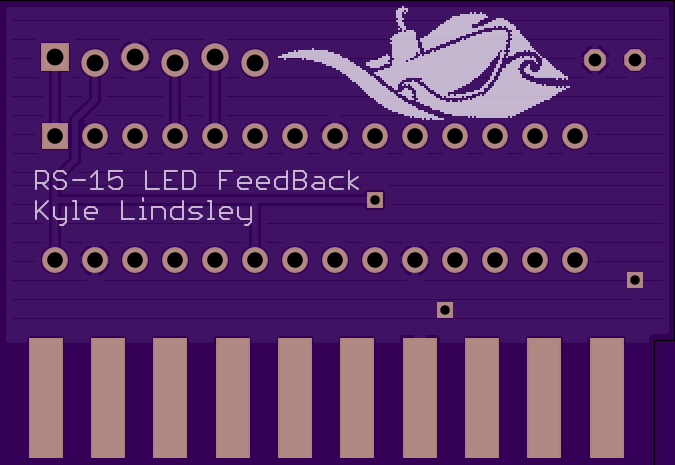

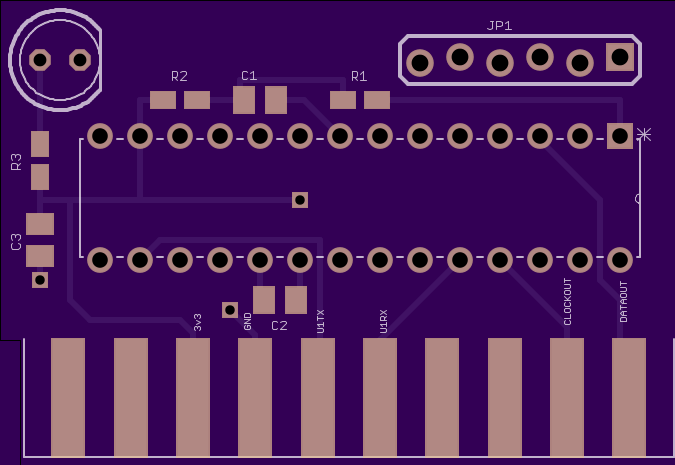

This board provides feedback to a microcontroller from an external LED array.
