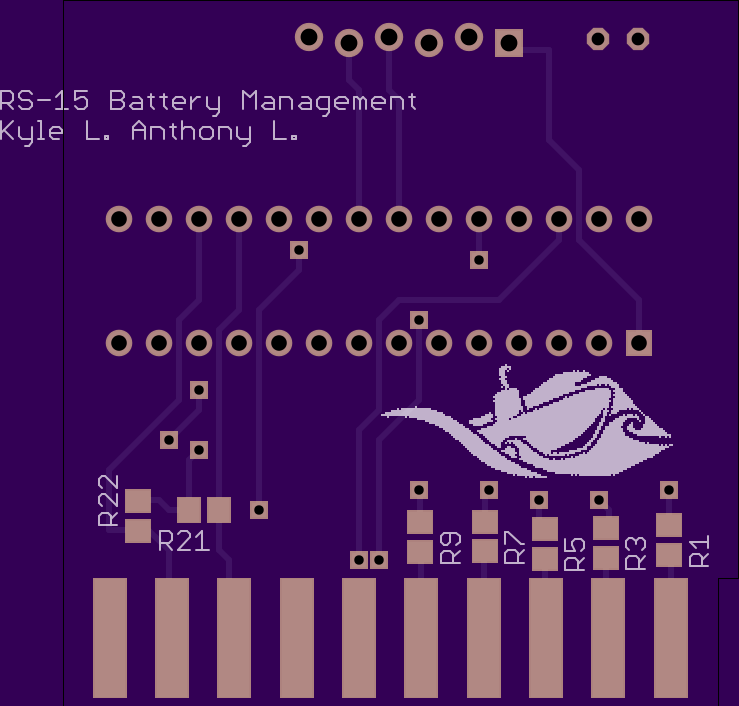

RS-15 Battery Management
by
Ryan-Summers.
2
layer board of
1.69x1.77
inches
(42.85x44.83
mm).
Shared on
April 1st, 2015 01:47.
This board takes input from individual cell voltages and sense current draw on an external battery.

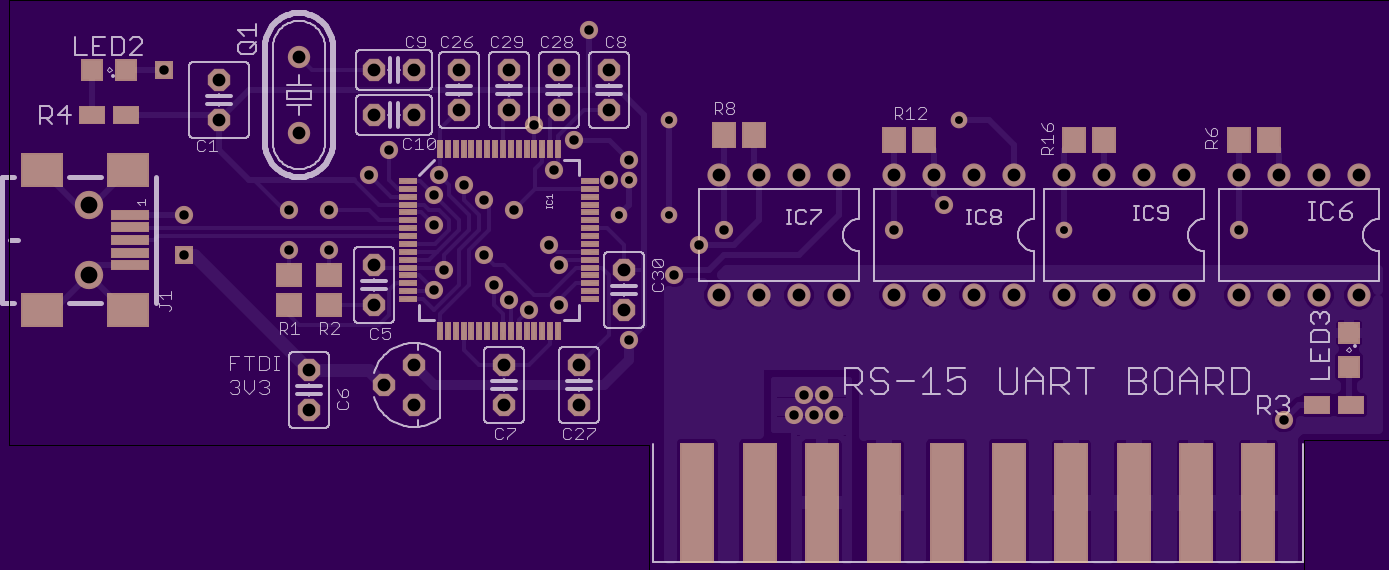

RS-15 UART Board
by
Ryan-Summers.
2
layer board of
3.45x1.43
inches
(87.63x36.20
mm).
Shared on
February 16th, 2015 21:53.
This board converts 4 uart channels into a single usb signal.

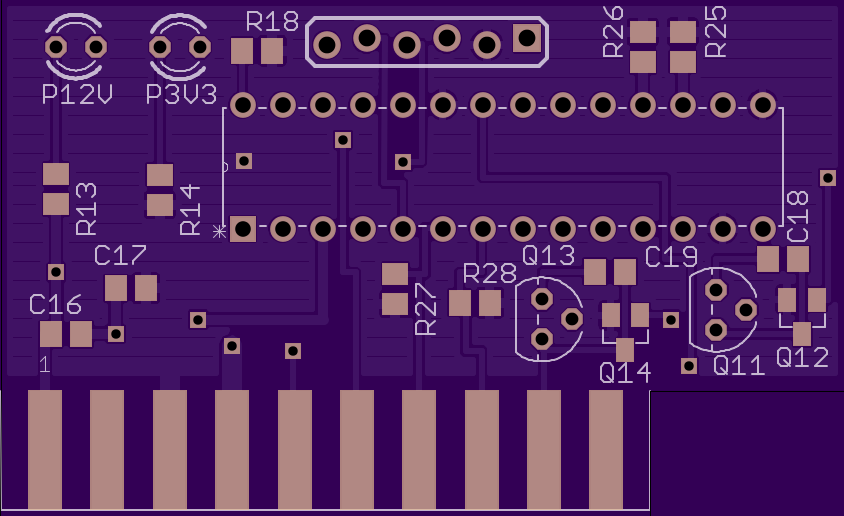

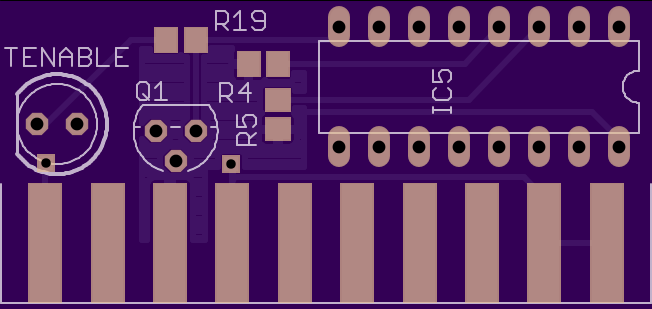

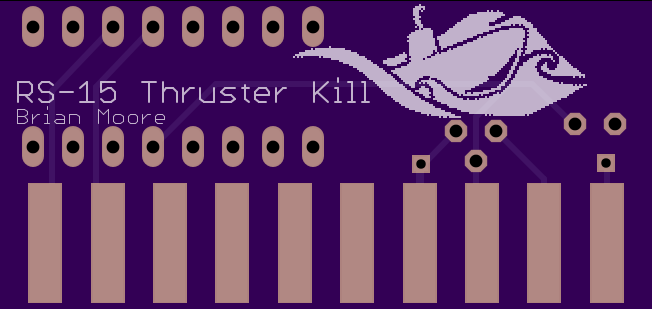

RS-15 Thruster Kill
by
Ryan-Summers.
2
layer board of
1.63x0.77
inches
(41.40x19.61
mm).
Shared on
February 16th, 2015 21:53.
This board kills power to the thrusters on the submarine and transmits a signal over UART to the sensor board to inform it that the thrusters are offline.

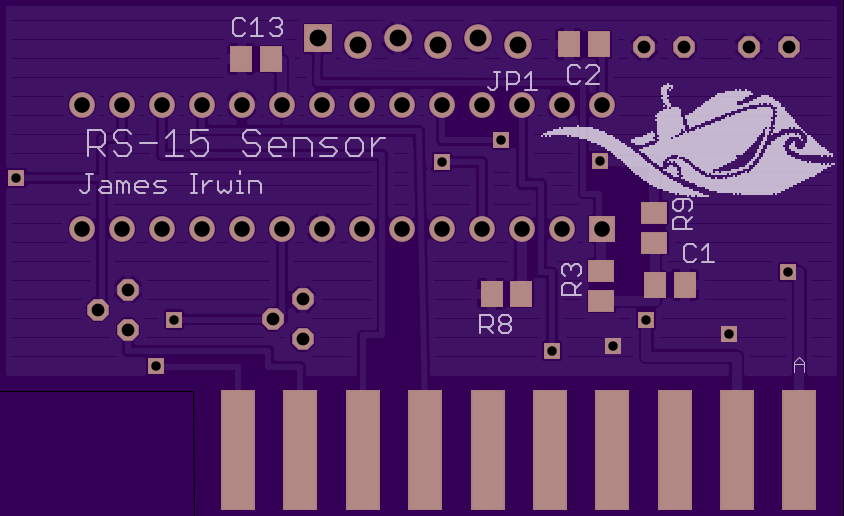

RS-15 Sensor Board
by
Ryan-Summers.
2
layer board of
2.11x1.29
inches
(53.62x32.79
mm).
Shared on
February 16th, 2015 21:53.
This board interprets signals sent to it from external sensors and converts all data to uart and creates packages. These packages are then sent up to the UART board for conversion to USB to be sent directly to the computer.

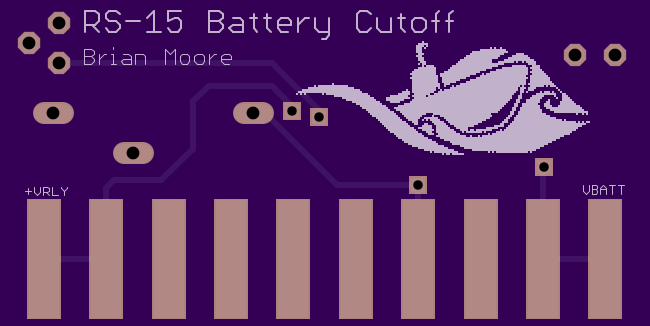

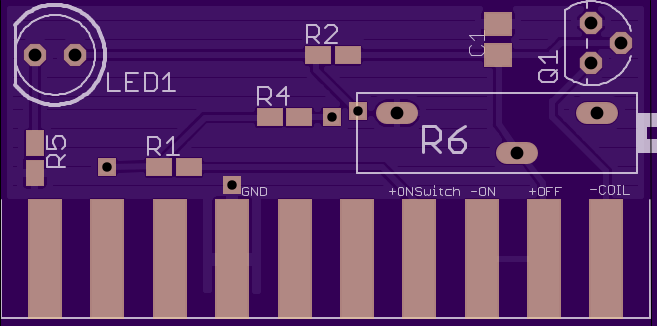

RS-15 Power Cutoff Board
by
Ryan-Summers.
2
layer board of
1.63x0.82
inches
(41.30x20.73
mm).
Shared on
February 16th, 2015 21:53.
This board will cutoff external battery power when the voltage drops to a certain point to maintain battery health
