Single-to-Dual Voltage Converter V2
by
dewhisna.
2
layer board of
0.76x0.76
inches
(19.20x19.20
mm).
Shared on
June 11th, 2017 23:54.
Charge-pump circuit to create a negative tracking split supply voltage that mirrors the single supply input voltage. This voltage inverter version uses the LM2662 and VIN must be between 1.5v and 5.5v.
SDIP018-P-0550 Adapter
by
dewhisna.
2
layer board of
0.86x0.93
inches
(21.74x23.65
mm).
Shared on
June 11th, 2017 01:06.
18-Pin Shrunk DIP 0.550", 0.070" pitch (13.97mm, 0.1778mm pitch) (SDIP018-P-0550) Adapter to convert it to 18-Pin Wide DIP 0.600", 0.100" pitch (15.24mm, 2.54mm pitch)

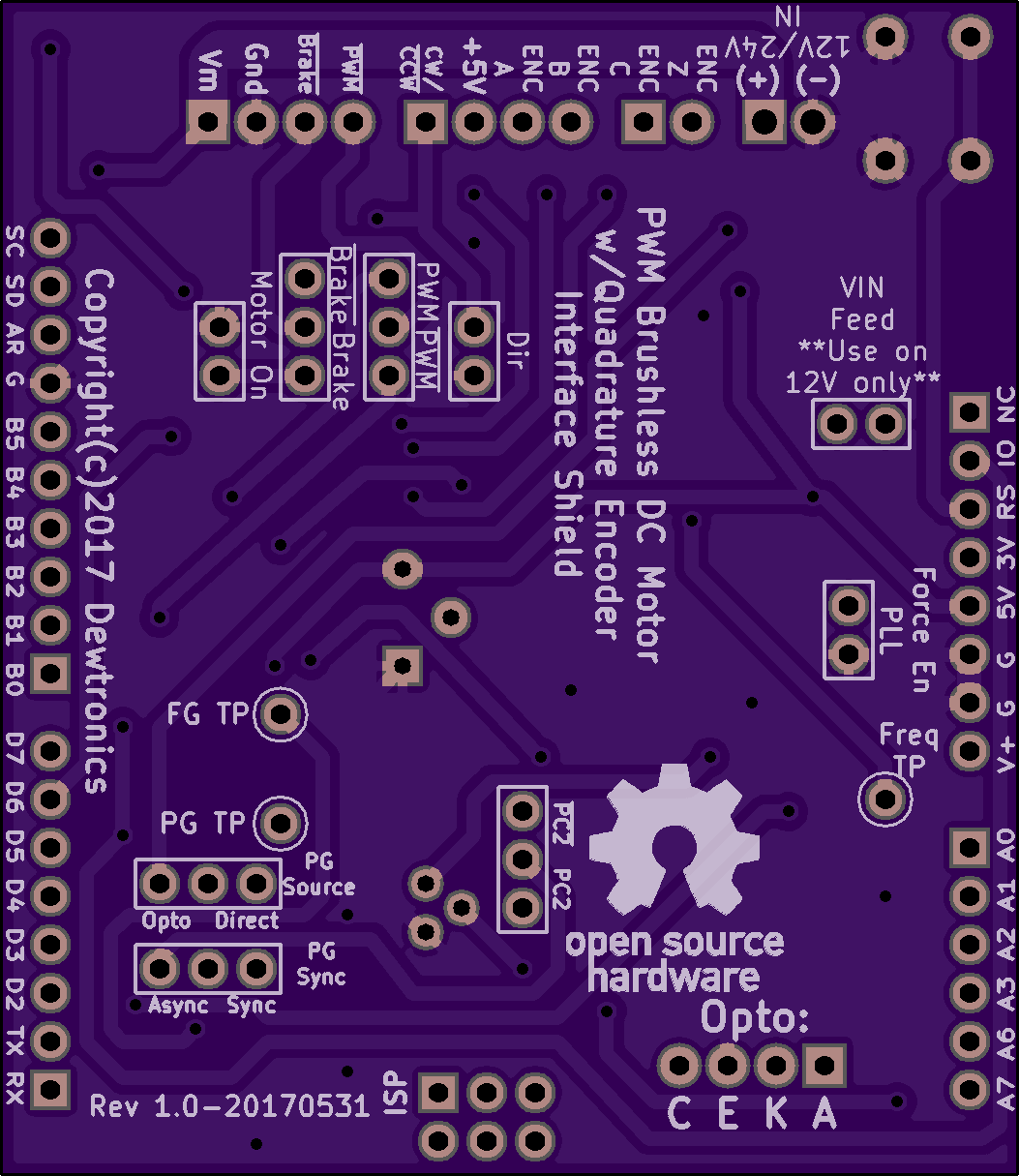

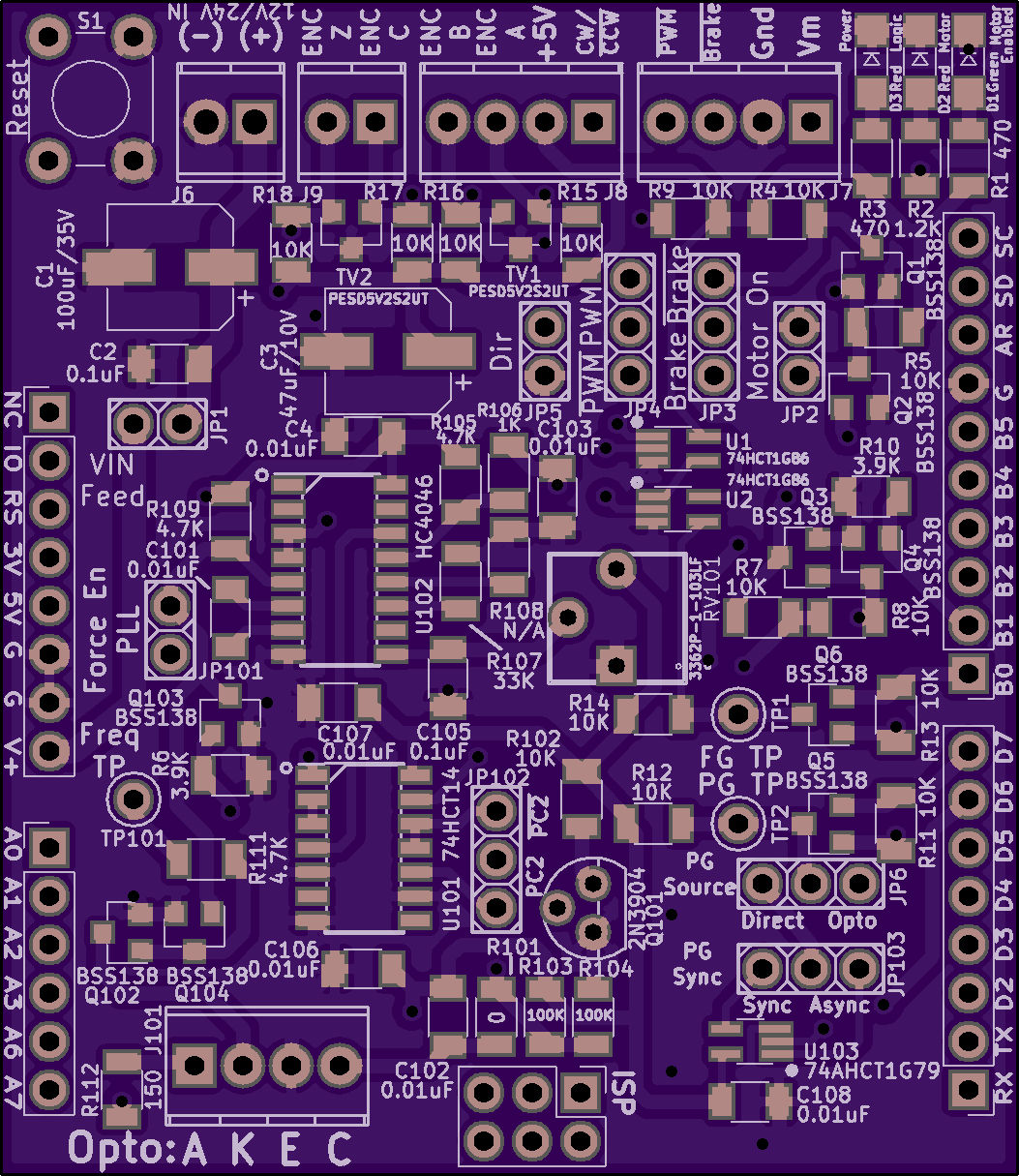

PWM BLDC Motor w/Quadrature Encoder Interface Shield
by
dewhisna.
2
layer board of
2.11x2.43
inches
(53.49x61.75
mm).
Shared on
June 3rd, 2017 18:29.
This is an Arduino Compatible Interface Shield for interfacing with Blushless DC (BLDC) Motors having their own 3-Phase controllers with a PWM Speed Set Input. It supports either a two-signal 90-deg quadrature speed sensor or a 3-Phase Hall-Effect speed sensor input. It has support for an optical reflectivity sensor for Zero-Position/Index sensing or it can use an external Z-Pos Index Sensor. Supports both 3.3V and 5V logic with on-board level shifters.

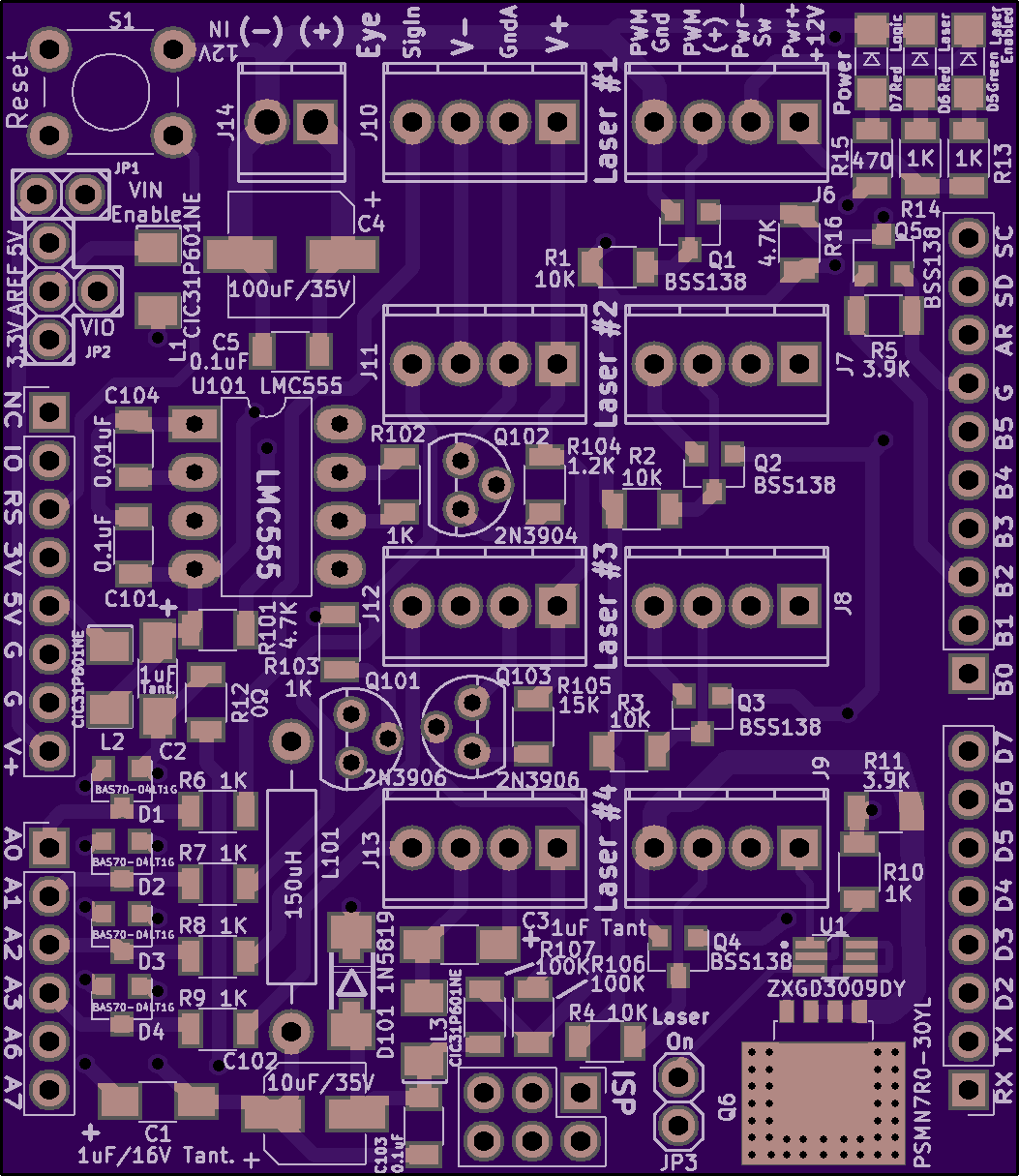

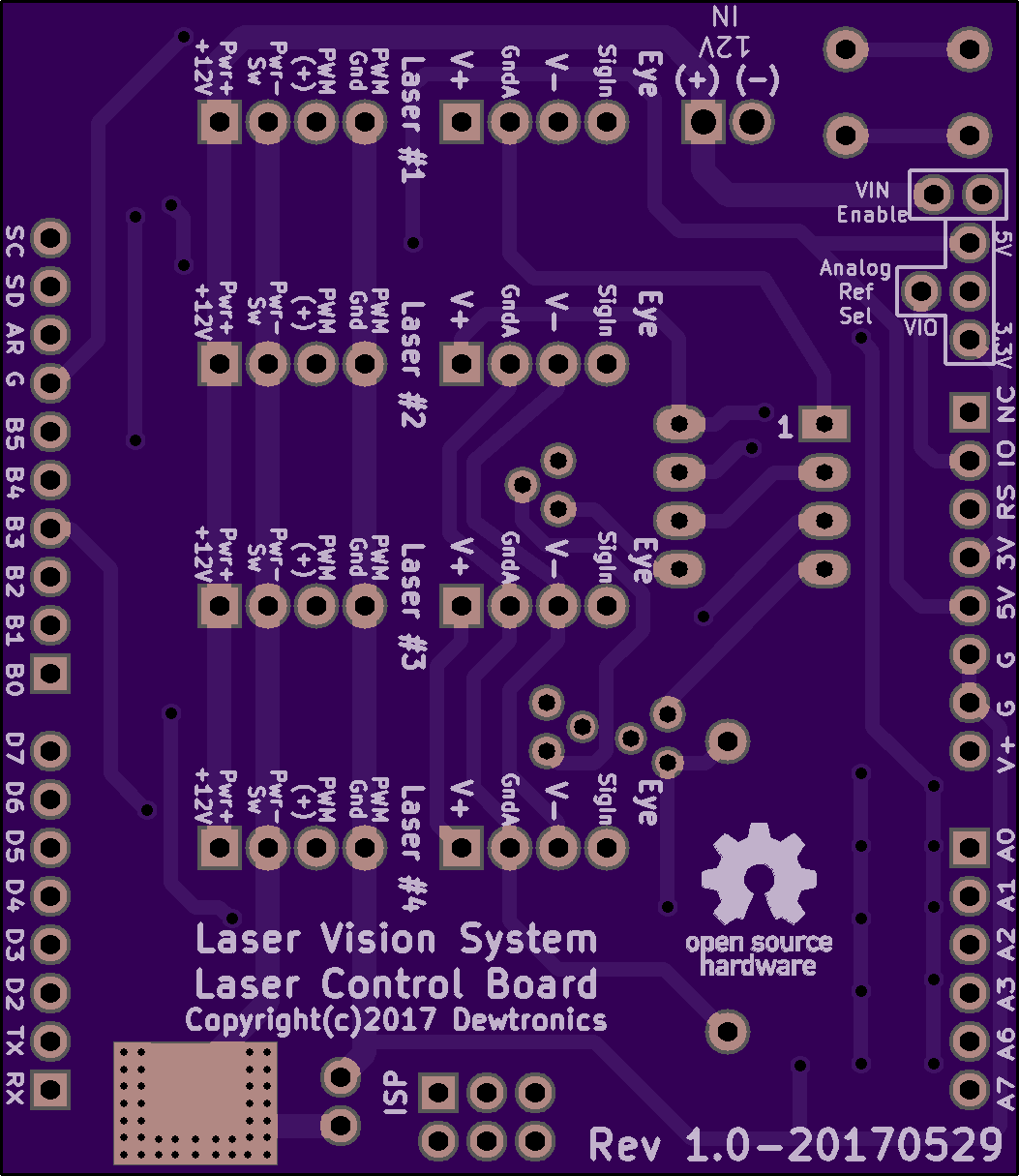

Laser Vision System - Laser Control Board
by
dewhisna.
2
layer board of
2.11x2.43
inches
(53.49x61.75
mm).
Shared on
May 30th, 2017 13:56.
Laser Control Board Arduino Shield for the Laser Vision System. This board interfaces the laser PWM power modulation and on/off logic, as well as the LaserEye Reflection Sensors.

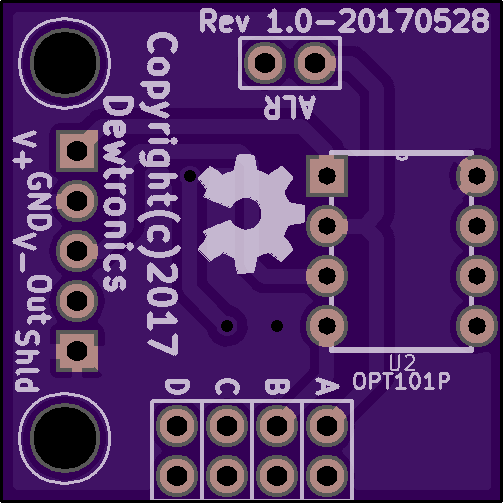

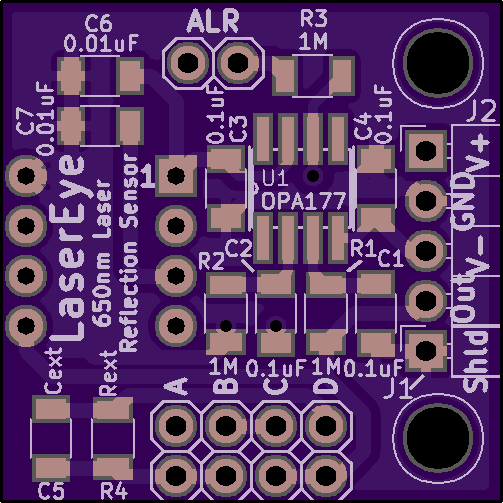

LaserEye : 650nm Laser Reflection Sensor
by
dewhisna.
2
layer board of
1.01x1.01
inches
(25.55x25.55
mm).
Shared on
May 28th, 2017 17:49.
OPT101 Based Laser Reflection Sensor with selectable gain jumpers and Ambient Light Rejection (ALR) circuit. Part of the “Laser Vision System”.
