FlashForge Creator Pro 2016 HBP Heater Board
by
dewhisna.
2
layer board of
9.06x6.65
inches
(230.02x169.01
mm).
Shared on
December 13th, 2016 12:39.
NOTE: This version has a 2mm error in the location of the upper corner mounting holes. This version has been replaced by a new version. Please see: https://oshpark.com/shared_projects/vK5A9wNY

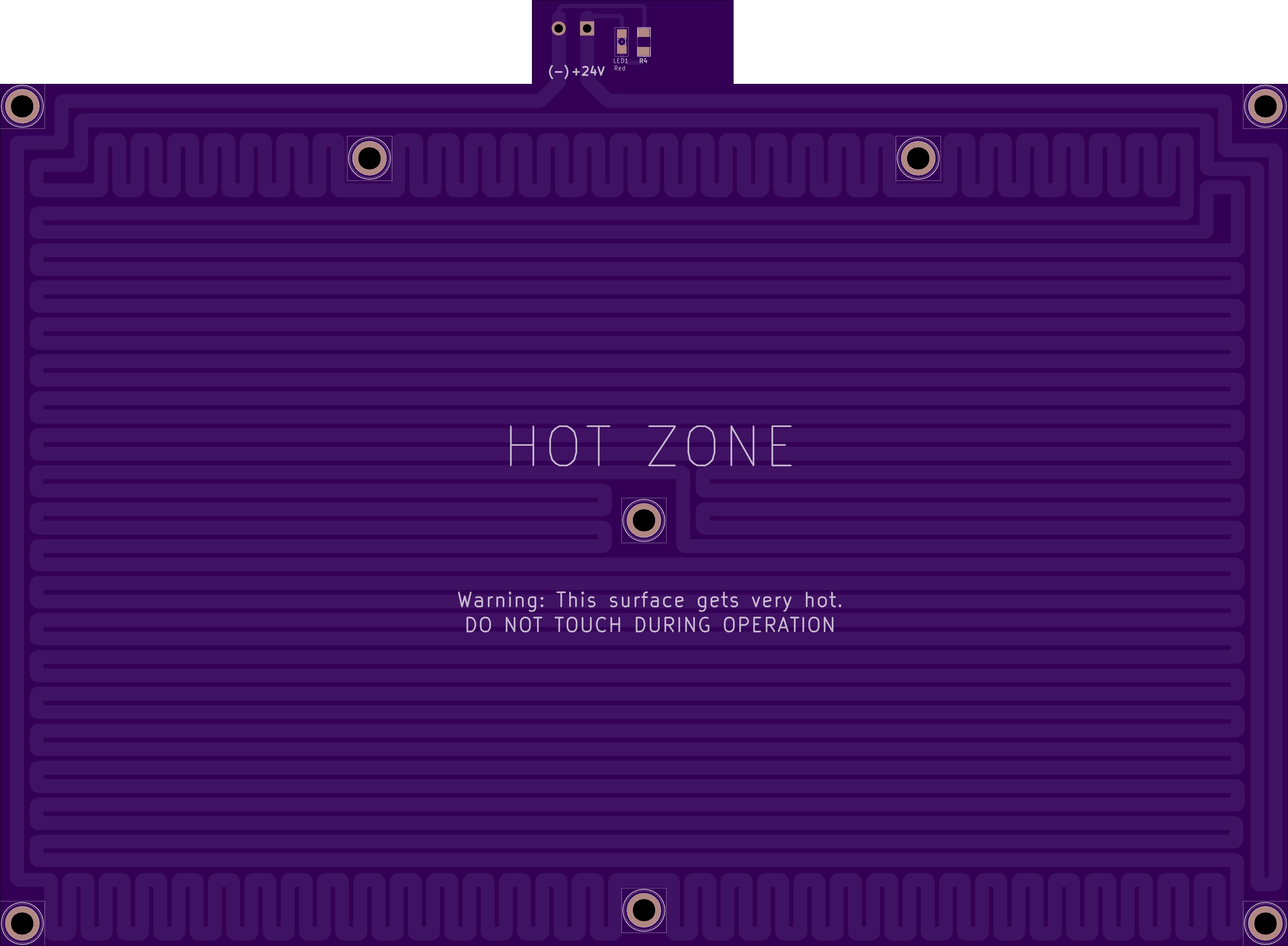

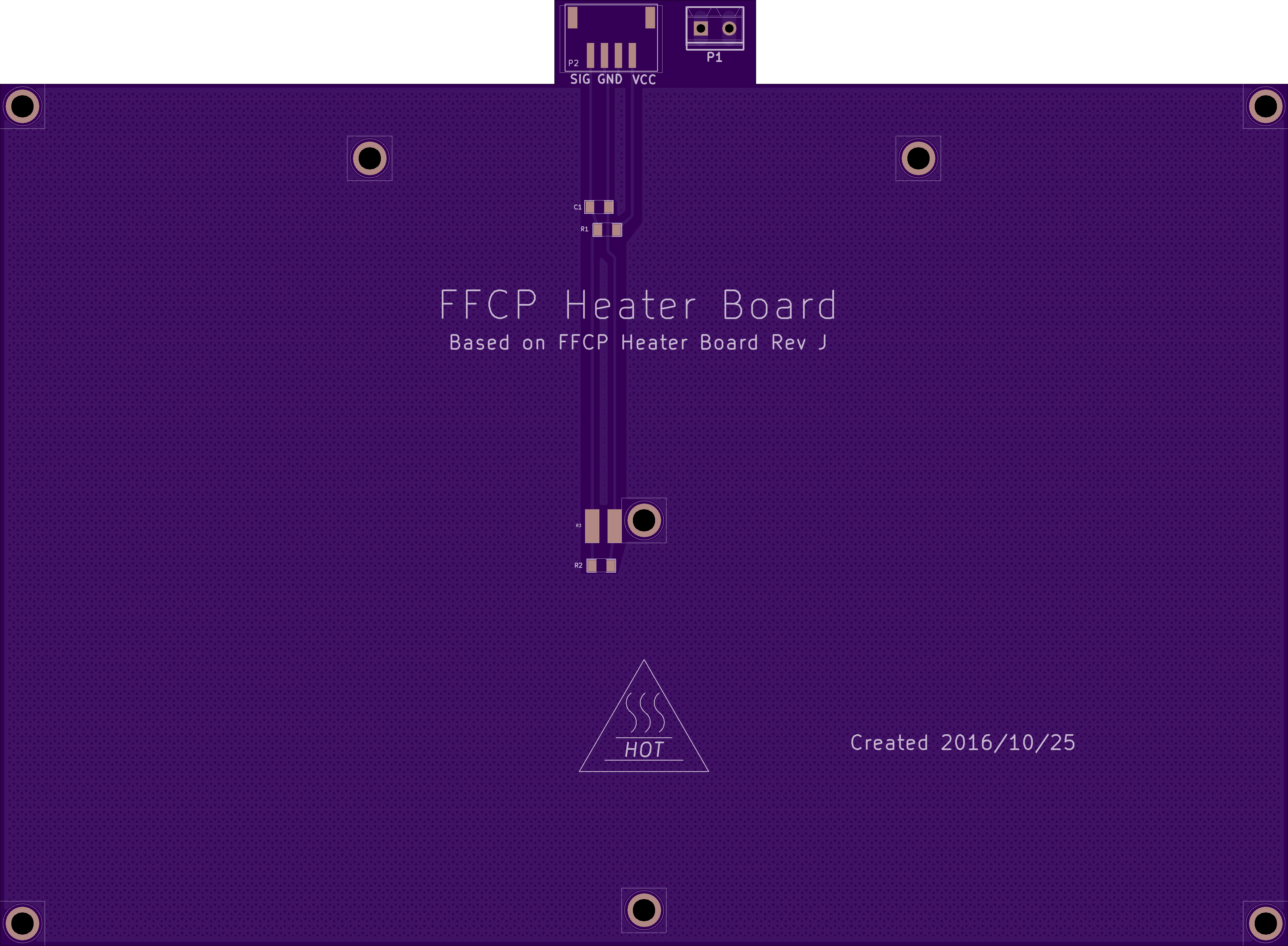

Heater board for the FlashForge Creator Pro 2016 printer. Based on the FFCP HBP PCB Rev J. Created to replace boards that die from bad connectors that melt and delaminate traces (since mine died after about 50 print hours).
Parts List:
P1: AMP TE 1744037-2 (DigiKey A112698-ND)
P2: S4B-XH-SM4-TB(LF)(SN) (DigiKey 455-2262-1-ND)
LED1: Red SMD 1206, such as LTST-C150KRKT (DigiKey 160-1405-1-ND) or similar
R1: 4.7K SMD 1206 (such as DigiKey RMCF1206FT4K70CT-ND)
R2: NTC 100K Thermistor SMD 1206, NTHS1206N01N1003JE (DigiKey: 541-1144-1-ND)
R3: Do not populate
R4: 1K SMD 1206 (such as DigiKey 311-1.00KFRCT-ND) (May need 1.2K or larger depending on voltage drop and current limits of the LED chosen)
C1: 0.1uF SMD 1206 ceramic (such as DigiKey 478-3618-1-ND)
Note: Use 1oz copper or thinner. If used with copper that’s too thick, you will overload your printer’s power supply or motherboard. Also, be sure to place a layer of Kapton tape between the PCB and the aluminum plate of your printer. The tape will both help the heat to evenly distribute as well as insulate the interface between the PCB and the aluminum plate and prevent electrical shorts should your PCB’s solder masks develop small scratches or nicks.
Disclaimer: While it’s believed that this design is complete, accurate, and functional. It has not been fully tested for all criteria or safety requirements. And since I can’t control the manufacturing or assembly of this board, I assume no responsibility for any damages or injuries, either direct or incidental, resulting from using this design or boards created from it, including, but not limited to, damage to the printer from circuit problems or to the surroundings from the result of fire or for burns or electrocution of users. This PCB is being provided here as-is as a reference for the hobbyist and do-it-yourselfer only.
However, if you do build one of these heater boards, I would be interested in hearing the details of how well it performs. Things like: the heating time it requires, amount of power it consumes, evenness of heat distribution, etc.
Several V1 Board Assemblies are available on eBay
As an alternative to replacing your PCB heater, you can also use a Keenovo Silicone Heater. Design Part Number 10452 is the Keenovo part for a 24V 130W unit that fits the FlashForge Creator Pro 2016. For it, you will need an HBP interface board to adapt it to the FlashForge’s MightyBoard Motherboard (i.e. the circuit which is already included on this PCB heater).
Dewtronics TB6600 Stepper Driver Board V1
by
dewhisna.
2
layer board of
3.40x2.63
inches
(86.46x66.78
mm).
Shared on
December 12th, 2016 05:42.

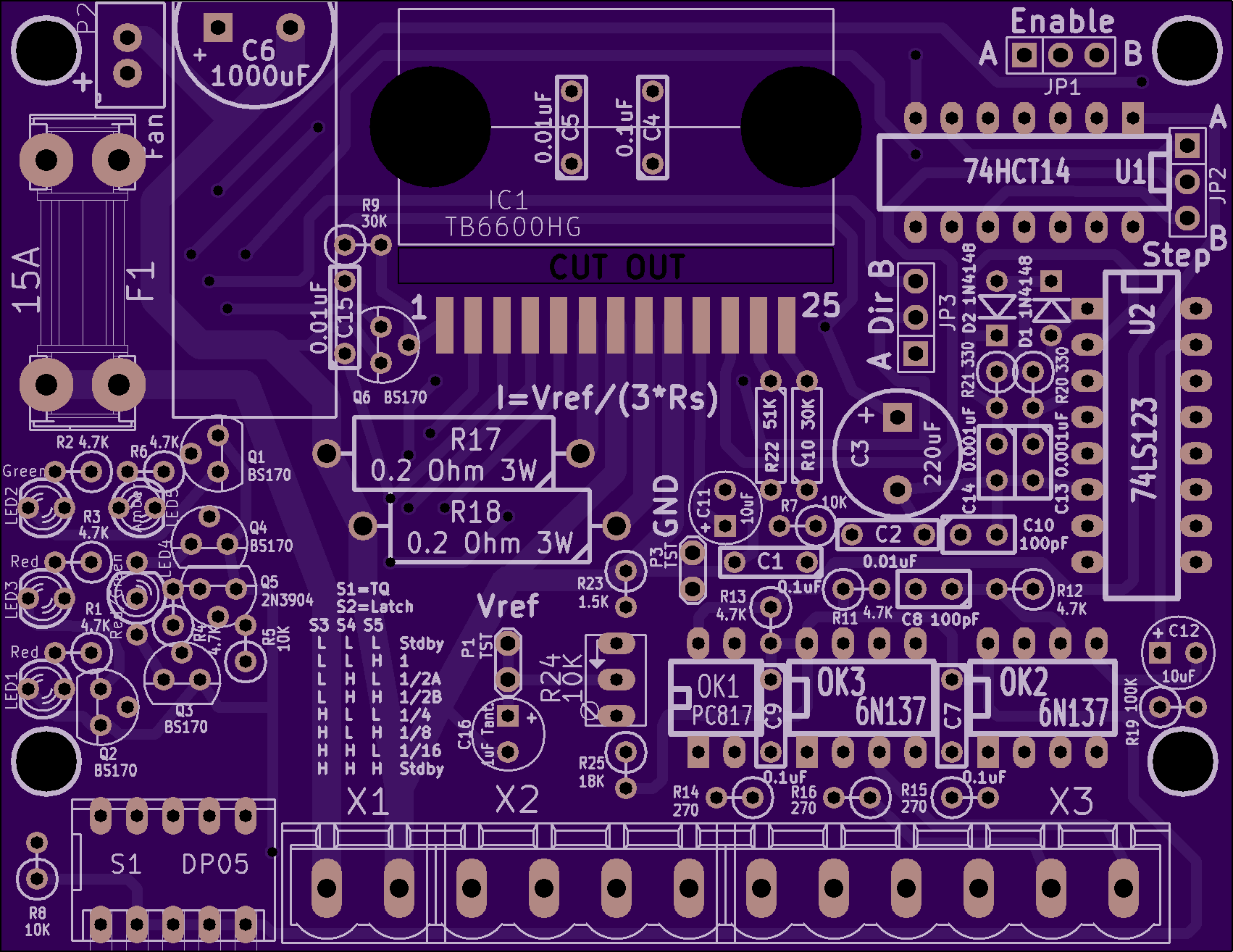

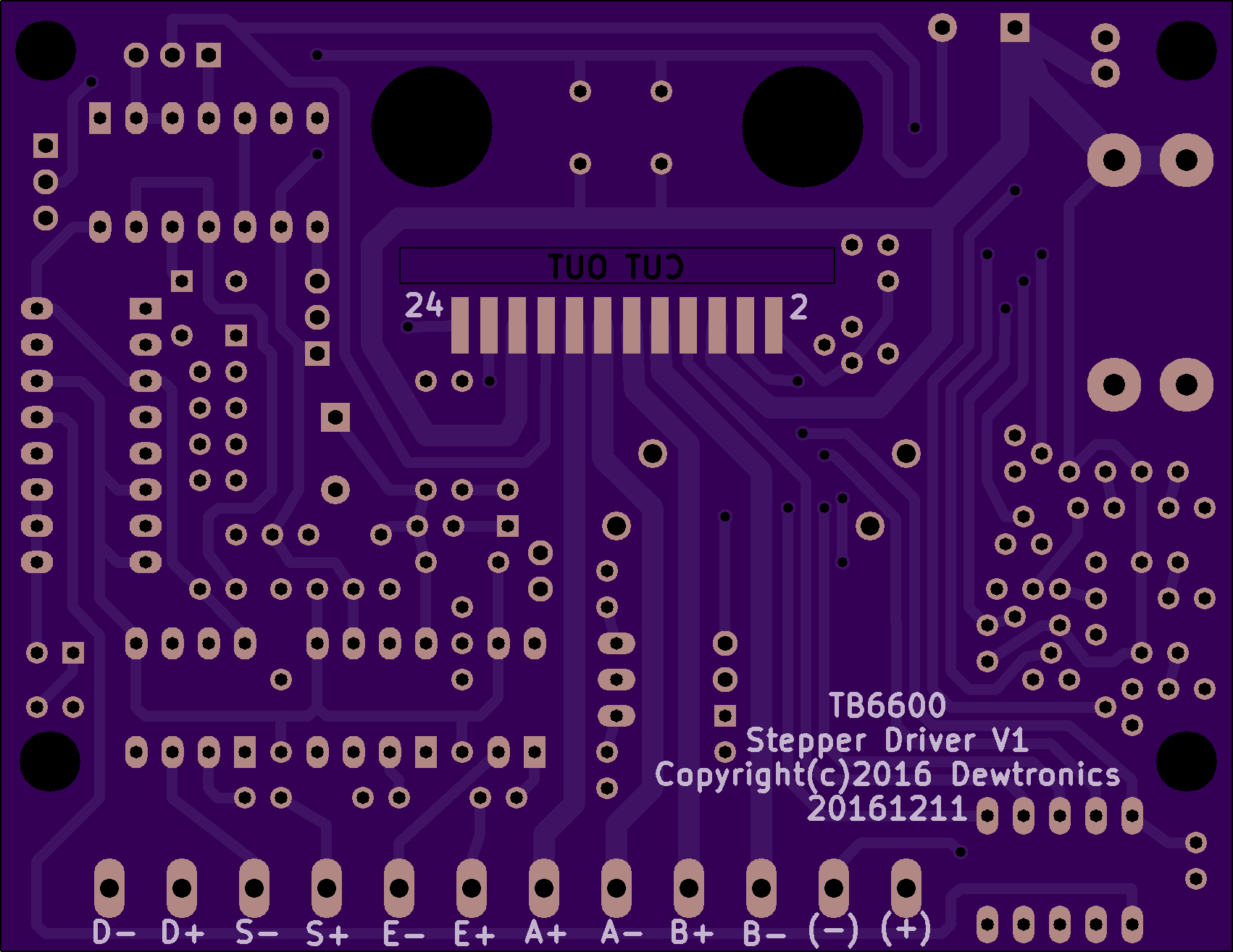

Custom TB6600 Stepper Driver designed as a much improved drop-in replacement for the HY-DIV268N Module, allowing you to use your same heatsink and system integration with a better driver module.
Design details available at: https://github.com/dewhisna/TB6600StepperDriver
A customizable 3D printable case is available at: https://www.thingiverse.com/thing:1917535.
Pololu Stepper Driver Pass-Through for External Stepper Driver
by
dewhisna.
2
layer board of
0.60x0.80
inches
(15.34x20.42
mm).
Shared on
November 21st, 2016 01:29.

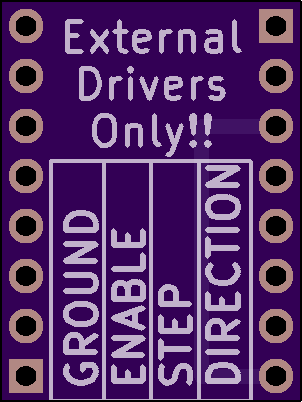

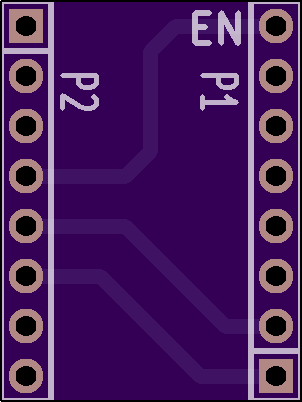

Pass-Through jumper board for mapping Pololu A4988/DRV8255 style drivers to an external stepper driver board. This allows external stepper drivers, like the HY-DIV268N-5A to be used.
Designed to be used on the Protoneer RPi-CNC board, but will also work other CNC and 3D Printer motherboards and shields that use the standard Pololu A4988/DRV8825 stepper modules.
MakerBot HBP Interface Board v1.0
by
dewhisna.
2
layer board of
1.00x1.13
inches
(25.50x28.68
mm).
Shared on
October 30th, 2016 18:41.

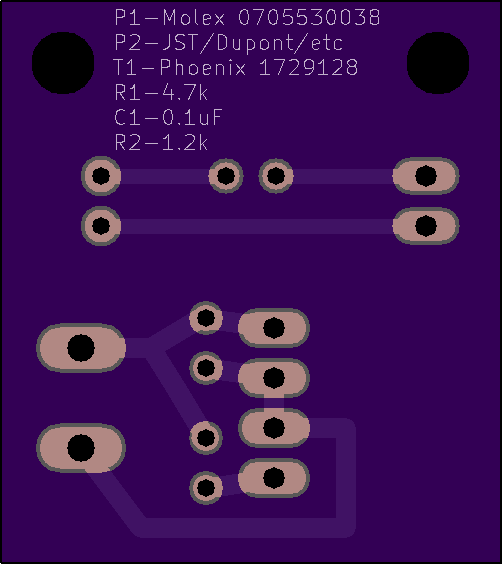

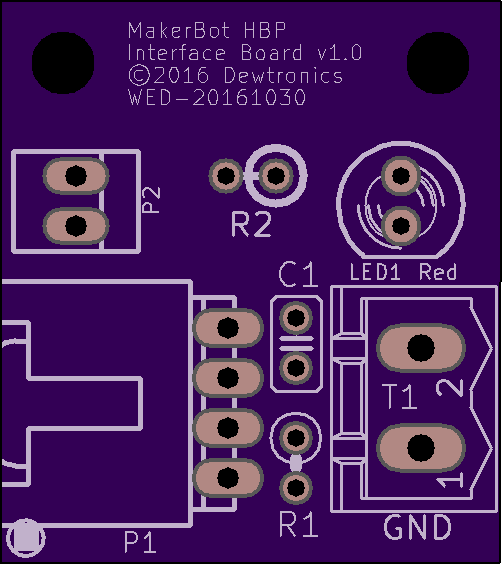

Heated Build Plate Interface Board for MakerBot/FlashForge/CTC/QIDI/etc for third party heaters. Based on MakerBot single layer thermistor board with added heater power LED.
