Shared projects

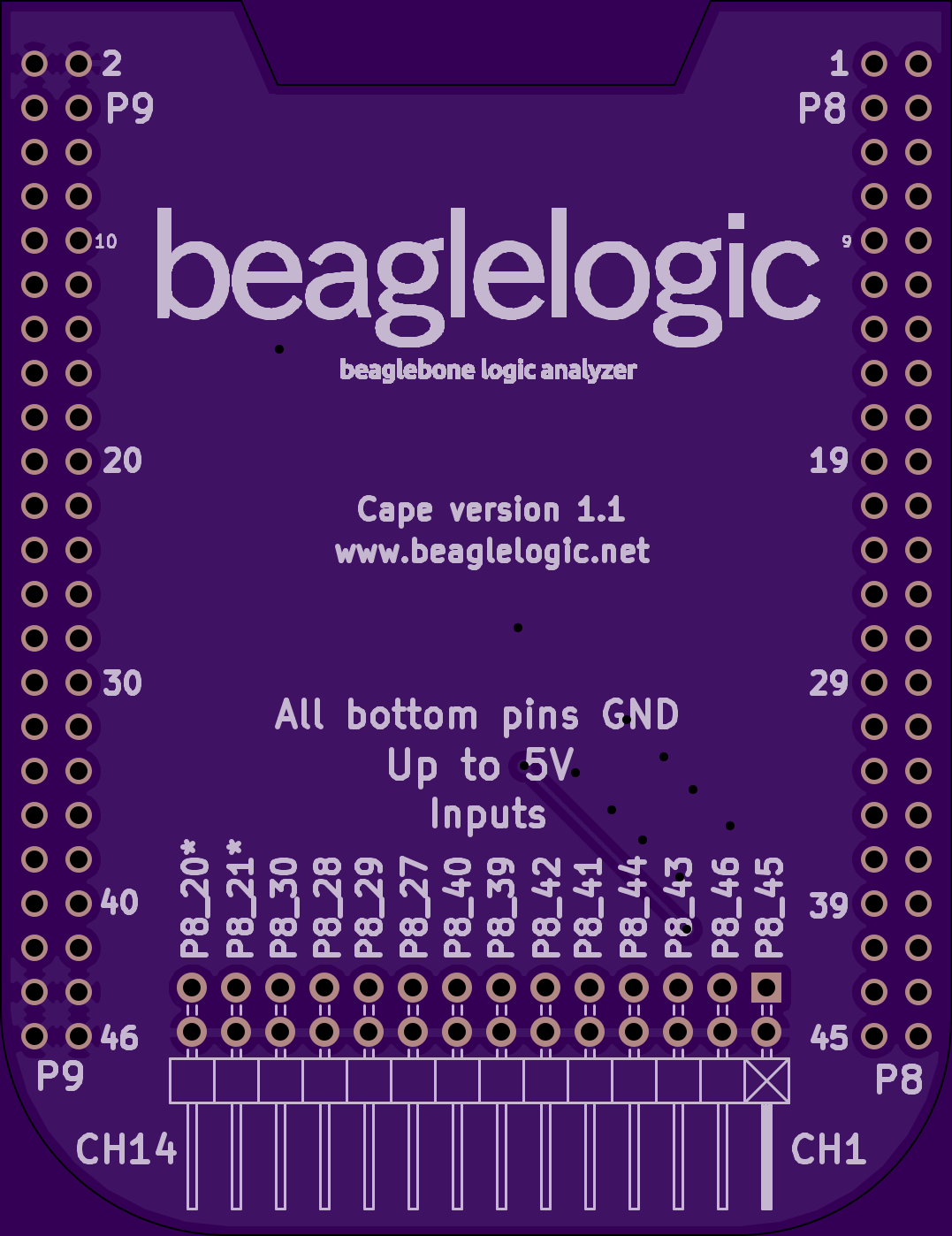

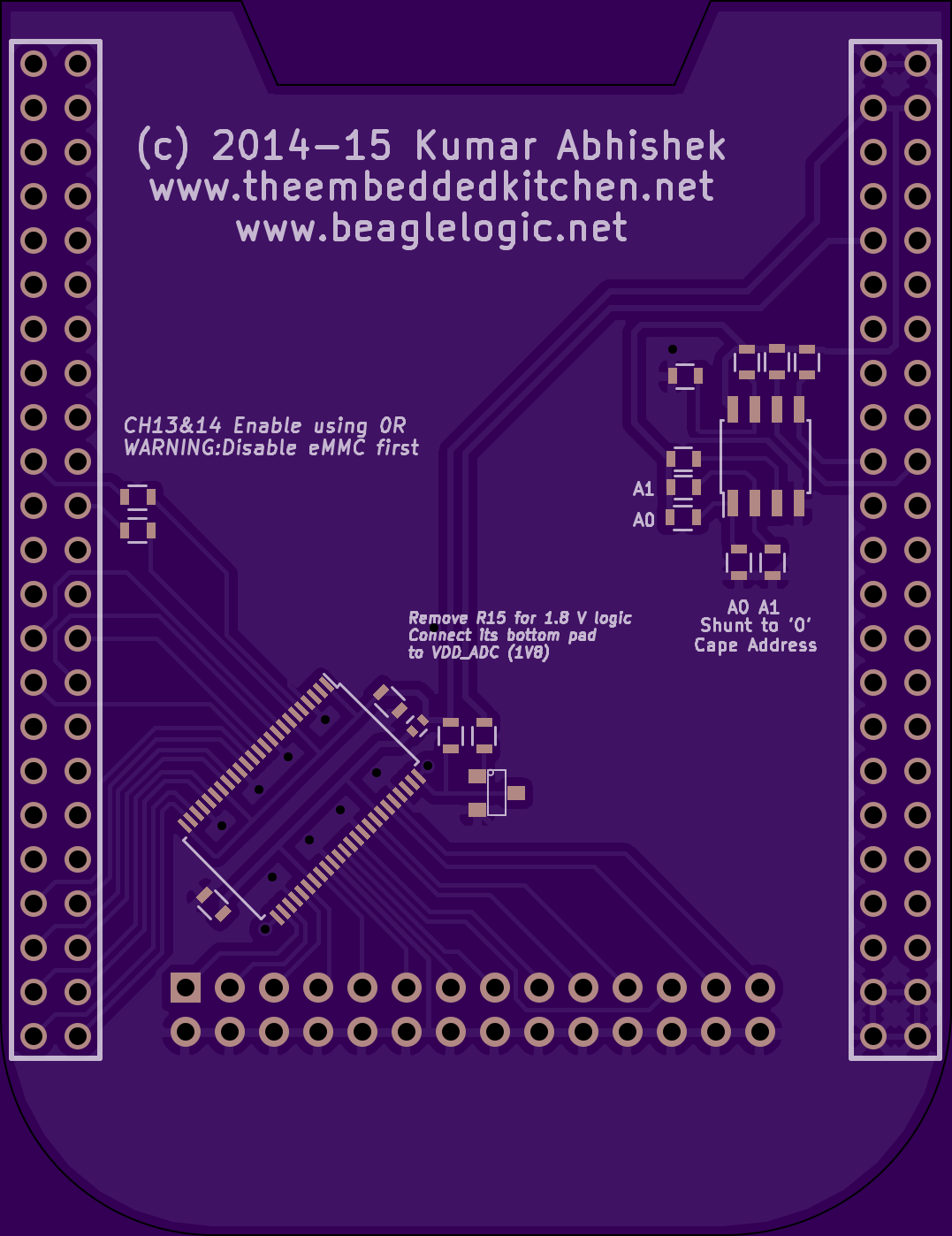

TEST: BeagleLogic v1.1

by fustini.
Top
Bottom

2 layer board of 2.15x2.80 inches (54.71x71.02 mm).
Shared on March 2nd, 2016 02:37.

[UPDATE: 2016-06-02] Uploaded KiCad PCB file from GitHub repo: https://oshpark.com/projects/afSmusg1

THIS IS NOT TESTED! Kumar: you can get the gerbers from https://goo.gl/kku0VM (drill is in a separate folder), although the folder says “rev1” but they’re for v1.1

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

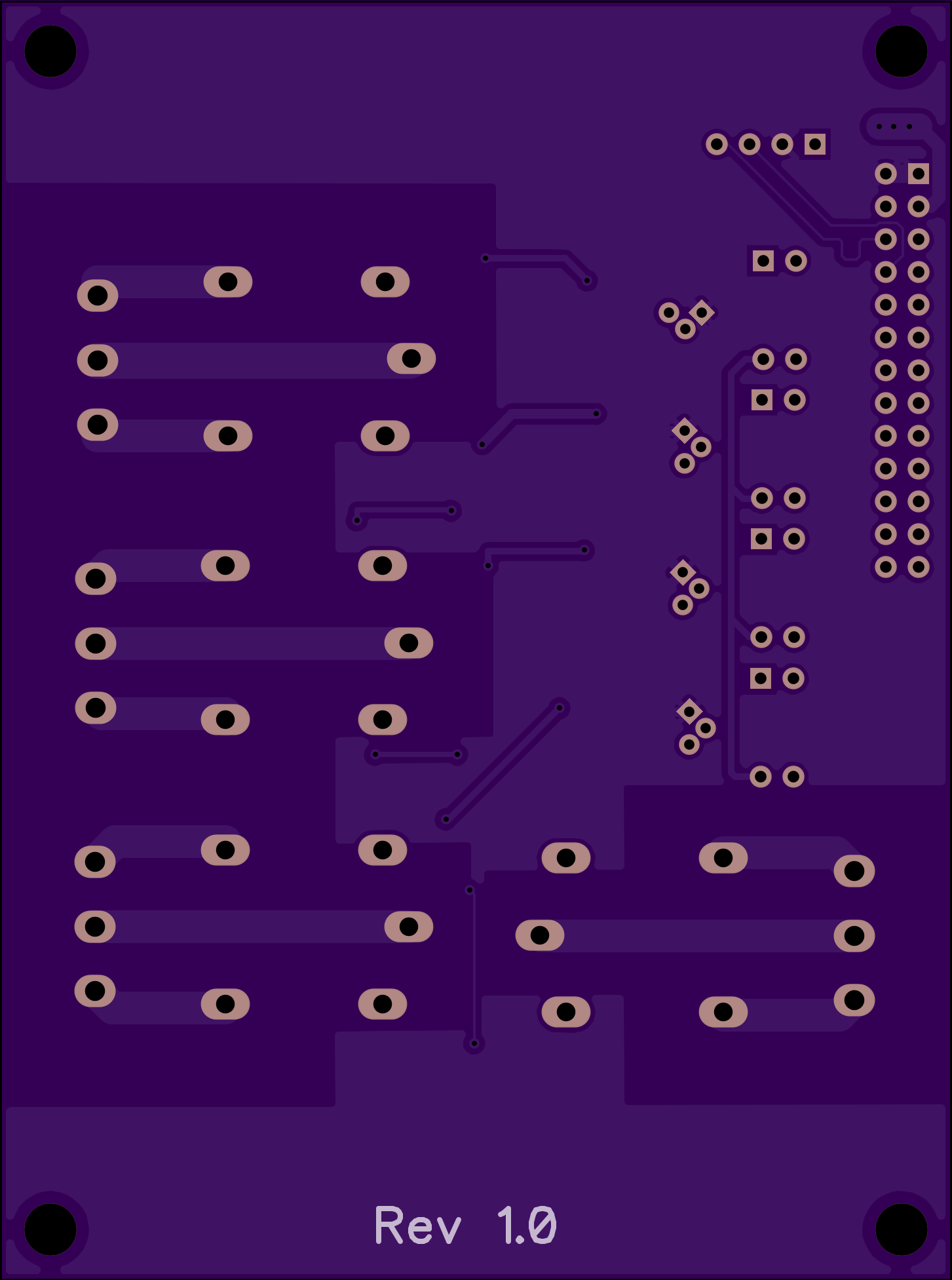

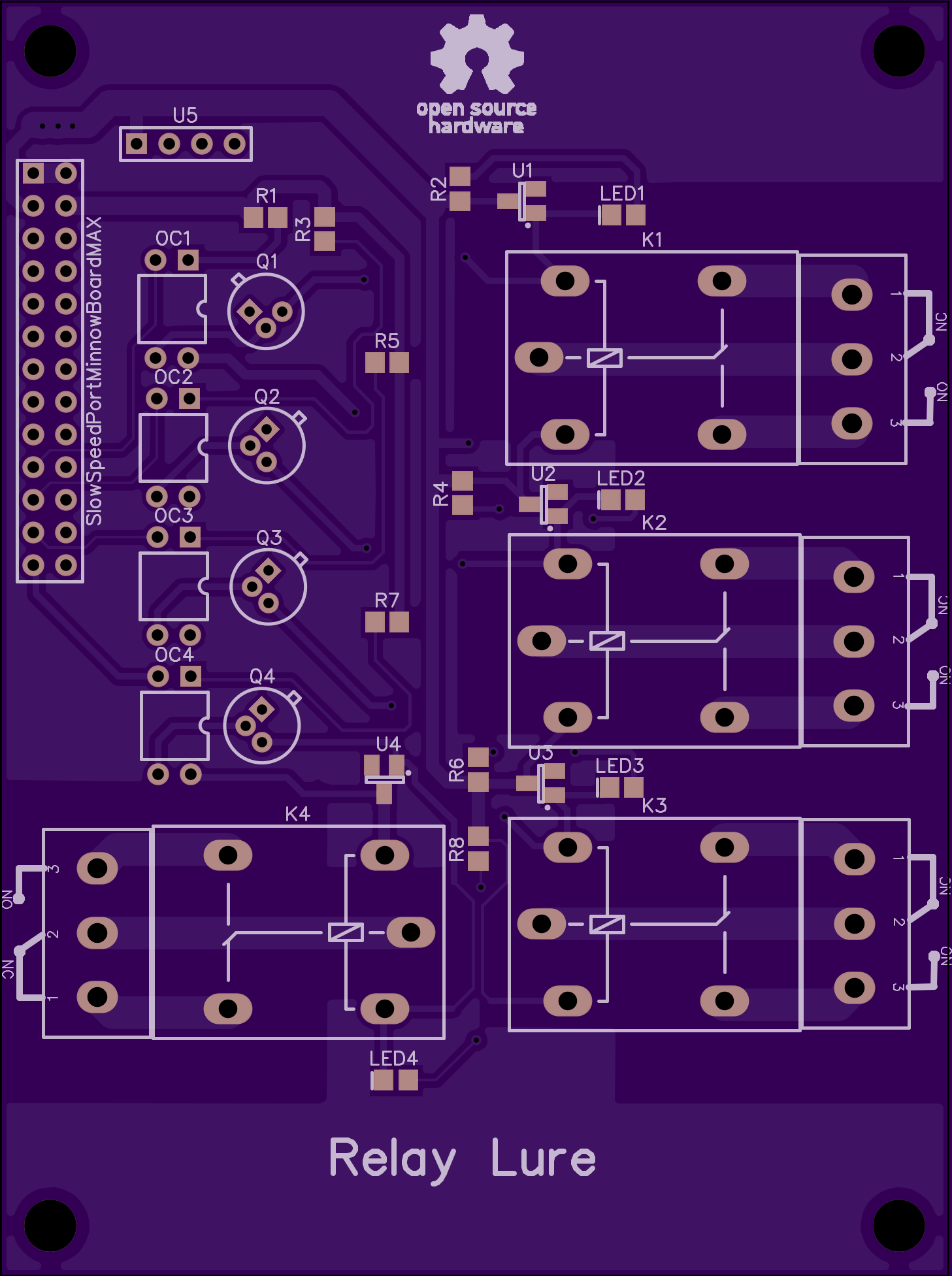

Relay Lure for MinnowBoard MAX / Turbot

by fustini.
Top
Bottom

2 layer board of 2.91x3.91 inches (73.84x99.24 mm).
Shared on February 22nd, 2016 18:20.

Relay Lure for MinnowBoard MAX / Turbot compatible boards Low Speed Expansion (LSE) header

  • Designed by: Jose Navarro
  • GitHub: MinnowBoard/lure-lse-relay
  • Wiki: Relay Lure
  • Photos
  • Features 4-channel Relay Lure that can handle ~6A, 110VAC / ~4A, 30VDC per channel(Take appropriate precautions when handling this board).
  • Screw in Block terminals with Normally Closed and Normally open connections.
  • GPIOs are protected using Optocouplers.
  • Experimental header to connect an HC-06 type Bluetooth module to a UART port, to enable the control of the MinnowBoard with another Bluetooth enabled devices.
  • Design files created with Diptrace 2.4.0.2

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

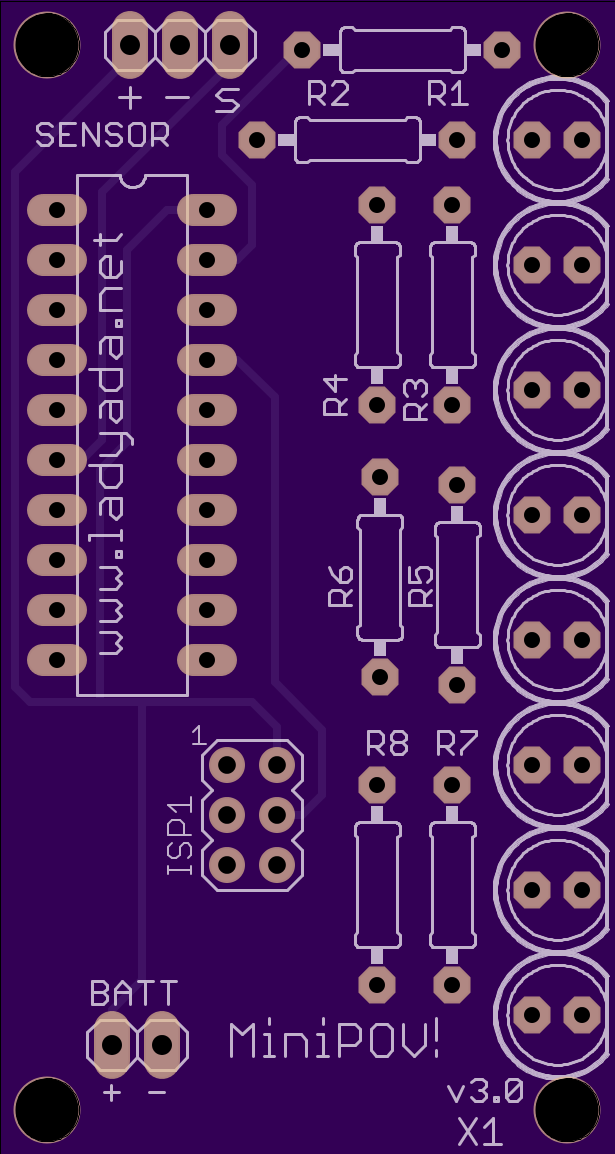

MiniPOV with ISP header

by fustini.
Top
Bottom

2 layer board of 1.23x2.31 inches (31.24x58.62 mm).
Shared on February 18th, 2016 23:24.

Adafruit MiniPOV modified with ISP programming header

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

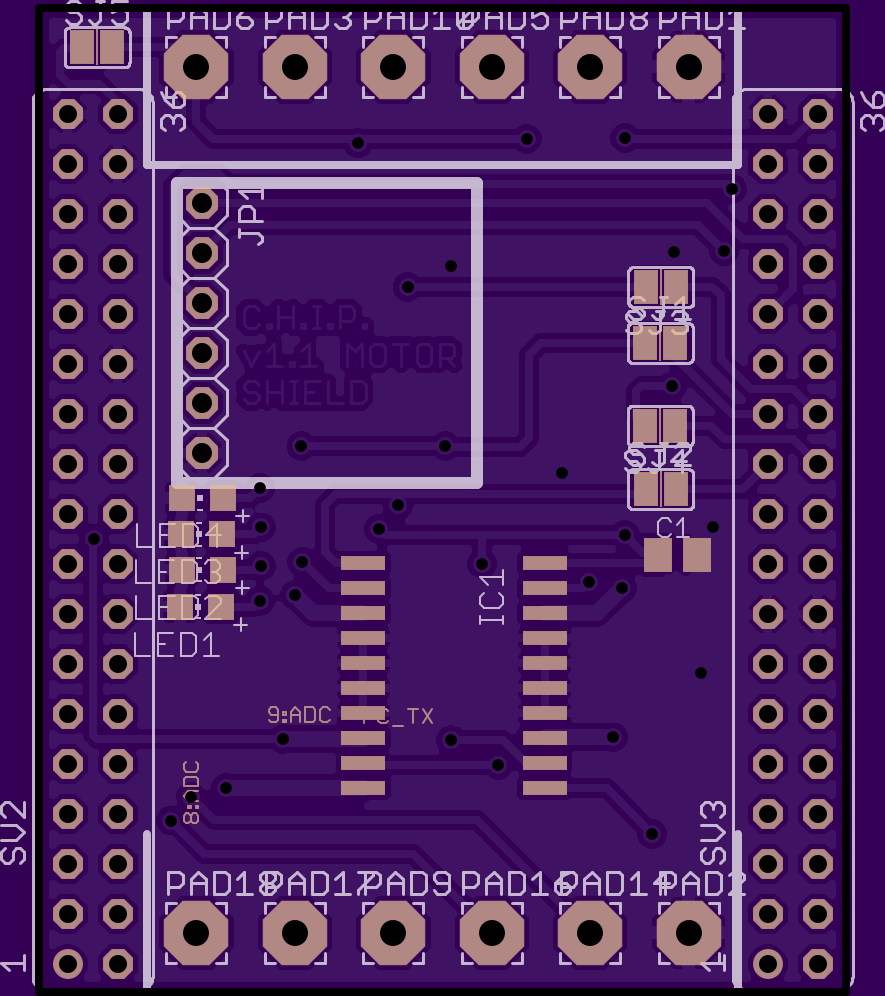

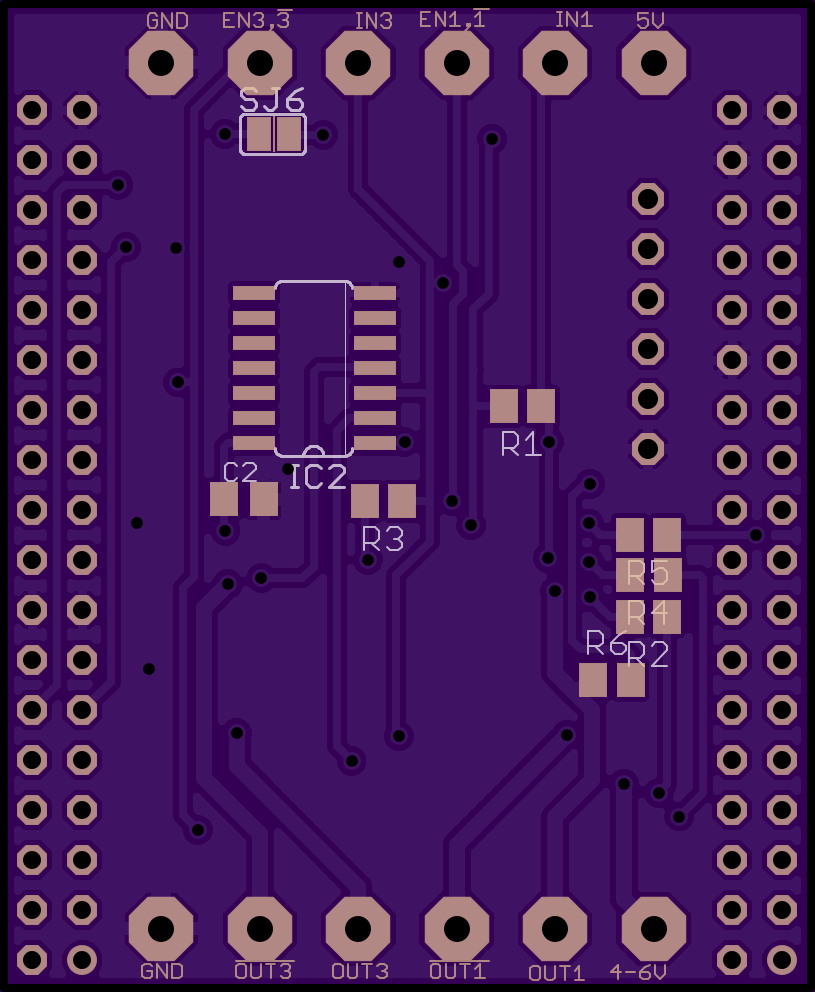

TEST: copy of CHIP_motor_shield

by fustini.
Top
Bottom

2 layer board of 1.63x1.99 inches (41.43x50.42 mm).
Shared on February 11th, 2016 19:26.

TEST: copy of CHIP_motor_shield by KoljaWindeler https://github.com/KoljaWindeler/CHIP_motor_shield

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

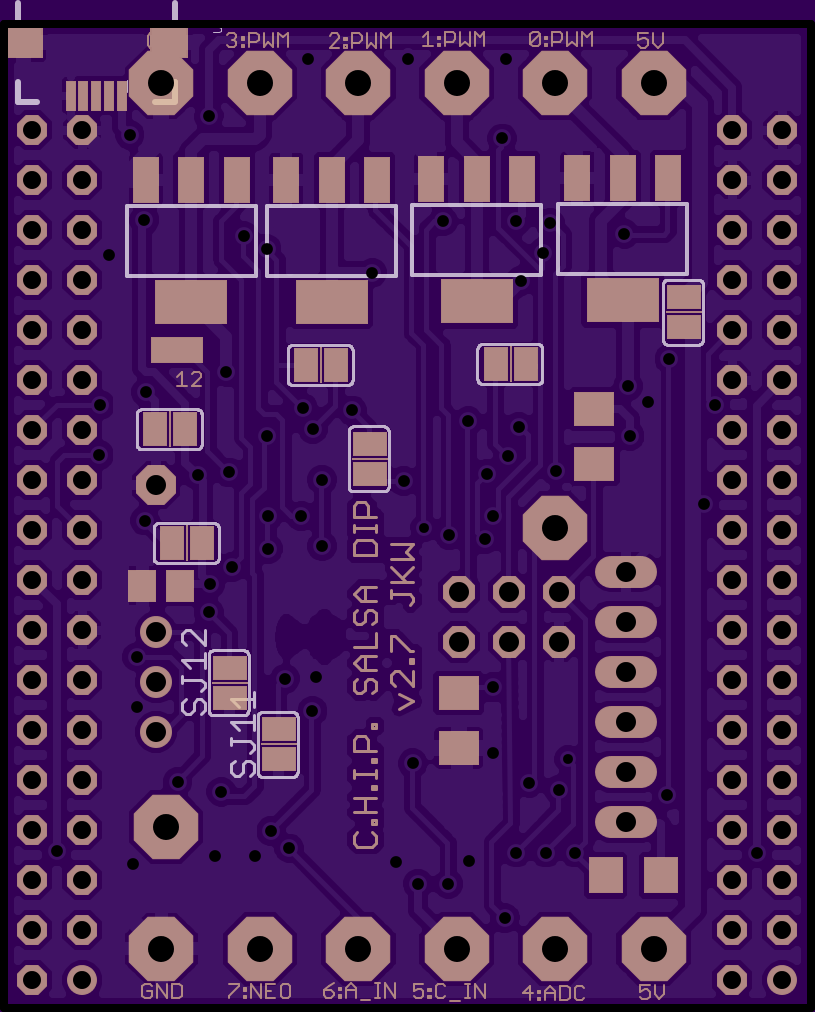

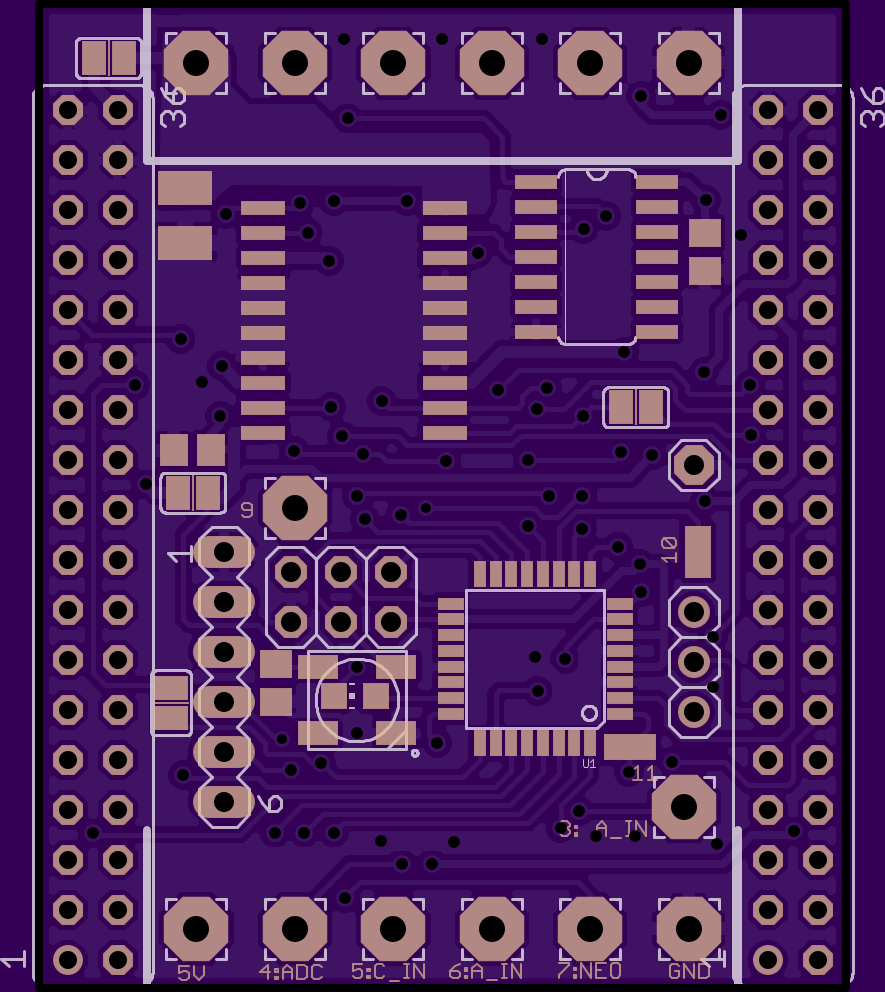

TEST: copy of CHIP_pwm_shield

by fustini.
Top
Bottom

2 layer board of 1.63x1.99 inches (41.43x50.42 mm).
Shared on February 11th, 2016 18:07.

TEST: I uploaded CHIP_pwm_shield by KoljaWindeler. simple PWM, mosfet shield to drive led strips with the C.H.I.P. GitHub: https://github.com/KoljaWindeler/CHIP_pwm_shield Forum: https://bbs.nextthing.co/t/salsa-dip-for-c-h-i-p-i2c-arduino-ws2812-pwm-motor/1597/70

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
