Shared projects

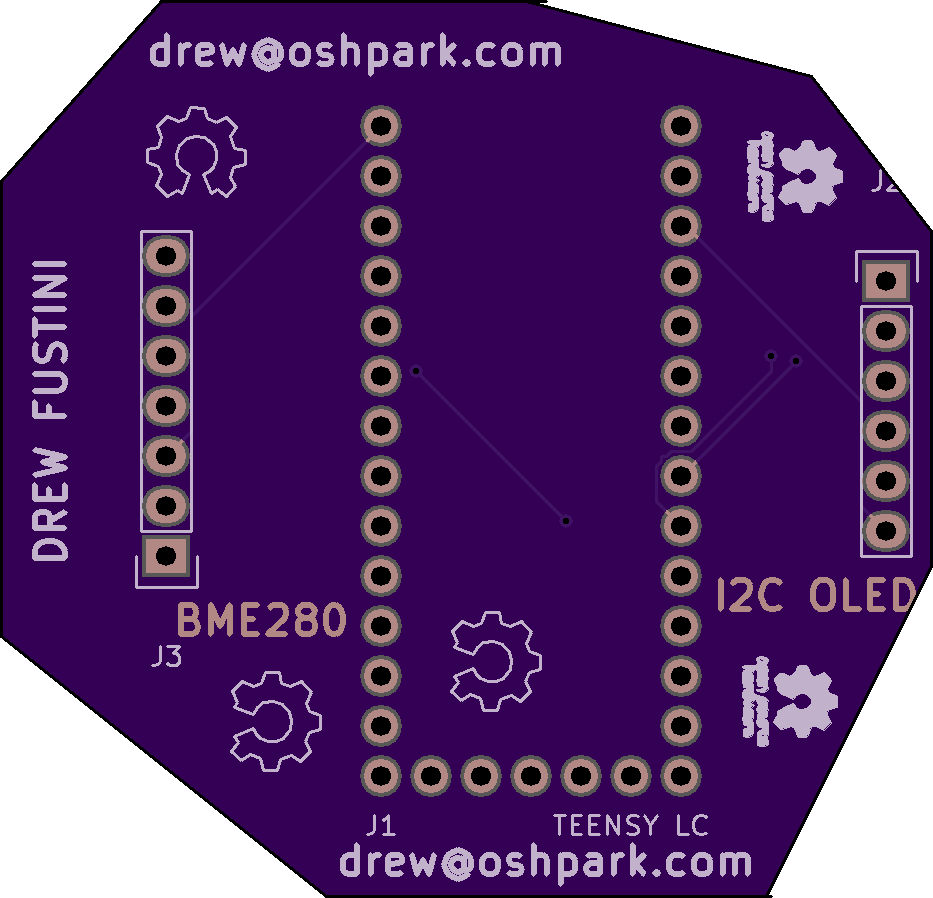

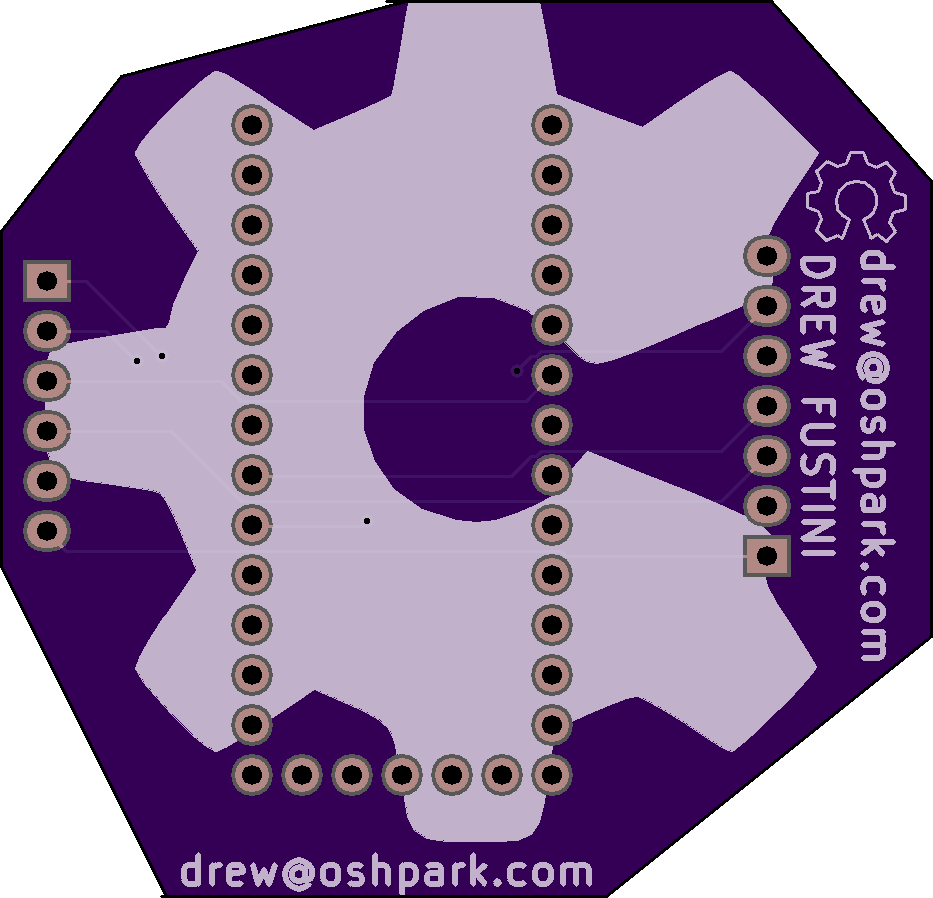

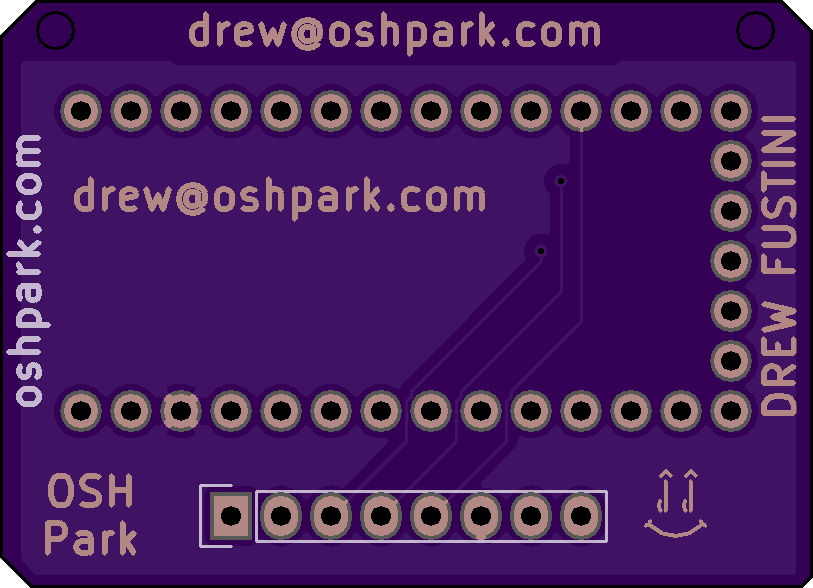

Teensy weather badge
by
fustini.
2
layer board of
1.87x1.80
inches
(47.40x45.62
mm).
Shared on
July 9th, 2016 06:16.
Description:
Weather badge with Teensy 3.2 or LC, Adafruit 128x32 OLED (i2c) and Adafruit BME280 (i2c)
GitHub:
- Repo: teensy-weather-badge
- File: teensyi2c.kicad_pcb
- Commit: 06f9e8a
Bill of Materials:
- Adafruit I2C OLED (128x32)
- Adafruit I2C BME280 (temp/hum/press)
- Teensy:
- Option 1: Teensy 3.2 - OSH Park Edition
- Option 2: Teensy LC - OSH Park Edition
Photos:

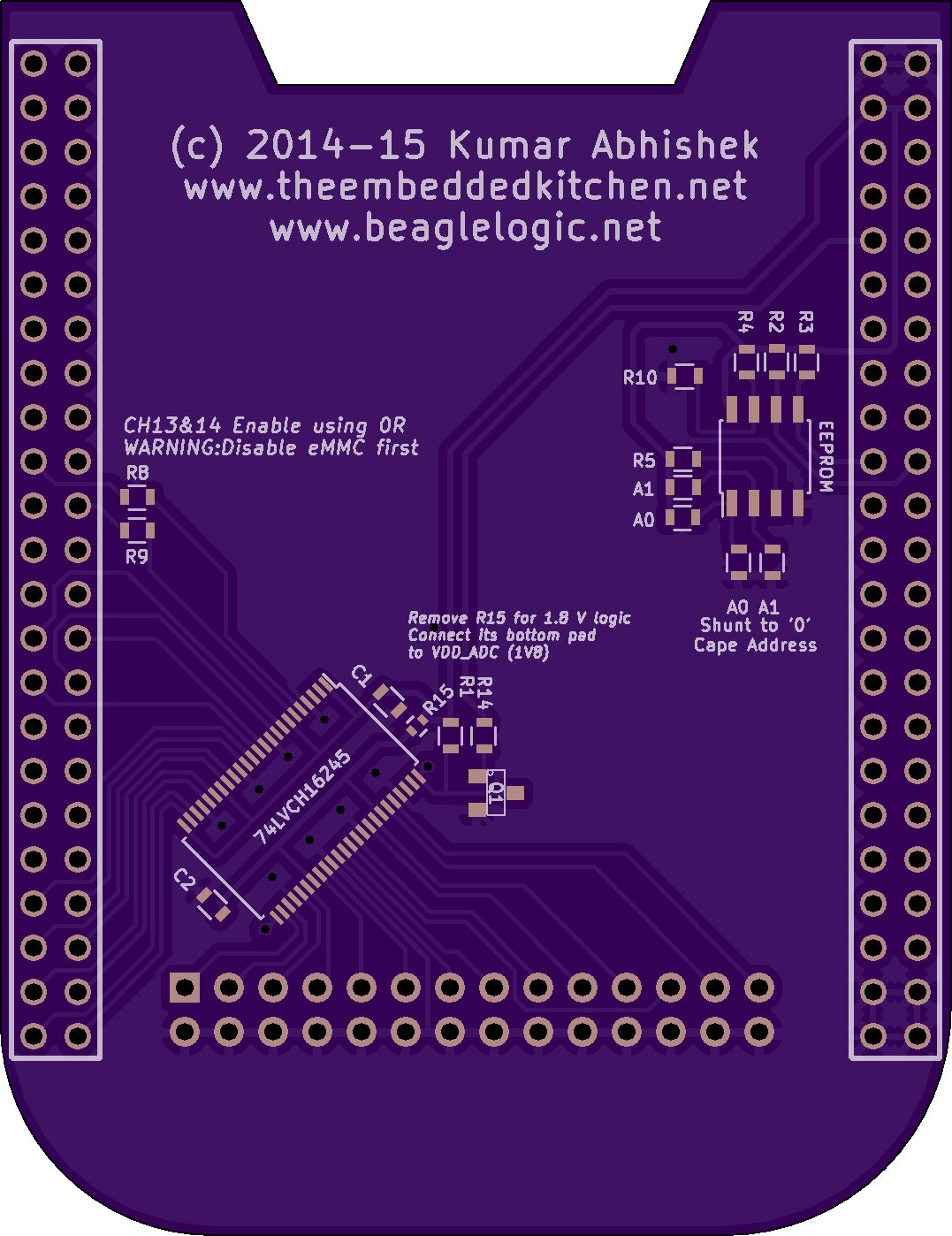

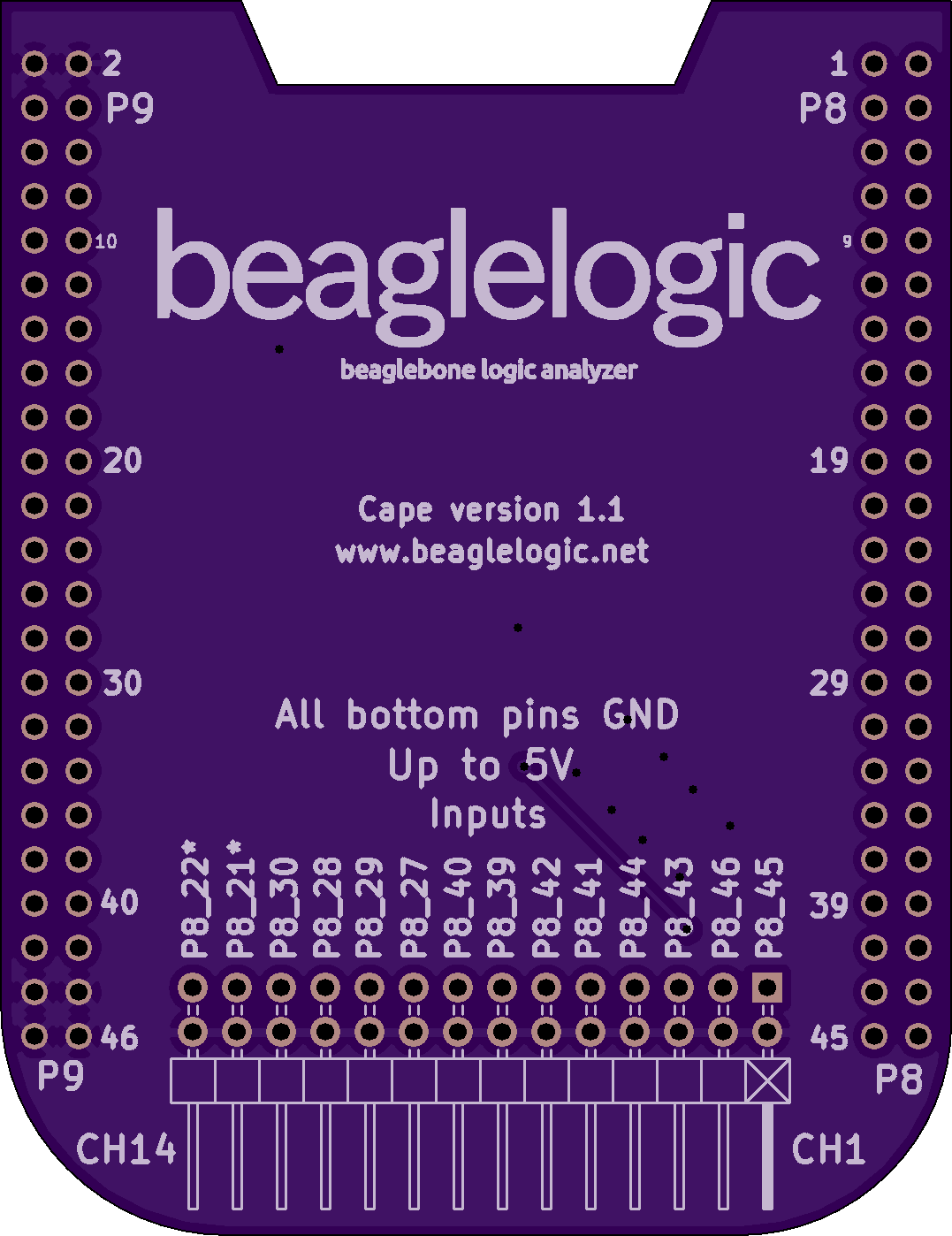

BeagleLogic Cape v1.1 (kicad_pcb upload)
by
fustini.
2
layer board of
2.15x2.80
inches
(54.71x71.02
mm).
Shared on
June 2nd, 2016 19:21.
Uploaded KiCad PCB file from GitHub repo: https://raw.githubusercontent.com/abhishek-kakkar/BeagleLogic/master/cape/BeagleLogic%20Cape.kicad_pcb
Most recent commit when uploaded: c140527 on Jan 7, 2015 @abhishek-kakkar abhishek-kakkar cape: Initial commit - v1.1

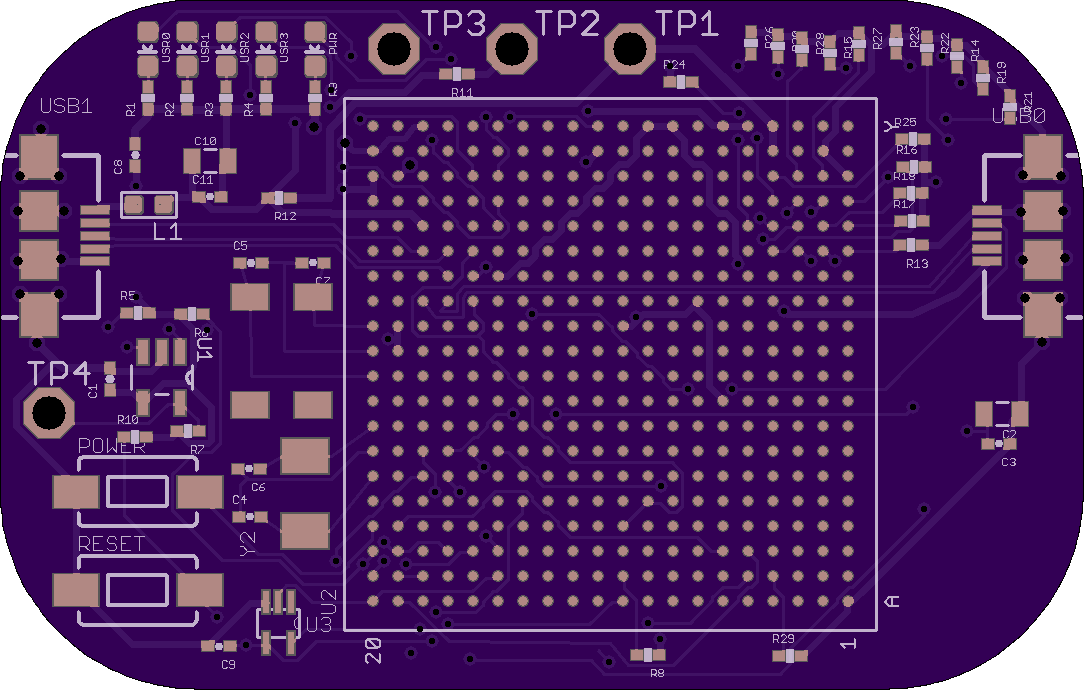

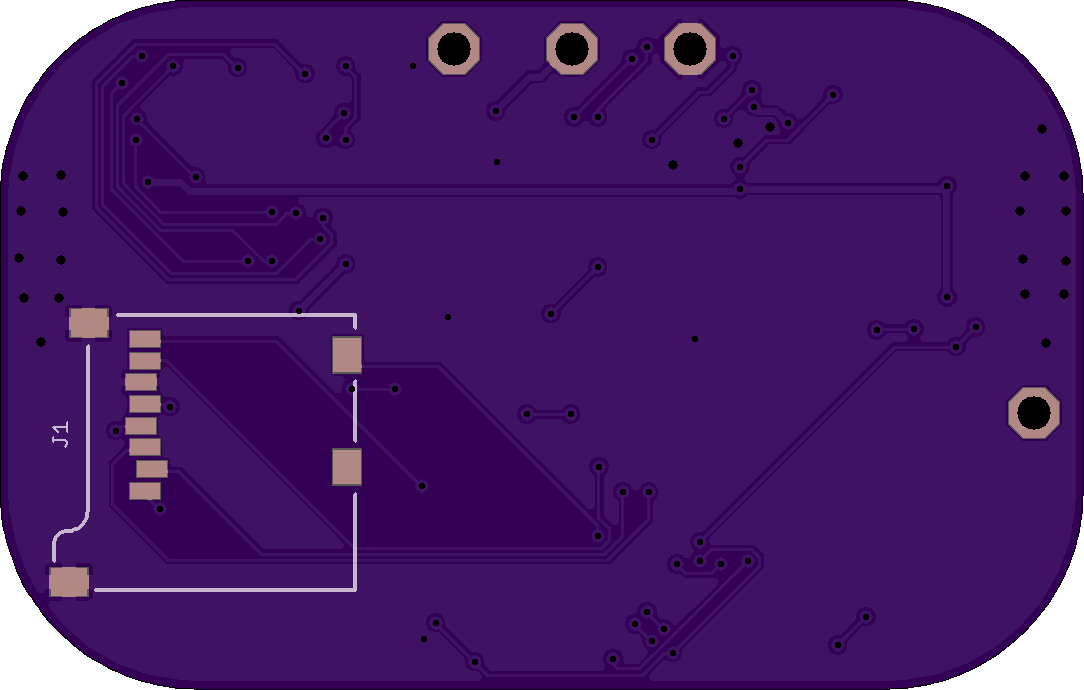

PocketBone
by
fustini.
2
layer board of
2.17x1.38
inches
(55.02x35.03
mm).
Shared on
June 1st, 2016 22:38.
- Uploaded file source: pocketbone.brd
- from Pull Request to tent vias by Tekdemo: PR #10
- GitHub Repo: PocketBone

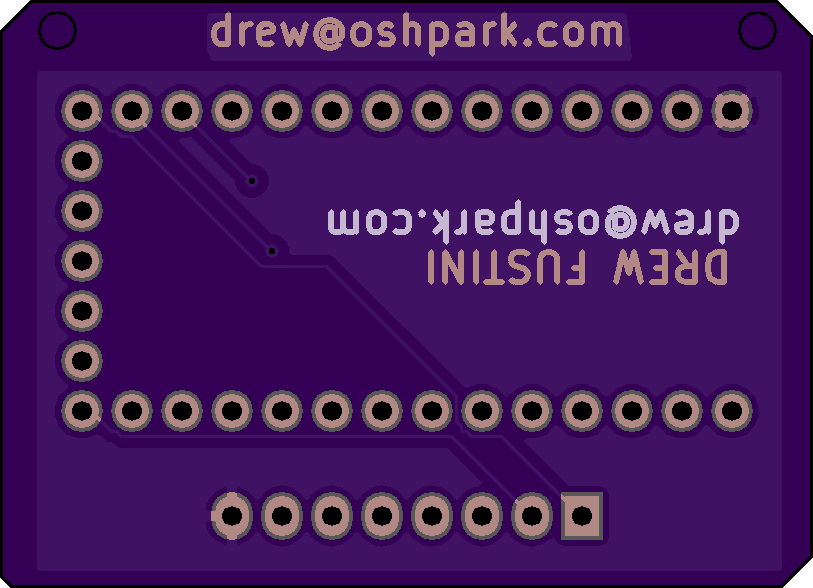

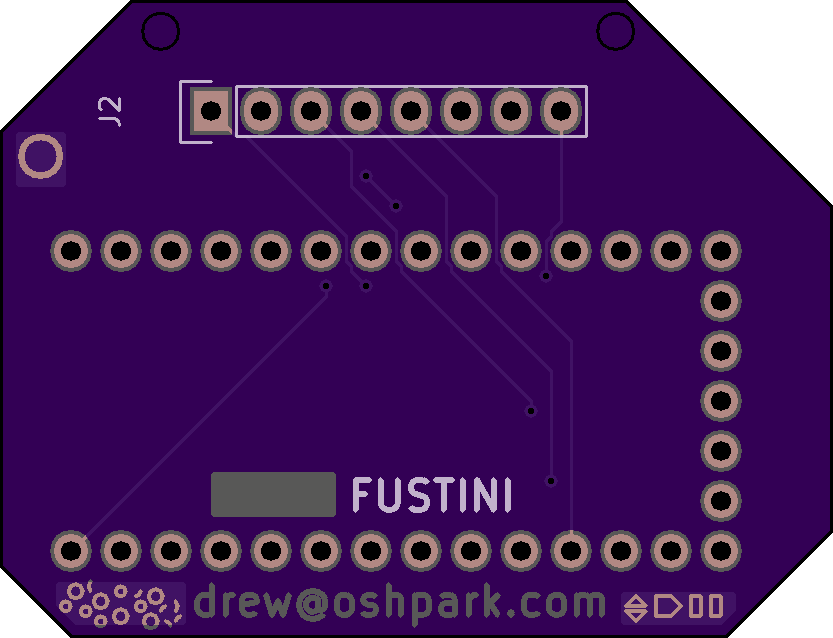

UNTESTED: teensy-badge-v1.kicad_pcb
by
fustini.
2
layer board of
1.67x1.28
inches
(42.32x32.41
mm).
Shared on
May 27th, 2016 21:28.

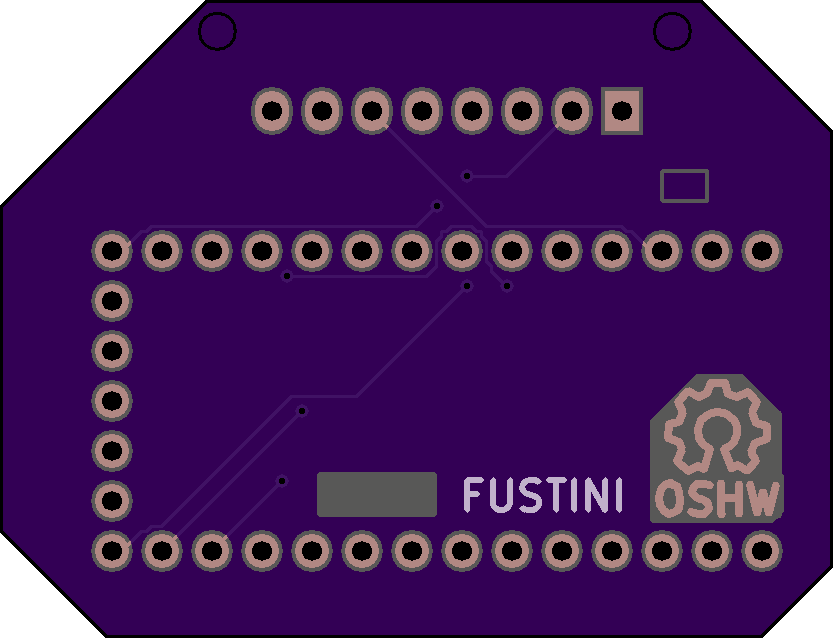

UNTESTED: teensy-badge-v2.kicad_pcb
by
fustini.
2
layer board of
1.63x1.18
inches
(41.30x29.87
mm).
Shared on
May 27th, 2016 21:28.
