Test Shared Project

2 layer board of 2.00x0.51 inches (50.75x13.03 mm).
Shared on July 20th, 2016 19:58.

NOTE: You Can Type Markdown in this box

Photos

Resources

• Hackaday.io
• GitHub

Order board. Download. Permalink. Embed order link.

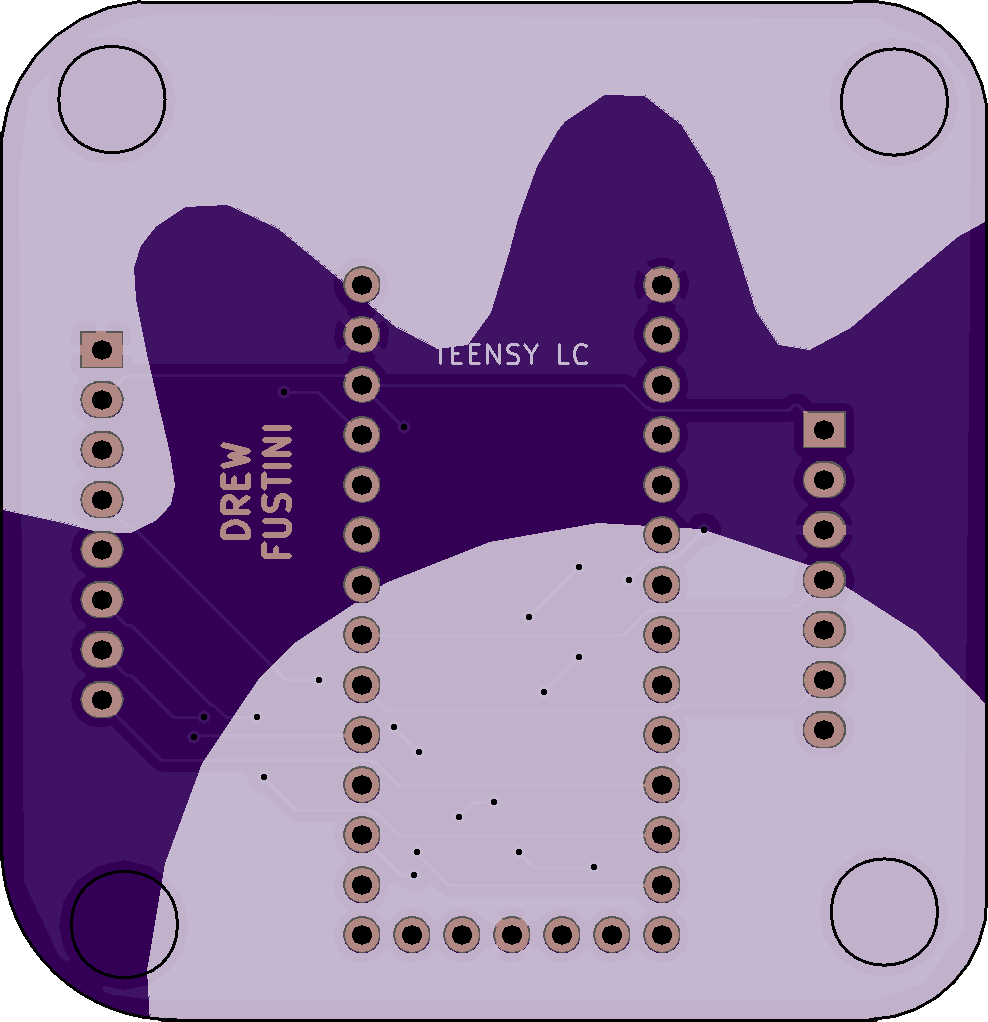

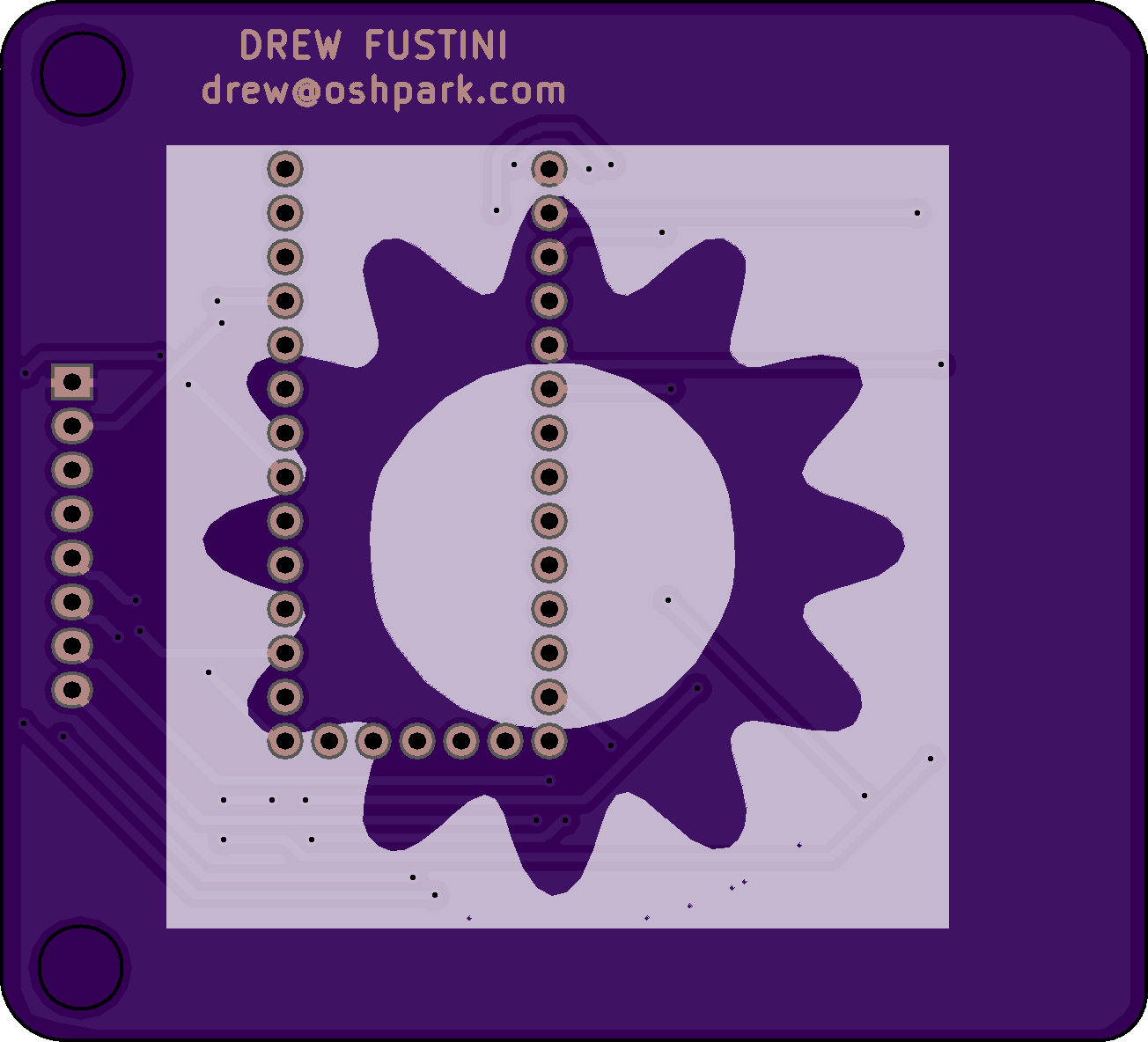

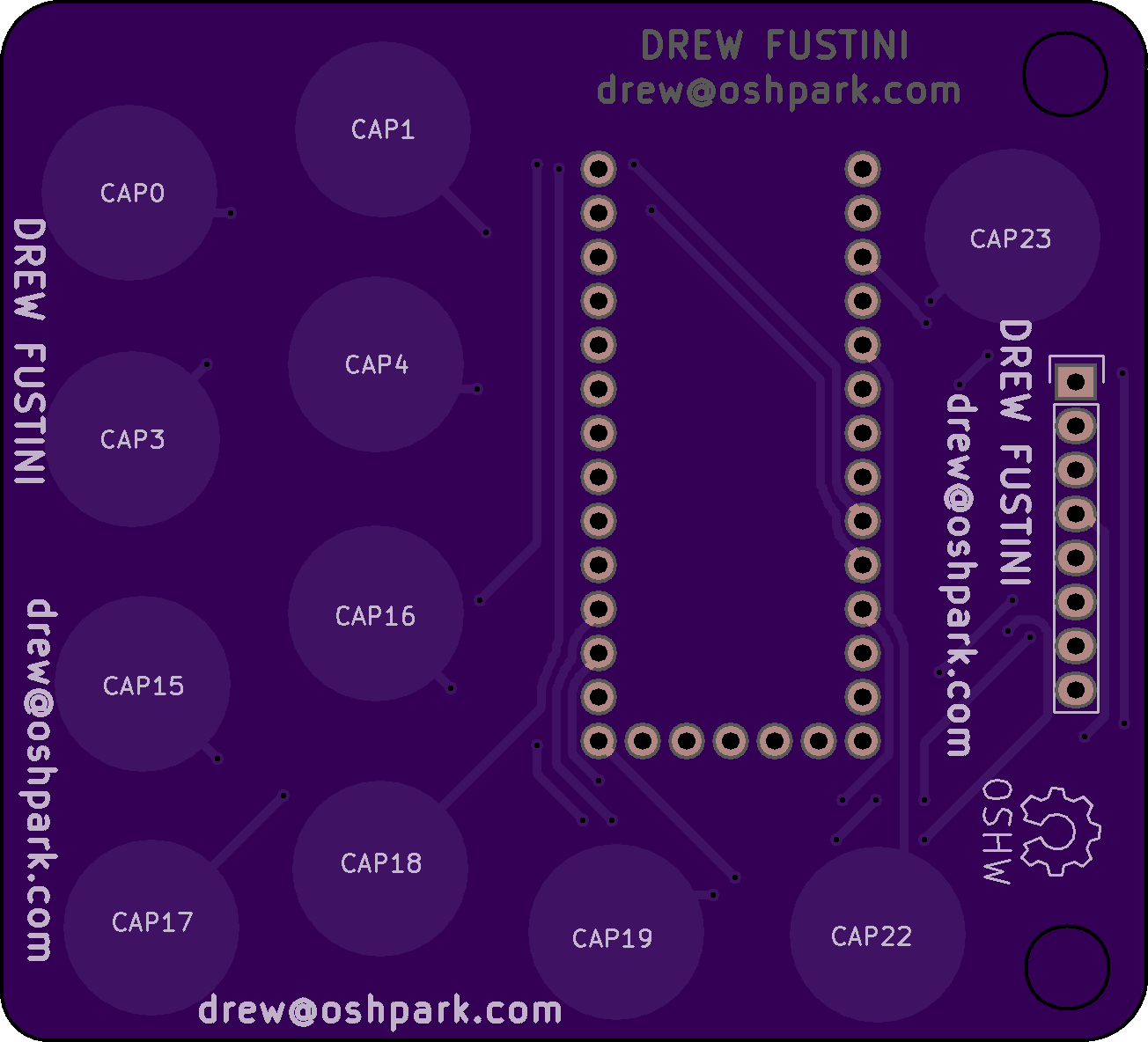

Teensy LC with OLED & Touch [f37453f]

2 layer board of 2.61x2.37 inches (66.27x60.20 mm).
Shared on July 20th, 2016 00:44.

NEWER VERSION: Teensy LC cap touch demo (5fb2f44)

Description

Teensy LC with SPI 128x64 OLED and Cap Touch

Bill of Materials:

• Monochrome 0.96" 128x64 OLED graphic display
• Teensy LC, OSH Park edition

GitHub

• Repo: teensy-big-oled
• File: teensybig-oled.kicad_pcb
• Commit: f37453f

Known Issue:

• OLED GND not connected to GND plane
• Fix: solder wire from OLED GND to TEENSY GND

Order board. Download. Permalink. Embed order link.

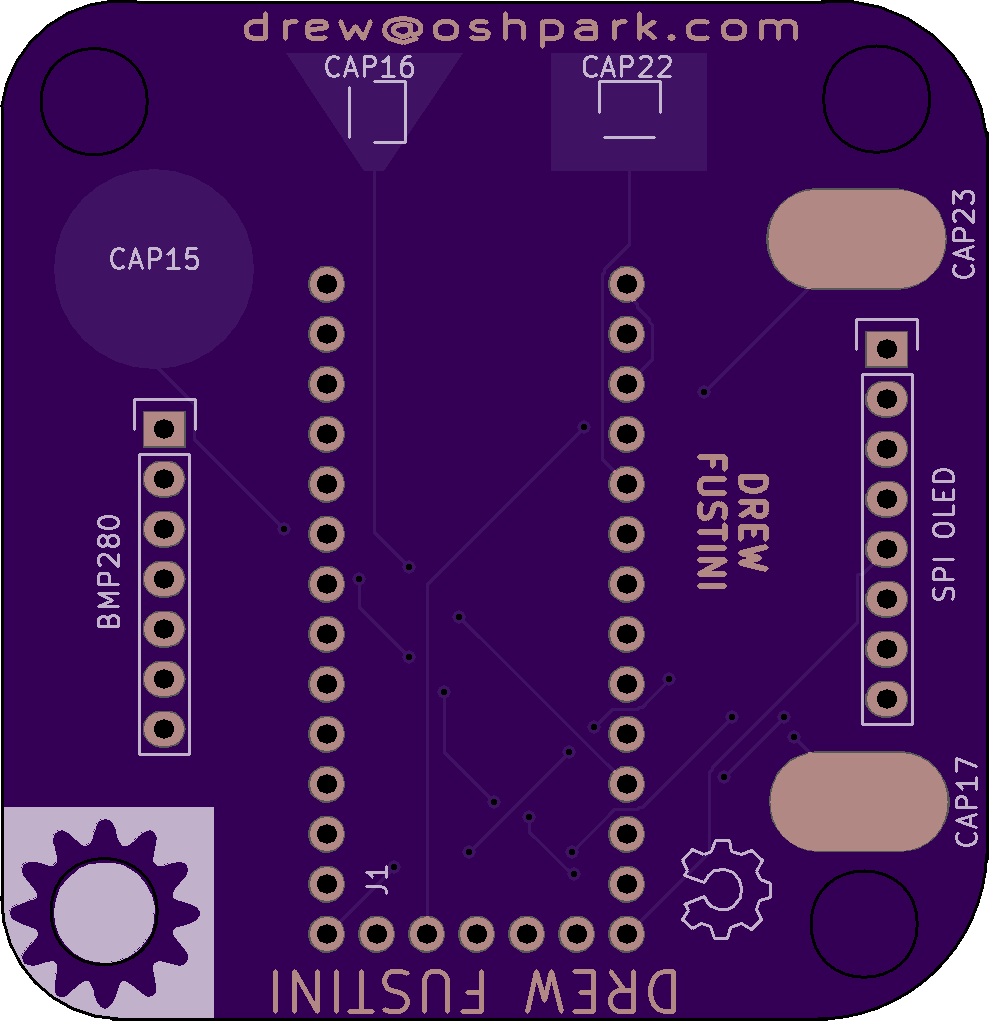

UNTESTED: Teensy LC with BMP280 & OLED [b8410df]

2 layer board of 1.98x2.04 inches (50.19x51.89 mm).
Shared on July 20th, 2016 00:44.

UNTESTED

Description

Teensy LC with BMP280, OLED and cap touch buttons

Bill of Materials

• Teensy LC
• Adafruit 128x64 OLED (SPI)
• Adafruit BMP280 Temp/Pressure sensor (I2C)

GitHub

• Repo: oled-bmp280-touch
• Commit: b8410df
• File: oled-bmp280-touch.kicad_pcb

Order board. Download. Permalink. Embed order link.

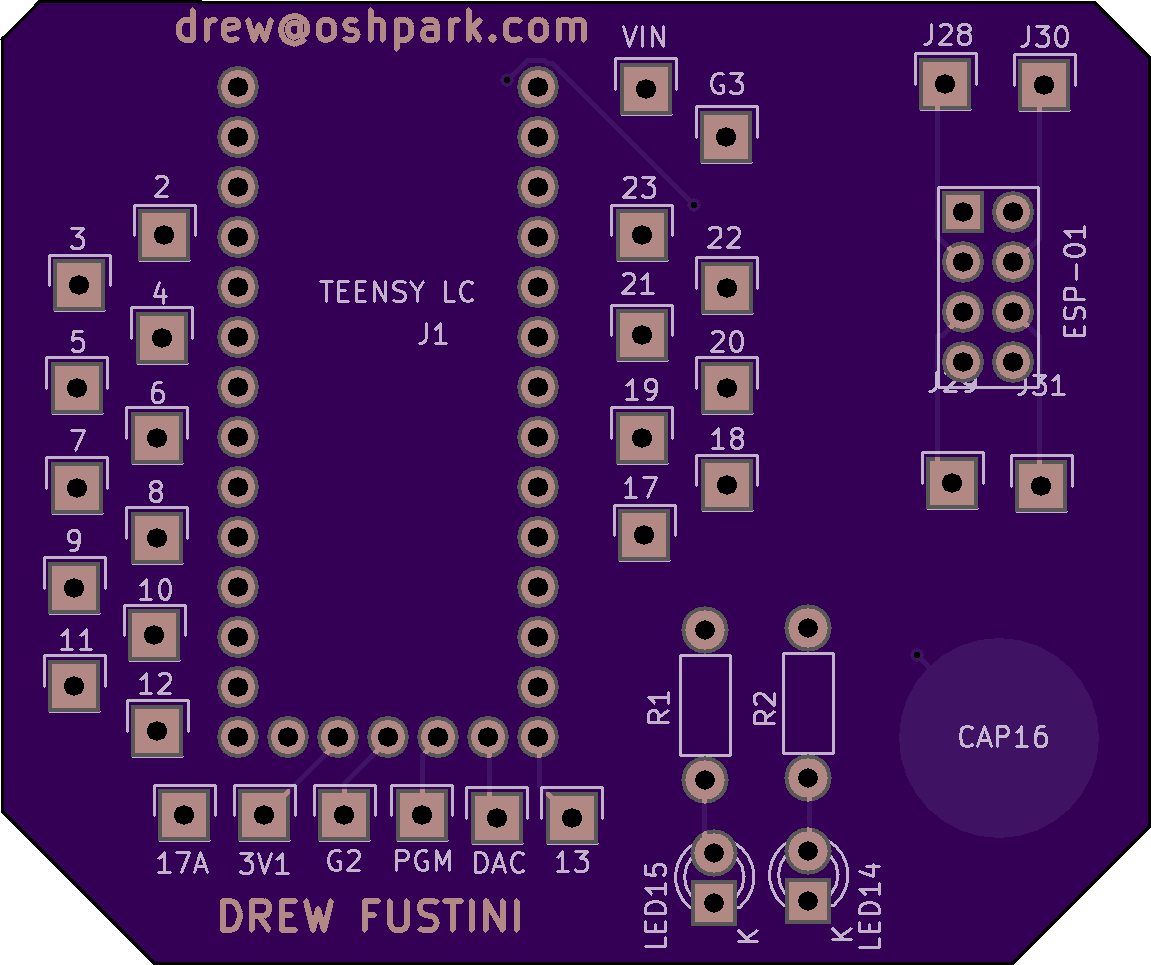

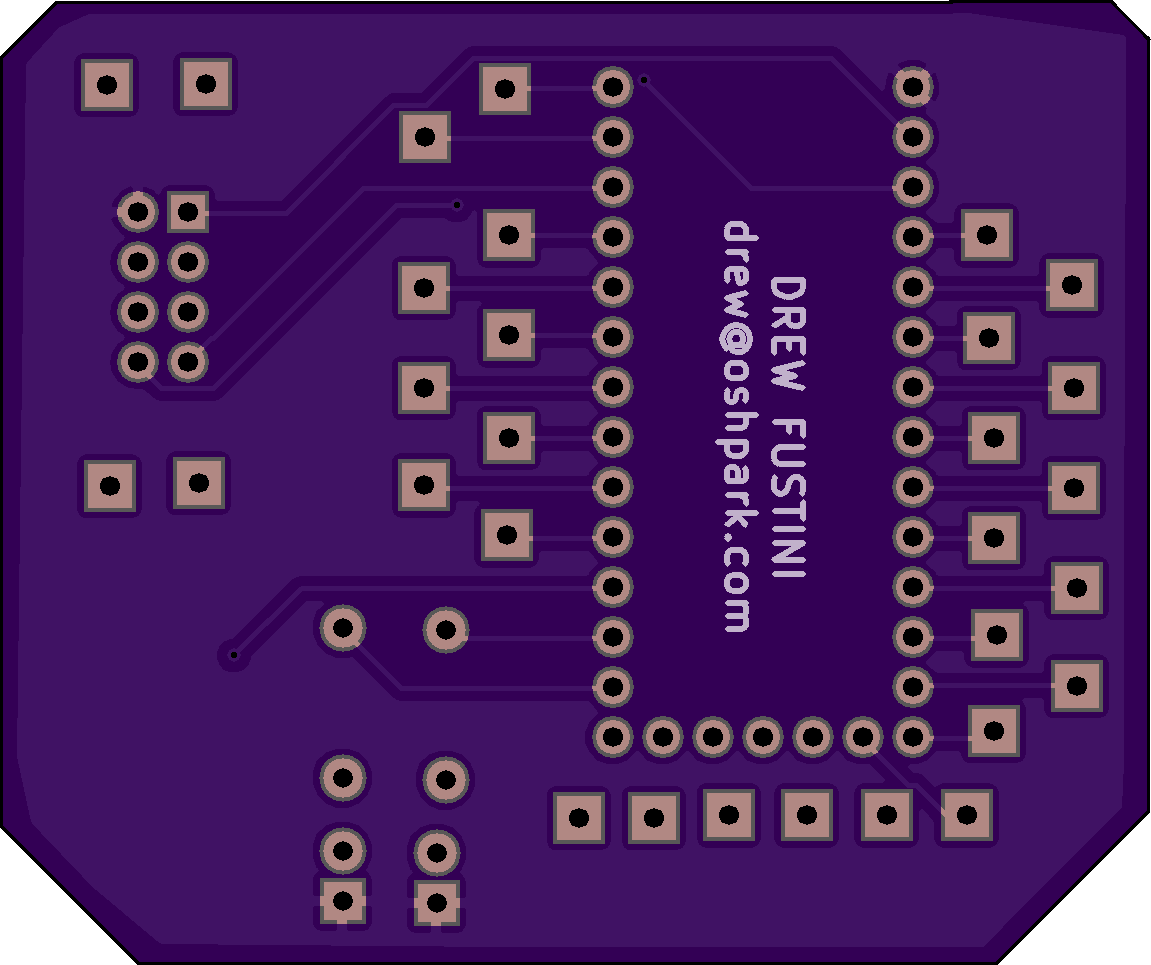

UNTESTED: Teensy LC with ESP-01 [5d10027]

2 layer board of 2.30x1.93 inches (58.47x49.00 mm).
Shared on July 20th, 2016 00:43.

UNTESTED

Description

• Teensy LC with ESP-01 breakout for ESP8266 WiFi SoC

GitHub

• Repo: esp8266-teensy
• File: esp8266-test.kicad_pcb
• Commit: 5d10027

Order board. Download. Permalink. Embed order link.

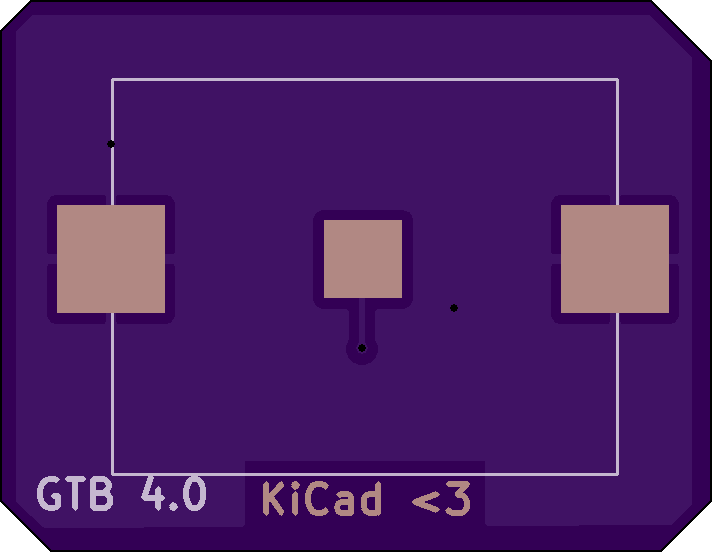

gtb4.kicad_pcb

2 layer board of 1.42x1.10 inches (36.17x28.04 mm).
Shared on July 9th, 2016 06:48.

Getting To Blinky 4.0 https://contextualelectronics.com/learning/getting-to-blinky-4-0/
