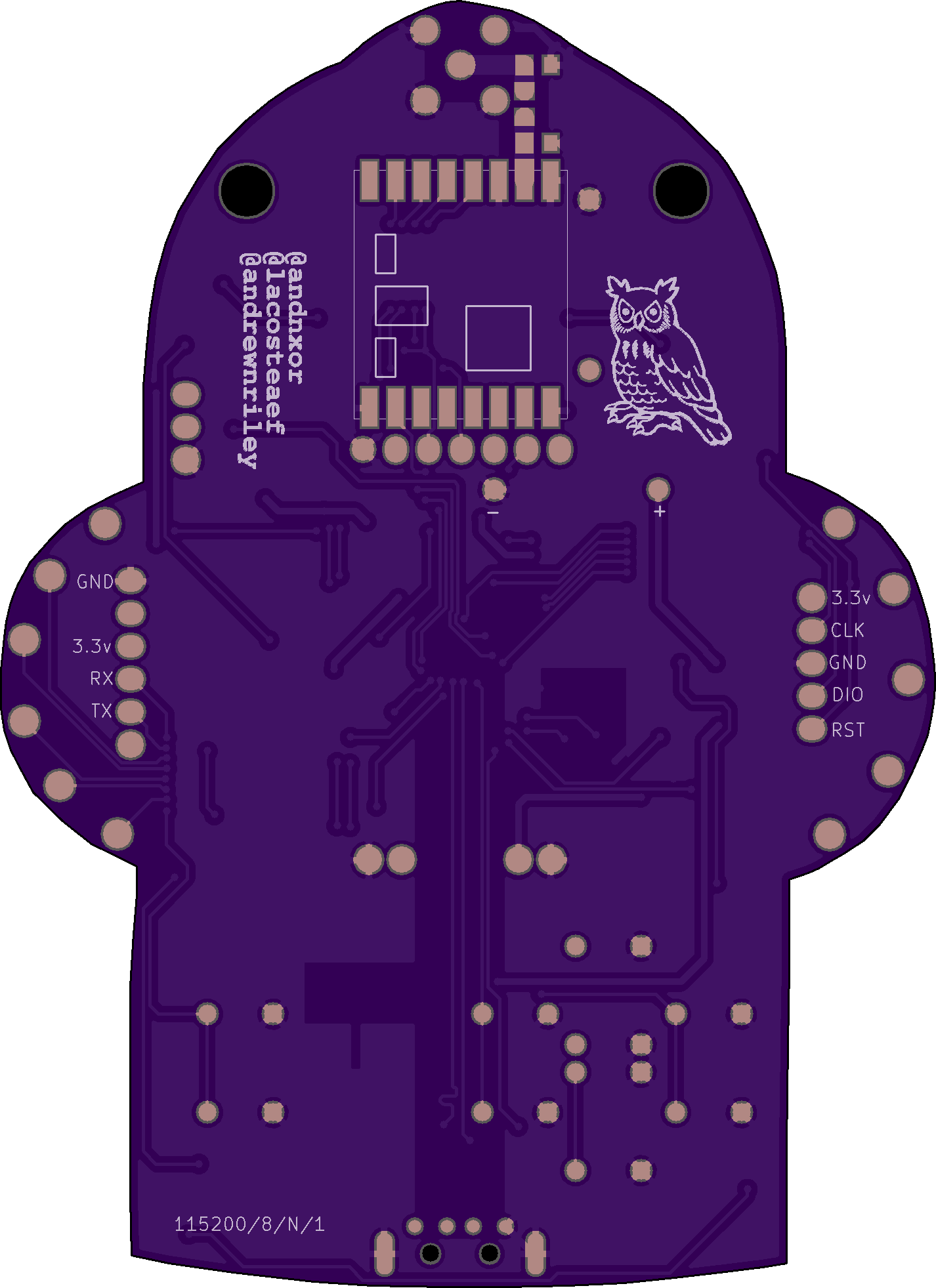

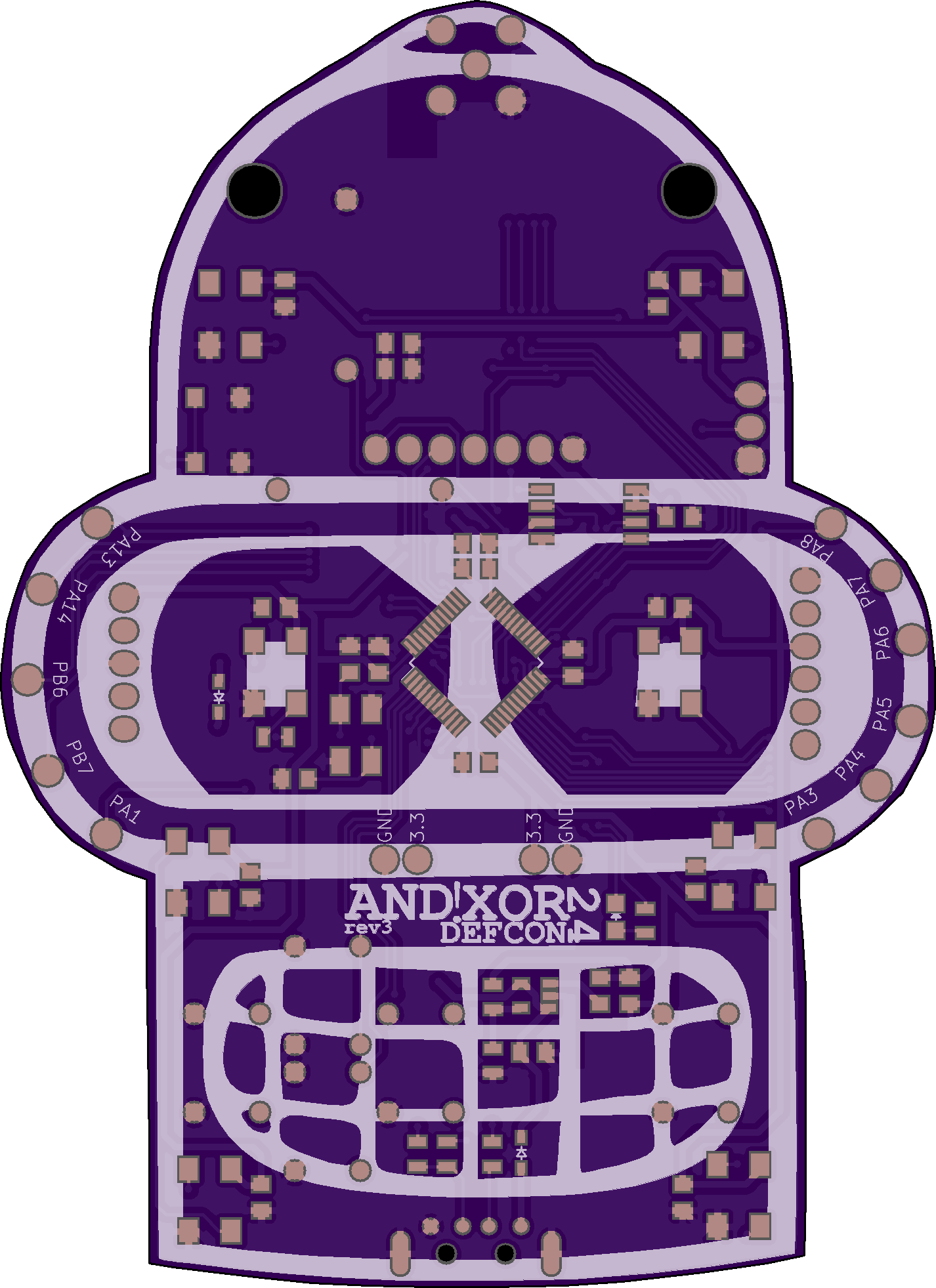

UNTESTED: ANDnXOR_DC24_Badge
by
fustini.
2
layer board of
2.85x3.93
inches
(72.47x99.72
mm).
Shared on
August 9th, 2016 04:16.
UNTESTED
From https://github.com/ANDnXOR/ANDnXOR_DC24_Badge.git

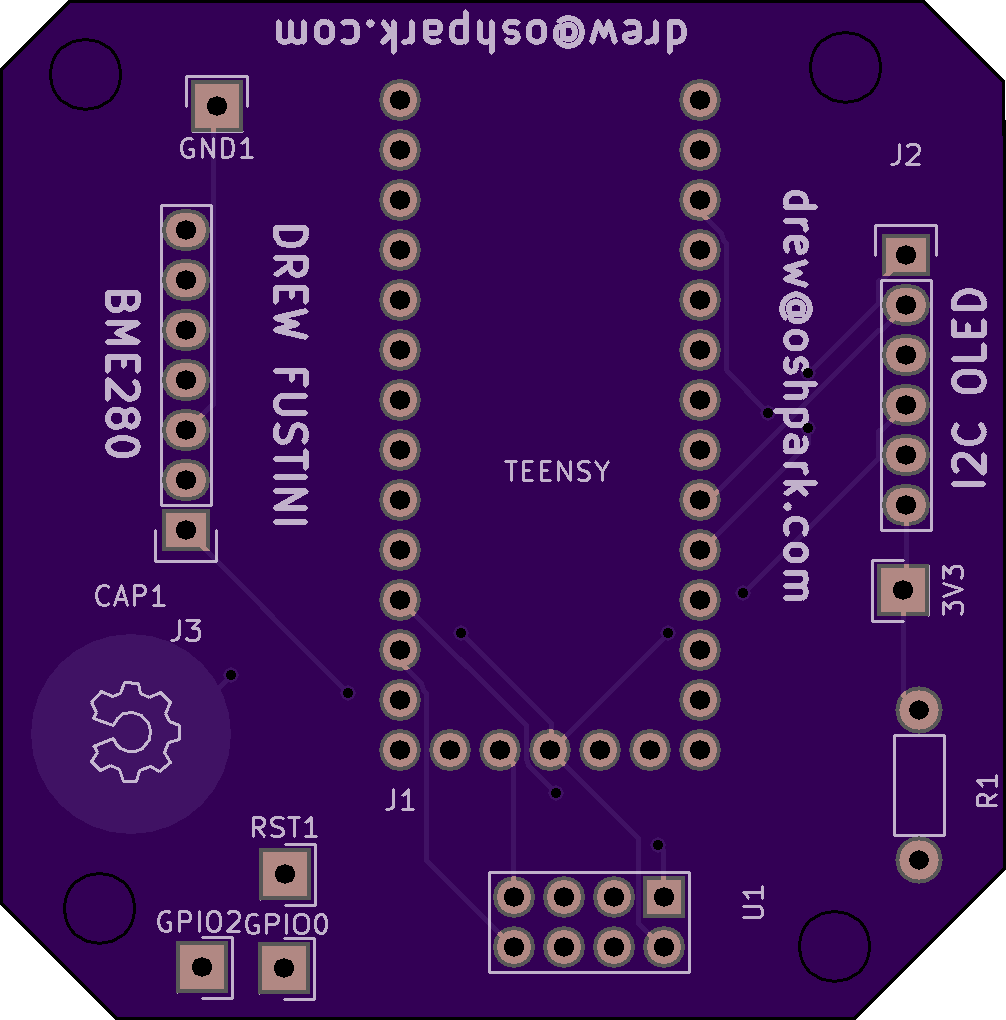

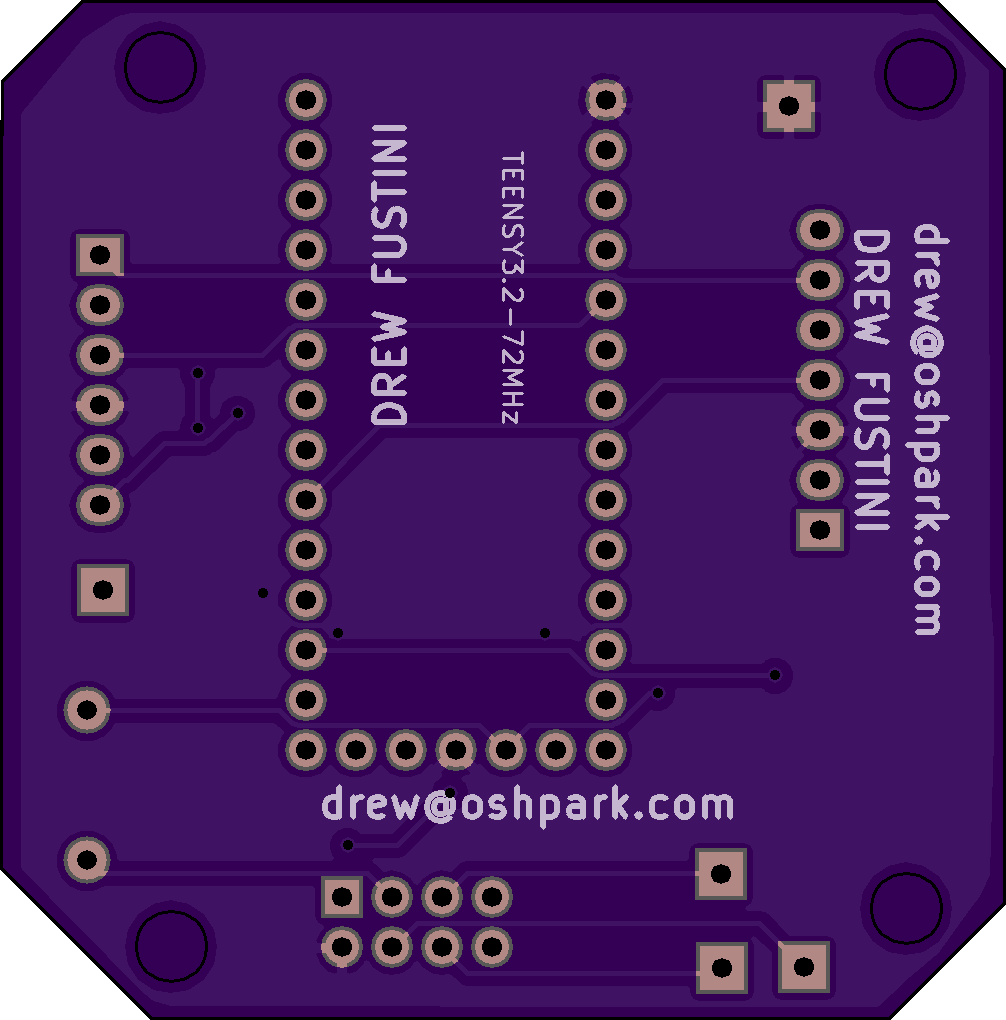

Teensy WiFi Weather Logger
by
fustini.
2
layer board of
2.01x2.04
inches
(51.10x51.82
mm).
Shared on
August 5th, 2016 19:37.
Description

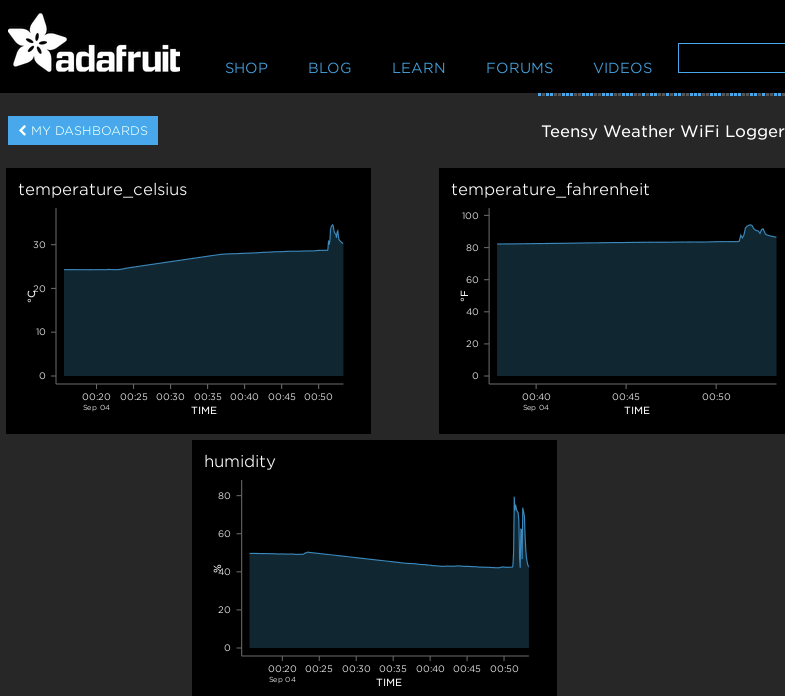

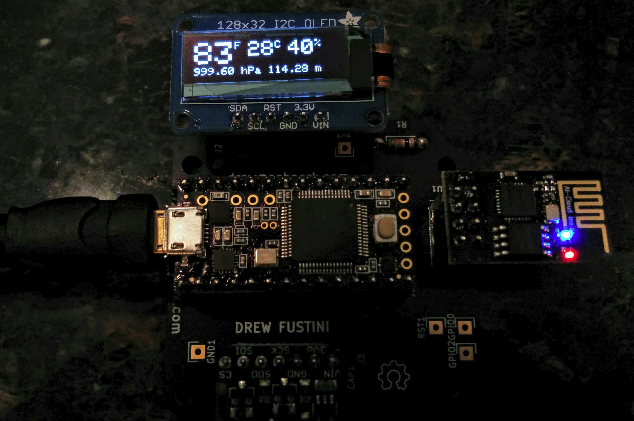

Weather WiFi logging badge with Teensy 3.2, ESP8266, 128x32 OLED and BME280 sensor
Bill of Materials
- Teensy 3.2 (OSH Park Edition)
- ESP-01 module (ESP8266 SoC)
- Adafruit I2C OLED (128x32)
- Adafruit I2C BME280 (temp/hum/press)
- 10K Ohm through-hole resistor
GitHub:
- Repo: teensy-wifi-weather-logger
- File: teensyi2c.kicad_pcb
- Commit: 7003174
Videos:
Data:
Images:
License
This project released under the CERN Open Hardware v1.2 License
Note: teensy-wifi-weather-logger.ino contains code based on:
- Capacitive sensors with the Teensy 3.0
- SSD1306 display code based on example by Paul Stoffregen
- SparkFun ESP8266 AT library - Phant Posting Example by Jim Lindblom @ SparkFun Electronics
Contact
- Drew Fustini <drew@oshpark.com>
drew-osh-card-2016.brd
by
fustini.
2
layer board of
1.93x0.70
inches
(48.95x17.75
mm).
Shared on
August 3rd, 2016 05:22.

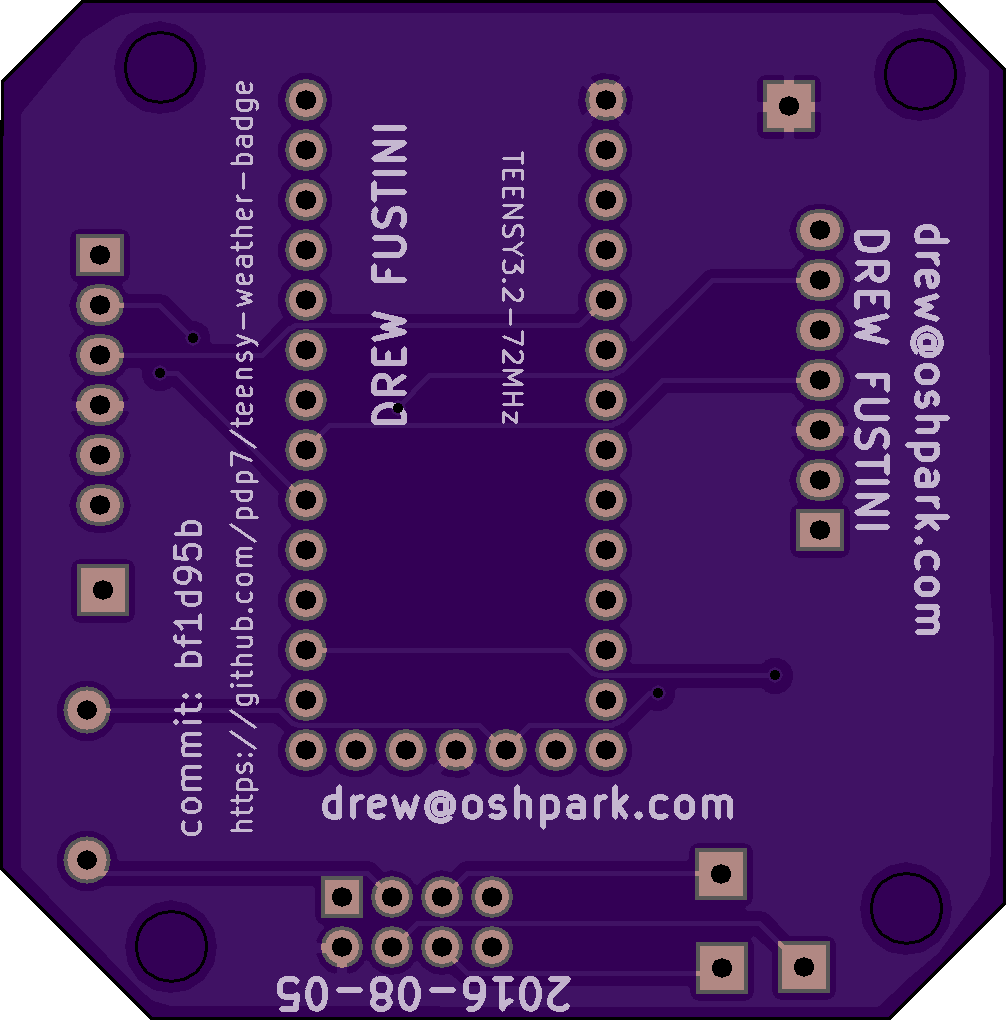

[DO-NOT-USE] teensy-weather-badge with esp8266 [9f42f59]
by
fustini.
2
layer board of
2.01x2.04
inches
(51.10x51.82
mm).
Shared on
August 3rd, 2016 02:58.
DO NOT USE
- CORRECT VERSION:
- KNOWN ISSUE:
- Incorrect I2C bus pins used on Teensy to connect the BME280 and OLED
- Fix requires cutting traces and soldering bodge wires
- Repo: teensy-weather-badge
- Commit: 9f42f59
- File: teensyi2c.kicad_pcb

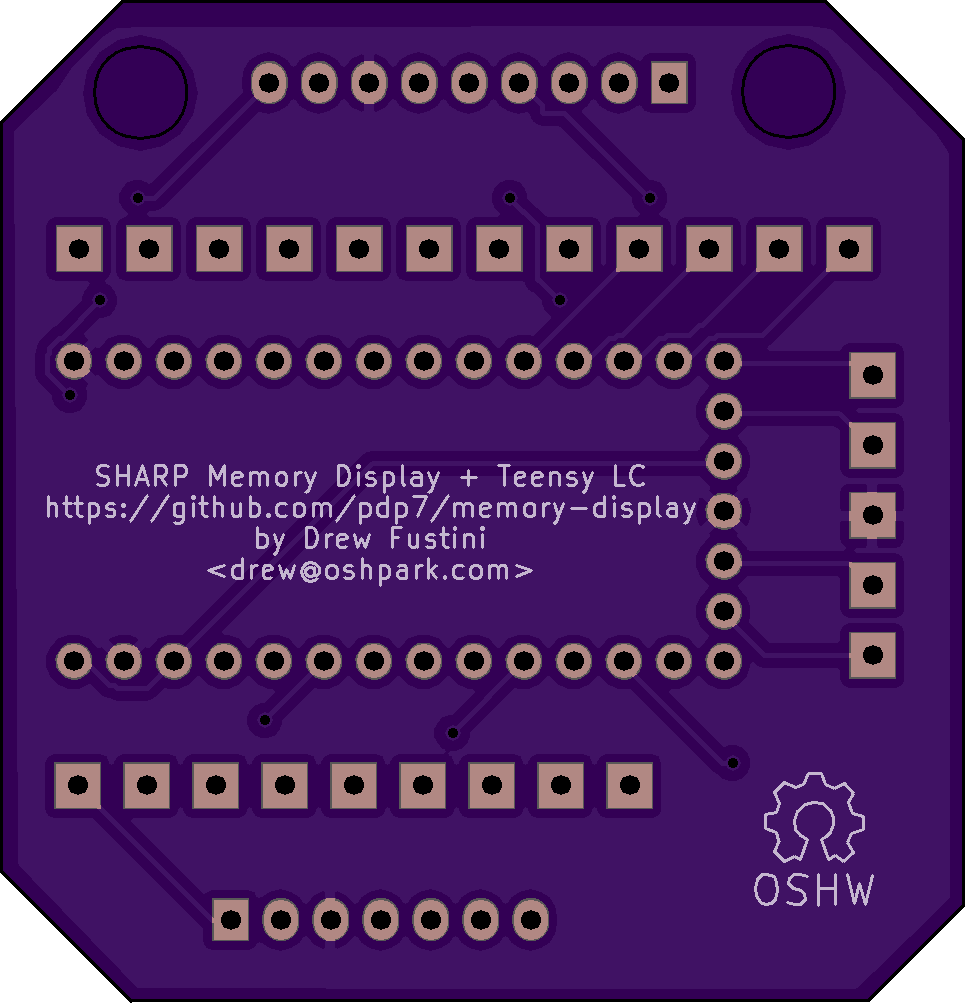

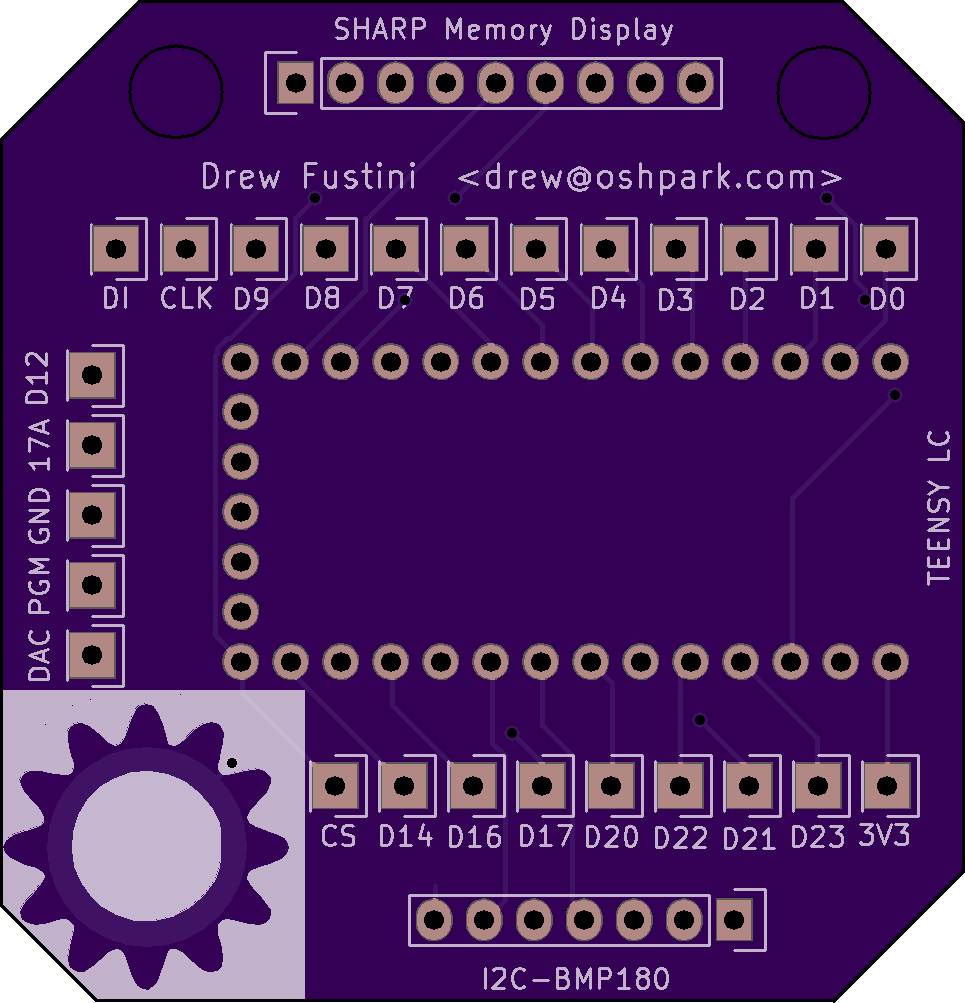

SHARP memory display and Teensy LC [f6cf2c4]
by
fustini.
2
layer board of
1.93x2.01
inches
(49.02x50.95
mm).
Shared on
July 27th, 2016 22:09.
Description
Test board for SHARP memory display and Teensy LC
Blog
GitHub
- Repo: memory-display
- File: memory-display.kicad_pcb
- Commit: f6cf2c4
Bill of Materials
Video
Photos
License
This project released under the CERN Open Hardware v1.2 License
Note: memory-display.ino based on library code and example code from Adafruit Industries
Contact
- Drew Fustini <drew@oshpark.com>
